HUANI ELECTRONIC WI-061 Super Charger User Manual
Function description
- This product has three functions: travel charging + mobile power supply + wireless charging;
- Suitable for USB devices such as apple phones, tablets and android phones;
- Type-C input PD18W and output PD20W ;Single-use Type-C output PD20W and convert to5V mode with maximum power of 5V/3A when USB1/2 or wireless charging is used together;
- Type-C PD: support protocol PD2.0, PD3.0, QC2.0, QC3.0, AFC, FCP, SFCP, PPS.
- USB1 support protocol QC2.0, QC3.0, FCP, SFCP, SCP, VOOC, 5V/3.6A 9V/2A(18W).
- USB2 output: support protocol QC2.0, QC3.0, AFC, FCP, SFCP, output:5V/2.4A,9V/2A。18W
- Qi-Wireless Output 5W/7.5W/10W/15W。The wireless charging function can only be realized when charging with an adapter.
- Samsung’s private protocol is 10W, Apple’s subscription is 7.5W, and the wireless charger is launched to ensure that the device is equipped with QI wireless reception function or wireless reception.
- QI wireless charging indicator: the blue light of QI wireless charging and the green light of standby turn on;
- Electric quantity display: display electric quantity from 0 to 100;
- Power button: single press to start the power, long press to shut down, and automatically shut down after no load for 30 seconds;
- AC plug: the plug can be changed in different countries.
- Travel charge mode 5V/3A, charging time 3 hours;
- Support charging and discharging: part of the current is charged to the mobile phone,part of the current is charged to the power supply, intelligent shunting.

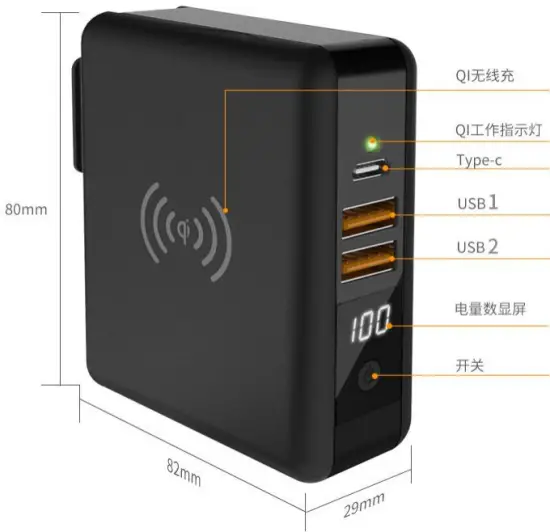

Product picture
Performance parameter
Electrical Performance
Input characteristics
Designation | Parameter | Remarks |
| AC input voltage | AC 100-240V ±5% | |
| AC input current | 0.5A(MAX) | |
| Type-C input | 4.80~5.10V/3.0A 15W(MAX) 8.75~9.10V/2.0A PD18W(MAX) 11.75~12.30V/1.5A PD18W(MAX) | Test the input and output of PD18W, the test line must be above 3A, with line compensation 0.3v charger |
| Battery capacity | 10000mAh ±5% 3.63V 9500mAh 21700~5000*2 | 2.5V |
| Input frequency range | 47~63HZ | |
| Input No-load power consumption | 0.2W(MAX) |
Output characteristics
| Output interface | Output voltage | Load current | (%) Regulation of error | (W) Output power | ||||
| MIN | STANDARD | MAX | No-lo ad | On load | ||||
| Tpye-C PD | 4.75-5.10 | 2.30 | 2.40 | 3.00 | ±5% | ±5% | 12 | PD2.0,PD3.0, QC2.0,QC3.0, AFC,FCP,SFCP ,PPS |
| 8.90-9.30 | 1.80 | 2.22 | 2.23 | ±5% | ±5% | 20 | ||
| 11.75-12.3 | 1.65 | 1.67 | 1.68 | ±5% | ±5% | 20 | ||
| USB2 | 4.80-5.20 | 2.20 | 2.40 | 2.50 | ±5% | ±5% | 12 | QC2.0,QC3.0, FCP,SFCP,SCP ,VOOC |
| 8.80-9.30 | 1.80 | 1.90 | 2.00 | ±5% | ±5% | 18 | ||
| 11.75-12.3 | 1.45 | 1.50 | 1.52 | ±5% | ±5% | 18 | ||
| USB1 | 4.75-5.10 | 2.8A | 3 | 3.6 | ±5% | ±5% | 18 | QC2.0,QC3.0, AFC,FCP,SFCP |
| 8.90-9.30 | 1.8A | 2 | 2.2 | ±5% | ±5% | 18 | ||
| 11.75-12.3 | 1.45 | 1.50 | 1.52 | ±5% | ±5% | 18 | ||
| Tpye-C PD USB 1/2 | 5 | 3 | 3 | 3.6 | ±5% | ±5% | 18 | |
AC
| Output voltage | Load current | Regulation of error | Output | ||||||
| MIN | STANDARD | MAX | No-load | On load | power | ||||
| Type-C：4.80~5.15V | 2.5 | 3.0 | 3.0 | ±5% | ±5% | 15 | |||
| USB1: 4.75~5.15V | 2.5 | 3.0 | 3.0 | ±5% | ±5% | 15 | |||
| USB2: 4.75~5.15V | 2.5 | 3.0 | 3.0 | ±5% | ±5% | 15 | |||
| QI (wireless charge): 4.80~5.05V | 0.8 | 1.0 | 1.1 | ±5% | ±5% | 5 | |||
| Type-C USB1/2 QI | 2.8 | 3.0 | 3.1 | ±5% | ±5% | 15 | |||
Product features and protection functions
Designation | Min | Typ | Max | Description |
| Converting efficiency | 65% | 85% | 90% | The test under 100%，75%，25% Load. |
| Open circuit protection | – | – | – | The power supply will not be damaged when the output load is open. |
| Short-circuit protection | – | – | – | The power supply will not be damaged when the output positive and negative short circuits. |
| Over-voltage protection | – | – | – | The power supply will protect the output electrical equipment when the output voltage is too high due to fault. |
| Wireless charging efficiency | 68% | 70% | 78% | Use EC3016 to receive the test with a load of 10W, test distance within 6mm of transmitter and receiver coil. |
| Output: over-current protection | 3.1A | 3.2A | 3.3A | Output of Type-C 、 USB-A and wireless charging in parallel. |
| FOD protection | – | – | – | Metal placement of the launcher causes foreign body protection . |
| Output soft protection | 5mS | 10mS | 15mS | The rising time of output voltage from low to high can reduce the impact on the electrical equipment and protect the electrical equipment. |
Safety and reliability
| Parameter items | Condition | Min | Typ | Max | Unit | Remarks |
| Standard of security | – | – | – | – | – | – |
| Traverse swing test | – | – | – | – | – | – |
| Voltage resistance (primary and secondary) | 5mA | – | 3000 | 3500 | Vac | 0.5-2.0S |
| Leak current | – | – | – | 0.25 | mA | 240V |
| Insulation resistance (primary and secondary) | DC500V | 50 | – | – | MΩ | Input to output |
| Load enclosure temperature | Rated input voltage | – | – | 75 | ºC | Ambient temperature 25ºC ,Full load |
| No load shell temperature rises | Rated input voltage | 15 | ºC | No load | ||
| Reliability | MTBF | 10000 | – | – | Hour | Used under normal conditions |
Environmental characteristics
Parameter items | Condition | Min | Typ | Max | Unit | Remarks |
| Temperature | Running temperature | 45 | 55 | 80 | ºC | |
| Storage temperature | -20 | – | 80 | ºC | ||
| Humidity | Running humidity | 20 | – | 80 | % | No condensation |
| Storage humidity | 5 | – | 95 | % |
FCC Warning Statement
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference, and
- this device must accept any interference recei ved, including interference that may cause undesired operation.
DESCRIPTION: Super charger_____________
OUR MODEL NO: WI-061________________
SAMPLE COLOR: Black__________________
CUSTOMER MODEL: __________________
Please return a copy after confirming the signature.
If you have any questions, please inform us in time. Thank you very much!
B301, Plant 1, Jinkaijin Factory, Shilong Community, Shiyan Street,
Baoan District, Shenzhen
(phone): 0755-36915379
(true): 0755-28197104
(Web site): www.eason09.1688.com
