Ufesa Ce7240 Espresso Machine Instruction Manual

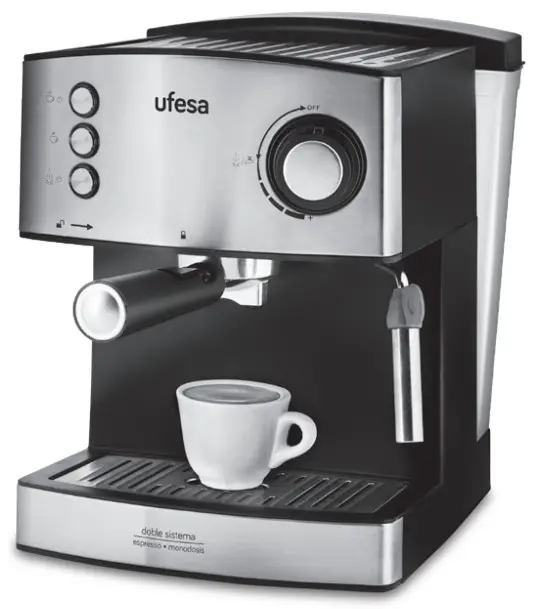

CE7240 Espresso Machine
Instruction Manualcafetera expresso
CE7240

CE7240 Espresso Machine

WE WOULD LIKE TO THANK YOU FOR CHOOSING UFESA; WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE.

WARNING
PLEASE READ THE INSTRUCTIONS FOR USE CAREFULLY PRIOR TO USING THE PRODUCT. STORE THESE IN A SAFE PLACE FOR FUTURE REFERENCE.

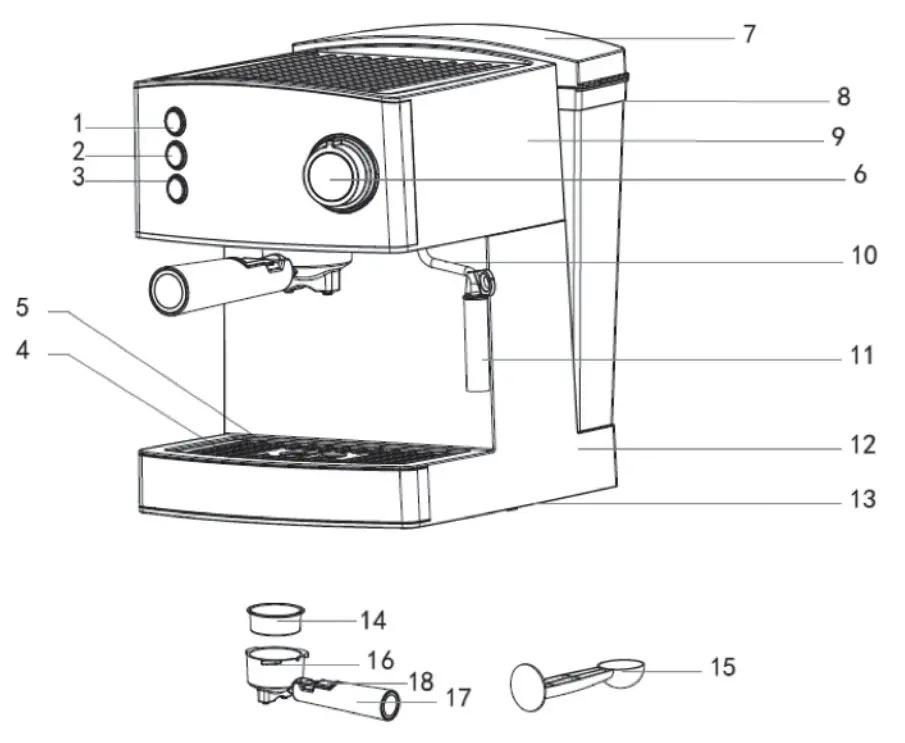

DESCRIPTION

1. Coffee +ON/OFF
2. Coffee/hot water selector
3. Steam +switch
4. Drip tray
5. Removable shelf
6. Steam control knob
7. Water tank cover
8. Water tank
9. Top cover
10.  Steam wand
11. Froth device
12. Main body
13. Bottom cover
14. Stainless Steel mesh
15. Measuring spoon and tamper
16. Metal funnel
17.  Funnel handle
18. Press bar (press steel mesh with it when pour coffee residue to avoid its slipping out)

SAFETY INSTRUCTIONS

If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if  they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.
Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or  instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
This appliance is intended to be used in household. It is not intended to be used in applications such as:
-staff kitchen areas in shops, offices and other working environments;
-farm houses;
-by clients in hotels, motels and other residential type environments;
-bed and breakfast type environments.
Proceed according to maintenance and cleaning section of this manual for cleaning.
Never immerse the appliance in water or any other liquid.
During brewing and after use due to residual heat some parts of the machine are hot.
Warning: potential injury from misuse!

IMPORTANT WARNINGS
Any incorrect use or improper handling of the product shall render the warranty null and void.
Prior to plugging in the product, check that your mains voltage is the same as the one indicated on the product label.
The mains connection cable must not be tangled or wrapped around the product during use.
Do not use the device, or connect and disconnect to the supply mains with the hands and / or feet wet.
Do not pull on the connection cord in order to unplug it or use it as a handle
Never use your coffee machine without water in it.
Unplug the product immediately from the mains in the event of any breakdown or damage and contact an official technical support service. In order to prevent any risk of  danger, do not open the device. Only qualified technical personnel from the brand´s Official technical support service may carry out repairs or procedures on the device.
B&B TRENDS SL. disclaims all liability for damages that may occur to people, animals or objects, for the non-observance of these warnings.

INSTRUCTIONS FOR USE

Before use
Make sure that all the product’s packaging has been removed.
Before making coffee for the first time, we recommend using the coffee maker twice with water only, in order to clean the system.
Filling with water
The deposit must be filled with water before turning the appliance on.
Lift the lid
Fill the compartment with cold water.
Fill the tank observing the MAX and MIN levels Close the lid.
PRE-HEATING
To make a cup of good hot Espresso coffee, we recommend you preheating the appliance before making coffee, including the funnel, filter and cup, so that the coffee flavour  can not be influenced by the cold parts.
Remove the detachable tank and open the tank cover to fill it with desired water, the water level should not exceed the “MAX” mark in the tank. Then place the tank into the appliance properly.
Select the one-cup or two–cup mesh, set stainless steel mesh into metal funnel, pull the press bar backward, make sure the tube on the funnel aligns with groove in the  appliance, then insert the funnel into the appliance from the “Insert” position and release the press bar, and you can fix them into coffee maker firmly through turn it  anticlockwise until it is at the “lock” position. (Fig. 1).
Place an espresso cup on removable shelf.
Then connecting the appliance to power supply source, make sure the steam control knob is on the “OFF” or “0” position.
Press the “Coffee+ON/OFF” switch, the “Coffee +ON/OFF” indication lamp flashing. Then wait until the indicator light keeps on. Press the “Coffee/hot water selector”,  there is water flowing out, close the pump (pressing coffee/hot water selector button) immediately. The purpose of the step is that pump the water of the tank into the housing.
When the “Coffee +ON/OFF” indicator light keeps on, you should press the “Coffee/hot water selector” button, there will be hot water flowing out. When the “Coffee  +ON/OFF” indicator light flashing, close the pump. The pre-heating was finished.
MAKE ESPRESSO COFFEE

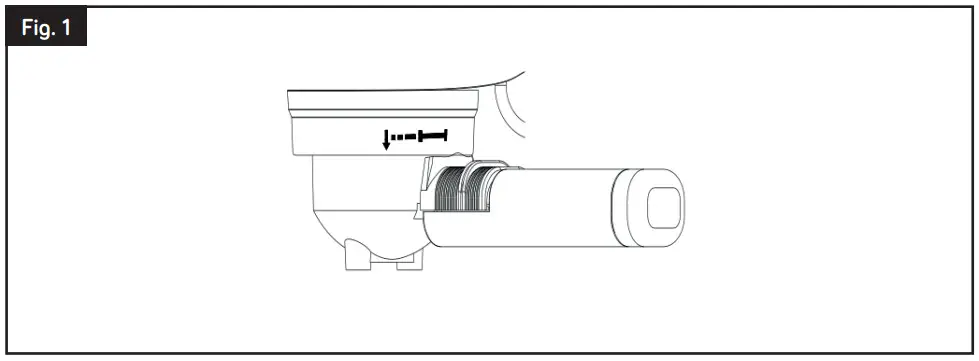

Remove the funnel by turning it in clockwise, .Add ground coffee to steel mesh with measuring spoon, a spoon ground coffee power can make about a cup of top-grade  coffee, then press the ground coffee powder tightly with the tamper.
Set steel mesh into metal funnel, pull the press bar backward, make sure the tube on the funnel aligns with groove in the appliance, then insert the funnel into the appliance from the “Insert” position and release the press bar, and you can fix them into coffee maker firmly through turn it anticlockwise until it is at the “lock” position. (Fig. 1).
Pour out the hot water in the cup. Then place the hot cup on removable shelf.
At the time, the green lamp is illuminated, if the green lamp is extinguished, wait for a moment, once the green lamp is illuminated, and you should press the coffee/hot water  selector on the “1” position, waiting for a moment, there will be coffee flowing out.
Note: During operation, if the green indicator is extinguished, you must close the pump and stop to make espresso coffee. After a few seconds, if the green lamp is  illuminated again, you can make espresso coffee continued by pressing coffee/hot water selector to “1” position, the green lamp is cycle ON and OFF to maintain the water  temperature is hot enough.
You should press coffee/hot water selector to “0” position manually when desired coffee is obtained or the colour of coffee changes weak obviously, the red and green  indicator go out and the coffee maker stops working, your coffee is ready now.
WARNING: Do not leave the coffee maker unattended during making the coffee, as you need operate manually sometimes!
After finishing making the coffee, you can take the metal funnel out through turn anticlockwise, and then pour the coffee residue out with the steel mesh pressed by press bar.
Let them cool down completely, then rinse under running water.

FROTHING MILK/ MAKING CAPPUCCINO
You get a cup of cappuccino when you top up a cup of espresso with frothing milk.
Method:
Prepare espresso first with container big enough according to the part “MAKE ESPRESSO COFFEE”, make sure that the steam control knob is at the “OFF” or “0” position.
Press steam+switch button, wait for a moment, until the steam+switch indication light change from flashing from to keeps on.
Note: During operation, if the green indicator is extinguished, you should turn the steam control knob to “OFF” or “0” position. Press coffee/hot water selector to the “1”  position and pump water, after about 30s, close the pump coffee/hot water selector to the “0” position), then wait for until the green indicator is illuminated and turn the  steam control knob in anticlockwise, the steam will come out again.
Fill a jug with about 100 grams of milk for each cappuccino to be prepared, you are recommended to use whole milk at refrigerator or room temperature (not hot!).
Note: In choosing the size of jug, it is recommend the diameter is not less than 70±5mm, and bear in mind that the milk increases in volume by 2 times, make sure the height of jug is enough.
Turn the steam control knob slowly in anti-clockwise, steam will come out from the frothing device.
Note: Never turn the steam control button rapidly, as the steam will accumulate rapidly in short time which may increase the potential of the risk of explosion.
Insert the frothing device into the milk about two centimetre, froth milk in the way moving vessel round from up to down.
When the required purpose is reached, you can turn the steam control knob to “OFF” or “0” position.
Note: Clean steam outlet with wet sponge immediately after steam stops generating, but care not to hurt!
Pour the frothed milk into the espresso prepared; now the cappuccino is ready. Sweeten to taste and if desired, sprinkle the froth with a little cocoa powder.
Press the ON/OFF switch to the “0” position to cut the power source off.
Note: we recommend you allow the maker to cool down at least for 5 min before making coffee again.
Otherwise burnt odor may occur in your Espresso coffee.

MAKING HOT WATER:

1. With this function, you can pre-heat your coffee cup to ensure that the temperature of the coffee will not decrease. So as to improve the coffee flavor.
2. Clean your coffee cup. After drinking coffee, you can directly make hot water with this coffee maker to clean the cups. This makes it more simple and convenient to clean the cups.

Methods:

1. Press the On/Off switch to the “1” position; the Steam switch to “0” position, Coffee/hot water selector to “0” position. The red lamp will be illuminated; waiting for a  moment, the green lamp will be illuminated.
2. First, turn the steam control knob from “OFF” to “0” position in anti-clockwise. (Turn the knob with at least 135 degree.) Then press coffee/hot water selector to “1”  position, and hot water will flow out from the steam wand.
   Note: At first the hot water will scatter from the steam wand. May let the steam wand outlet close to the coffee cup wall. Thus at this moment, you need to pay attention to  the protection of hot water splash burns skin.

PRODUCING STEAM TO HEAT LIQUIDS
The steam wand (without the frothing device) can be used to make hot beverages like drinking chocolate, water or tea.
Method:
Open the tank cover, remove the detachable tank and fill it with desired water, the water level should not exceed the “MAX” mark in the tank. Then place the tank into the appliance properly.
Replace the tank, then connecting the appliance to power supply source.
Press the ON/OFF switch to the “1” position, the red lamp is illuminated.
Turn the steam control knob to “OFF” or “0” position, make the coffee/hot water selector on the “1” position, the pump will pump water, when there is water flowing out,  close the pump (coffee/hot water selector to the “0” position) immediately, pressing the steam selector to the “1” position and waiting for a moment, the appliance begins to  be heated until the green lamp is illuminated, it shows the heating is finish.
Remove the frothing device from the steam wand.
Dip the steam wand into the liquid to be heated. Turn the steam control knob in anti-clockwise slowly to start making steam.
When the required temperature is reached, you can turn the steam control knob to “OFF” or “0” position.
Press the ON/OFF switch to the “0” position to cut the power source off.

MAINTENANCE AND CLEANING

1. Do not forget to remove the plug from the socket before cleaning the appliance.
2. Wipe outside with soft dry cloth when coffee machine is wet, never use metal polish.
3. The removable items should be washed in hot soapy water. Rinse them before fixing.
4. Detach the metal funnel through turn it anticlockwise, get rid of coffee residue inside, then you can clean it with cleanser, but at last you must rinse with clear water.
5. Never use a dishwasher to clean any parts from the machine.
6. Put the coffee maker in a dry and not very hot place.

PRODUCT DISPOSAL

This product complies with European Directive 2012/19/EU on electrical and electronic devices, known as WEEE (Waste Electrical and Electronic Equipment), provides  the legal framework applicable in the European Union for the disposal and reuse of waste electronic and electrical devices. Do not dispose of this product in the bin, instead  going to the electrical and electronic waste collection centre closest to your home.
