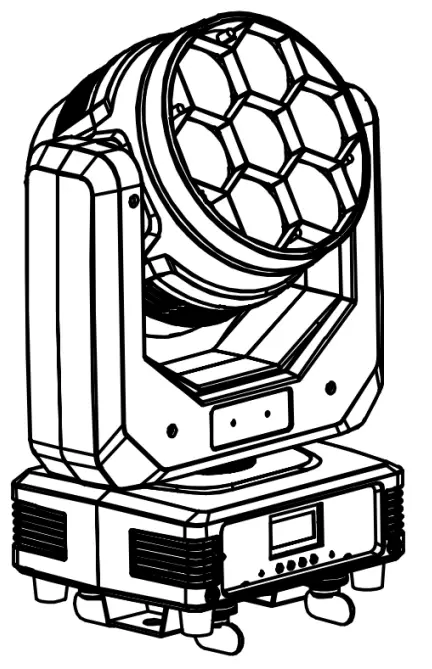

VK740 MK2
User Manual
Safety Instructions
Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet.
- ִ Unpack and check carefully there is no transportation damage before using the unit.
- ִ Before operating, ensure that the voltage and frequency of the power supply match the power requirements of the unit.
- ִ It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
- ִ The unit is for indoor use only. Use only in a dry location.
- ִ The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent surfaces. Be sure that no ventilation slots are blocked.
- ִ Disconnect main power before replacement or servicing.
- ִ Make sure there are no flammable materials close to the unit while operating as it is a fire hazard.
- Use a safety cable when rigging this unit. DO NOT handle the unit by taking its head only, but always by taking its base.
- ִ Maximum ambient temperature is: 40 ℃. DO NOT operate it where the temperature is higher than this. The unit surface temperature may reach up to 85 ℃. DO NOT touch the housing bare hand during its operation. Turn off the power and allow about 15 minutes for the unit to cool down before replacing or serving.
- ִ In the event of a serious operating problem, stop using the unit immediately. Never try to repair the unit by yourself. Repairs carried out by unskilled people can lead to
damage or malfunction. Please contact the nearest authorized technical assistance center. Always use the same type of spare parts. - ִ DO NOT touch any wire during operation as high voltage might be causing electric shock.
Warning:
- ִTo prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture.
- DO NOT open the unit within five minutes after switching off.
- ִ The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.
Caution:
There are no user-serviceable parts inside the unit. DO NOT open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact your nearest dealer.
Installation:
The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. And make sure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times the unit’s weight. Also always use a safety cable that can hold 12 times of the weight of the unit when installing the fixture.
The equipment must be fixed by professionals. And it must be fixed in a place that is out of the touch of people.
Technical Specifications
Light Sources: 7x 40W 4IN1 RGBW LED
Beam Angle: 4°~ 45°
Power Consumption: 250W
Power Voltage: AC 100-240V, 50/60Hz

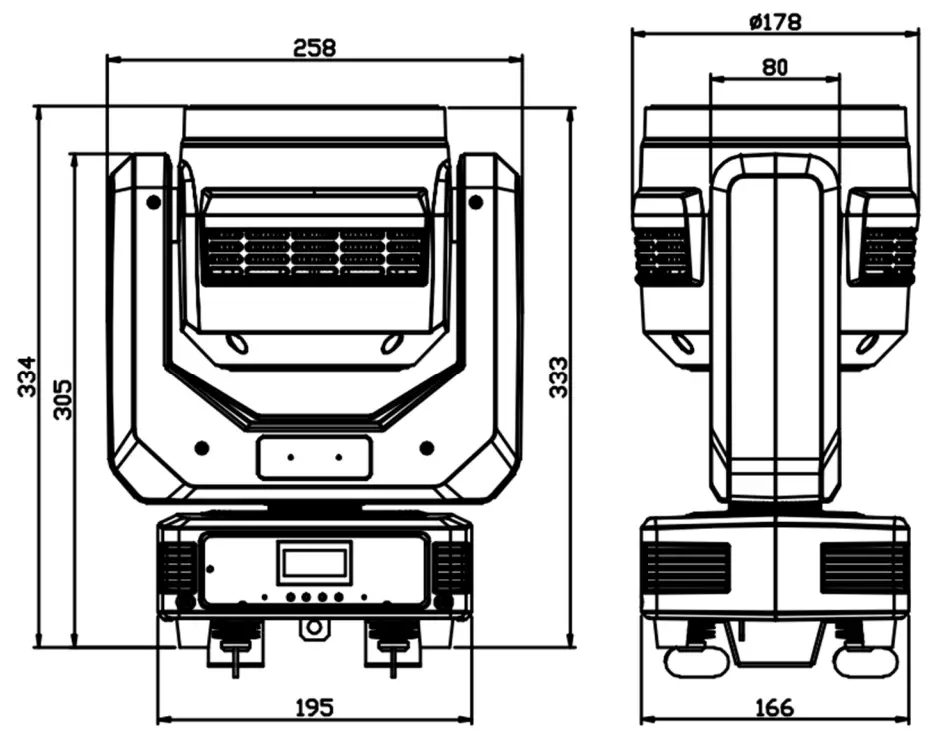

Dimension: 25178*334 mm
Net Weight: 5.5 Kgs
Flight case packing (6 in 1): 910x570x550mm
Carton packing (1 in 1):310x230x420mm
Control
DMX Channel: 17 /22CH
Control Modes: DMX512/mater-Slave/Auto Run/Music/RDM
Pan/Tilt
Pan/Tilt: 540°/ 270°
Pan/Tilt Resolution: 8/16 bit
Construction
Display: LCD Display
Data In/Out socket: 3-pin XLR sockets
Power Socket: Power con in/out
Protection Rating: IP20
Features
Motorized linear zoom system
The outstanding color macro effect
Dimmer: 0~100% smooth dimming
Variable strobe effects
Fast, quiet operation and flicker-free

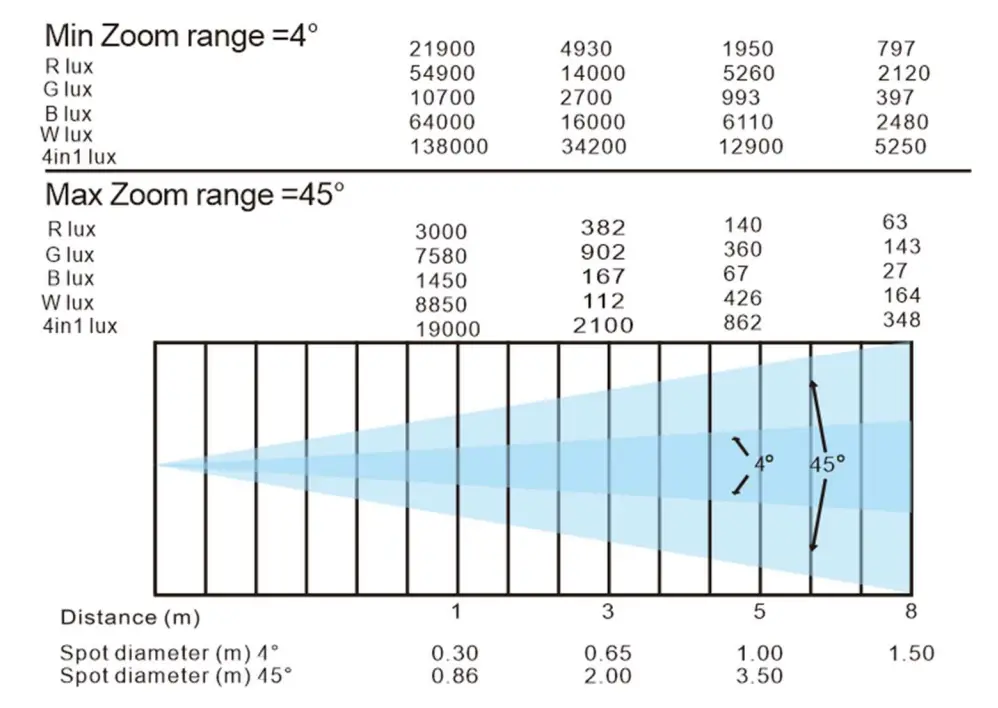

LUX Data:
How To Control The Unit:
DMX512 is widely used in intelligent lighting control, with a DMX 512 controller you can connect several lights together via dmx in and dmx out sockets to form a ring.

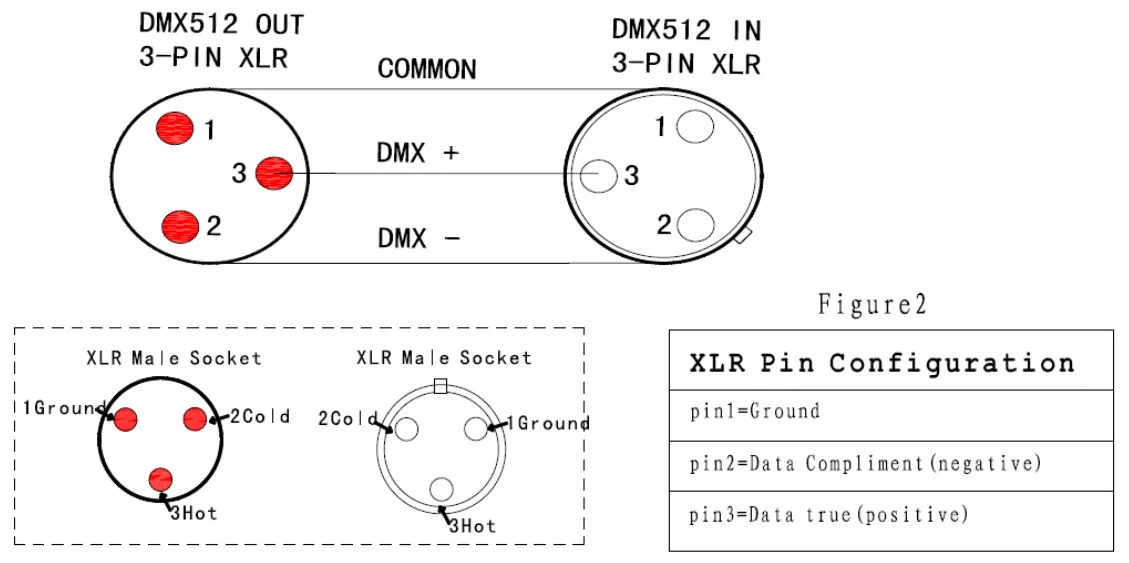

3 pin XLR connectors:
Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
Display:

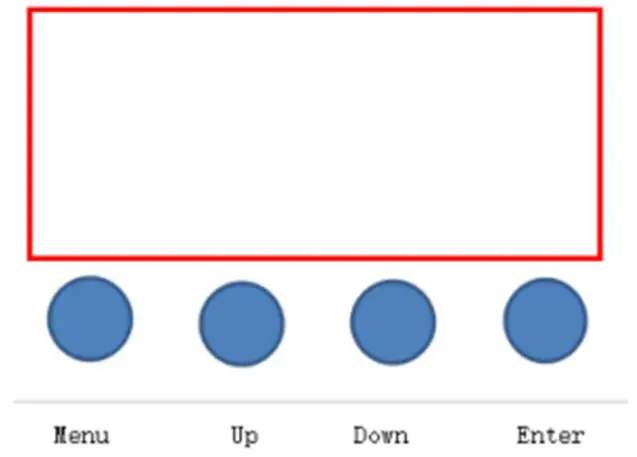

| MENU DOWN | To select the programming functions To go backward in the selected functions |
| UP ENTER | To go forward in the selected functions To confirm the selected functions |
Set DMX Address:
- Press “Menu” to set DMX Address, and press “ENTER”
- LCD Display will show show“SET DMX Address:001”
- Press “Up” or “Down” to adjust the DMX address number and press “Enter” to save the value
LCD Display Menu Options:
| 1 | Address | Address 001～512 | Address setting 001-512 |
| 2 | Mode | 1.DMX512 | Console control |
| 2. Auto | 1. Master | ||
| 2. Alone | |||
| 3. Sound | 1. Master | ||
| 2. Alone | |||
| 4. Manual | 1.Pan:0-255 | ||
| 2.Tilt:0-255 | |||
| 3.Focus:0-255 | |||
| 4.Red:0-255 | |||
| 5.Green:0-255 | |||
| 6.Blue:0-255 | |||
| 7.White:0-255 | |||
| 8.Strobe:0-255 | |||
| 3 | Channel | 1.17CH | |
| 2.22CH | |||
| 4 | Invert | 1.Pan Invert | 1.NO,2.YES |
| 2.Tilt Invert | 1. NO,2.YES | ||
| 5 | Sound | 0-100 | Sound sensitivity |
| 6 | Degree | 1.540, 2.360 | |
| 7 | No signal | 1.blackout | 2. hold |
| 8 | Fan set | 1.auto, 2.high, 3.low | |
| 9 | Reset | 1.NO | Reset |
| 2.YES | |||
| 10 | Default | 3.Yes | Factory setting |
| 4.No | |||
| 11 | Inform | 1. Soft V1.0 | Show the version number |
| 2. Temp /℃ | Show the temperature of led board | ||
| 12 | Adjust | Pass word | **** |
| 1. Pan | 0-255Pan fine control | ||
| 2. Tilt | 0-255Tilt fine control | ||
| 3. Focus | 0-255 Zoom fine control | ||
| 4. Red | 0-255 | ||
| 5. Green | 0-255 | ||
| 6. Blue | 0-255 | ||
| 7. White | 0-255 | ||
DMX Channels:
DMX channel´s functions and values)
17 channel mode：
| Channel | Function | Description | Value |
| Ch 1 | pan adjustment | pan adjustment | 0—-255 |
| Ch 2 | Pan fine adjustment | Pan fine adjustment | 0—-255 |
| Ch 3 | Tilt adjustment | Tilt adjustment | 0—-255 |
| Ch 4 | Tilt fine adjustment | Tilt fine adjustment | 0—-255 |
| Ch 5 | Speed of Pan/Tilt | from fast to slow | 0—-255 |
| Ch 6 | Strobe | Turn on the light | 0—-3 |
| Synchro strobe speed slow to fast (1HZ-25HZ) | 4—-203 | ||
| Random strobe | 204—-255 | ||
| Ch 7 | Dimmer | from dark to bright | 0—-255 |
| Ch 8 | Dimming mode | mode 1 | 0—-49 |
| mode 2 | 50—-99 | ||
| mode 3 | 100—-149 | ||
| mode 4 | 150—-255 | ||
| Ch 9 | Zoom | From near to far | 0—-255 |
| Ch 10 | R | from dark to bright | 0—-255 |
| Ch 11 | G | from dark to bright | 0—-255 |
| Ch 12 | B | from dark to bright | 0—-255 |
| Ch 13 | W | from dark to bright | 0—-255 |
| Ch 14 | Static color | No function | 0—-15 |
| R100%，G up,B0% | 16—-35 | ||
| R down,G100%,B0% | 36—55 | ||
| R0%,G100%,B up | 56—75 | ||
| R0%,G down,B100% | 76—95 | ||
| R up,G0%,B100% | 96—115 | ||
| R100%,G up,B down | 116—135 | ||
| R 100%down,G Up,B Up | 136–155 | ||
| R down,G down,B100% | 156—175 | ||
| R100%,G100%,B100%,W 100% | 176–195 | ||
| 2800K | 196–200 | ||
| 3200K | 201–205 | ||
| 4000K | 206–210 | ||
| 4500K | 211-215 | ||
| 5000K | 216-220 | ||
| 5600K | 221-225 | ||
| 6500K | 226-230 | ||
| 7000K | 231-235 | ||
| 7500K | 236-240 | ||
| 8000K | 241-255 | ||
| Ch 15 | Moving color | No function | 0—-49 |
| Skip change | 50—-99 | ||
| Gradual change | 100—-255 | ||
| Ch 16 | Speed of Moving color | from fast to slow | 0—-255 |
| Ch 17 | Reset | no function | 0—-79 |
| Reset 5s | 80—-99 | ||
| No function | 100—-255 |
22 Channel Mode:
22 Channel Mode includes 16bit fine adjustments plus 4 different dimming modes of the Dimmer.
| Channel | Function | Description | Value |
| Ch 1 | pan adjustment | pan adjustment | 0—-255 |
| Ch 2 | Pan fine adjustment | Pan fine adjustment | 0—-255 |
| Ch 3 | Tilt adjustment | Tilt adjustment | 0—-255 |
| Ch 4 | Pan fine adjustment | Pan fine adjustment | 0—-255 |
| Ch 5 | Speed of Pan/Tilt | from fast to slow | 0—-255 |
| Ch 6 | Zoom | From near to far | 0—-255 |
| Ch 7 | Dimmer | from dark to bright | 0—-255 |
| Ch 8 | Dimming fine adjustment | Dimming adjustment control | 0—-255 |
| Ch 9 | Strobe | No function | 0—-3 |
| strobe speed slow to fast (1HZ-25HZ) | 4—-203 | ||
| Random strobe | 204—-255 | ||
| Ch 10 | R | from dark to bright | 0—-255 |
| Ch 11 | Red fine adjustment | Red fine adjustment | 0—-255 |
| Ch 12 | G | from dark to bright | 0—-255 |
| Ch 13 | Green fine adjustment | Green fine adjustment | 0—-255 |
| Ch 14 | B | from dark to bright | 0—-255 |
| Ch 15 | Blue fine adjustment | Blue fine adjustment | 0—-255 |
| Ch 16 | W | from dark to bright | 0—-255 |
| Ch 17 | White fine adjustment | White fine adjustment | 0—-255 |
| Ch 18 | Dimming mode | mode 1 | 0—-49 |
| mode 2 | 50—-99 | ||
| mode 3 | 100—-149 | ||
| mode 4 | 150—-255 |
| Channel | Function | Description | Value |
| Ch 19 | static color | No function | 0—-15 |
| R100%，G up,B0% | 16—-35 | ||
| R down,G100%,B0% | 36—-55 | ||
| R0%,G100%,B up | 56—-75 | ||
| R0%,G down,B100% | 76—-95 | ||
| R up,G0%,B100% | 96—-115 | ||
| R100%,G up,B down | 116—135 | ||
| R 100%down,G Up,B Up | 136—155 | ||
| R down,G down,B100% | 156—175 | ||
| R100%,G100%,B100%, W100% | 176—195 | ||
| 2800K | 196—200 | ||
| 3200K | 201—205 | ||
| 4000K | 206—210 | ||
| 4500K | 211—215 | ||
| 5000K | 216—220 | ||
| 5600K | 221—225 | ||
| 6500K | 226—230 | ||
| 7000K | 231—235 | ||
| 7500K | 236—240 | ||
| 8000K | 241—255 | ||
| Ch 20 | Moving color | No function | 0—-49 |
| Skip change | 50—-99 | ||
| Gradual change | 100—255 | ||
| Ch 21 | Speed of Moving color | from fast to slow | 0—-255 |
| Ch 22 | Reset | no function | 0—-79 |
| Reset 5s | 80—-99 | ||
| No function | 100—255 |
Shape
- DMX LED should be on. If not, check DMX connectors, and cables to see if link properly.
- If the DMX LED is on and no response to the channel, check the address settings and DMX polarity.
- If you have intermittent DMX signal problems, check the pins on connectors or on
Fixture Cleaning
The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surroundings can cause a greater accumulation of dirt on the unit’s optics.
- Clean with soft cloth using normal glass cleaning fluid.
- Always dry the parts carefully.
- Clean the external optics at least every 20 days. Clean the internal optics at least every 30/60 days.
