BENCHDOGS Rail Square Repeat Stop

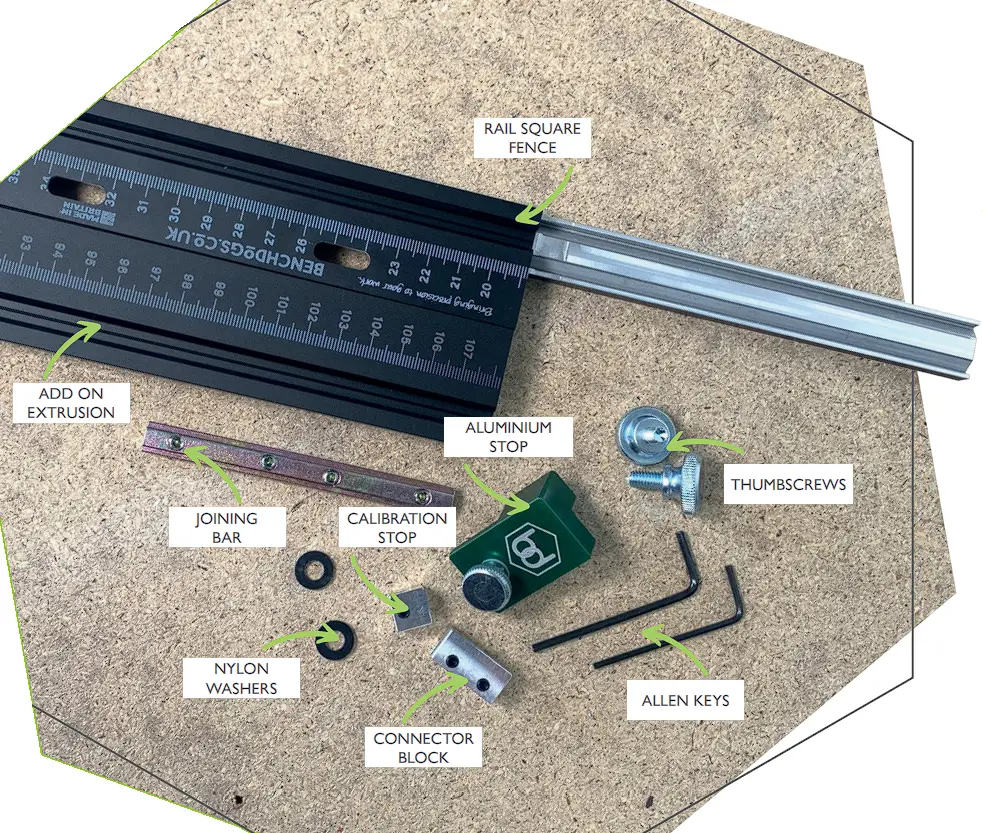

WHAT’S IN THE KIT
- Rail Square Fence (600mm) x 1
- Joining Bar x 1
- Calibration Stop x 1
- Connector Block x 1
- Thumb Screw M6 x 2
- Nylon Washers x 2
- Aluminium Stop x 1
- Add on Extrusion (445mm) x 1
- Allen Keys x 2
HOW TO USE
- Join your rail square fence and add on extrusion using the joining bar. Tighten the grub screws using the supplied allen keys.

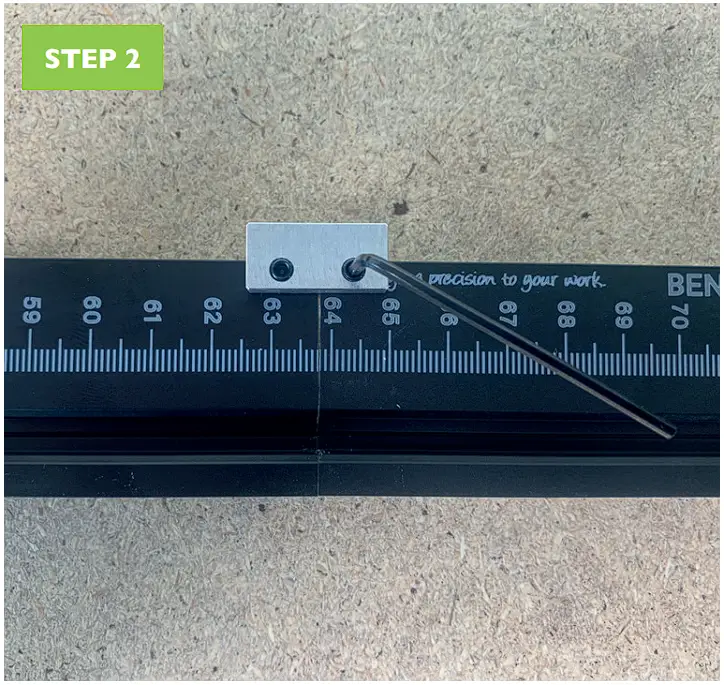

- Once tightened, add your connector block to support the join.

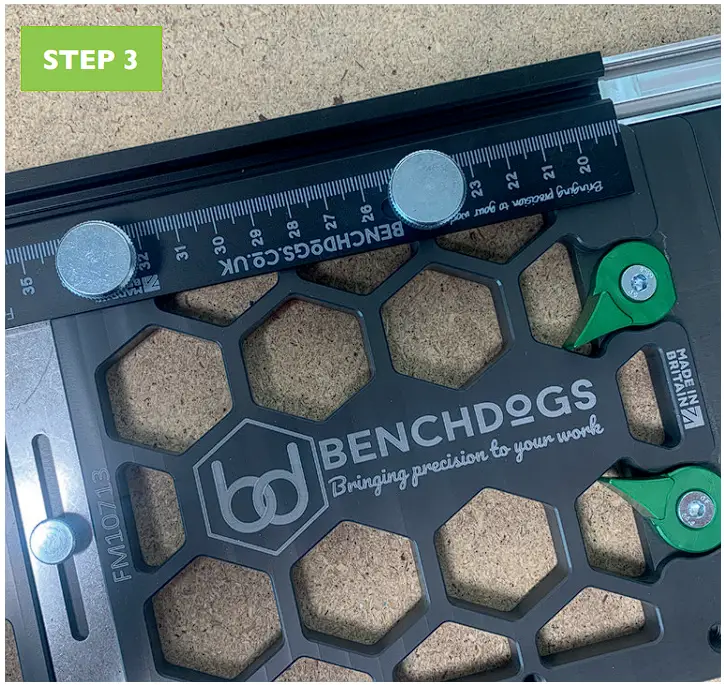

- Attach your fence to your rail square using the thumbscrews.

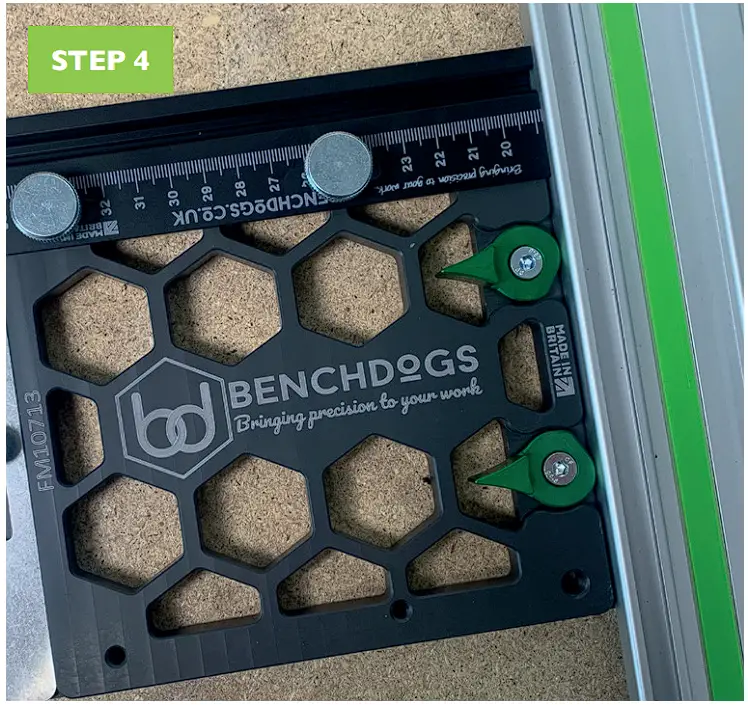

- Attach your rail square to your rail and secure using the cam screws. Align your fence to the edge of the rail and tighten the thumbscrews.

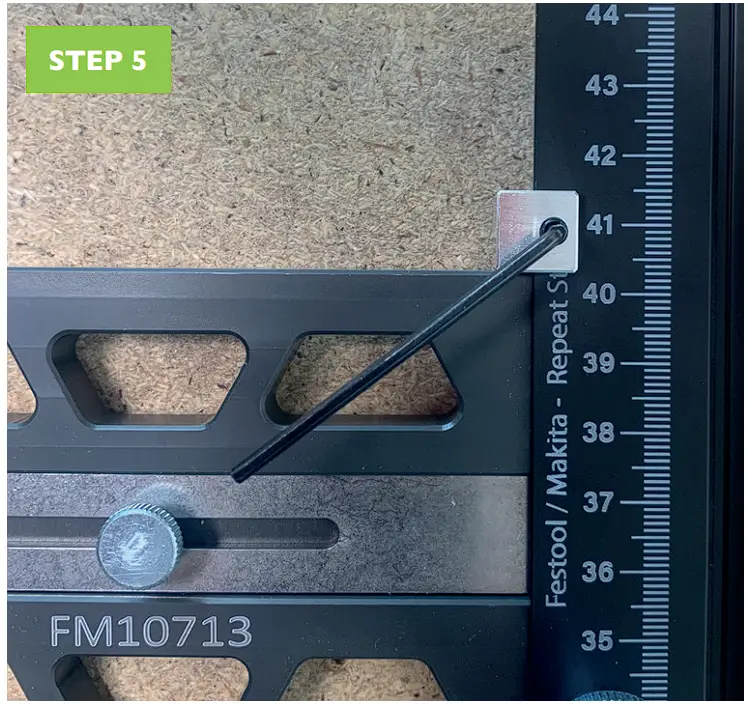

- Add your calibration block to secure the setup and tighten the grub screw using the supplied allen keys.

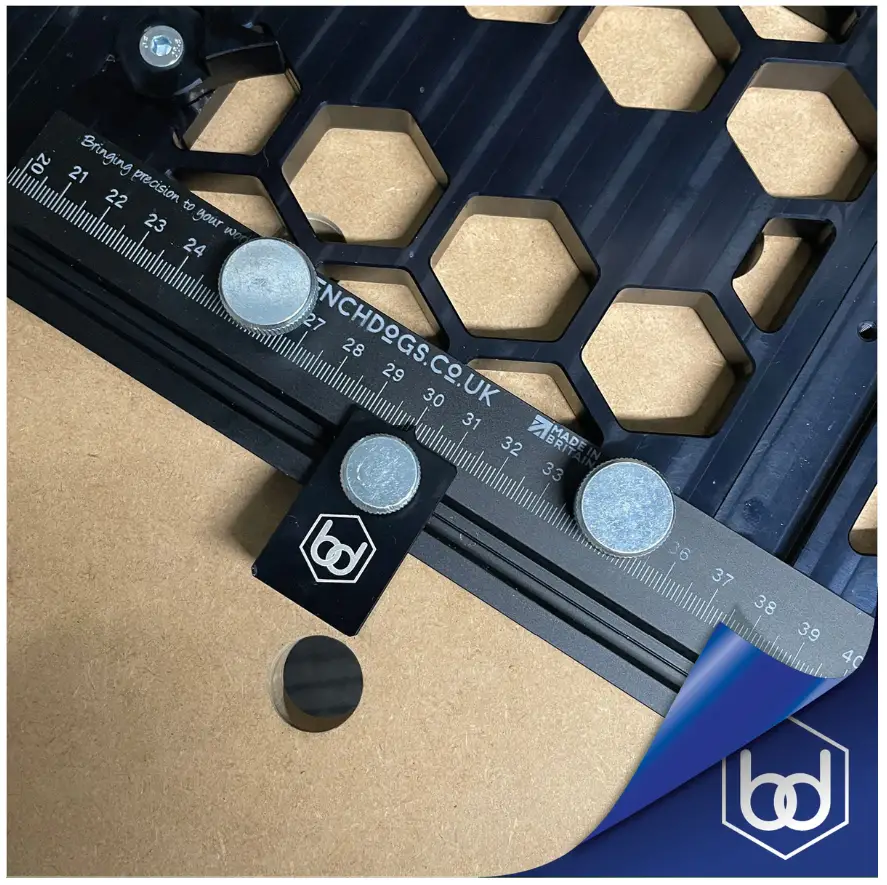

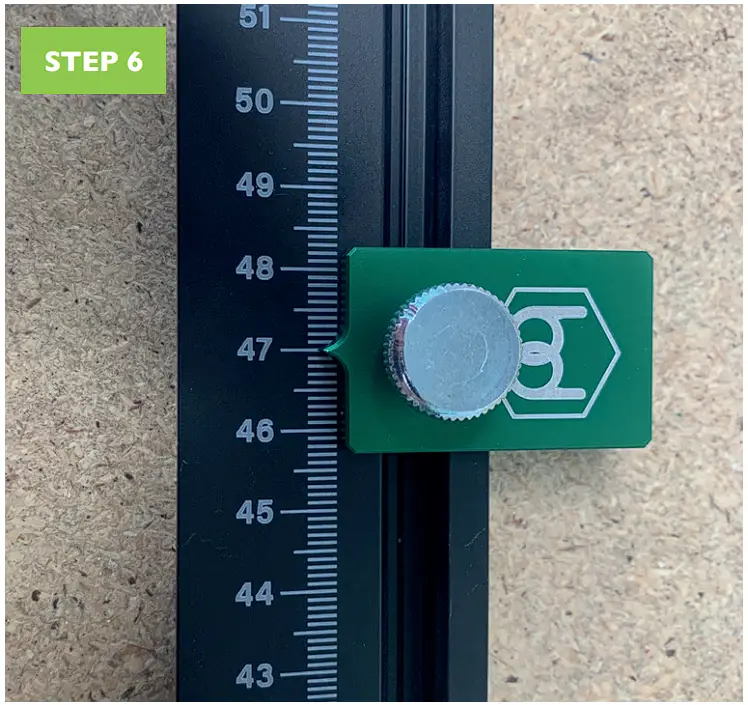

- Place the aluminium stop to the desire measurement, place against the edge of your material and proceed to cut.
