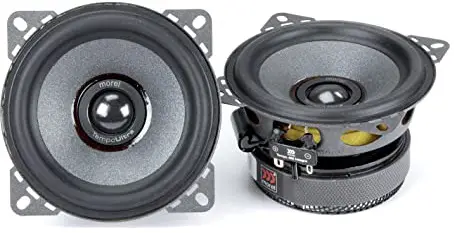

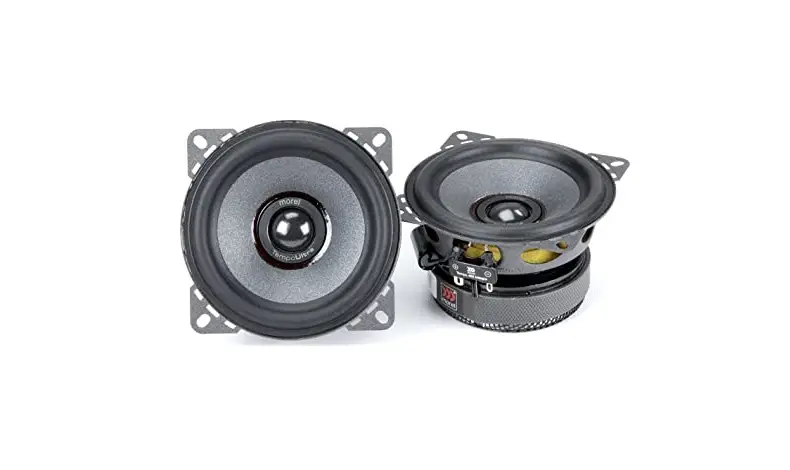

Morel 402 Tempo Ultra Integra User Manual

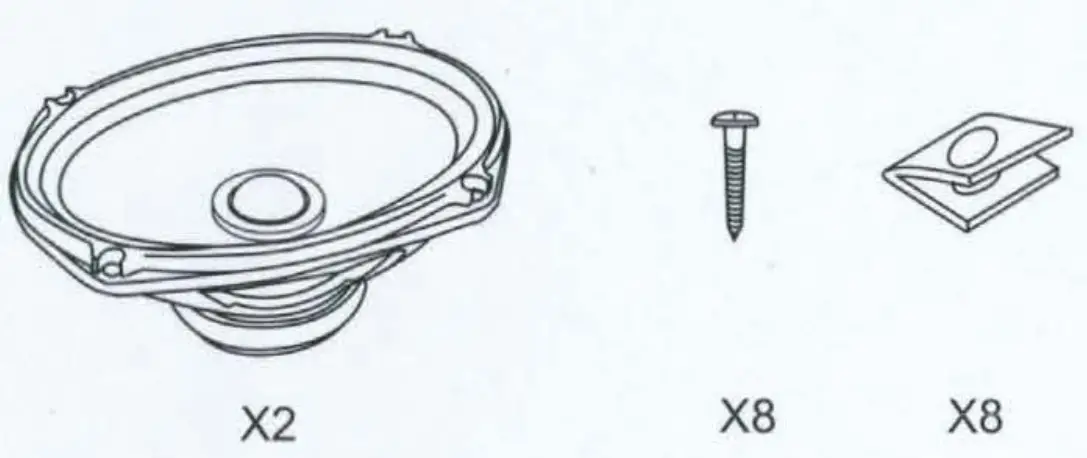

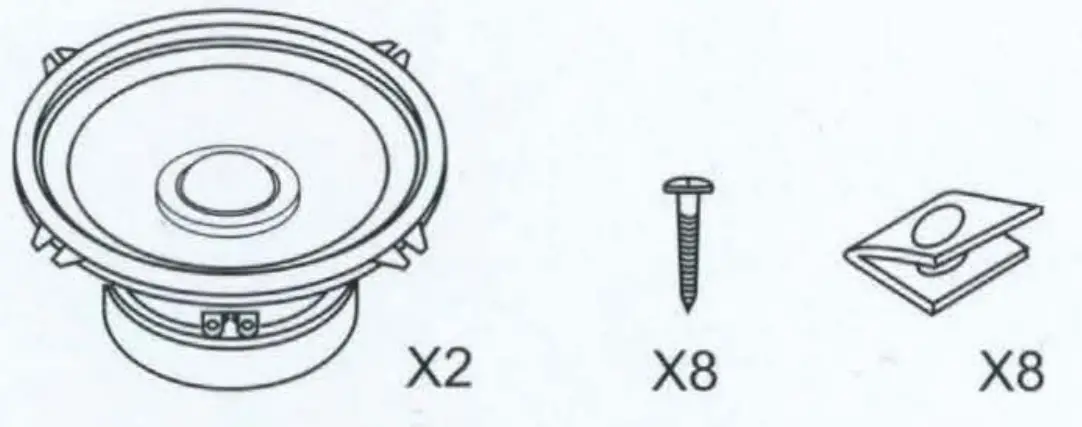

Package Contents
4,, I 51 Content – / 4 ” / 6½”
Content – 6×9″ I 5x?”

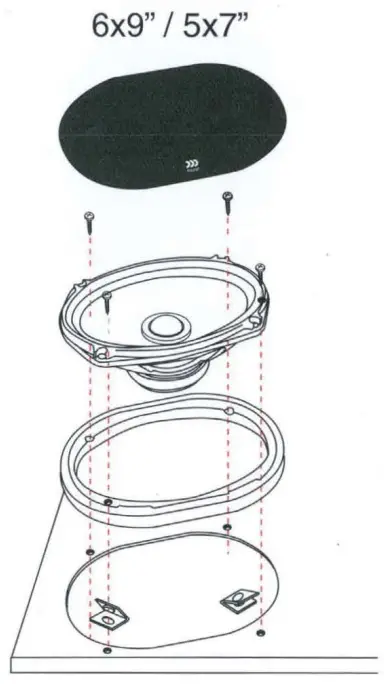

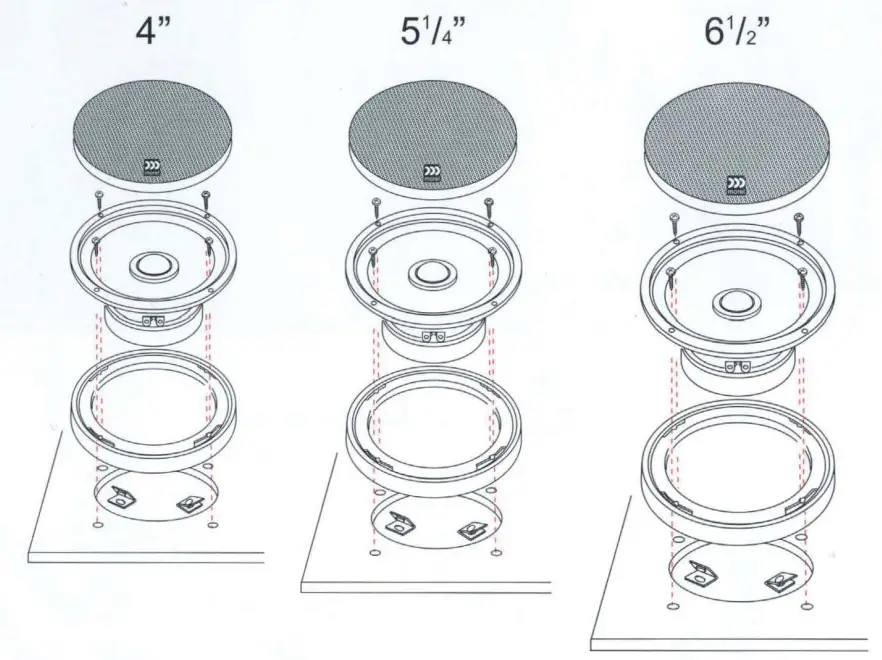

Woofer Mounting
*Grills purchased separately

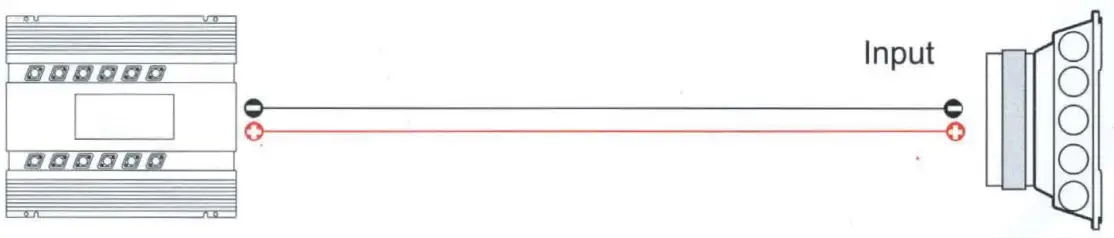

Connection Diagram
Amplifier/Head unit
Specifications
| Tempro Integra | 402 | 502 | 602 | |
| Nominal Impedance | 4ohm | 4ohm | 4ohm | |
| Power Handling | sow | 100W | 120W | |
| Max. Transient Power Handling | 140W | 220W | 220W | |
| Sensitivity (2.83V/1 M) | 85db | 89db | 90db | |
| Frequency Response | 8Q.22000Hz | 55-22000Hz | 5Q.22000Hz | |
| Voice Coil Diameter | Woofer: Tweeter: | 32 mm (1 .30″] 19 mm (0.8″] | 38 mm (1 .50″) 25 mm (1 .00″) | 38 mm (1 .50″) 25 mm (1 .00″) |
| Voice Coil Wire | Woofer: Tweeter: | Copper Copper | Copper Copper | Copper Copper |
| Magnet System | Woofer: Tweeter: | higtrgrade ferrite Neodymium | high-grade ferrite Neodymium | high-grade ferrite Neodymium |
| Mounting Depth | 57 mm (2.25″] | 57 mm (2.25″) | 64 mm (2.52″) | |
| Tempo Integra | 572 | 692 | |
| Nominal Impedance | 4ohm | 4ohm | |
| Power Handling | 110W | 150W | |
| Max. Transient Power Handling | 220W | 250W | |
| Sensitivity (2.83V/1 M) | 90db | 92db | |
| Frequency Response | 6Q.22000Hz | 35-22000Hz | |
| Voice Coil Diameter | Woofer: Tweeter: | 38 mm (1 .50″) 25 mm (1.00″) | 38 mm (1 .50″) 25 mm (1 .00″) |
| Voice Coil Wire | Woofer: Tweeter: | Copper Copper | Copper Copper |
| Magnet System | Woofer: Tweeter: | higtrgrade ferrite Neodymium | high-grade ferrite Neodymium |
| Mounting Depth | 62 mm (2.45″) | 85 mm (3.35″) | |
