LaserRange-Master T3

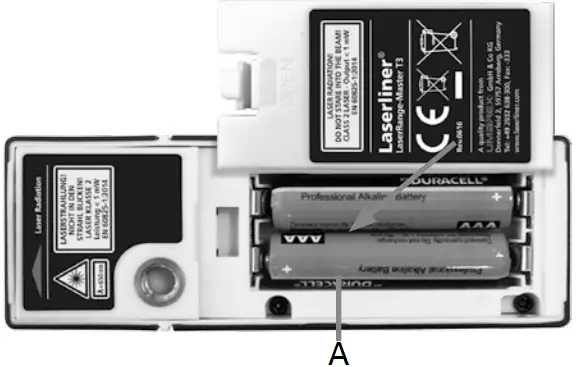

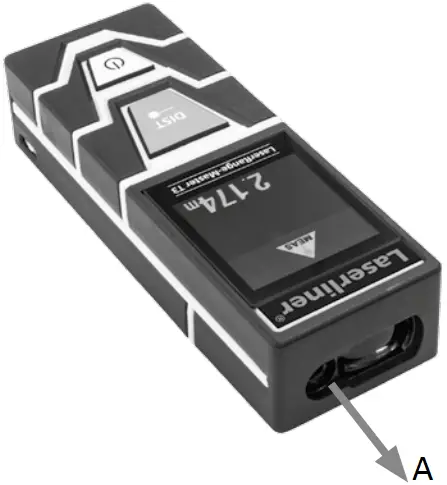

A Laser

A 2 x Typ AAA / LR03
1,5V / Alkaline

Read the operating instructions and the enclosed brochure ,,Guarantee and additional notices” completely. Follow the instructions they contain. This document must be kept in a safe place and if the laser device is passed on, this document must be passed on with it.

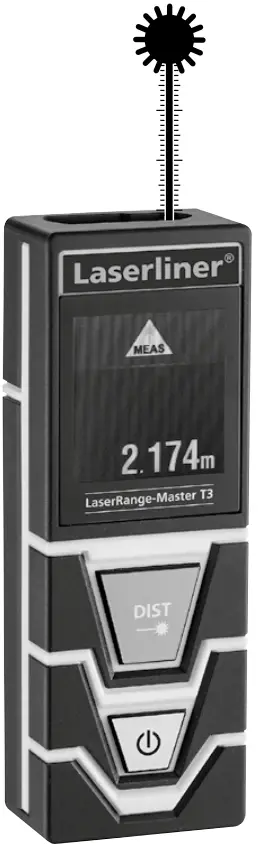

Compact laser distance meter for measuring length, area and volume - with angle measurement function

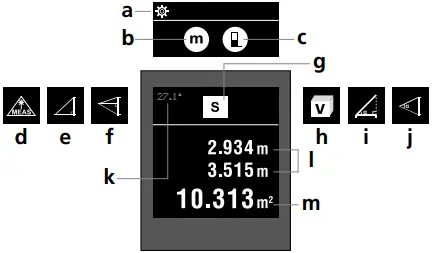

DISPLAY:

a Settings menu
b Unit of measure m / ft / inch / _’ _”
c Measurement point (reference) rear / thread / front
d Continuous measurement / Length measurement
e Pythagoras 1
f Pythagoras 2
g Area measurement
h Volume measurement
i Angle function 1
j Angle function 2
k Measured value, angle function
l Intermediate values
m Measurement values / Measurement results Unit m / ft / inch / _’ _”

KEYPAD:

Measure
ON / OFF

General safety instructions

– The device must only be used in accordance with its intended purpose and within the scope of the specifications.

Laser radiation!
Do not stare into the beam!
Class 2 laser
< 1 mW · 650 nm
EN 60825-1:2014

- Attention: Do not look into the direct or reflected beam.
- Do not point the laser beam towards persons.
- If a person`s eyes are exposed to class 2 laser radiation, they should shut their eyes and immediately move away from the beam.
- Under no circumstances should optical instruments (magnifying glass, microscope, binoculars) be used to look at the laser beam or reflections.
- Do not use the laser at eye level (1.40 … 1.90 m)
- Reflective, specular or shiny surfaces must be covered whilst laser devices are in operation.
- In public areas shield off the laser beam with barriers and partitions wherever possible and identify the laser area with warning signs.
- Tampering with (making changes to) the laser device is not permitted.
- This device is not a toy – keep out of the reach of children.

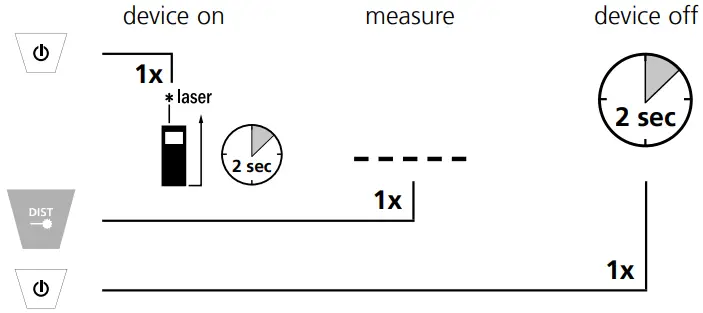

Switch on, measure and switch off:

After switching on, the device starts with continuous measurement.

Change unit of measure:

m / ft / inch / _’ _”

1. 2.

Change measurement point (reference):

rear / thread / front

1. 2.

Change measurement function:

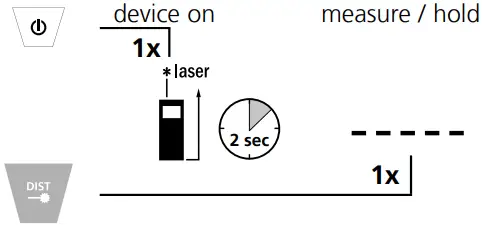

Length measurement:

After switching on, the device starts with continuous measurement.

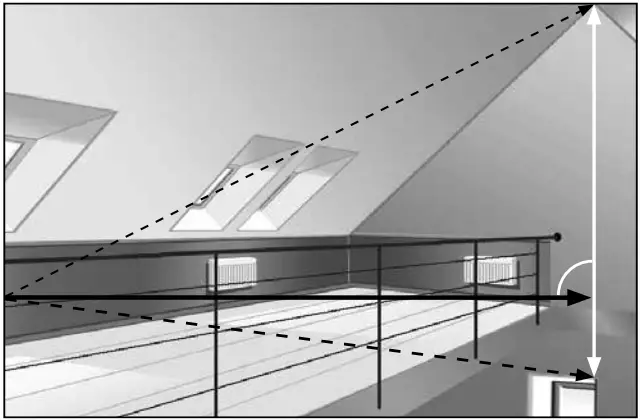

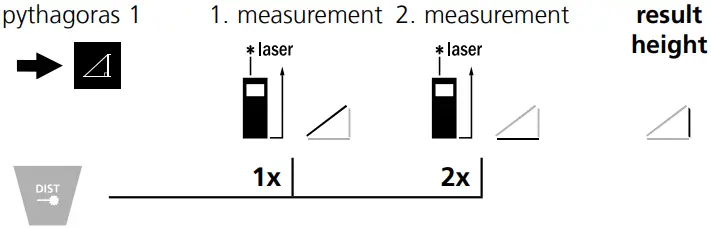

Pythagoras function 1:

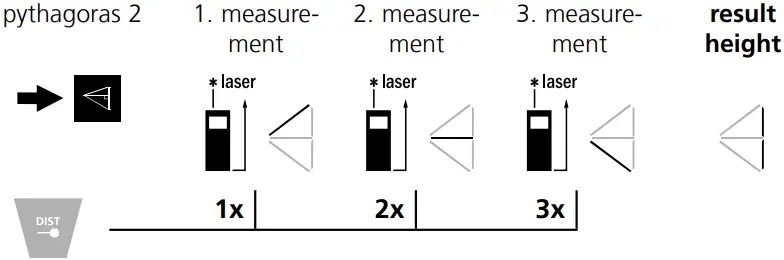

Pythagoras function 2:

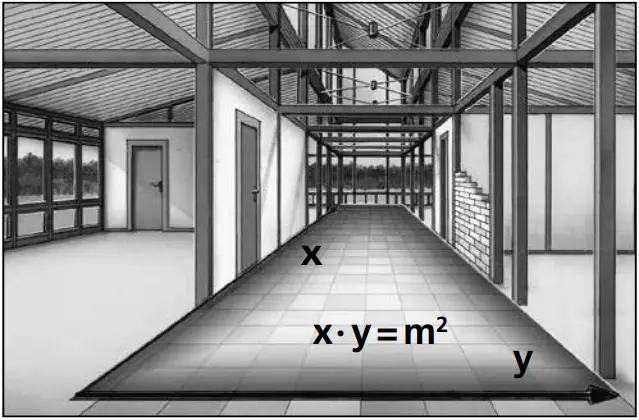

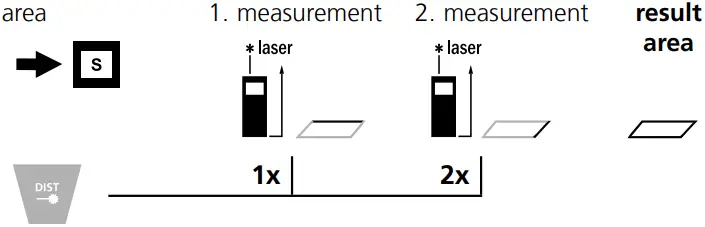

Area measurement:

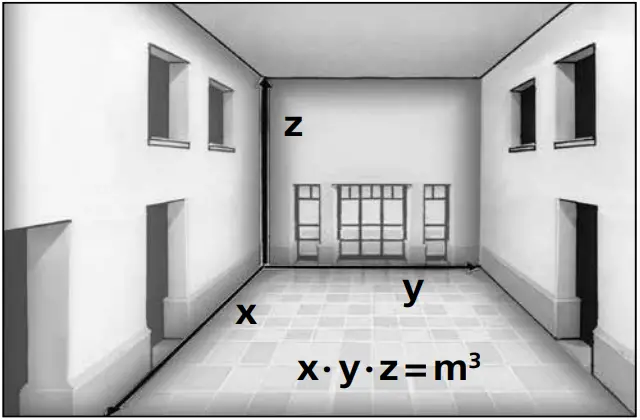

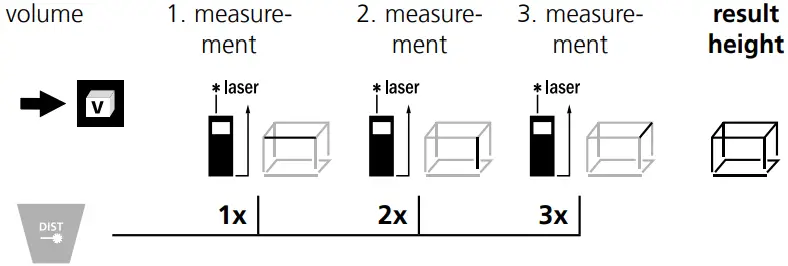

Volume measurement:

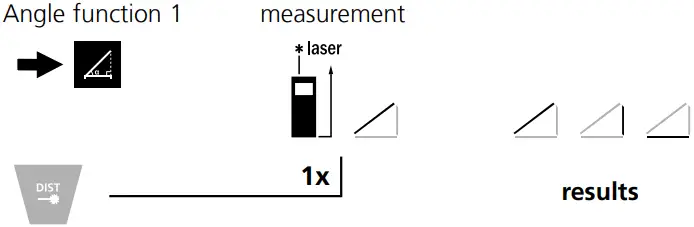

Angle function 1:

The measurement results are determined automatically by the 360° inclination sensor.

The back of the device can be used as a reference surface for measuring angles.

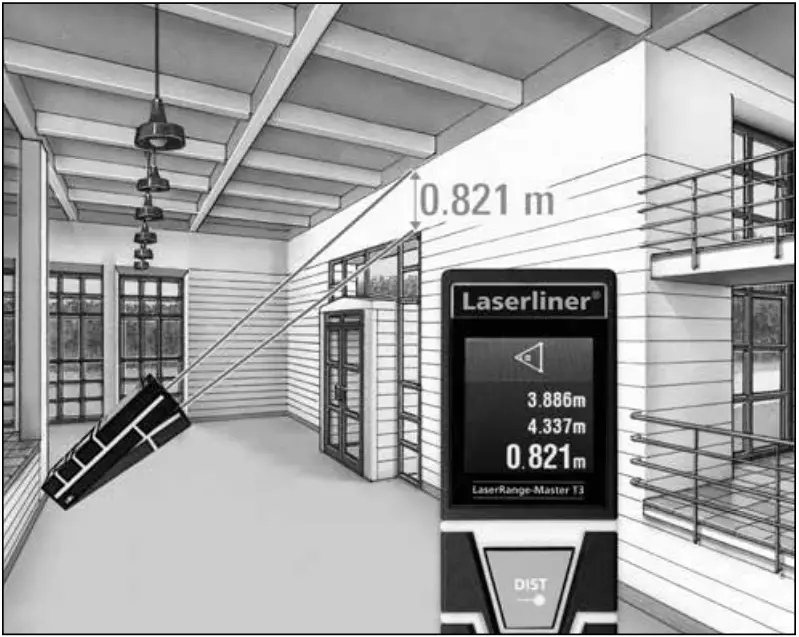

Angle function 2:

The measurement result is determined by the 360° inclination sensor.

The back of the device can be used as a reference surface for measuring angles.

Important notices

The laser points to the location that will be measured. No objects may get into the laser’s line of measurement.
The device compensates the measurement for different room temperatures. Therefore allow the device a brief adaptation period when changing locations with large temperature differences.
The device is only conditionally useable in outdoor areas and cannot be used in strong sunlight.
The measurement results of outdoor measurements may be influenced or falsified by rain, fog and snow.
In unfavourable conditions, e.g. with poorly reflecting surfaces, the maximum deviation may be greater than 3 mm.
Carpeting, upholstery or curtains will not reflect the laser optimally. Measure to flat surfaces.
Measurements made through glass (window panes) can falsify measurement results.
An energy-saving function switches the device off automatically.
Clean with a soft cloth. Water may not be allowed to penetrate the housing.

Error codes:

Err204: Calculation error
Err208: Internal fault
Err220: Replace the battery
Err252: Temperature is too high: > 40°C
Err253: Temperature is too low: < 0°C
Err255: Received signal too weak or measuring time too long
Err256: Received signal too strong
Err261: Outside the measuring range
Err500: Hardware fault

Technical Data (Subject to technical changes without notice.) 12.16)

Distance measurement
Inside measurement range	0.2 m – 30 m
Precision (typical)*	± 0.2 mm / m
Angle measurement
Measuring range	± 90°
Resolution	0.1°
Precision	0.1°
Laser class	2 < 1 mW
Laser wavelength	650 nm
Beam divergence	< 1.5 mrad
Operating temperature	-10°C – 40°C
Storage temperature	-20°C – 70°C
Relative air humidity	20%rH … 85%rH, no condensation
Operating height	≤ 2000 m
Automatic switch-off	Dynamic depending on measuring mode: Laser: 30 s – 5 min Device: 3 min – 8 min
Power supply	2 x AAA 1.5 Volt Batterien
Dimensions (W x H x D)	100 x 23 x 35 mm
Weight (incl. batteries)	82 g

* measuring distance up to 10 m with strongly reflective target surface and at room temperature. The measurement deviation may increase by ± 0.2 mm/m for greater distances and under unfavourable measuring conditions such as strong sunlight or weakly reflective target surfaces.

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU.
This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.
Further safety and supplementary notices at: www.laserliner.com/info
