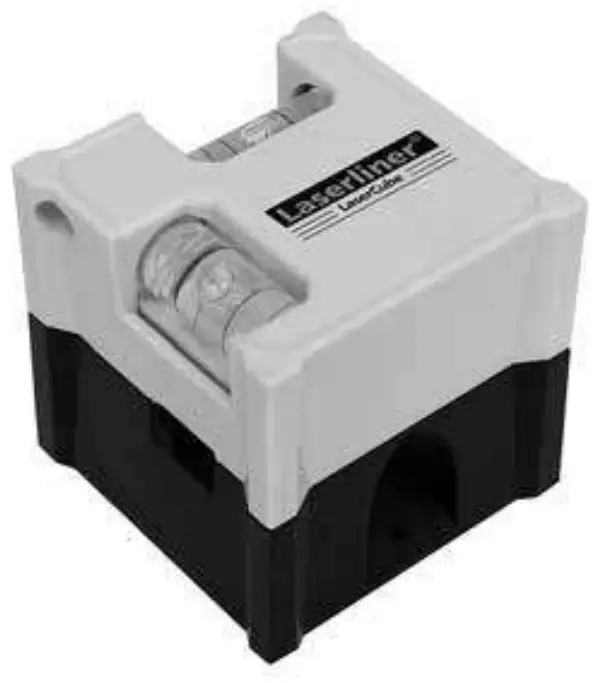

081 108 Level LaserCube
Instruction Manual
Read the operating instructions and the enclosed brochure „Guarantee and additional notices“ completely. Follow the instructions they contain. This document must be kept in a safe place and if the laser device is passed on, this document must be passed on with it. !
Line laser for alignment work on the ground and on walls.
General safety instructions
- Attention: Do not look into the direct or reflected beam.
- The laser may not get into the hands of children!
- Do not point the laser beam towards persons.
- If a person‘s eyes are exposed to class 2 laser radiation, they should shut their eyes and immediately move away from the beam.
- Do not expose the device to mechanical stress, extreme temperatures, moisture or significant vibration.
- The device must only be used in accordance with its intended purpose and within the scope of the specifications. Modifications or changes to the device are not permitted, this will otherwise invalidate the approval and safety specifications.

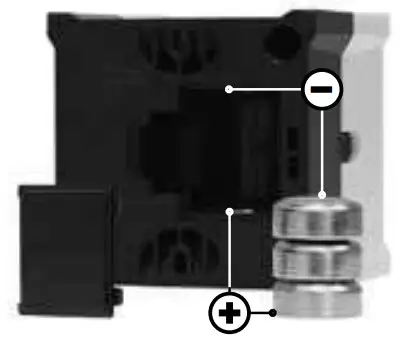

Inserting batteries
Open the battery compartment and insert batteries according to the symbols. Be sure to pay attention to polarity.

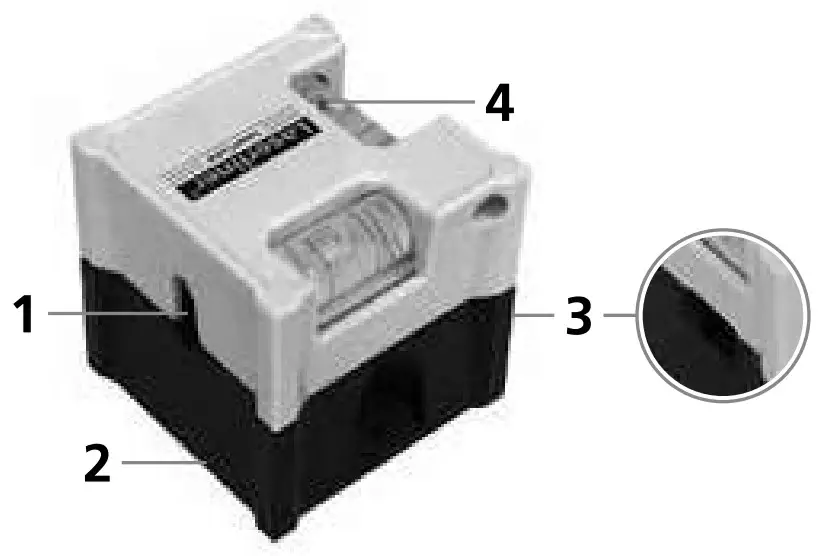

- Laser output windows
- Battery compartment (bottom)
- ON / OFF switch
- Vials
On-floor applications

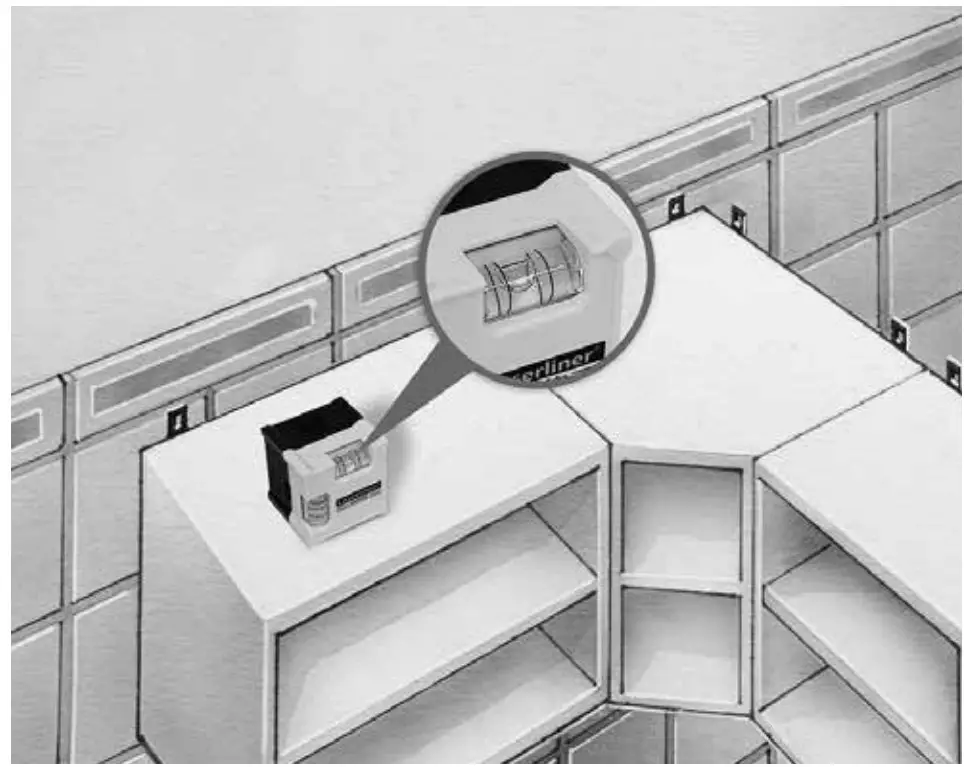

Place the device on the floor and switch it on.
The vials are only adjusted for the four A-bearing surfaces (see image). When placed on the B surfaces, the device cannot be used as a spirit level.
Wall applications
Mount the device on the wall for horizontal and vertical leveling.
Then align the device with the vials.
Mounting on the wall
- Place devise on the wall.
- Push the special pins through the appropriate holes.
Technical data
| Genauigkeit | ± 1 mm / m |
| Laserwellenlange | 635 nm |
| Laserklasse / Ausgangsleistung Linienlaser | 2 / < 1 mW |
| Stromversorgung | 3 x Alkalibatterien (LR 44 / AG13 / V13GA) |
| Betriebsdauer | 4 Std. (Alkalibatterien) |
| Betriebstemperatur | 0°C … +40 °C |
| Lagertemperatur | -10°C … +70 °C |
| Abmessungen (B x H x T) | 38 x 38 x 38 mm |
| Gewicht (inkl. Batterien) | 36 g |
EU directives and disposal
This device complies with all necessary standards for the free movement of goods within the EU.
This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.
Further safety and supplementary notices at: www.laserliner.com/info
