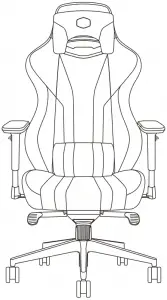

CALIBER X1
Cooler Master Gaming Chair
Instruction Manual
CALIBER X1 Cooler Master Gaming Chair Assembly Instruction
A

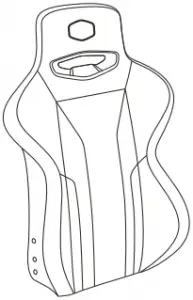

Backrest x 1
B

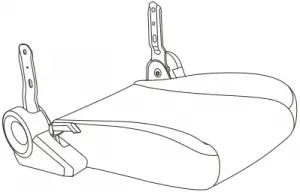

Seatbase x 1
C
Armrest x 2
D

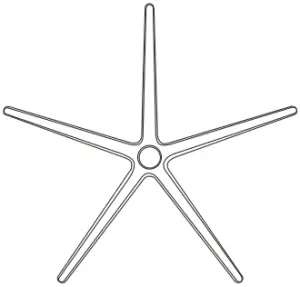

Five-star aluminum base x1
E
Performance wheels x 5
F

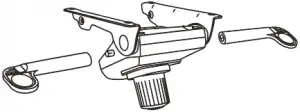

Tilt Mechanism x 1
G
Gas lift / Cover xl
H
Recliner mechanism covers x 2
I

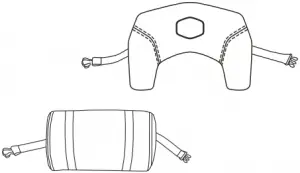

Lumbar support x 1 Head pillow x 1
J
Universal tool x 1
K

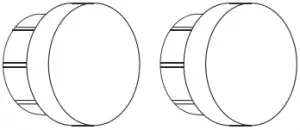

Cover studs x 2
L

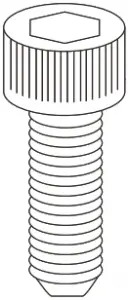

(M8* 25mm) x 14
M
Phillips screw x 2
N

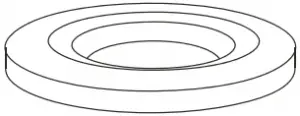

Flat washers x 14
O
Lock washers x 14

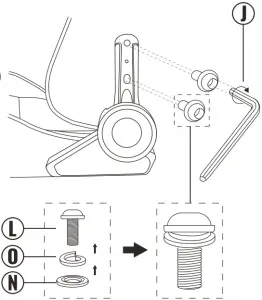

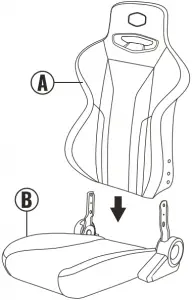

Step 1
Seat assembly

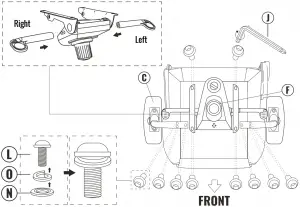

Step 2
*The arrow on F points towards the front of the chair

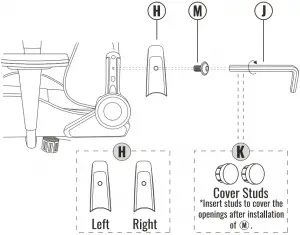

Step 3
Install upper recliner cover first before snapping on lower cover

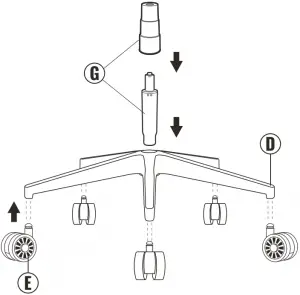

Step 4
Base assembly

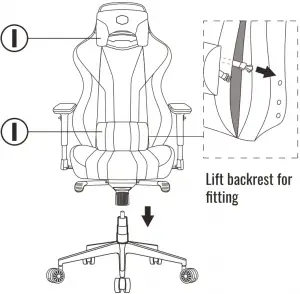

Step 5
Lumbar support and head pillow

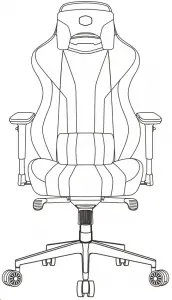

Complete
All the M8 screws L, Flat washers N, and Lock washers O are pre-installed on the chair, please take out and install back them tightly in case of loose connection!
CALIBER X1
Cooler Master Gaming Chair
Quantity: 1 pcs.
NW/GW: 24.7/29 Kgs.
CTN size: 86x65x34 cm.
