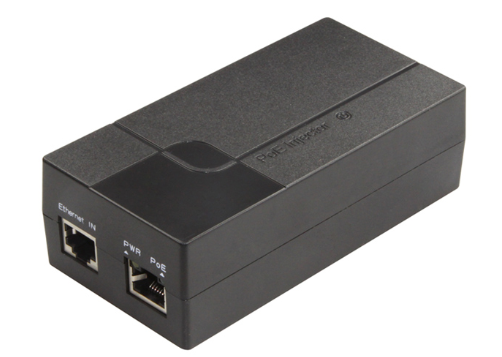

SONY STG-HPOE1 Single Port Power Injector
Single-Port Power Injector
Enables Delivery of Operating Power in Addition to Data over Standard LAN Infrastructure
- Model : STG-HPOE1

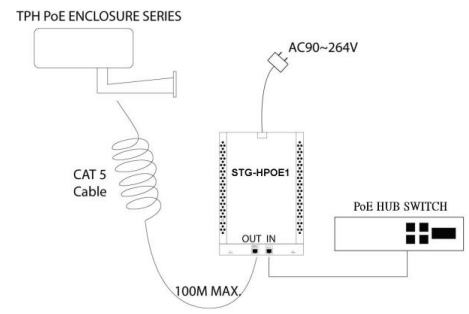

- Basic Connection Diagram & Caution : workable length is not exceed 100 Meters CAT5 cable from PoE Hub Switch to STG-HPOE1 enclosure series.
Specifications
- AC Input Voltage: 90 – 264Vac
- AC Input Current:2A at 100Vac, 1A at 240Vac.
- Pin Assignments and Polarity: (＋) 4/5 (－) 7/8
- Output Voltage: Aggregate Power:50W (55Vdc +/- 2V)
- Ripple&Noise,20MHz BW：2% Max.
- Short Circuit ：Without Damage Occur For Short Circuit (H) 3.8 cm × (W) 10.4cm × (D) 13.8 cm /Weight 0.61Kg
RJ45 PoE Input Socket
| RJ-45 Input (Data ) | ||
| Pin | Symbol | Description |
| 1 | RX+ | Data Receive |
| 2 | RX- | Data Receive |
| 3 | TX+ | Data Transmit |
| 4 | X | X |
| 5 | X | X |
| 6 | TX- | Data Transmit |
| 7 | X | X |
| 8 | X | X |
Caution : The source of PoE Hub switch needs to be compatible with pin define of input socket.
RJ45 PoE Output Socket to IP CAM
| RJ-45 Output (Data & Power) | ||
| Pin | Symbol | Description |
| 1 | RX+ | Data Receive |
| 2 | RX- | Data Receive |
| 3 | TX+ | Data Transmit |
| 4 | Vo + | 55v+ power |
| 5 | Vo + | 55v+ power |
| 6 | TX- | Data Transmit |
| 7 | Vo – | 55V- power |
| 8 | Vo – | 55V- power |
*Specification change without prior to notice
