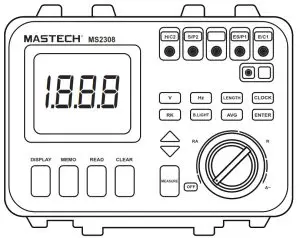

MS2308 Earth Resistance Tester
User Guide
1 YEAR
LIMITED WARRANTY
700019220 April 2021 Rev. 1
Specifications are subject to change without notification.
Special attention should be paid when using the test and measurement instrument because improper usage may cause electric shock and damage the equipment.
- Use proper measurement category (CAT), voltage, and amperage-rated probes, test leads, and adapters for the measurement.
- Do not use or store the device around explosive gas, vapor, or under high temperature and humidity.
- When handling the test probes and crocodile clips, keep your fingers behind the physical guard.
- Examine the measuring test leads (if present) before use. Any element of which the insulation deteriorates (even partially), replace them with proper functional test leads.
- Connect the common test lead before the live test lead and remove the live test lead before the common test lead.
- Before measuring current, make sure the instrument fuses available and disconnect the power supply to the circuit test
- Remove the batteries if the device is not used for an extended period of time, or if stored in temperatures above 45 °C. If the batteries are not removed, battery leakage can damage the device.
Contents

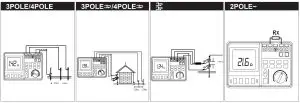

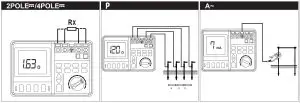

Specifications
| Resolution | Accuracy | Range | |
| 3 Pole & 4 Pole Resistance | 0.001Ω | ±(5%+10) | 0.02Ω~300kΩ |
| AC20/48V 94Hz/105Hz/111Hz/128Hz/AFC | |||
| Selective mode (3 poles clamp /4 pole clamp) | 0.001Ω | ±(5%+10) | 0.02Ω~20kΩ |
| AC20/48V 94Hz/105Hz/111Hz/128Hz/AFC | |||
| Non-auxiliary-polar mode (clamp) | 0.001Ω | ±(5%+10) | 0.02Ω~20kΩ |
| AC20/48V 94Hz/105Hz/111Hz/128Hz/AFC | |||
| Non-auxiliary-polar mode (clamp) | 0.001Ω | ±(10%+10) | 0.02Ω~150Ω |
| AC20/48V 94Hz/105Hz/111Hz/128Hz/AFC | |||
| 2/4 Pole R (DC) | 0.001Ω | ±(5%+10) | 0.02Ω~3kΩ |
| DC20V | |||
| 2 Pole R (AC) | 0.001Ω | ±(5%+10) | 0.02Ω~300kΩ |
| AC20V 94Hz/105Hz/111Hz/128Hz/AFC | |||
| Soil Resistivity ρ | 0.001Ω | ±(5%+10) | 0.02~1000 |
| AC20/48V 94Hz/105Hz/111Hz/128Hz/AFC (kΩ ．m) | |||
| A~ | 1mA | ±(5%+5) | |
| 20mA~2A |
