HYBRID STEREO
TUBE AMPLIFIER
Model: ADHA160BT
User Manual
Thank you for purchasing the Accento Dynamica ADHA160BT Hybrid Stereo Tube Amplifier. The tube preamp stage imparts a warm, natural sound quality while the solid-state power amp offers superb audio fidelity and efficiency. Multiple input options including USB media playback are available, and Bluetooth 5 provides refined wireless streaming from your mobile devices.
Remote Control
Features
- Bluetooth 5 wireless connectivity
- RCA mono subwoofer output
- Short circuit protection circuitry
- Brushed aluminum housing lends a clean, modern look
- 80W per channel RMS into each channel at a 4-ohm load
- Audiophile quality sound with less than 2% THD @ 80W

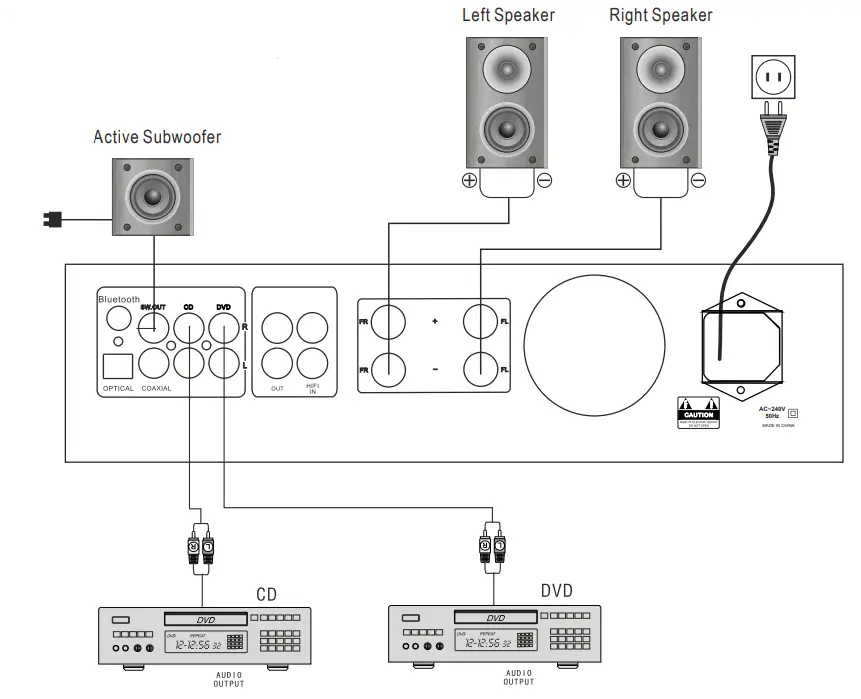

System Connection instructions:
- Do not plug in the power supply until all parts of the system are connected.
- In order not to damage the circuitry, do not let the positive and negative speaker wires touch each other and cause a short circuit.
- The audio input cable has a certain impact on the music’s play, it is recommended to use a cable with good shielding.
- The plugs must be inserted firmly, poor contact will produce noise or no signal output.

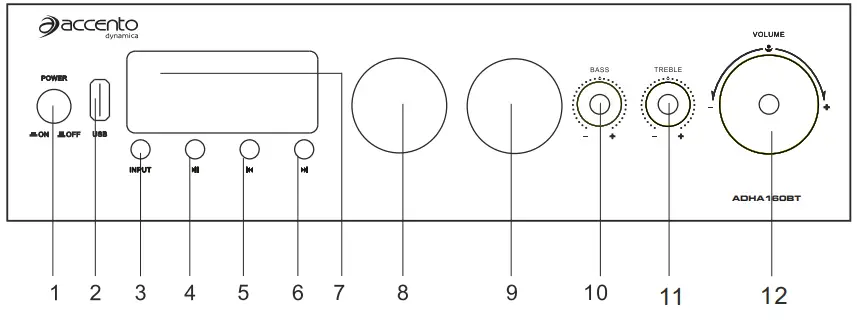

Front Panel
| 1. Power 2. USB 3. Input Select 4. Pause / Play 5. Previous Track 6. Next Track | 7. Display and IR Receiver 8. Left Channel VU Meter 9. Right Channel VU Meter 10. Bass Volume Control Knob 11. Treble Volume Control Knob 12. Volume Control Knob |

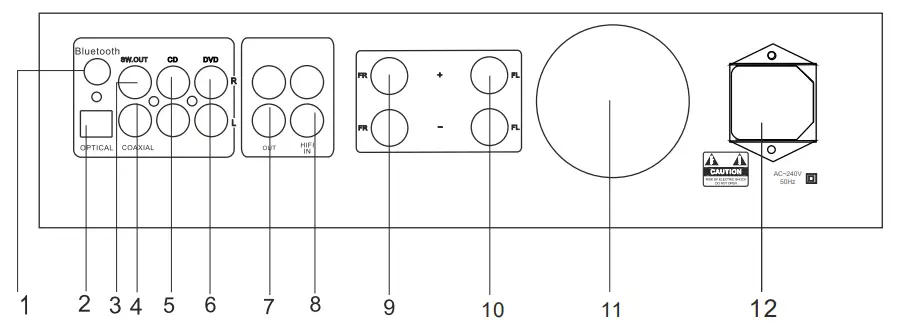

Back Panel
| 1. Bluetooth Antenna Connection (Screw Antenna in before use) 2. Optical Input 3. Subwoofer Output 4. Coaxial Input 5. CD Input 6. DVD Input | 7. HiFi Line Output 8. HiFi Input 9. Right Speaker Terminal 10. Left Speaker Terminal 11. Smart Fan 12. AC Input: 240V/50hz |
Bluetooth. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V5
Audio Input: . . . . . . . . . . . . . . . . . . . . . . . . . . . Coaxial / Optical
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RCA CD / DVD / Hi-Fi /
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PC-USB / Bluetooth
Subwoofer Output: . . . . . . . . . . . . . . . . . . . . RCA Sub Out
Power Output: . . . . . . . . . . . . . . . . . . . . . . . . . 80WRMS x 2 (4ohm）
Total Harmonic Distortion: . . . . . . . . . . . . . 2%
Minimum Speaker Impedance: . . . . . . . . . 4 ohm
Frequency Response: . . . . . . . . . . . . . . . . . . 20HZ-20KHZ
Channel Separation: . . . . . . . . . . . . . . . . . . . 83db
Dynamic Range: . . . . . . . . . . . . . . . . . . . . . . . 85db
Signal-to-Noise Ratio: . . . . . . . . . . . . . . . . . . 90db
Input Impedance: . . . . . . . . . . . . . . . . . . . . . . 47K
Input Sensitivity: . . . . . . . . . . . . . . . . . . . . . . . 550MV
Digital audio DAC sample rate: . . . . . . . . . 44.1KHZ-192KHZ, 24bit
Preamplifer tube: . . . . . . . . . . . . . . . . . . . . . . 6U1 x2, 6A2 x 2,
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6H2 x 2, WY-3P x 1
Weight: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.3KG

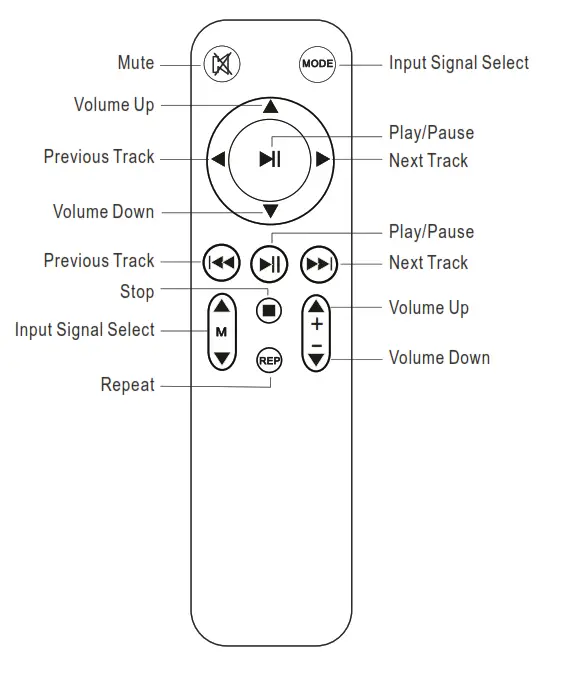

Remote control
Important Safety Instructions
To reduce the risk of electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified personnel. To reduce the risk of fire and shock do not expose unit to rain or moisture. The unit should be connected to an earth grounded AC electrical socket. The unit should be operated in a well ventilated area. Minimum clearance is 2 inches from the ventilation openings.
