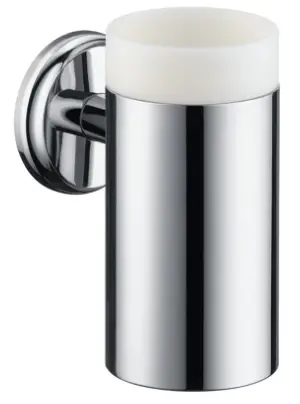

Hansgrohe 41618000 Wall-Mounted Toothbrush Holder
Product Information
The product is a handle with various models, including Logis C 41611XXX, Logis C 41613XXX 41616XXX, Logis C 41617XXX, Logis C 41615XXX, Logis C 41612XXX, Logis C 41623XXX, Logis C 41614XXX, Logis C 41618XXX, and Logis C 41626XXX. It comes in different colors with a color coding system where XXX = Colors 000 = chrome plated 820 = brushed nickel. The product has safety notes and installation instructions in multiple languages, including German, French, English, Italiano, and more.
Product Usage Instructions
To use the handle, ensure that the entire area of the wall to which the mounting plate is to be fitted is flat and suitable for installation with no weak points. The enclosed screws and dowels are only suitable for concrete. For other wall constructions, follow the dowel manufacturer’s indications. Wear gloves during installation to prevent crushing and cutting injuries. Use only the handle for support, and not the remaining products. Check the proper attachment and tight seating of the installed products periodically (annually). To clean the product, refer to the enclosed brochure. Do not use silicone containing acetic acid. For specific dimensions, see page 16-17.
Safety Notes
Gloves should be worn during installation to prevent crushing and cutting injuries.- Intended use of the handle 41613XXX: The handle is not a medical product, it is not intended for physically impaired persons, but only for general private use.
- Use only the handle for support, the remaining products are not intended to be used as supports.
- Check the proper attachment and tight seating of the installed products periodically (annually).
Installation Instructions
Where the contractor mounts the product, he should ensure that the entire area of the wall to which the mounting plate is to be fitted, is flat (no projecting joints or tiles sticking out), that the structure of the wall is suitable for the installation of the product and has no weak points. The enclosed screws and dowels are only suitable for concrete. For another wall constructions the manufacturer’s indications of the dowel manufacturer have to be taken into account.
Symbol description
Do not use silicone containing acetic acid!

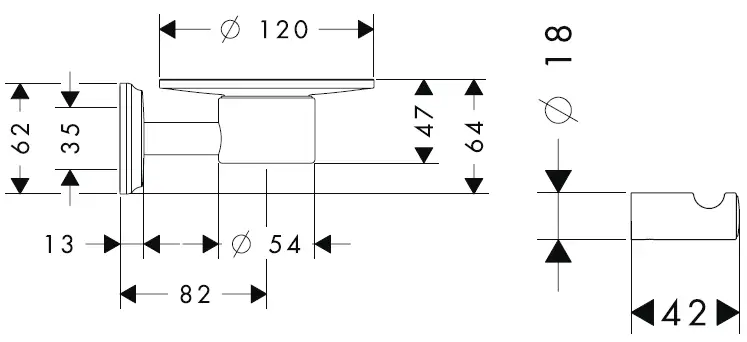

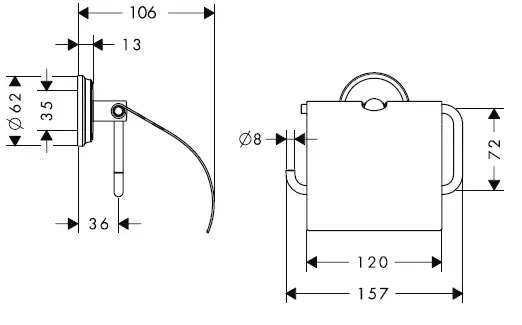

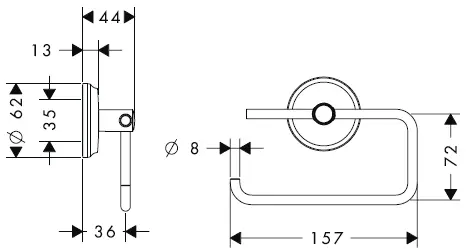

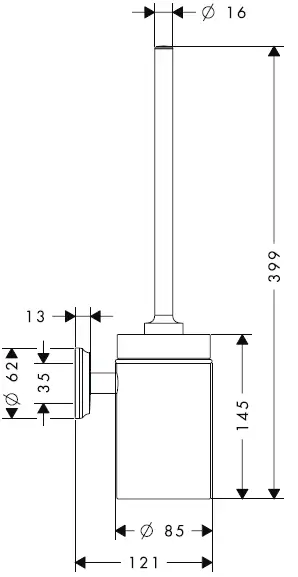

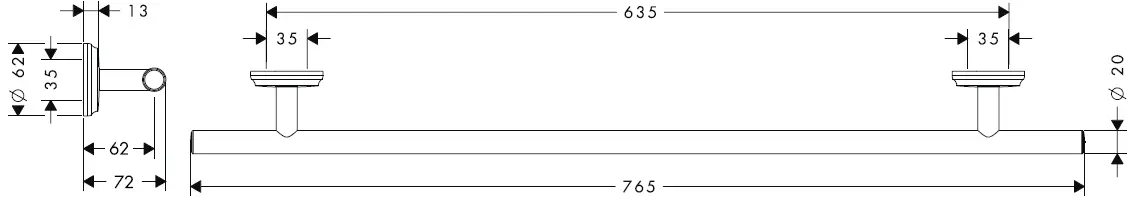

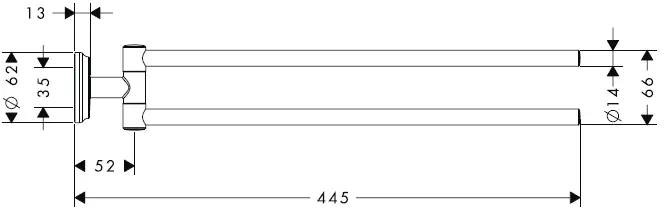

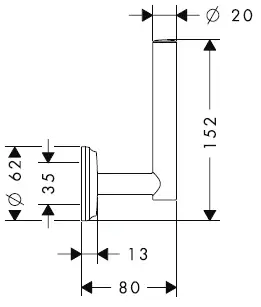

Dimensions
DimensionsThe glass could be of a different size as illustrated due to it being blown by mouth.
- Logis C 41623XXX
- Logis C 41626XXX
- Logis C 41632XXX
- Logis C 41618XXX
- Logis C 41612XXX
- Logis C 41614XXX
- Logis C 41615XXX
- Logis C 41611XXX
- Logis C 41613XXX
- Logis C 41613XXX
- Logis C 41616XXX

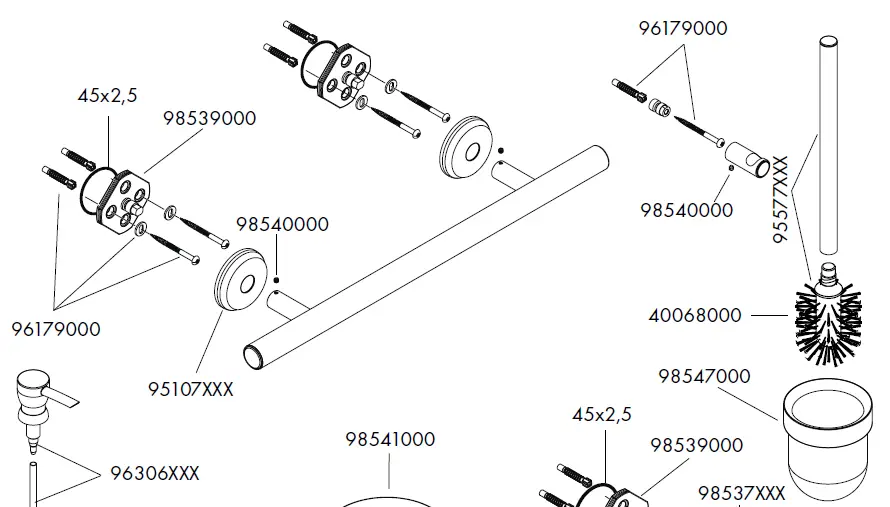

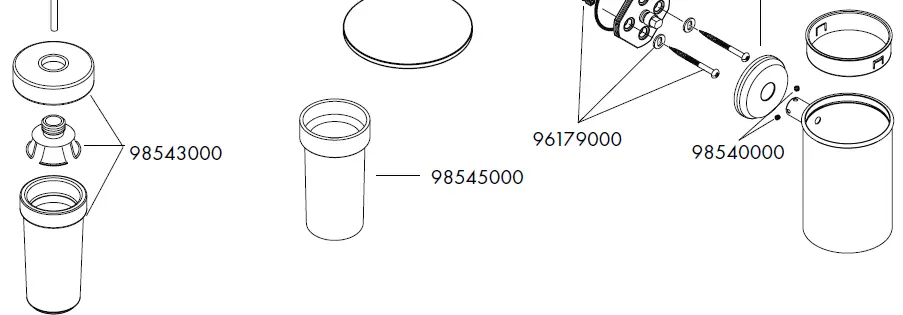

Spare parts (see page 20)
Spare parts (see page 20)- XXX = Colors
- 000 = chrome plated
- 820 = brushed nickel
Cleaning enclosed brochure
Cleaning enclosed brochureLift off pump and lid for filling and cleaning.

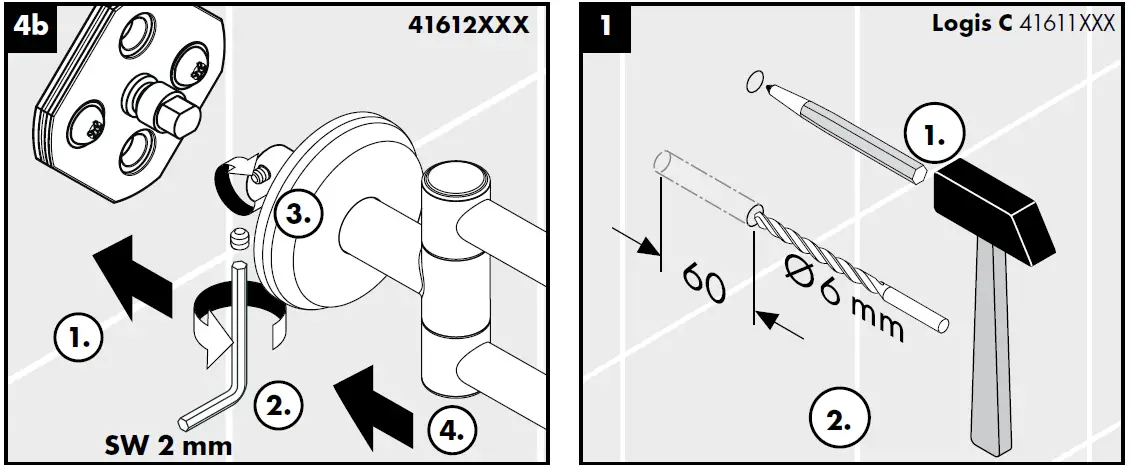

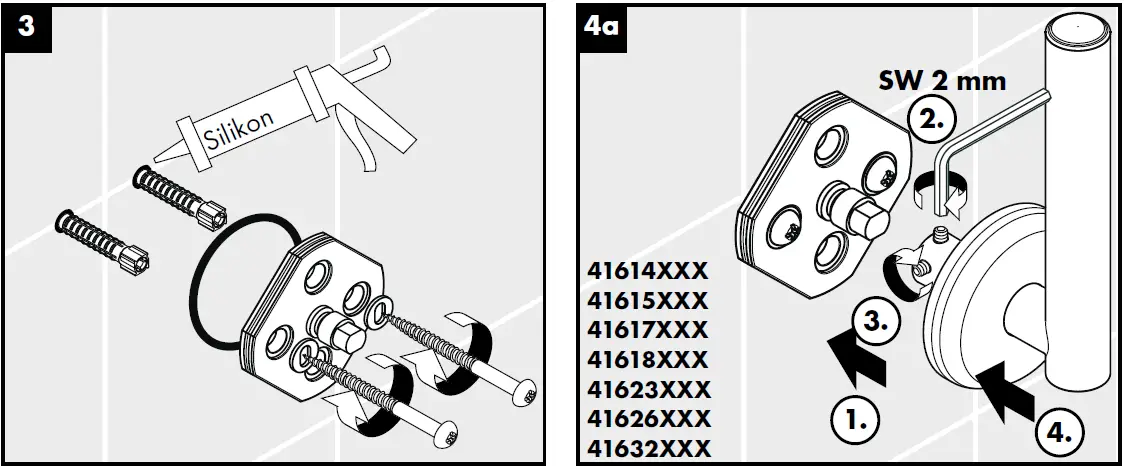

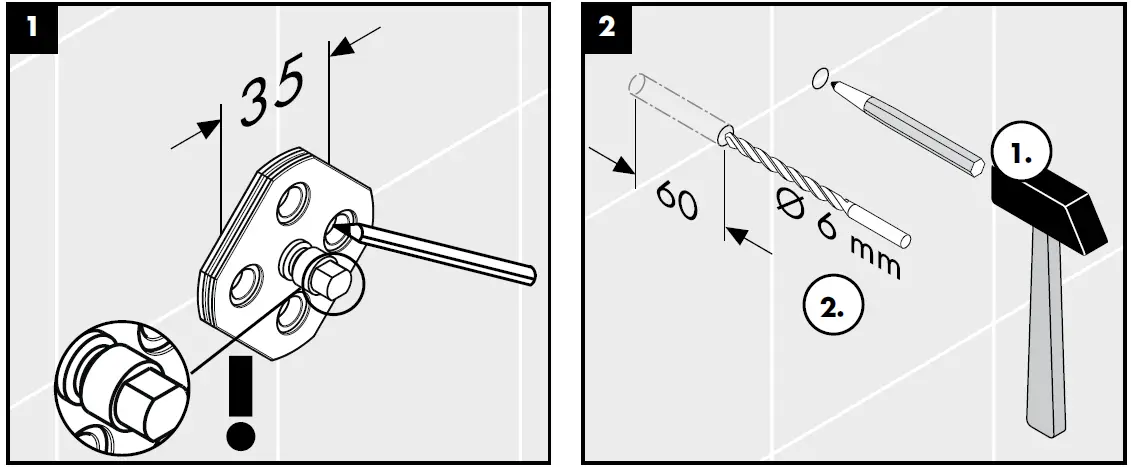

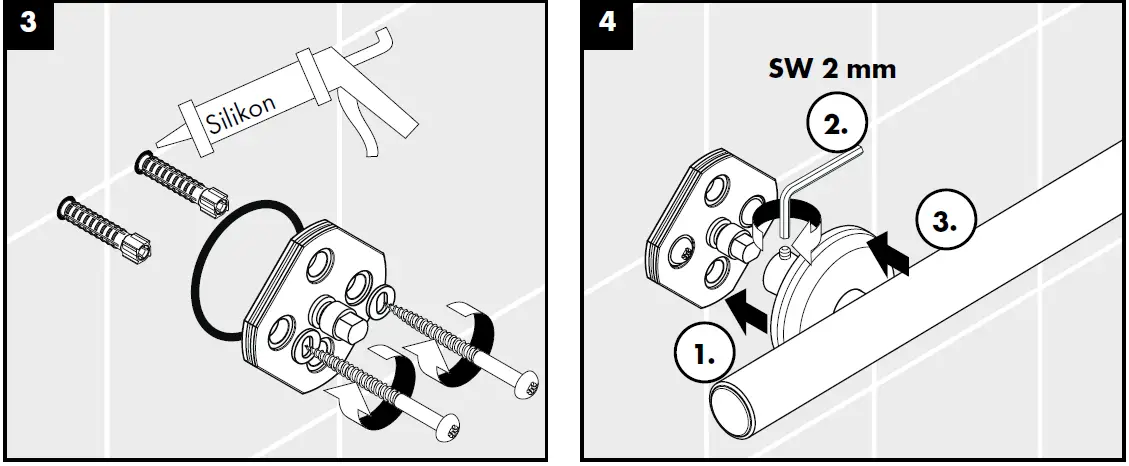

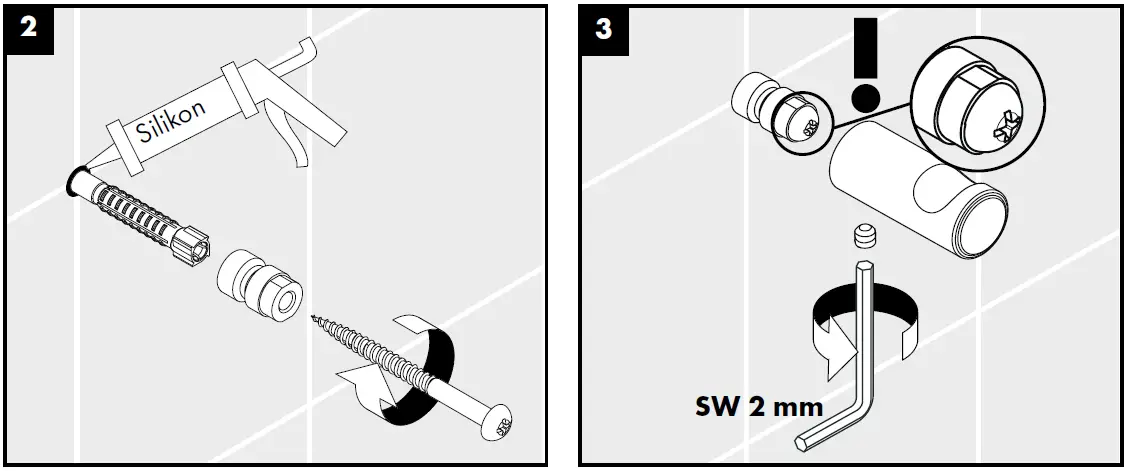

Assembly
Logis C 41612XXX/41614XXX/41615XXX/41617XXX/41618XXX/41623XXX/41626XXX/41632XXX
Logis C 41613XXX/41616XXX
