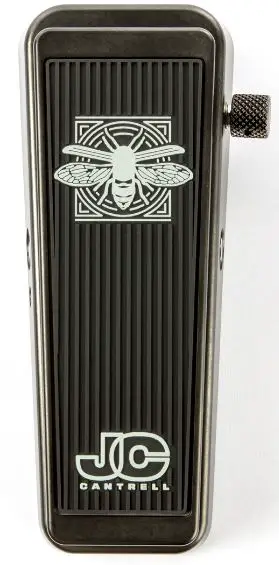

DUNLOP JC95FFS Jerry Cantrell Cry Baby
EXTERNAL CONTROLS
- FINE TUNE knob adjusts tone of toe-down rocker position
BASIC OPERATION
POWER
The Jerry Cantrell Cry Baby® Wah is powered by one 9-volt battery (accessed via underside of pedal), the Dunlop ECB003 9-volt adapter, or an MXR® Brick™ Series power supply.
OPERATION
- Run a cable from your guitar to JCB95FFS’ INSTRUMENT jack and run another cable from the JC95FFS’ AMPLIFIER jack to your amplifier.
- Push the toe of the pedal down until you feel a “click” to turn the pedal on/off.
- Rotate the FINE TUNE knob clockwise for a brighter toe-down response or counterclockwise for a darker toe-down response.
- Rock your foot back and forth on the pedal to hear the vocal,expressive tones that the Cry Baby Wah is famous for.
SPECIFICATIONS
IMPEDANCE
- Input Impedance 1MΩ
- Output Impedance 10KΩ
FILTER CENTER FREQUENCY
- Heel Down 310 Hz ~ 410 Hz
- Toe Down Fine Tune Max 1700 Hz to 2070 Hz
- Toe Down Fine Tune Min 1050 kHz to 1270 Hz
MAXIMUM LEVEL
- Input -11.5 dBV
- Output +6 dBV
MAXIMUM GAIN AT CENTER FREQUENCY
- Heel Down +18 dBV
- Toe Down +20 dBV
NOISE FLOOR*
- Heel Down 97 dB
- Toe Down 89 dB
- Bypass Hardwire
- Current Draw 1 mA
- Power Supply DC 9 volts
* VREF=1VRMS, A-weighted
JC95FFS JERRY CANTRELL FIREFLY CRY BABY® WAH 4
