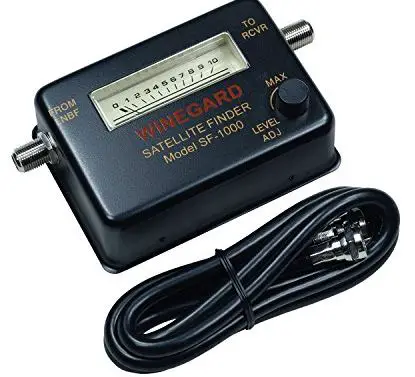

Winegard SF-1000 Satellite Finder Meter
SPECIFICATIONS
- Frequency range………………. 0.95GHz~2.15GHz
- Gain……………………………… 11dB
- Sensitivity………………………. 7
- Power supply…………………… DC13~18V
- Operating range……………….. LNB Gain=52~60dB
- Winegard Company
Wiring and Operation
- STEP 1. Connect a jumper cable from the LNB to the satellite finder’s “FROM LNBF” input.
- STEP 2. Connect the “TO REC” to the DC 13~18V power supply which comes from the satellite receiver.
- STEP 3. Make sure the satellite finder is properly connected. Plug in the AC cord and turn on the satellite receiver. The satellite finder will light up, and the reading should be around 1.
- STEP 4. Make coarse dish adjustments by setting the azimuth and inclination.
- STEP 5. Adjust the knob on the satellite finder until the reading is close to 5.
- STEP 6. Adjust the dish position, feedhorn position, and polarization to have the highest reading on the finder.
- STEP 7. Remove the jumper
IMPORTANT:
When using this unit to install C-Band dish, you must not place the satellite finder in front of the dish to avoid false readings. When using an LNB with a gain higher than 60dB, insert a 5dB attenuator in-between the LNB and the satellite finder, or replace the jumper cable with a 20 ft. RG59U. If the read-out is jumping, the sensitivity is too high. Lower the sensitivity by adjusting S.A. on the bottom.
FAQS
Can this be used with the Tailgater Satellite, even though it has an automatic finder?
Yes it can. be used with the Tailgater Satellite, even though it has an automatic finder
Will this work with swm?
Yes, I helped my brother set his up & worked fine.
Does it work with direct tv?
The device goes between your satellite receiver (doesn’t matter which provider) and the satellite dish.
Does the WINEGARD SF1000 come with the accs. and coax cable?
Yes it came with one coax cable.
Receiver locked, block LNB’s with foil except one and device will quickly report signal strength at the dish?
Not sure why you would block one LNB with foil … anyways the sat finder works best in fine tuning the position after you’ve already established level, azimuth, etc
will this work with sky tv from Mexico?
yes, it will work with sky tv from Mexico
Do you use this with receiver powered on?
The receiver will need to be turned on in order to power the meter properly
Can this be used for Orby Satellite System ?
not sure what an Orby Satellite system is.
What should my satellite signal strength be?
Signal strength is measured on a 125-point scale; the higher the number, the stronger the signal
