Application

Designed for commercial interior office spaces

Design Specifications

Pressed steel base
Quality powder coated finish
Accommodates ESS101 quick connect surface mount socket, excluding BACKLIT panels
For S312FM and S606FM add the suffix /P or /P2 to the order code, for kit form assemblies supplied ready for easy assembly on site.

Technical Specification

Model No.	Body Colour	Dim (mm)
S306FM	WHITE	600(L) x 358(W) x 65(H)
S312FM	WHITE	1200(L) x 358(W) x 65(H)
S606FM	WHITE	600(L) x 658(W) x 65(H)
S612FM	WHITE	1200(L) x 658(W) x 65(H)
S606FM/P	WHITE	600(L) x 658(W) x 65(H)
S312FM/P2	WHITE	1200(L) x 358(W) x 65(H)
S606FM/P2	WHITE	600(L) x 658(W) x 65(H)
S612FM/P2	WHITE	1200(L) x 658(W) x 65(H)

Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the
time of order. Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. Unless specifically stated, all
IP ratings nominated for Interior products are from “below the ceiling”.

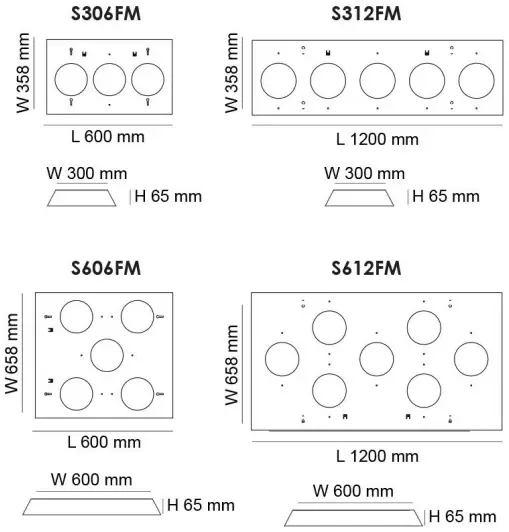

Dimensions

Product Dimensions
