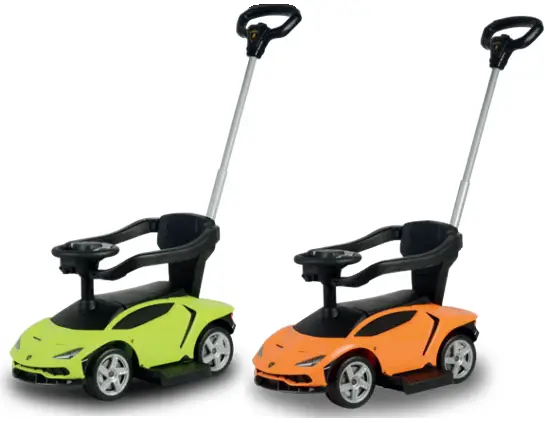

Jamara Push Car 3in1 Lamborghini Centenario Instruction Manual (+ PDF)

JAMARA e.K. is not liable for any damage caused to the product itself or through this, provided this is due to improper operation or handling errors. The Customer alone bears the full responsibility for the proper use and handling, including without limitation, the assembly, the charging process, the use and choice of the operation area. Please refer to the operating and user instructions, it contains important information and warnings.

max. kg

Suitable for children over 6 months

WARNING!
Only use in direct supervision of an adult.
Always wearing shoes, never allow more than 1 person.
Do not use on public transport surfaces and roads.
Risk of accident and injury.
This toy has no brakes.
Before playing, remove all protective films from all parts.
Maximum weight: < 23 kg

Certificate of Conformity

Hereby JAMARAe.K. declares that the products „Lamborghini Centenario, No. 460565, No. 460567 “comply with Directives 2014/30/EU, 2011/65/EU and 2009/48/EC.
The full text of the EU Declaration of Conformity is available at the following Internet address:
www.jamara-shop.com/Conformity

Read the complete instructions and security instructions carefully before using the model.

To prevent accidents and injuries, DO NOT leave your Child unattended during operation of the vehicle. Never let your Child out of your sight while the driving a vehicle.

DO NOT use the vehicle on public roads or places or other dangerous locations. ONLY operate the Ride On Car in places such as private parking, private land or other safe locations. Make sure that no person or animal is endangered.

The vehicle has no brake or parking brake. Do not operate the vehicle uphill or downhill, and secure it when parking.

DANGER

For safe driving, you should make sure that your Child understand and adheres to the following rules:
– Hold tight.
– Never drive without shoes.
– Never drive in the dark.

Attention!
Keep the not mounted kit away from small children as it contains swallowable parts. It must be assembled or checked by adult to make sure the car is assembled on the right way before playing.

Only use in direct supervision of an adult!
To control the vehicle a minimum skill level and caution is needed. Make sure you are familiar with the operation of the model and its characteristics. The model is heavy. This is an increased risk of injury and damage in the event of loss of control. Avoid any kind of intentional or unintentional collisions with objects or hazards to persons.

Box contents: • Model • Instruction

Technical data:

Dimensions: ~ 850 x 470 x 700 – 100 mm
Weight: ~ 4961 g

No responsibility is taken for the correctness of this information. Subject to change without prior notice. Errors and omissions excepted.

Recommended Accessories:

Traffic Light Grand Ord. No. 460256
Traffic Set A Grand Ord. No. 460257
Traffic Set B Grand Ord. No. 460293
Signalling Disc Ord. No. 460308
Trafic barrier Grand Ord. No. 460491

Parts

1 Vehicle body

2. Steering wheel

3. Closure element

4. Backrest

5. Front axle with wheels

6. Bracket for the front axle

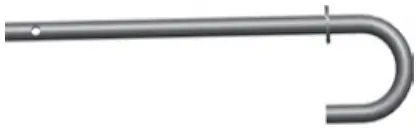

7. Steering column

8. Footrest

9. Handrail

10. Screw M5 x 23

11. Nut

12. Screws

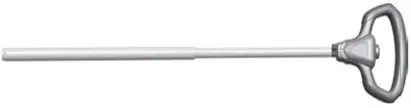

13. Push bar

Assembly

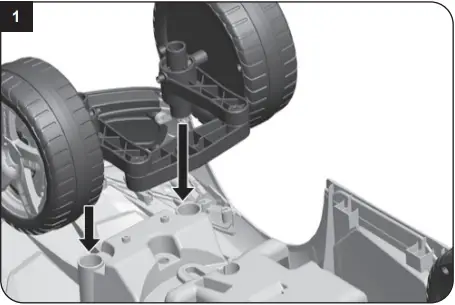

1. Mount the front wheel components
Turn over the cart body (1), and insert the front wheel assembly (5) into the designated location of the cart bottom.
2. Mount the bracket for the front axle
Insert the bracket for the front axle (6) into the designated position on the front wheel along the arrow direction and tighten it with screws (part 12).
3. Assembling the steering column
Slide the steering column (7) from bottom to top through the hole in the body. Insert the bent end of the steering column into the gap at the bottom of the body (see image)

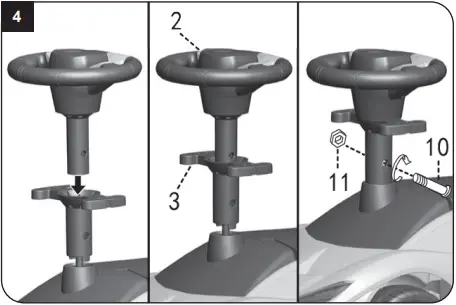

4. Installation of steering wheel
Slide the locking element (3) onto the handlebar. Slide the steering wheel (2) over the locking element and tighten them with the screws (10) and the nut (11).

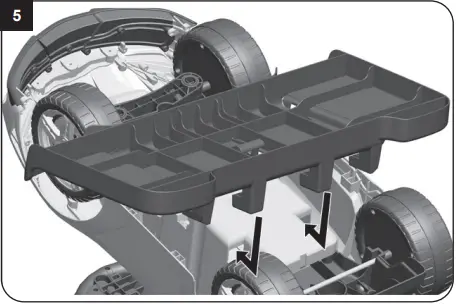

5. Mounting the footrests
Place the pins of the footrest (8) in the correct position on the underside of the model, and push the footrest forward until it clicks into place.

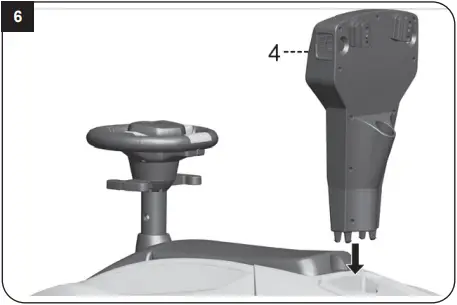

6. Backrest assembly
Insert the backrest (4) into the designated location at the rear upper end of the car.

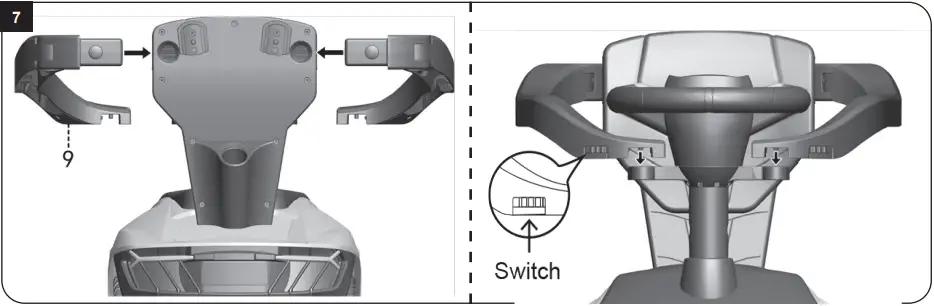

7. Handrail assembly
Insert the right and left safety bars (9) into the brackets on the backrest. Insert the safety bar into the locking element at the front of the model. Make sure that they are the door will engage properly.

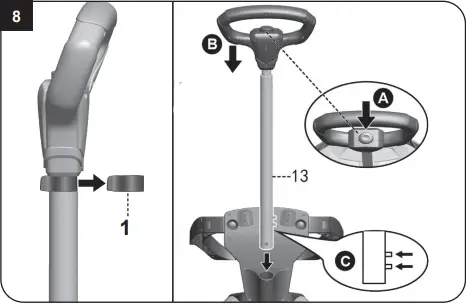

8. Push bar assembly
The installation personnel should stand at the rear of the children’s cart, align with the direction of the bumps on the bottom of the push handle, as shown in the figure. Hold the lower end of the pipe of the push handle with left hand and hold the push handle head with right hand. Press the handle button; Push it hardly with right hand; Now the two bumps on the bottom of the push handle are completed retracted and insert the push handle into the bottom of the installation hold at the rear of the cart. When hearing the sound “crack”, turn the handle to control the turning direction of the front wheel.

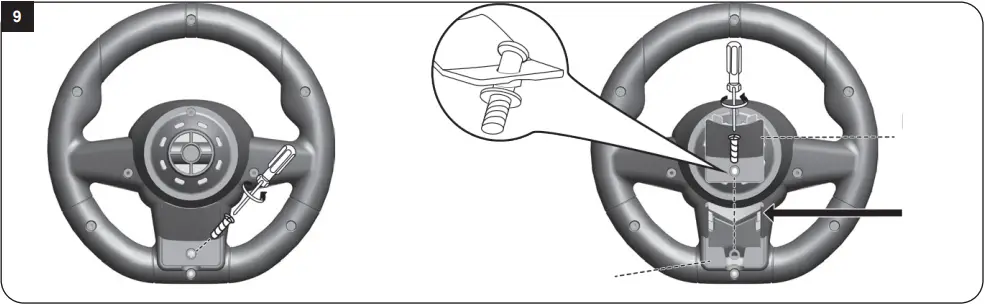

9. Insert the batteries
The battery box is on the bottom of the steering wheel. Remove the battery compartment cover. Fit the 2 x AA batteries, observe the correct polarity. Replace the battery hatch.

Battery warning:

Non-rechargeable batteries are not to be recharged!
Do not open!
Do not dispose of in fire!
Do not mix old and new batteries!
Do not mix alkaline batteries, standard (carbon-zinc) or rechargeable batteries!
Rechargeable batteries are to be removed from the toy before being charged!
Rechargeable batteries are only to be charged under adult supervision!
The supply terminals are not to be short-circuited!

Functions

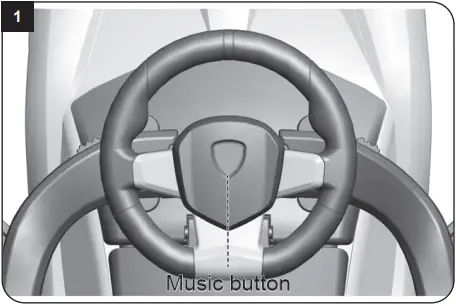

1. Steering wheel
Press the music button on the steering wheel to play six pieces of music, press it once to play a piece of music and the six pieces of music can be played in sequence.

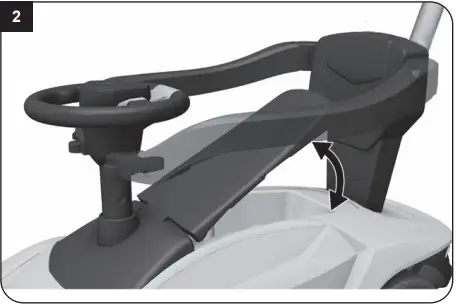

2. Seat
There is a large space under the seat and some items can be placed inside. The kids can excersie their abilities of sorting and storing.

Spare parts

No. 413056 Steering wheel		No. 413057 Handrail
No. 413058 Backrest		No. 413059 Push bar
No. 413060 Wheel		No. 413061 Footrest
No. 413062 Steering column

Disposal restrictions
Batteries and accumulators must not be disposed of in domestic waste. You are obliged to dispose of batteries (seperate collection) appropriately. After use you can return batteries free of charge to the retail store. As batteries contain substances that can be irritant, can cause allergy and are highly reactive, separate collections and proper recycling is important to the environment and to your health. If the batteries are marked with a chemical symbol Hg, Cd or Pb below the crossed-out waste bin on wheels it refers to that more than 0.0005% of mercury (Hg), more than 0.002% of cadmium (Cd) or more than 0.004% Lead (Pb) is included.

Disposal restrictions
Electrical appliances must not be disposed of in domestic waste and must be disposed of separately. You are obliged to take out the batteries, if possible, and to dispose of the electrical equipment at the communal collection points. Should personal data be stored on the electrical appliance you must remove them by yourself.
