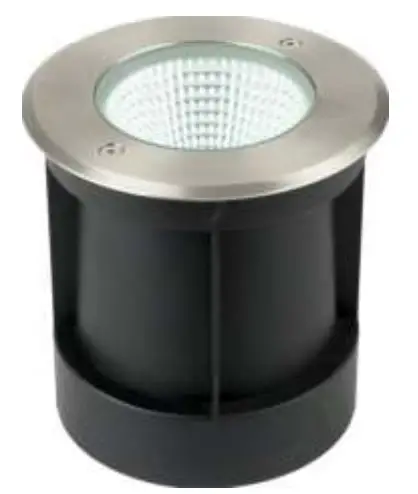

VT-7681 12W LED COB Underground Light
Instruction Manual
WEEE Number: 80133970
2 YEARS
* WARRANTY
TECHNICAL PARAMETERS
| Input Power | Watts | Cut Size | Protection rating | Unit Size |
| AC: 220-240V, 50Hz | 7W | 136mm | IP67 | 150*150*153mm |
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installing and keep this manual handy for future reference.
If you have any another query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best. The warranty is valid for 2 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the product. The products are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This product is warranted for manufacturing defects only.
WARNING!
- Please make sure to turn off the power before starting the installation.
- Proper grounding should be ensured throughout the installation.
- Replace any cracked protective shield
- Install only by certified Electrician.
This marking indicates that this product should not be disposed of with other household wastes.
Caution, risk of electric shock.

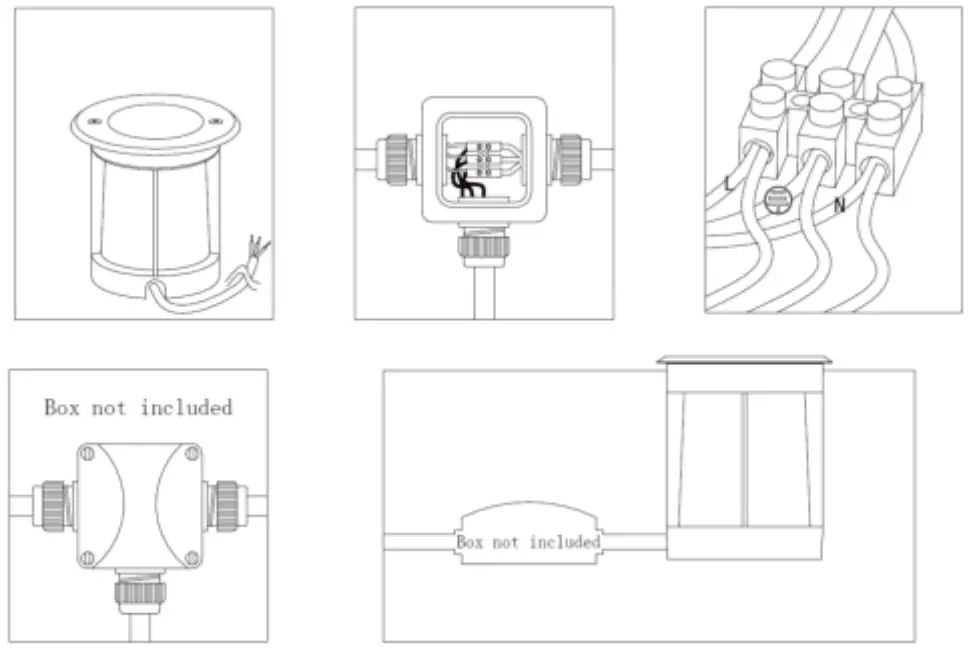

INSTALLATION DIAGRAM:
- Connect the supply leads with terminal (The box not included).
- Fix the lamp body on the ground.
- Switch on and test.
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: [email protected]
