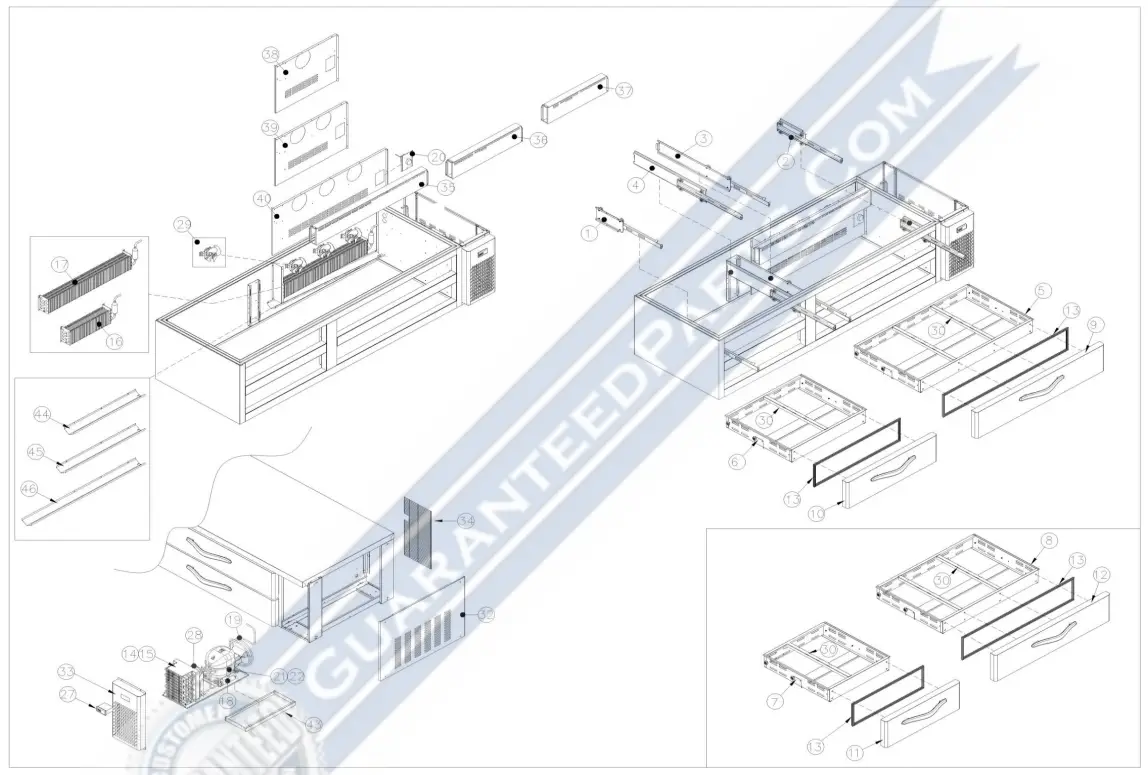

KCB 60 Inch Refrigerated Chef Base
| Item Numb | VP ITEM NU | SN | Part Name | Description | VIEW | QUANTITY | 36 | 48 | 53(60) | 71(74) | 83 | 96 |
|
1 | KB2708 | 1 | CABINET RAIL AS – LEFT ASS’Y (53/60/72/84/ | ASSY – 53/60/71/74/84/96 |  | 1 | ○ | ○ | ○ | ○ | ||
| KB5623 | 2 | BEARING (V) KIT |  | 1 | ||||||||
| KB5612 | 3 | CABINET RAIL AS – LEFT ASS’Y (36/48) | ASS’Y – 36/48 |  | 1 | ○ | ○ | |||||
| KB5623 | 4 | BEARING (V) KIT |  | 1 | ||||||||
| 2 | KB2710 | 5 | CABINET RAIL AS – RIGHT ASS’Y (53/60/72/84/96) | ASSY – 53/60/71/74/84/96 |  | 1 | ○ | ○ | ○ |
○ | ||
| KB5623 | 6 | – BEARING (V) KIT |  | 1 | ||||||||
| KB5613 | 7 | CABINET RAIL AS – LEFT ASS’Y (36/48) | ASS’Y – 36/48 |  | 1 | ○ | ○ | |||||
| KB5623 | 8 | – BEARING (V) KIT |  | 1 |
| Item NumbV | P ITEM NU | SN | Part Name | Description | VIEW | QUANTITY | 36 | 48 | 53(60) | 71(74) | 83 | 96 | |||||||||
| 3 | KB2712 | 9 | CROSSBAR RAIL AS – LEFT ASS’Y (72/84/96) | ASSY – 71/74/84/96 |  | 1 | ○ | ○ | ○ | ||||||||||||
| KB5623 | 10 | – BEARING (V) KIT | | ||||||||||||||||||
| 4 | KB2714 | 11 | CROSSBAR RAIL AS – RIGHT ASS’Y (72/84/96) | ASSY – 71/74/84/96 |  | 1 | ○ | ○ | ○ | ||||||||||||
| KB5623 | 12 | BEARING (V) KIT | | ||||||||||||||||||

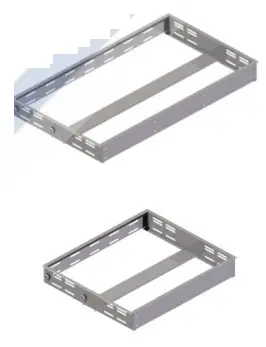

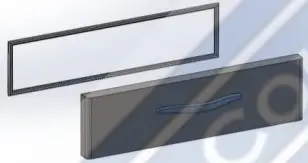

| 5 | KB2716 | 13 | TRAY FRAME AS – BIG (ASSEMBLY) | ASSY |
| 1 | ○ | ○ | ○ | ||||||||||||
| 6 | KB2718 | 14 | TRAY FRAME AS – SMALL (ASSEMBLY) | ASSY | 1 | ○ | ○ | ||||||||||||||
| 7 | KB5609 | 15 | TRAY FRAME AS – 36 (ASSEMBLY) | ASSY | 1 | ○ | |||||||||||||||
| 8 | KB5614 | 16 | TRAY FRAME AS – 48 (ASSEMBLY) | ASSY | 1 | ○ | |||||||||||||||
| KB5635 | 17 | BEARING DRAWER (D) KIT |  | ||||||||||||||||||
| Item Numb | VP ITEM NU | SN | Part Name | Description | VIEW | QUANTITY | 36 | 48 | 53(60) | 71(74) | 83 | 96 |
| 9 | KB5616 | 18 | DOOR ASSEMBLY – BIG (ASSEMBLY) MVP | STS430, URT, 53(60), 83(86), 96 Model |  | 1 | ○ | ○ | ○ | |||
| 10 | KB5617 | 19 | DOOR ASSEMBLY – SMALL (ASSEMBLY) MVP | STS430, URT, 71(74), 83(86) Model | 1 | ○ | ○ | |||||
| 11 | KB5610 | 20 | DOOR ASSEMBLY – 36 (ASSEMBLY) MVP | STS430, URT, 36 Model | 1 | ○ | ||||||
| 12 | KB5615 | 21 | DOOR ASSEMBLY – 48 (ASSEMBLY) MVP | STS430, URT, 48 Model | 1 | ○ | ||||||
|
13 | KB5608 | 22 | DRAWER GASKET CB36 | PVC-S 36Model | 1 | ○ | ||||||
| KB5611 | 23 | DRAWER GASKET CB48 | PVC-S 48Model | 1 | ○ | |||||||
| KB2856 | 24 | DRAWER GASKET CB53 | PVC-S 53(60), 83(86), 96Model | 1 | ○ | ○ | ○ | |||||
| KB2854 | 25 | DRAWER GASKET CB72 | PVC-S 71(74), 83(86)Model | 1 | ○ | ○ | ||||||
| 14 | KB5619 | 26 | CONDENSER KIT CB 4X10 | ASSY |  | 1 | ○ | ○ | ○ | ○ | ||
| 15 | KB5620 | 27 | CONDENSER KIT CB 6X10 | ASSY |  | 1 | ○ | ○ | ||||
| 16 | KB5605 | 28 | EVAPORATOR ASSEMBLY L:342 (R290) | 4S*3R, 1/3″ CU, 342mm |  | 1 | ○ | ○ | ○ | ○ | ||
| 17 | KB5618 | 29 | EVAPORATOR ASSEMBLY L:700 (R290) | 4S*3R, 1/3″ CU, 700mm |  | 1 | ○ | ○ | ||||
| 18 | KB5587 | 30 | DRYER 15G Φ3 / Φ6.5 (R290) | XH-9,15g Φ3 / Φ6.5 |  | 1 | ○ | ○ | ○ | ○ | ○ | ○ |
| 19 | KB5606 | 31 | CAPILLARY & SUCTION PIPE ASSY CB (R290) | CU PIPE 7.94 , ID1.0 x L2000 |  | 1 | ○ | ○ | ○ | ○ | ○ | ○ |
| Item Numb | VP ITEM NU | SN | Part Name | Description | VIEW | QUANTITY | 36 | 48 | 53(60) | 71(74) | 83 | 96 |
|
20 | KB5589 | 32 | REF-THERMOSTAT KIT (R290) | ASSY |  | 1 | ○ | ○ | ○ | ○ | ○ | ○ |
| KB5598 | 33 | THERMOSTAT CONTROL | GNF-100(131A) (R290) | |||||||||
| KB0510 | 34 | KNOB | ABS | |||||||||
| KB1030 | 35 | PLATE TUERMOSTAT | Stainless steel | |||||||||
| 21 | KB5624 | 36 | COMPRESSOR 3117 | EM2X3117U |  | 1 | ○ | ○ | ○ | ○ | ||
| KB5621 | 37 | COMPRESSOR ELECTRONIC KIT 3117 | EM2X3117U | |||||||||
| 38 | PTC RELAY | QP2-4.7 |  | |||||||||
| 39 | OVERLOAD PROTECTO | DRB44N61A2 |  | |||||||||
| 40 | RUNNING CAPACITOR | 450VAC-20㎌ |  | |||||||||
|
22 | KBH180 | 41 | COMPRESSOR (EM2X3125U) + ACCESSORIES | EMBRACO1/4,LMBP,314KCAL/H,5.80BTU/WH |
| 1 |
○ |
○ | ||||
| KB5590 | 42 | O/L PROTECTOR (EM2X3125U) | EM2X3125U DRB46N61A2(13634237) | |||||||||
| KB5591 | 43 | RELAY PTC (EM2X3125U) | EM2X3125U QP2-4.7(13650051) | |||||||||
| KB5592 | 44 | CAPACITOR RUNNING (EM2X3125U) | EM2X3125U AL 20μF_6.3_270MM(13556094) | |||||||||
| KB5593 | 45 | COVER RELAY (EM2X3125U) | EM2X3125U RELAY COVER(16605018) |
| Item Numb | VP ITEM NU | SN | Part Name | Description | VIEW | QUANTITY | 36 | 48 | 53(60) | 71(74) | 83 | 96 |
| 23 | KB2870 | 46 | HARNESS MAIN. | AWM1015 |  | 1 | ○ | ○ | ○ | ○ | ○ | ○ |
| 24 | KB5595 | 47 | HARNESS COMP CB (R290) | AWM1015 |  | 1 | ○ | ○ | ○ | ○ | ○ | ○ |
| 26 | KB0540 | 48 | MAIN POWER CORD | 125V 15A |  | 1 | ○ | ○ | ○ | ○ | ○ | ○ |
| 27 | KB2993 | 49 | INDICATOR | TID-1110 – 115V, ℉ |  | 1 | ○ | ○ | ○ | ○ | ○ | ○ |
| KB5626 | 50 | INDICATOR(DIXEL) | XT11SH-4100N, 115V, ℉ |  | 1 | ○ | ○ | ○ | ○ | ○ | ○ | |
| 28 | KB5622 | 51 | CONDENSER FAN MOTOR KIT | ASSY |  | 1 | ○ | ○ | ○ | ○ | ○ | ○ |
| KB5625 | 52 | CONDENSER FAN MOTOR | DAI-8204DYCA-2 / 6W | |||||||||
| KB5629 | 53 | MOTOR FAN BLADE | AL, Φ170 | |||||||||
|
29 | KB5636 | 54 | EVAPORATOR FAN MOTOR KIT | ASSY(C.C.W) |
| 1 | ○ | ○ | ○ |
| ○ | ○ |
| KB0330 | 55 | EVAPORATOR FAN MOTOR | 115V/60Hz, DAI6122 FRTA(C.C.W) | |||||||||
| KB5628 | 56 | EVA MOTOR BRACKET | STAINLESS STEEL- 445NF | |||||||||
| KB5630 | 57 | MOTOR FAN BLADE | ABS, Φ110 | |||||||||
| 30 | KB5634 | 58 | ADAPTER BAR (A) (FRONT TO BACK) | STS445NF, T1.0 |  | 1 | ○ | ○ | ○ | ○ | ○ | ○ |
| 31 | KB5633 | 59 | ADAPTER BAR (B) (SIDE TO SIDE) | STS445NF, T1.0 |  | 1 | OPTION | |||||
| 32 | KB2950 | 60 | SIDE COVER CB | STS430 |  | 1 | ○ | ○ | ○ | ○ | ○ | ○ |
| 33 | KB2952 | 61 | FRONT COVER – MC | STS430 | | 1 | ○ | ○ | ○ | ○ | ○ | ○ |
| KB5604 | 62 | FRONT COVER – MC | STS430 | | 1 | ○ | ○ | ○ | ○ | ○ | ○ | |
| 34 | KB5607 | 63 | BACK COVER | WIRE |  | 1 | ○ | ○ | ○ | ○ | ○ | ○ |
| 35 | KB2810 | 64 | EVAP. FAN GUARD – SMALL | STS445NF 48, 53(60), 71(74) |  | 1 | ○ | ○ | ○ | |||
| 36 | KB2814 | 65 | EVAP. FAN GUARD – BIG | STS445NF 83(86), 96 | 1 | ○ | ○ | |||||
| 37 | KB5603 | 66 | EVAP. FAN GUARD -36 | STS445NF 36 | 1 | ○ | ||||||
| 38 | KB5602 | 67 | EVAP. DUCT (1F) | STS445NF 36 |  | 1 | ○ | |||||
| 39 | KB2808 | 68 | EVAP. DUCT (2F) | STS445NF 48, 53(60), 71(74) |  | 1 | ○ | ○ | ○ | |||
| Item Numb | VP ITEM NU | SN | Part Name | Description | VIEW | QUANTITY | 36 | 48 | 53(60) | 71(74) | 83 | 96 | |
| 40 | KB2812 | 69 | EVAP. DUCT (3F) | STS445NF 83(86), 96 |  | 1 | ○ | ○ | |||||
| 41 | KB3030 | 70 | CASTER SET – 5″ | 5″(127) Brake caster 2EA, Caster 2EA | 1 | OPTION | Codes remain the same but included quantity has been changed (2 to 4) so prices have been doubled. | ||||||
| KB3032 | 71 | CASTER SET – 4″ | 4″(102) Brake caster 2EA, Caster2EA | 1 | ○ | ○ | ○ | ○ | ○ | ○ | |||
| KB3034 | 72 | CASTER SET – 3″ | 3″(76) Brake caster 2EA, Caster 2EA | 1 | OPTION | ||||||||
| KB3036 | 73 | CASTER SET – 2.5″ | 2″(50) Brake caster 2EA, Caster 2EA | 1 | OPTION | ||||||||
| 43 | KB5627 | 74 | DRAIN TRAY BOX CB | GI + Black Coating |  | 1 | ○ | ○ | ○ | ○ | ○ | ○ | |
| 44 | KB5601 | 75 | DRAIN PAN L=21.3″ | STS445NF 36 |  | 1 | ○ | ||||||
| 45 | KB5631 | 76 | DRAIN PAN L=22.5″ | STS445NF 48, 53(60), 71(74) | 1 | ○ | ○ | ○ | |||||
| 46 | KB5632 | 77 | DRAIN PAN L=36.6″ | STS445NF 84(86), 96 | 1 | ○ | ○ | ||||||
