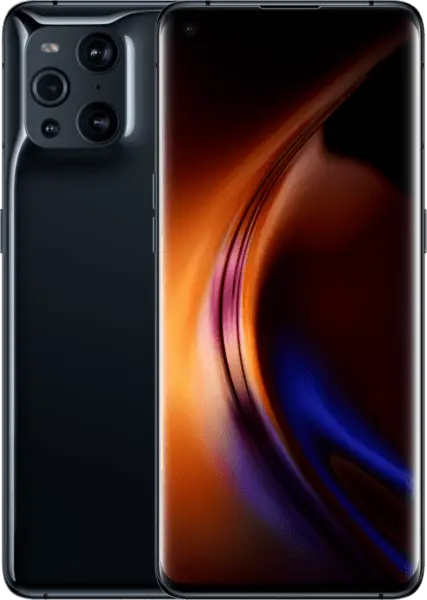

OPPO CPH2173 Find X3 Pro Dual SIM 12GB RAM Smartphone User Guide
Greetings from OPPO Mobile
This guide will show you how to use the phone and its important functions. You may also visit OPPO official website to get more information about the phone.

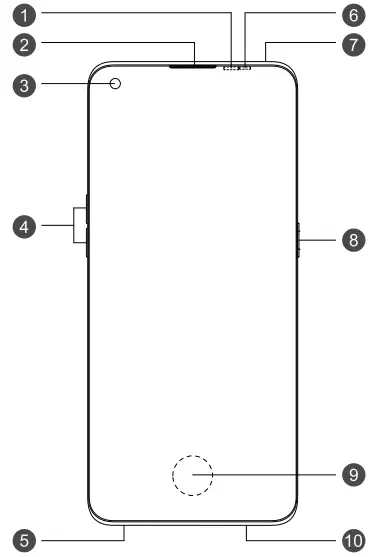

- Proximity sensor
- Receiver
- Front Camera
- Volume Key
- SIM card tray
- Light & color temperature sensor
- Sub MIC
- Power Key & Screen Lock Key
- Screen Fingerprint
- Speaker

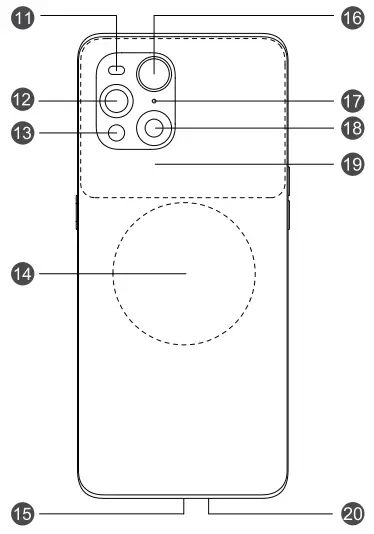

- Color temperature sensor & flash
- Microscope
- Telephoto camera
- Wireless charging
- USB & Earphone Jack
- Wide angle camera
- Third MIC
- Main camera
- NFC
- Main MIC
How to reboot the phone
Press and hold the Power Button and Volume Up Button at the same time until the OPPO boot animation is displayed to reboot the phone.
Regulatory
Steps to search Regulatory : Go to Settings—About Phone—Regulatory
How to Transfer Old Mobile Content to a New Mobile
You can use OPPO Clone Phone to easily transfer photos, videos, music, contacts, messages, apps, etc from your old phone to the new one.
- If your previous phone was a non-OPPO Android phone, search “OPPO Clone Phone” in the Google Play store and install the app. You can also scan the QR code below to install it. If your previous phone was an OPPO phone, you don’t need to install this app. Then run Clone Phone on both phones and follow the on-screen instructions.
http://i.clonephonecoloros.com/download - If your previous phone was an iPhone, run “Clone Phone” on your new phone, and follow the onscreen instructions to migrate your data from your iCloud account.
Accessories and Software Information
You are provided with the following standard accessories:
- 1 Phone
- 01 Charger
- 1 Earphone
- 1 USB data cable
- 1 Safety Guide
- 1 Quick Guide
- 1 SIM Ejector Tool
- 1 Protective Case.
The product software version is: ColorOS V11.2
For the most recent information about accessories and software, please see the DoC (Declaration of Conformity) at www.oppo.com/en/certification.
Warning
Your device has been tested in a controlled environment and certified to be splash, water, and dust resistant in specific situations (meets requirements of classification IP68 as described by the international standard IEC 60529; test conditions: 15-35 ºC, 86-106 kPa, 1.5 metre, 30 minutes). The waterproof and dustproof level might decrease as a result of normal wear. Do not charge your device in wet conditions.
Specification
| Product | CPH2173 | |
| Main screen parameter | 17.02cm(6.7″) | |
| Dimension | 163.6×74.0x8.26(mm) | |
| Battery | DC7.74V 2200mAh/17.02Wh(Min) DC7.74V 2250mAh/17.41Wh(Typ) (Equaling to DC3.87V 4400mAh/17.02Wh(Min) DC3.87V 4500mAh/17.41Wh(Typ)) | |
| Camera | 50Mega pixels+50Mega pixels+13Mega pixels +3Megapixels Rear 32Megapixels Front | |
| Operating temperature | 0°C-35°C | |
| SAR Values | CE SAR | 0.881W/kg(Head) 1.221 W/kg(Body) |
| FCC SAR | 1.17W/kg(Head) 0.47W/kg(Body) 1.05W/kg(Hotspot) | |
Note: The SAR values above are the highest values reported for this device.
Radio Waves Specifications
Radio | Frequency | Max. Output Power |
| GSM | 850/900MHz | 33±1dBm |
| 1800/1900MHz | 30±1 dBm | |
| WCDMA | Bands 1/5/6/8/19 | 24±1dBm |
| Band 2 | 23.8±1dBnn | |
| Band 4 | 23±1dBm | |
| LTE FDD | Bands 1/3/12/17/18/19/26 | 24±1dBm |
| Bands 5/8/20/28 | 24.2±1dBm | |
| Bands 2/4/13/25/66 | 23±1 dBm | |
| Band 7 | 23.5±1dBm | |
| Band 32 | / | |
| LTE TDD | Band 34 | 23±1dBm |
| Band 38 | 23.5±1dBm | |
| Bands 39/40 | 24±1dBnn | |
| Band 41 | 25±1dBnn | |
| Band 42 | 22.5±1dBm | |
| 5G NR | n1/n3/n5/n7/n8/n20/n38/n40 | 23±1.2dBm |
| n77/n78 | 23±1.5dBm | |
| n28 | 24±1.2dBm | |
| n41 | 22.5±1.2dBm | |
| n79 | 22.5±1.5dBm | |
| Bluetooth | 2.4-2.4835GHz | 7.6±2dBm(EIRP) |
| 2.4G Wi-Fi | 2.4-2.4835GHz | 16±2dBm(EIRP) |
| 5G Wi-Fi | 5.15-5.35GHz; 5.47-5.725GHz | 15.5±2dBnn(EIRP) |
| 5.725-5.85GHz | 10±2dBm(EIRP) | |
| NFC | 13.56MHz | 42dBpA/m @10m |
| WPC | 110KHz-148KHz | 42d BpA/m @10m |
Copyright © Guangdong OPPO Mobile Telecommunications Corp., Ltd. 2021. All rights reserved.
