Apple iPhone 11 Pro Max Backup phone

Overview

Related Similar 5G Phones

Product CodeSIMBatteryChipsetSupport 5G BandsSize
Samsung Galaxy S20 Ultra SMG9880Dual SIM

5000mAh



Snapdragon 865+



5G TDD Sub6: N41(2500)/N78(3500)/N79(4500)



6.9 inches

Samsung Galaxy Note20 Ultra SM-N9860Dual SIM

4500mAh



Snapdragon 865+



5G TDD Sub6: N41(2500)/N78(3500)/N79(4500)



6.9 inches

Samsung Galaxy Z Flip SMF7070Dual SIM

3300mAh



Snapdragon 865+



5G TDD Sub6: N41(2500)/ N78(3500)/N79(4500)



6.7 inches



HUAWEI P40 5G Phone

Dual SIM

3800mAh



Kirin 990



5G NR: n1/n3/n41(2515M-2690MHz)/n77/n78/n79



6.1 inches



HUAWEI Mate 40 5G Phone

Dual SIM4200

mAh



Kirin 9000E

5G NR: n1/n3/n28 (TX: 703 MHz-733 MHz, RX: 758 MHz-788 MHz)

/n38/n40/n41/n77/n78/n79/n80/n84



6.5 inches



iPhone 12 / iPhone 12 Pro

Dual SIM2815

mAh



A14 Bionic chip

5G

NR: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n66/n77/n78/n79



6.1 inches



iPhone 12 Pro Max

Dual SIM3687

mAh



A14 Bionic chip

5G NR:

n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n66/n77/n78/n79



6.7 inches



Xiaomi Mi 10 5G Phone

Dual SIM

4780mAh



Snapdragon 865



5G NR: n1/n3/n41/n78/n79

6.67

inches



Xiaomi Mi 10 Ultra

Dual SIM4500

mAh

Snapdragon 865 (7 nm+)

5G NR: n1/n3/n41/n78/n79

6.67

inches



OPPO Reno4 5G Phone

Dual SIM

4020mAh



Snapdragon 765G



5G NR: n1/n3/n41/n77/n78/n79



6.4 inches



OPPO Find X2 5G Phone

Dual SIM

4200mAh



Snapdragon 865



5G NR: n1/n41/n78/n79



6.7 inches

Learn More: 5G Devices
Apple iPhone 11 Pro Max, runs on iOS v13.0 operating system. The phone is powered by Hexa Core processor, It runs on the Apple A13 Bionic Chipset.

Quick Specs

Table 1 shows the Quick Specs.

Product CodeiPhone 11 Pro Max
TechnologyGSM / CDMA / HSPA / EVDO / LTE
Dimensions158 x 77.8 x 8.1 mm (6.22 x 3.06 x 0.32 in)
Weight226 g (7.97 oz)
BuildGlass front (Gorilla Glass), glass back (Gorilla Glass), stainless steel frame
SIMSingle SIM (Nano-SIM and/or eSIM) or Dual SIM (Nano-SIM, dual stand-by) – for China IP68 dust/water resistant (up to 4m for 30 mins)

Apple Pay (Visa, MasterCard, AMEX certified)

Display TypeSuper Retina XDR OLED, HDR10, 800 nits (typ), 1200 nits (peak)
Display Size6.5 inches, 102.9 cm2 (~83.7% screen-to-body ratio)
Resolution1242 x 2688 pixels, 19.5:9 ratio (~458 ppi density)

Product Details

iPhone 11 Pro Max provides these features and benefits: Shooting Experience Unlike Any Other

Shoot like a pro even when you are not with the incredible cameras of this Apple iPhone. It boasts of a three-camera system, i.e. ultra-wide camera, wide camera, telephoto camera, which work together seamlessly as one to give you an exceptional shooting experience. This top-class Apple phone features a 12MP rear sensor that lets you capture beautiful and stunning pictures on the fly. It incorporates next-generation Smart HDR technology to finesse highlight and shadow detail in your image, giving it a lifelike feel. Furthermore, this Apple phone features Optical image stabilization that keeps the captured shots, blur-free. What more, it also lets you shoot 4K video with extended dynamic range and cinematic video stabilization at 60fps. Thanks to its 12MP TrueDepth camera, this smartphone enables you to take slow-motion selfies or videos at 120 fps. The three-camera system performs smooth transitions from one camera to the next, depending on the surroundings. So, no matter whether you are shooting videos, photos, portraits, time-lapse, or even slo-mo videos, you will always have top-quality shots. Also, this Apple smartphone has a night mode that uses intelligent software and A13 Bionic chip to deliver low-night shots.

Power in your Hands

This Apple 11 Pro Max smartphone takes mobile computing to a new high. It is powered by a power-efficient A13 Bionic chip with 64-bit Fusion architecture that is intelligent and wickedly powerful. It handles the everyday tasks smoothly, be it opening and closing of applications, running of heavy-duty games, or even video editing. The 4GB RAM ensures you of seamless multitasking performance. The combination of highly advanced CPU, GPU, and Neural engine ensures it delivers a top-class performance while consuming less power.

Makes Viewing a Pleasure

This Apple mobile phone delivers crisp and clear visuals for maximum viewing pleasure. It features a 6.5inch OLED screen with Super Retina XDR display that looks stunning from all angles. This smartphone hits up to 800nits brightness when you are in the sun, allowing you to use it comfortably. Also, it hits up to 1200nits brightness when you are viewing extreme dynamic range content, making it perfect for HDR photos and HDR10 movies.
Incredible Battery Life
Do more without worrying too much about the battery life with this Apple 4GB RAM smartphone. It packs in a high-capacity battery that will easily last for elongated periods on one single full charge. What’s more, it incorporates fast charging technology that enables you to charge up to 50 percent of the battery in just under 30 minutes. Also, this mobile supports wireless charging, so you can charge it anywhere you want to.

Styled to Perfection

This Apple 4G LTE mobile phone is precision-milled from high-class materials that impart it a stunning and captivating look. It uses robust and durable glass on its front and back, which resists breaking. Also, it has an excellent IP68 rating, which means you do not have to think twice before carrying the phone inside a swimming pool for some time. Also, this phone is spill-resistant, so even if you drop common liquids on it like coffee, tea, and soda, you need not worry. Furthermore, it features precision-fitted seals that provide excellent dust-resistance, making it perfect for use even in a desert.

Compare to Similar Items

Table 2 shows the comparison.

Product CodeiPhone 11iPhone 11 ProiPhone 11 Pro Max
FinishBlack, Green, Yellow, Purple, Red, WhiteGray, Silver, Gold, GreenGray, Silver, Gold, Green
Capacity64GB

128GB

256GB

64GB

256GB

512GB

64GB

256GB

512GB

Dimensions150.9 x 75.7 x 8.3 mm (5.94 x 2.98 x

0.33 in)

144 x 71.4 x 8.1 mm (5.67 x 2.81 x

0.32 in)

158 x 77.8 x 8.1 mm (6.22 x 3.06 x

0.32 in)

Weight194 g (6.84 oz)188 g (6.63 oz)226 g (7.97 oz)
Size6.1-inch5.8-inch6.5-inch
Resolution828 x 1792 pixels, 19.5:9 ratio (~326 ppi density)1125 x 2436 pixels, 19.5:9 ratio (~458 ppi density)1242 x 2688 pixels, 19.5:9 ratio (~458 ppi density)
ChipA13 Bionic chip

Third-generation Neural Engine

Apple A13 Bionic (7 nm+)Apple A13 Bionic (7 nm+)
Operating SystemiOS 14iOS 13, upgradable to iOS 14.1iOS 13, upgradable to iOS 14.1
CPUHexa-core (2×2.65 GHz Lightning + 4×1.8 GHz Thunder)Hexa-core (2×2.65 GHz Lightning + 4×1.8 GHz Thunder)Hexa-core (2×2.65 GHz Lightning + 4×1.8 GHz Thunder)
GPUApple GPU (4-core graphics)Apple GPU (4-core graphics)Apple GPU (4-core graphics)

Get More Information
Do you have any question about the iPhone 11 Pro Max?Contact us now via Live Chat or [email protected].

Specification

iPhone 11 Pro Max Specification
Capacity64GB, 256GB, 512GB
Size and WeightWidth: 3.06 inches (77.8 mm)

Height: 6.22 inches (158.0 mm)

Depth: 0.32 inch (8.1 mm)

Weight: 7.97 ounces (226 grams)

DisplaySuper Retina XDR display

6.5inch (diagonal) all‑screen OLED MultiTouch display HDR display

2688by1242-pixel resolution at 458 ppi 2,000,000:1 contrast ratio (typical) NOTE

The iPhone 11 Pro Max display has rounded corners that follow a beautiful curved design, and these corners are within a standard rectangle. When measured as a standard rectangular shape, the screen is 6.46 inches diagonally (actual viewable area is less).



True Tone display Wide color display (P3) Haptic Touch

800 nits max brightness (typical); 1200 nits max brightness (HDR) Fingerprint-resistant oleophobic coating

Support for display of multiple languages and characters simultaneously

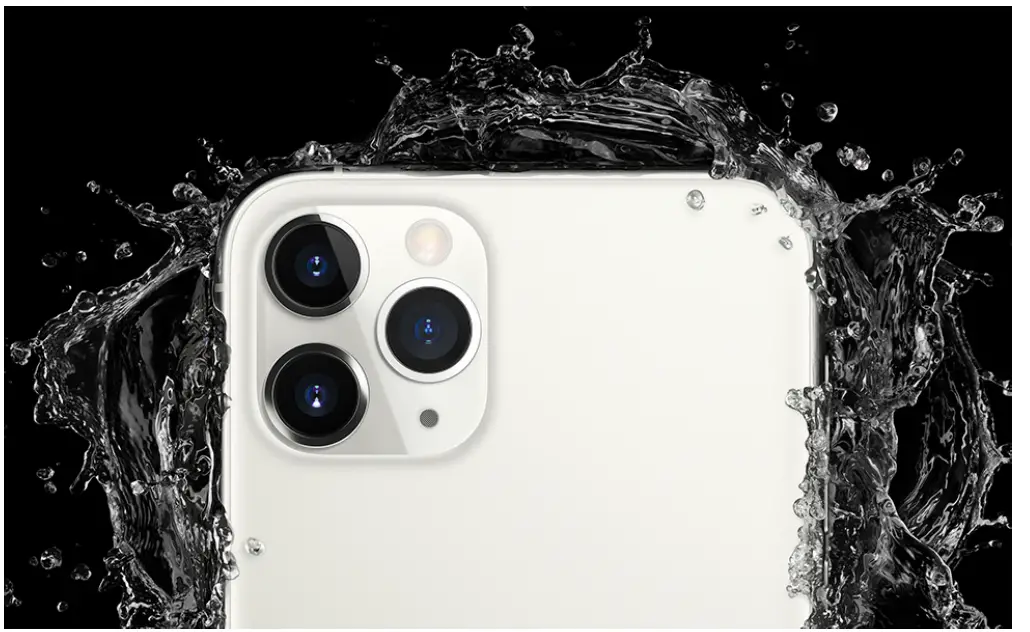

Splash, Water, and Dust ResistantRated IP68 (maximum depth of 4 meters up to 30 minutes) under IEC standard 60529
ChipA13 Bionic chip

Third-generation Neural Engine

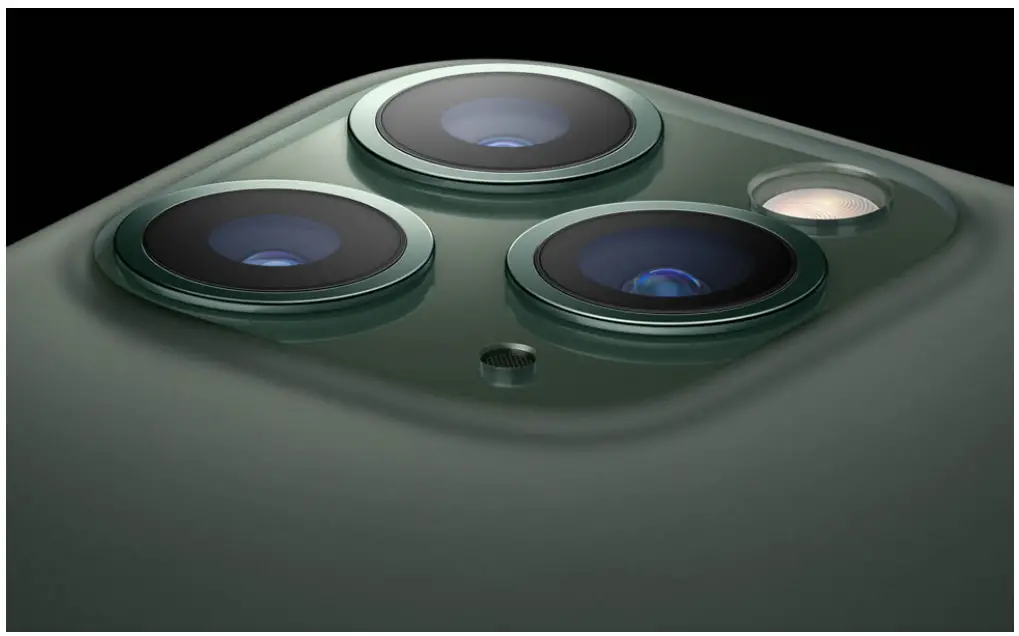

CameraTriple 12MP Ultra Wide, Wide, and Telephoto cameras Ultra Wide: ƒ/2.4 aperture and 120° field of view

Wide: ƒ/1.8 aperture Telephoto: ƒ/2.0 aperture

2x optical zoom in, 2x optical zoom out; digital zoom up to 10x Portrait mode with advanced bokeh and Depth Control

Portrait Lighting with six effects (Natural, Studio, Contour, Stage, Stage Mono, High-Key Mono)

Dual optical image stabilization (Wide and Telephoto)

Five-element lens (Ultra Wide); six-element lens (Wide and Telephoto) Brighter True Tone flash with Slow Sync

Panorama (up to 63MP) Sapphire crystal lens cover 100% Focus Pixels (Wide) Night mode

Auto Adjustments

Next-generation Smart HDR for photos

Wide color capture for photos and Live Photos Advanced red-eye correction

Photo geotagging

Auto image stabilization Burst mode

Image formats captured: HEIF and JPEG

Video Recording4K video recording at 24 fps, 30 fps, or 60 fps 1080p HD video recording at 30 fps or 60 fps 720p HD video recording at 30 fps

Extended dynamic range for video up to 60 fps

Optical image stabilization for video (Wide and Telephoto) 2x optical zoom in, 2x optical zoom out; digital zoom up to 6x Audio zoom

Brighter True Tone flash

QuıckTake video with subject tracking

Slo-mo video support for 1080p at 120 fps or 240 fps Time-lapse video with stabilization

Cinematic video stabilization (4K, 1080p, and 720p) Continuous autofocus video

Take 8MP still photos while recording 4K video Playback zoom

Video formats recorded: HEVC and H.264 Stereo recording

TrueDepth Camera12MP camera ƒ/2.2 aperture

Portrait mode with advanced bokeh and Depth Control

Portrait Lighting with six effects (Natural, Studio, Contour, Stage, Stage Mono, High‑Key Mono)

Animoji and Memoji

4K video recording at 24 fps, 30 fps, or 60 fps 1080p HD video recording at 30 fps or 60 fps Slo-mo video support for 1080p at 120 fps Next-generation Smart HDR for photos Extended dynamic range for video at 30 fps

Cinematic video stabilization (4K, 1080p, and 720p) Wide color capture for photos and Live Photos Retina Flash

Auto image stabilization Burst mode

Touch IDEnabled by TrueDepth camera for facial recognition
Apple PayPay with your iPhone using Face ID in stores, within apps, and on the web Send and receive money in Messages

Complete purchases made with Apple Pay on your Mac

Apple CardCredit card created by Apple, designed for iPhone

Use the Wallet app to apply for, manage, and use Apple Card

Pay with Apple Pay using Face ID in stores, within apps, and on the web Titanium, laser-etched physical credit card for use where Apple Pay is not accepted yet

Cellular and WirelessModel A2160

FDD-LTE (Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 29, 30, 66,

71)

TD-LTE (Bands 34, 38, 39, 40, 41, 42, 46, 48) CDMA EV‑DO Rev. A (800, 1900 MHz)

UMTS/HSPA+/DC-HSDPA (850, 900, 1700/2100, 1900, 2100 MHz)

GSM/EDGE (850, 900, 1800, 1900 MHz)

Model A2161

FDD-LTE (Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 29, 30, 66,

71)

TD-LTE (Bands 34, 38, 39, 40, 41, 42, 46, 48) CDMA EV-DO Rev. A (800, 1900 MHz)

UMTS/HSPA+/DC-HSDPA (850, 900, 1700/2100, 1900, 2100 MHz)

GSM/EDGE (850, 900, 1800, 1900 MHz)

All models

Gigabit-class LTE with 4×4 MIMO and LAA 802.11ax Wi-Fi 6 with 2×2 MIMO Bluetooth 5.0 wireless technology

Ultra Wideband chip for spatial awareness NFC with reader mode

Express Cards with power reserve

LocationBuilt-in GPS/GNSS Digital compass

Wi-Fi Cellular

iBeacon microlocation

Video CallingFaceTime video calling over Wi‑Fi or cellular
Audio CallingFaceTime audio

Voice over LTE (VoLTE) Wi-Fi calling

Audio PlaybackAudio formats supported: AAC-LC, HE-AAC, HE-AAC v2, Protected AAC, MP3, Linear PCM, Apple Lossless, FLAC, Dolby Digital (AC-3), Dolby Digital Plus (E- AC-3), Dolby Atmos, and Audible (formats 2, 3, 4, Audible Enhanced Audio, AAX, and AAX+)

Spatial audio playback

User-configurable maximum volume limit

Video PlaybackVideo formats supported: HEVC, H.264, MPEG-4 Part 2, and Motion JPEG High Dynamic Range with Dolby Vision and HDR10 content

AirPlay Mirroring, photos, and video out to Apple TV (2nd generation or later) Video mirroring and video out support: Up to 1080p through Lightning Digital AV Adapter and Lightning to VGA Adapter (adapters sold separately)

SiriUse your voice to send messages, set reminders, and more

Get intelligent suggestions on your Lock screen and in Messages, Mail, QuickType, and more

Activate hands-free with only your voice using “Hey Siri” Use your voice to run shortcuts from your favorite apps

Power and BatteryLasts up to 5 hours longer than iPhone XS Max

Video playback:

Up to 20 hours

Video playback (streamed):

Up to 12 hours

Audio playback:

Up to 80 hours

18W adapter included



Built-in rechargeable lithium-ion battery Wireless charging (works with Qi chargers)

Charging via USB to computer system or power adapter Fast-charge capable:

Up to 50% charge in around 30 minutes with 18W adapter or higher

SensorsFace ID Barometer Three-axis gyro Accelerometer Proximity sensor

Ambient light sensor

Operating SystemiOS 13

iOS is the world’s most personal and secure mobile operating system, packed with powerful features and designed to protect your privacy.

AccessibilityAccessibility features help people with disabilities get the most out of their new iPhone 11 Pro. With built-in support for vision, hearing, mobility, and learning, you can fully enjoy the world’s most personal device.

Features include:

• Voice Control

• VoiceOver

• Zoom

• Magnifier

• RTT and TTY support

• Siri and Dictation

• Type to Siri

• Switch Control

• Closed Captions

• AssistiveTouch

• Speak Screen

HeadphonesEarPods with Lightning Connector
SIM CardDual SIM (nano-SIM and eSIM)

iPhone 11 Pro and iPhone 11 Pro Max are not compatible with existing micro- SIM cards.

Rating for Hearing AidsM3, T4
Mail Attachment SupportViewable document types

.jpg, .tiff, .gif (images); .doc and .docx (Microsoft Word); .htm and .html (web pages); .key (Keynote); .numbers (Numbers); .pages (Pages); .pdf (Preview and Adobe Acrobat); .ppt and .pptx (Microsoft PowerPoint); .txt (text); .rtf (rich text format); .vcf (contact information); .xls and .xlsx (Microsoft Excel); .zip; .ics; .usdz (USDZ Universal)

System RequirementsApple ID (required for some features) Internet access

Syncing to a Mac or PC requires:

• macOS Catalina 10.15 using the Finder

• macOS El Capitan 10.11.6 through macOS Mojave 10.14.6 using iTunes 12.8 or later

• Windows 7 or later using iTunes 12.10 or later

Environmental RequirementsOperating ambient temperature: 32° to 95° F (0° to 35° C)

Nonoperating temperature: −4° to 113° F (−20° to 45° C)

Relative humidity: 5% to 95% noncondensing Operating altitude: tested up to 10,000 feet (3000 m)

In the BoxiPhone with iOS 13

EarPods with Lightning Connector USB-C to Lightning Cable

18W USB-C Power Adapter Documentation
