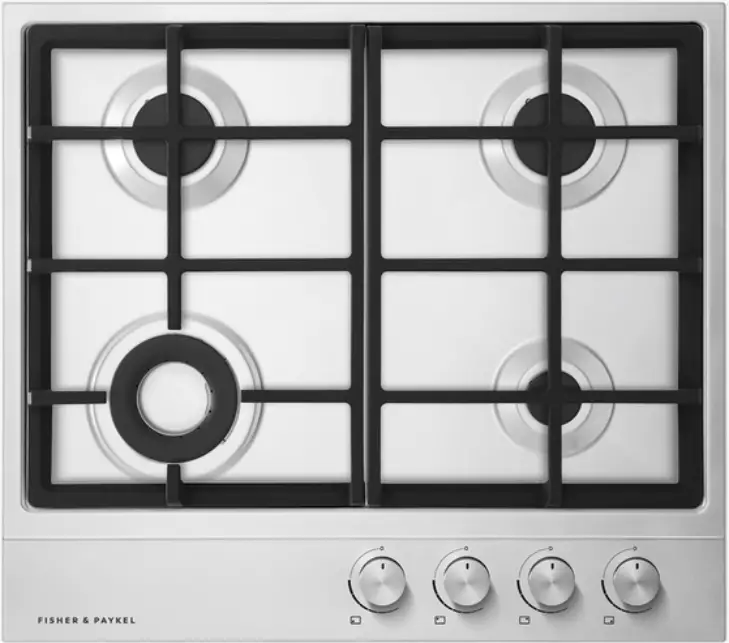

QUICK REFERENCE GUIDE > CG604DLPX1
Gas on Steel Hob, 60cm, LPG
Series 7 | Contemporary
Stainless Steel | LPG
All the essentials in a compact hob, including a wok burner for high heat cooking.
- Four burners including a wok burner
- A flame-failure safety device; if the flame goes out, the gas turns off
- Flat cast iron trivets so pots and pans can easily slide across elements

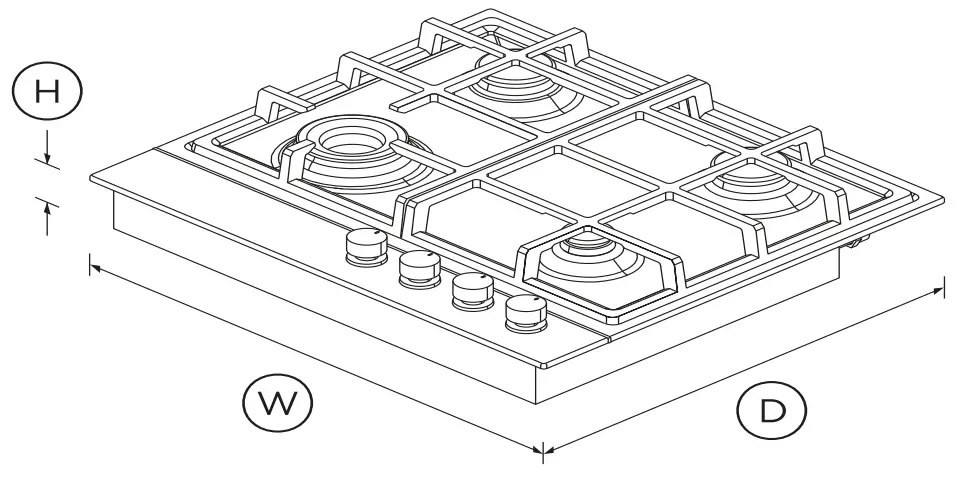

DIMENSIONS
| Height | 64mm |
| Width | 600mm |
| Depth | 530mm |
FEATURES & BENEFITS
PRECISE CONTROL
The consistent flame and heat distribution of the burners, including the wok burner, combined with highly responsive dials offer precise heat control. Perfect a slow simmer for sauces or an intense heat for searing steaks.
EASY HANDLING
With flat cast iron grates, pots and pans can easily be slid across elements, coming in handy in busy cooking environments.
SAFE & SOUND
The flame failure safety device automatically turns off the gas if the flame is accidentally extinguished.
COMPLEMENTARY DESIGN
The brushed stainless steel and polished metal trim has been designed for durability but also provides a modern, stylish finish, matching the Fisher & Paykel family of kitchen appliances.
EASY CLEANING
The stainless steel component is easily accessible and quick to clean. Cast iron trivets provide a durable and stable cooking platform. Their rubber feet prevent them from scratching the hob.
HANDY ACCESSORIES
This hob comes with a small pan support and wok stand to complement different cooking styles.
SPECIFICATIONS
Accessories
| High power wok cooking | • |
| Wok stand | • |
Burner ratings
| Auxiliary burner (LPG) | 1.2kW |
| Semi-rapid burner power | 2.4kW |
| Wok burner power | 3.56kW |
Burners
| Number of burners | 4 |
Cleaning
| Easy clean cooktop design | • |
| Quick component removal | • |
Controls
| Ergonomic control dials | • |
| Toughened fused glass | • |
| Turned stainless dials | • |
Performance
| Both LPG & NG models | • |
| Cast iron trivets | • |
| Electronic ignition | • |
| Exceptionally low | • |
| Quick connect gas valves | • |
Product dimensions
| Depth | 530mm |
| Height | 64mm |
| Width | 600mm |
Safety
| Flame failure system | • |
| Spill containment | 1L |
Warranty
| Parts and labour | 5 years |
| SKU | 81447 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
