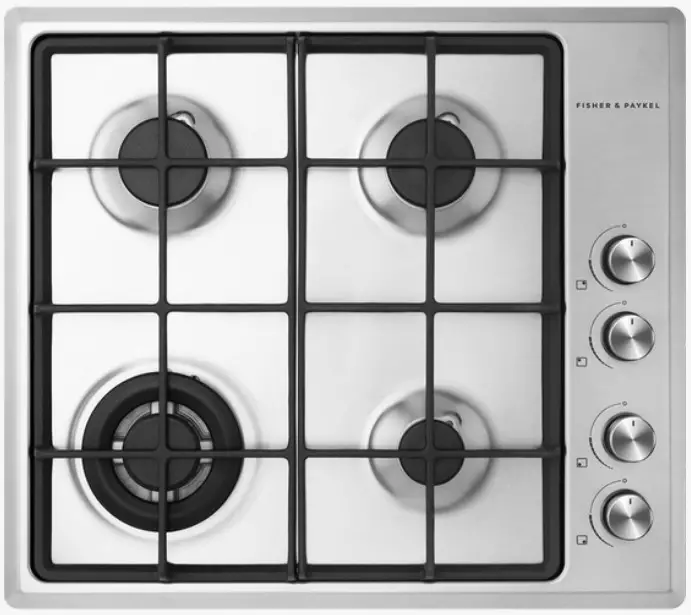

QUICK REFERENCE GUIDE > CG604CNGX2
Gas on Steel Cooktop, 60cm
Series 5 | Contemporary
Stainless Steel | Natural gas
All the essentials in a compact cooktop, including a wok burner for high heat cooking.
- Four burners including a wok burner
- A flame-failure safety device; if the flame goes out, the gas turns off

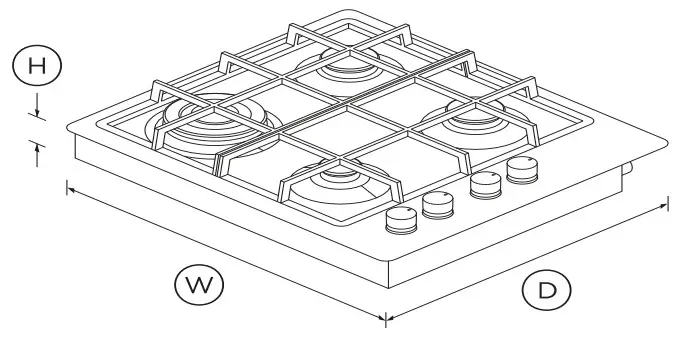

DIMENSIONS
| Height | 54mm |
| Width | 578mm |
| Depth | 511mm |
FEATURES & BENEFITS
Precise control
The consistent flame and heat distribution of the burners, including the wok burner, combined with highly responsive dials offer precise heat control. Perfect a slow simmer for auces or an intense heat for searing steaks.
Easy to clean
The stainless steel component is easily accessible and quick to clean. Cast iron trivets provide a durable and stable cooking platform, with rubber feet to prevent them from scratching the cooktop.
Easy handling
With flat cast iron grates, pots and pans can easily be slid across elements, coming in handy in busy cooking environments.
Safe and sound
The flame failure safety device automatically turns off the gas if the flame is accidentally extinguished.
Complementary design
The brushed stainless steel and polished metal trim has been designed for durability but also provides a modern, stylish finish, matching the Fisher & Paykel family of kitchen appliances.
Handy accessories
This cooktop comes with a small pan support and wok stand to complement different cooking styles.
SPECIFICATIONS
| Accessories | |
| Wok stand | • |
Burner ratings
| Auxiliary burner (natural gas) | 3. 6MJ/h |
| Semi-rapid burner power | 8.5MJ/h (2) |
| Wok burner (natural gas) | 15MJ/h |
| Wok burner power | 15MJ/h |
Burners
| Number of burners | 4 |
| Wok burner | 1 |
Cleaning
| Easy clean cooktop design | • |
| Quick component removal | • |
| Performance | |
| Both LPG & NG models | • |
| Cast iron trivets | • |
| Electronic ignition | • |
| Quick connect gas valves | • |
| Power requirements | |
| Amperage | 10A |
| Supply voltage | 230 – 240V |
| Product dimensions | |
| Depth | 511mm |
| Height | 54mm |
| Width | 578mm |
| Safety | |
| Flame failure system | • |
| Spill containment | 1L |
| Zones | |
| Number of elements | 4 |
Other product downloads available at fisherpaykel.com
 | User Guide |
| Service & Warranty |
| Installation Guide |
