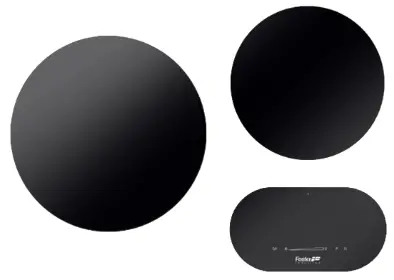

FOSTER 7366 020 Cooker Hob Instructions
Introduction
Cooker hob Modular
Induction 7366 020
Cooker hobs
Code: 7366 020
Modular system with free positioning on the work surface.
Scan Me
DETAILS
| Coloring | Black |
| Material | Ceramic glass |
| Supply | Single-phase: 230 V; Two-phase: 400 V; 50.60 Hz |
| Edge/Installation Type | Flush-mount | Top-mount |
| Full description | Modular Induction composition – 2 ranges – black |
| Heating element | Two zones |
| Built-in hole | View technical data sheet (for all Flush-mount / Top-mount models and Under-mount models) |
| Note | The system presented here is one of the possible compositions of the Modular System. Other compositions, as specified by the Touch Control element. |
| Total power | 4.400 W |
| Left | 2.300 (3.000)* W |
| Right | 1.100 (1.400)* W |
| Power settings | 9 power settings per zone + Power boost |
| Safety | Safety equipment |
| Type | Induction Hob |
| Type of commands | Touch Control |
| Constraints | The arrangement of the elements is subject to constraints dictated by the lengths of the connection cables. Refer to the individual component specifications. |
| Notes: | * Power boost |
EQUIPMENT
- 1 x Serie Modular Induction 7361 270
- 1 x Piastra Modular Induction 7363 350
- 1 x Touch Control Modular Induction 7368 020
- 1 x Modular Induction 7369 020
FEATURES
| Power boos | Booster function provides increased power to the selected plate. In particular, when the Booster is activated, the plate works for ten minutes at a very high power that allows to heat quickly large quantities of water. |
| Pot detector | All induction cooker hobs detect the pot resting on them, but they also calculate the area they cover. This system allows the energy to be used even more efficiently. Moreover, the plates switch off automatically when the pot is removed. |
| Smart fan system | Correct ventilation is essential for the induction hob to function in the best possible way. The Foster system automatically regulates the amount of ventilation to suit the temperatures reached. |
| End-of-cooking programming | All operations are programmed by means of the touch-control on the glass itself. Each cooking plate is capable of independent programming, and thus the possibility to set different cooking times. |
| Slider commands | The Slider control allows for extremely quick temperature setting: with a light touch of the finger you may select the desired power level on the TOUCH display. |
| Heat maintenance | Function that allows the food to be kept warm gently (70° C), without reaching boiling temperatures or risking to burn the sauce. |
| Timer | Independent timer from the end-of-cooking function. |
| Go stop function | This device initially turns on the plates at maximum power until the selected temperature has been reached. |
| Recall | This feature allows you to call back the last settings selected in the previous cooking. |
| Pause | Useful function that allows you to distract your attention from cooking, interrupting and restoring the settings immediately. |
| Safety | All electric cooker hobs feature the most modern and sophisticated safety protections: Centralized power-off function; Child-proof safety lock; Residual heat warning lights. Induction models feature the following functions: Safety System that turn off the hob in the absence of the pot; Overflow detector that automatically turns off the plate in case of liquid overflow; Automatic deactivation to prevent accidents caused by forgetfulness. |

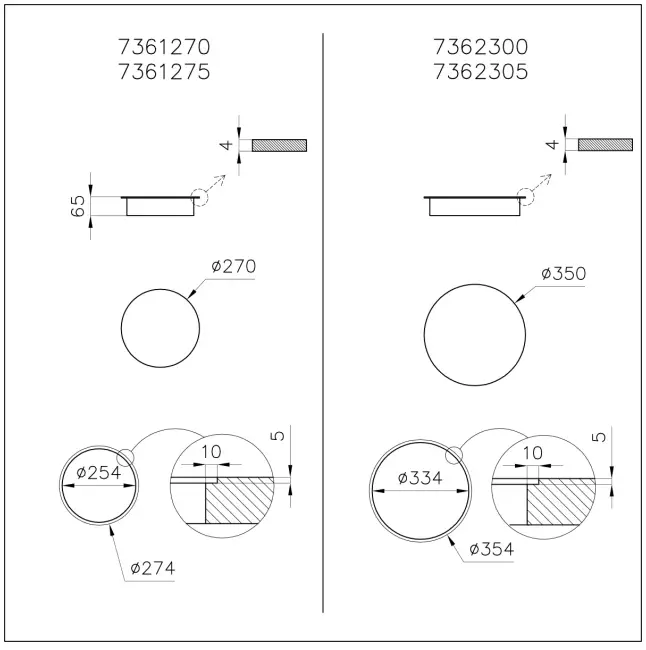

TECHNICAL DATA

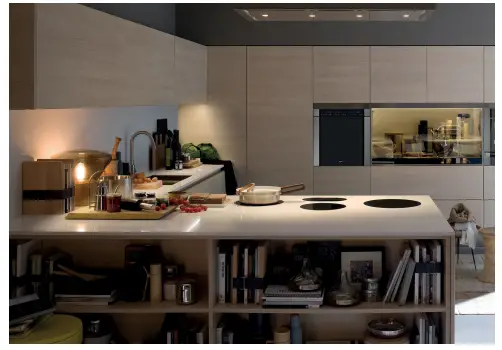

GALLERY
EQUIPMENT
- Cooker hob – Modular Induction Plate 7361 270
- Cooker hob – Modular Induction Plate 7363 350

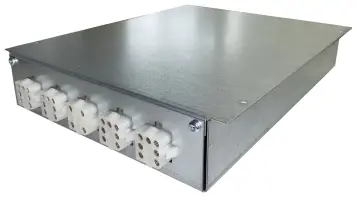

- Modular Induction 7369 020 – Connection Box

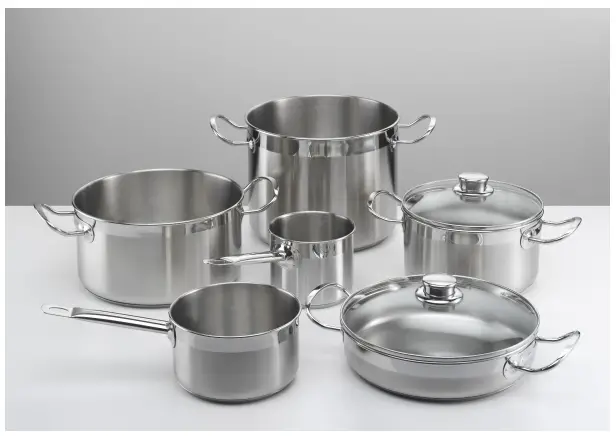

OPTIONAL ACCESSORIES
- Induction Pro – Cookware set – 8pcs 8210 008
Support
Foster S.p.A. Via M.S. Ottone, 18-20 42041 Brescello (Reggio Emilia) – Italy 12/16/2021 –
