Quickstart

This is a

On/Off Power Switch
for
South Korea
.

To run this device please connect it to your mains power supply.

To add this device to your network execute the following action:
Press Fn switch 3 times in a row to include the device to Z-Wave network.



Please refer to the
Manufacturers Manual
for more information.



Important safety information

Please read this manual carefully. Failure to follow the recommendations in this manual may be dangerous or may violate the law.
The manufacturer, importer, distributor and seller shall not be liable for any loss or damage resulting from failure to comply with the instructions in this manual or any other material.
Use this equipment only for its intended purpose. Follow the disposal instructions.

Do not dispose of electronic equipment or batteries in a fire or near open heat sources.



What is Z-Wave?

Z-Wave is the international wireless protocol for communication in the Smart Home. This
device is suited for use in the region mentioned in the Quickstart section.

Z-Wave ensures a reliable communication by reconfirming every message (two-way
communication
) and every mains powered node can act as a repeater for other nodes
(meshed network) in case the receiver is not in direct wireless range of the
transmitter.

This device and every other certified Z-Wave device can be used together with any other
certified Z-Wave device regardless of brand and origin
as long as both are suited for the
same frequency range.

If a device supports secure communication it will communicate with other devices
secure as long as this device provides the same or a higher level of security.
Otherwise it will automatically turn into a lower level of security to maintain
backward compatibility.

For more information about Z-Wave technology, devices, white papers etc. please refer
to www.z-wave.info.

Product Description

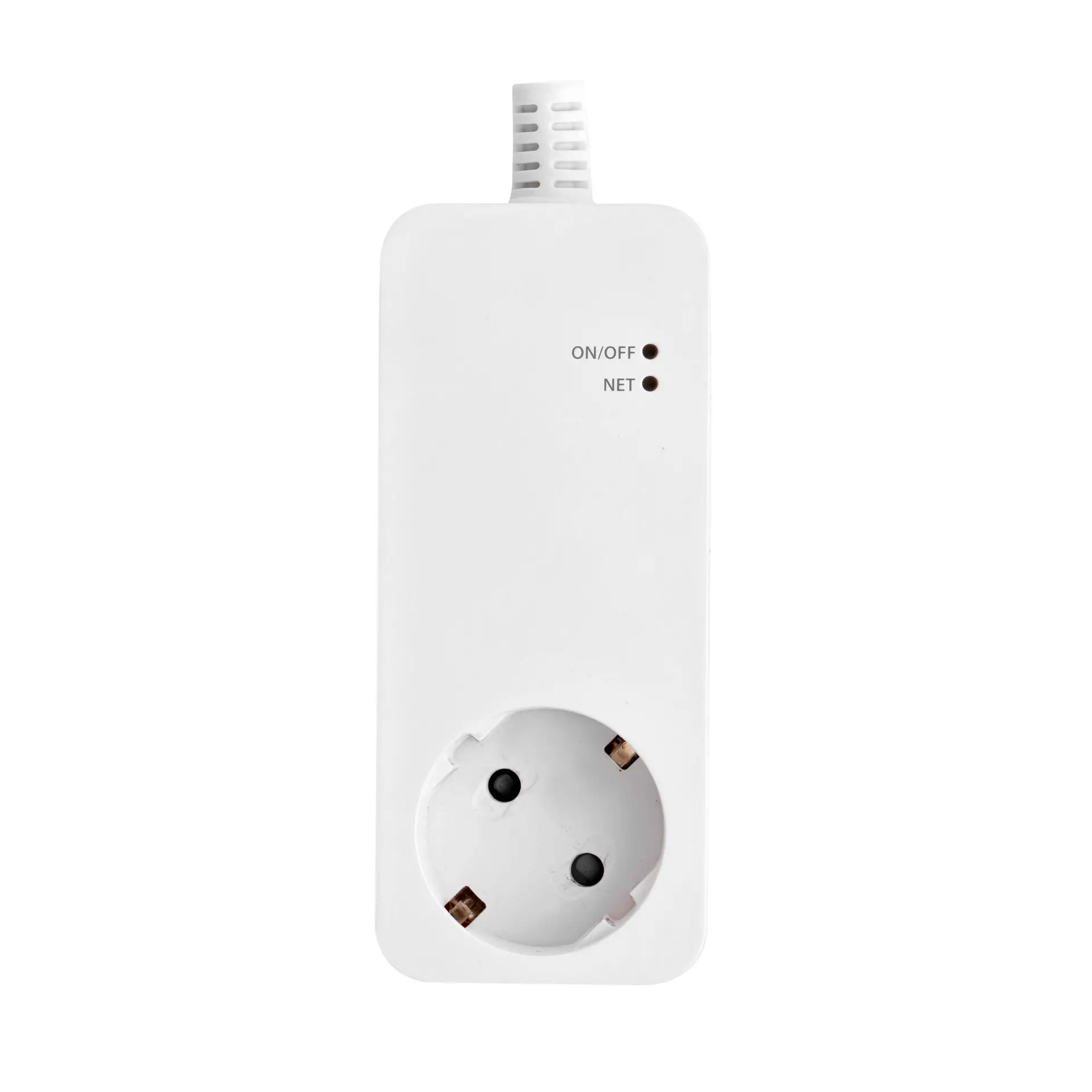

Smart Energy Multi Tap plugs in between any appliance and the AC outlet. It can monitor and control power using your smartphone. It can also control the power source connected with appliance manually and remotely using your smartphone.

Prepare for Installation / Reset

Please read the user manual before installing the product.

In order to include (add) a Z-Wave device to a network it must be in factory default
state.
Please make sure to reset the device into factory default. You can do this by
performing an Exclusion operation as described below in the manual. Every Z-Wave
controller is able to perform this operation however it is recommended to use the primary
controller of the previous network to make sure the very device is excluded properly
from this network.

Reset to factory default

This device also allows to be reset without any involvement of a Z-Wave controller. This
procedure should only be used when the primary controller is inoperable.

Use this procedure only in the event that the network primary controller is missing or otherwise inoperable. Press Fn switch over 10~15 sec to initialize connecting network information.

Safety Warning for Mains Powered Devices

ATTENTION: only authorized technicians under consideration of the country-specific
installation guidelines/norms may do works with mains power. Prior to the assembly of
the product, the voltage network has to be switched off and ensured against re-switching.

Inclusion/Exclusion

On factory default the device does not belong to any Z-Wave network. The device needs
to be added to an existing wireless network to communicate with the devices of this network.
This process is called Inclusion.

Devices can also be removed from a network. This process is called Exclusion.
Both processes are initiated by the primary controller of the Z-Wave network. This
controller is turned into exclusion respective inclusion mode. Inclusion and Exclusion is
then performed doing a special manual action right on the device.

Inclusion

Press Fn switch 3 times in a row to include the device to Z-Wave network.

Exclusion

Press Fn switch 3 times in a row again to cancel the inclusion of the device on Z-Wave network.

Quick trouble shooting

Here are a few hints for network installation if things dont work as expected.

  1. Make sure a device is in factory reset state before including. In doubt exclude before include.
  2. If inclusion still fails, check if both devices use the same frequency.
  3. Remove all dead devices from associations. Otherwise you will see severe delays.
  4. Never use sleeping battery devices without a central controller.
  5. Dont poll FLIRS devices.
  6. Make sure to have enough mains powered device to benefit from the meshing

Association – one device controls an other device

Z-Wave devices control other Z-Wave devices. The relationship between one device
controlling another device is called association. In order to control a different
device, the controlling device needs to maintain a list of devices that will receive
controlling commands. These lists are called association groups and they are always
related to certain events (e.g. button pressed, sensor triggers, …). In case
the event happens all devices stored in the respective association group will
receive the same wireless command wireless command, typically a ‘Basic Set’ Command.

Association Groups:

Group NumberMaximum NodesDescription

15Lifeline Group.
25Notice button status with switch binary report.
35Notice AC power status with meter report.

Configuration Parameters

Z-Wave products are supposed to work out of the box after inclusion, however
certain configuration can adapt the function better to user needs or unlock further
enhanced features.

IMPORTANT: Controllers may only allow configuring
signed values. In order to set values in the range 128 … 255 the value sent in
the application shall be the desired value minus 256. For example: To set a
parameter to 200 it may be needed to set a value of 200 minus 256 = minus 56.
In case of a two byte value the same logic applies: Values greater than 32768 may
needed to be given as negative values too.

Parameter 101: GRCCS

GRCCSGroup Report Command Class Setup1. CRCGroup report crc16 enable/disable- 0x00 : Group report CRC16 Disable- 0x01 : Group report CRC16 Enable2. MRSSSelect Scale of Meter report- 0x00 : Meter report command scale (kWh)- 0x02 : Meter report command scale (Watt)
Size: 4 Byte, Default Value: 0

SettingDescription

0 – 1CRCGroup report crc16 enable/disable
0 – 2MRSSSelect Scale of Meter report

Parameter 111: GRIC

Interval time setting for (60~65535 second)Report group
Size: 4 Byte, Default Value: 720

SettingDescription

60 – 65535Interval time setting

Parameter 2: Automatic Meter Reporting Cycle

Automatically meter report control (AMRC) is report mode setting of the Meter data. – 00b : Deactivate the meter report – 01b : In case Parameter 91~92 is bigger than setting value, report the event.Report interval is 31 seconds after trigger. – 10b : Automatic report by the set interval in the Parameter 111.
Size: 1 Byte, Default Value: 2

SettingDescription

0Deactivate the Meter data report
0 – 1Trigger level event mode
1 – 0Time Interval Mode

Parameter 255: Reset

Initialize Configuration parameter Parameter number 2 : Initialize Parameter 2Parameter number 3 : Initialize Parameter 3Parameter number 91 : Initialize Parameter 91Parameter number 92 : Initialize Parameter 92Parameter number 101 : Initialize Parameter 101Parameter number 111 : Initialize Parameter 111Parameter number 255 : Reset to the default full parameter
Size: 1 Byte, Default Value: 255

SettingDescription

2 – 255Initialize Configuration parameter

Parameter 3: AKRC

Automatically key report control (AKRC) is report mode setting of the Key data. – 00b : Deactivate the button activation report – 01b : Button Activation report
Size: 1 Byte, Default Value: 1

SettingDescription

0Deactivate the button activation report
0 – 1Button Activation report

Parameter 91: GMRTL_W

Group1 Watt Trigger level valueTrigger value setting (0~65535) for Meter report of Parameter2.
Size: 2 Byte, Default Value: 50

SettingDescription

0 – 65535Group1 Watt Trigger level value

Parameter 92: GMRTL_kWh

Group1 kWh Trigger level valueTrigger value setting (0~65535) for Meter report of Parameter2.
Size: 2 Byte, Default Value: 50

SettingDescription

0 – 65535Group1 kWh Trigger level value

Technical Data

Hardware PlatformZM5101
Device TypeOn/Off Power Switch
Network OperationAlways On Slave
Firmware VersionHW: 1 FW: 1.00
Z-Wave Version6.51.06
Certification IDZC10-16075152
Z-Wave Product Id0x0242.0x0003.0x0014
Firmware UpdatableUpdatable by Consumer by RF
ColorWhite
Switch TypePush Button
Supported Meter TypeElectric Energy
FrequencyXXfrequency
Maximum transmission powerXXantenna
