ANKER logoWelcome Guide
PowerExpand Direct 8-in-2 USB-C PD Media Hub
User Manual

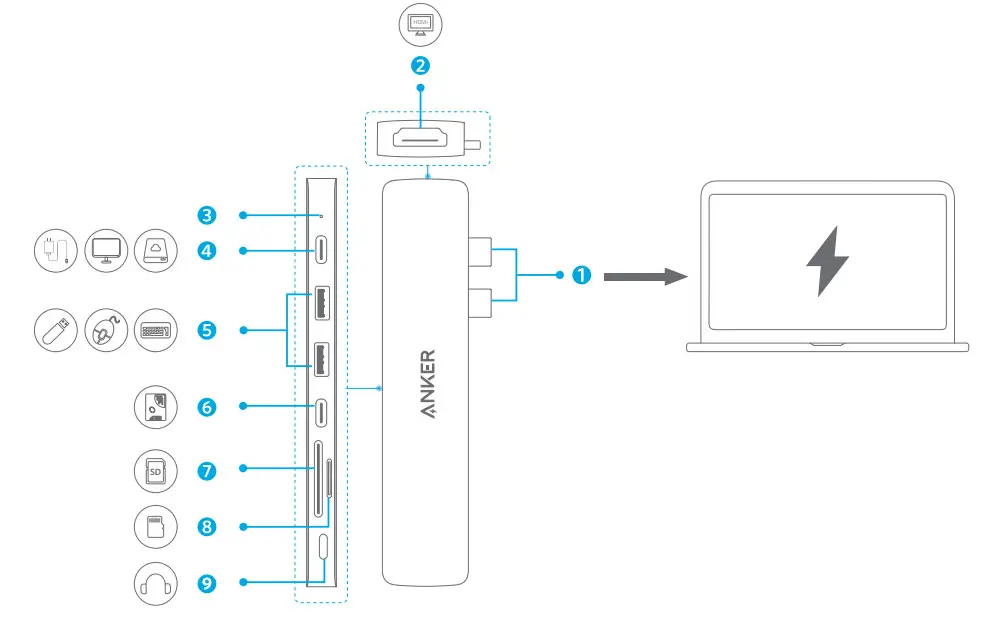

At a Glance

ANKER PowerExpand Direct 8-in-2

ItemDescription
1. USB-C connectorPlug into the MacBook’s USB-C port
2. HDMI portConnect to a device with an HDMI port to stream video at resolutions up to 4K@30 Hz
3. Power indicatorTurns white when powered on
4. Multi-function port (USB-C port)•Connect to a USB-C charger to provide pass-through charging for your MacBook
•Connect to a USB-C device to transfer data at speeds up to 40 Gbps
•Connect to one monitor directly (two monitors via an HDMI
adapter) to stream video at resolutions up to 5K@:60 Hz
5. USB-A portConnect to a USB-A device to support data transfer at speeds up to 5 Gbps
6. USB-C portConnect to a USB-C device to support data transfer at speeds up to 5 Gbps
7. SD 3.0 card slotInsert an SD 3.0 card to copy files to and from your MacBook
8.microSD card slotInsert a microSD card to copy files to and from your MacBook
9. Audio jackConnect to Lightning earphones

Specifications

Data SpeedData Speed40 Gbps
Supported SystemsSupported SystemsWindows 10 / 8 / 7 / Vista / OS XP,
Mac OS X 10.2 (and above), Chrome OS
ANKER PowerDrive 2 Alloy - SizeSize137.4 x 29 x 10 mm
/ 5.4 x 1.1 x 0.4 in
ANKER PowerDrive 2 Alloy - WeightWeight70 g / 2.5 oz

Important Safety Instructions

  • Avoid dropping.
  • Do not disassemble.
  • Do not expose to liquids.
  • For the safest and fastest charge, use original or certified cables.
  • This product is suitable for moderate climates only.
  • The maximum ambient temperature when using this product must not exceed 104°F / 40°C.
  • Open flame sources, such as candles, must not be placed near this product.
  • Only use a dry cloth or brush to clean this product.

Notice

Declaration of Conformity
Hereby, Anker Innovations Limited declares that the product type A8381 is in compliance with Directive 2014/30 /EU & 2011/65/EU. The full text of the EU declaration of  conformity is available at the following internet address: http://www.anker.com
Anker Technology (UK) Ltd I Suite B, Fairgate House, 205 Kings Road, Tyseley, Birmingham, B11 2AA, United Kingdom
Anker Innovations Deutschland GmbH I Georg-Muche-Strasse 3-5, 80807 Munich, Germany Anker Innovations Limited
Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hong Kong
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

  1. This device may not cause harmful interference, and
  2. This device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,  which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
This device complies with Industry Canada license-ICES-003. Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device.

Customer Service

Limited Warranty18-Month Limited Warranty
LifetimeLifetime Technical Support
service[email protected]
call(US) +1 (800) 988 7973 Mon-Fri 9:00am – 5:00pm (PT)
(UK) +44 (0) 1604 936200 Mon-Fri 6:00 – 11:00 (GMT)

Please note that your rights under applicable law governing the sale of consumer goods remain unaffected by the warranties given in this Limited Warranty.

Charge fast, Live More
For FaQs and more Information, please visit: Modeanker.com/support
