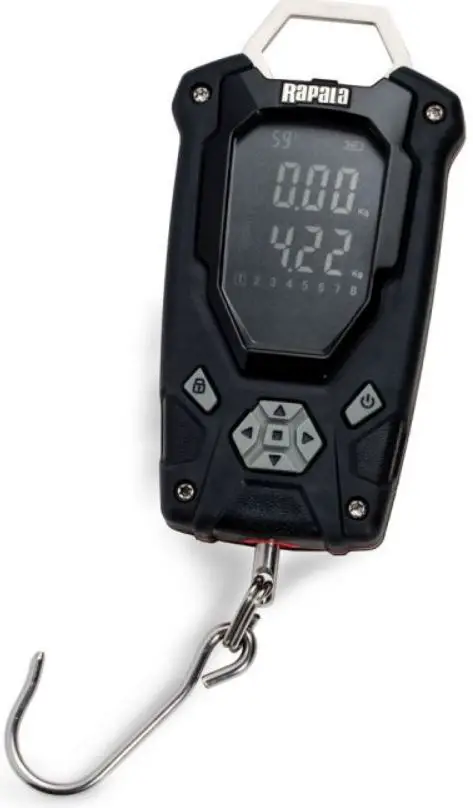

Rapala RCDDS25 25 kg RCD Digital Scale
RCD DIGITAL SCALE INSTRUCTIONS

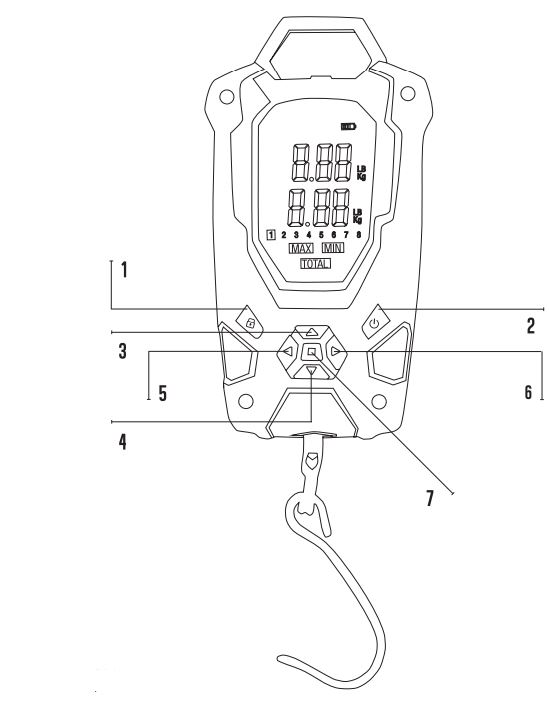

- TURN ON
PRESS AND HOLD THE POWER KEY (2) FOR 3 SECONDS. - TURN OFF
PRESS AND HOLD THE POWER KEY (2) FOR 6 SECONDS. - ZERO WEIGHT (TARE)
PRESS AND RELEASE THE POWER KEY (2). - STORE WEIGHT INTO A
WHILE WEIGHTING FISH PRESS AND RELEASE THE LOCK KEY (1).
THE WEIGHT WILL FLASH.
USE DIRECTIONAL KEYS (5, 6) TO SELECT DESIRED BIN.
PRESS AND RELEASE THE CENTER KEY (7). WEIGHT IS NOW STORED IN SELECTED BIN. - TO ERASE ONE BIN
USE DIRECTIONAL KEYS (5, 6) TO SELECT DESIRED BIN.
PRESS AND RELEASE LEFT AND RIGHT KEYS (5, 6). THE SELECTED BIN WILL FLASH.
PRESS AND RELEASE CENTER
KEY (7) TO ERASE BIN. - TO ERASE ALL BINS
PRESS AND RELEASE THE UP DOWN KEYS (3, 4). ALL BINS WILL FLASH.
PRESS AND RELEASE CENTER KEY (7) TO ERASE BINS. - TO CHANGE WEIGHT UNITS
TURN THE SCALE ON (2).
WHILE THE NUMBERS ON THE SCREEN ARE FLASHING PRESS THE ON BUTTON (2) REPEATEDLY TO CYCLE THROUGH THE UNIT DISPLAY OPTIONS.
TO CHANGE THE UNITS AGAIN, TURN THE SCALE OFF AND RESTART. - TO SEE STORED DATA
USE UP AND DOWN KEYS (3, 4) TO SEE MM, MIN AND TOTAL WEIGHT.
