Moza Mini P Mobile Gimbal User Manual

MOZA Mini P Mobile Gimbal

Battery and Charging
The MOZA Mini-P max has a built-in lithium battery. Fully charge the battery before first use. The LED power indicator blinks when the battery level is less than 20%. Charge it with an universal  USB-C cable, Mini-P max can be charged through a phone charger and mobile power supplier. The charging stops automatically when the battery is fully charged.

Notes:

1. Please do not over-charge or over-discharge the battery. Otherwise the battery will be damaged.
2. Recharge and discharge the battery every 3 months to keep it intact if it is left unused for a long time.

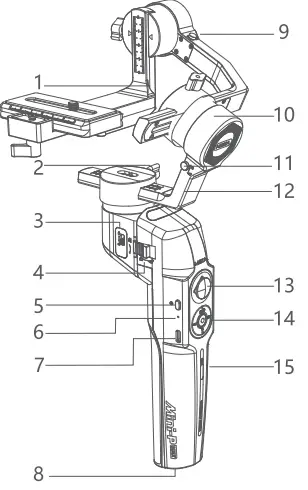

Mini-P max

1. TiltArm
2. Pan Knob
3. Pan Storage Lock
4. Slide Lock
5. Power Button
6. USB-C Charging Port
7. Reset hole

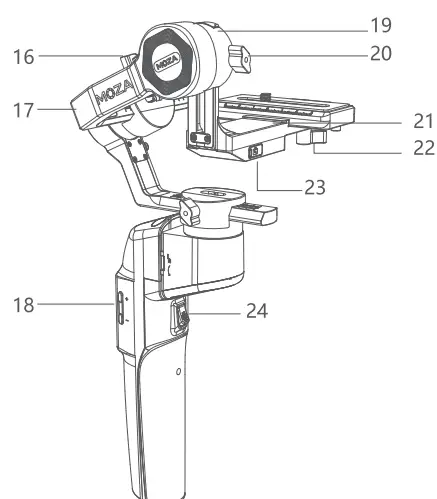

8. 1/4″ Port
9. Tilt Storage Lock
10. Roll Motor
11. Roll Storage Lock
12. Pan Arm
13. Joystick
14. Operation Button
15. Battery Level Indicator



16. Roll Knob
17. RollArm
18. Zoom button
19. Tilt Motor
20. Tilt Knob
21. Quick Release Plate
22. Quick Release Plate
    Lock Knob
23. Camera Control Port
24. Trigger button

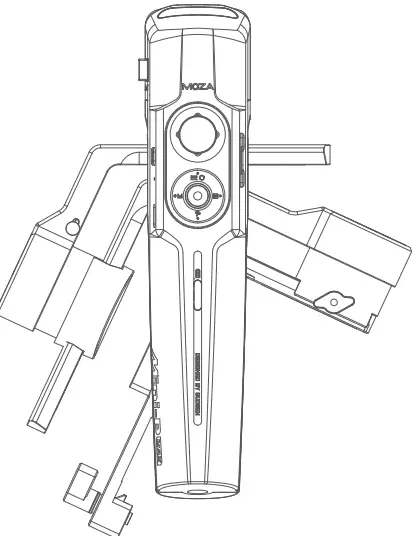

Store and Expand the Mini-P Max

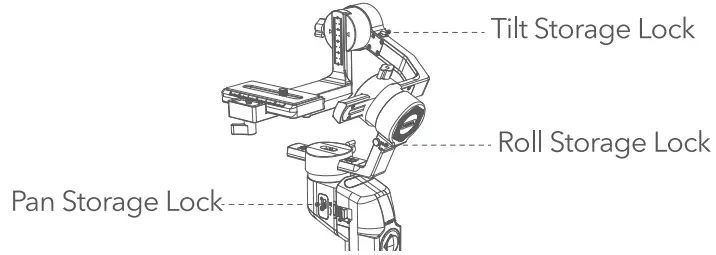

Mini-P Max is equipped with a three-axes storage lock for gimbal storage and leveling.

1. Unlock the pan storage lock, roll storage lock and tilt storage lock to turn on the three-axes motor.

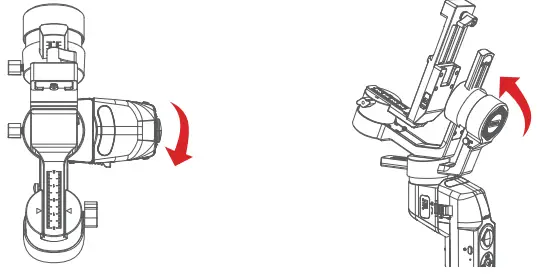

2. Rotate the pan arm 90° clockwise, and then lock the pan storage lock (from a top view)



3. Rotate the roll arm 90° counterclockwise, and then lock the roll storage lock (from a front view)



Mounting and Balancing the Camera

Tilt Axis Leveling

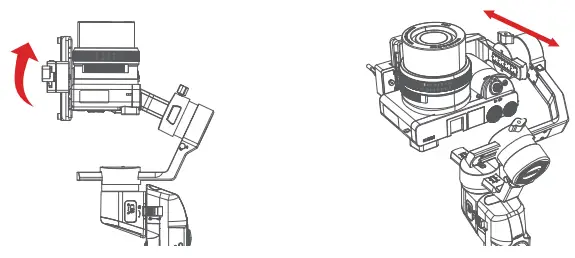

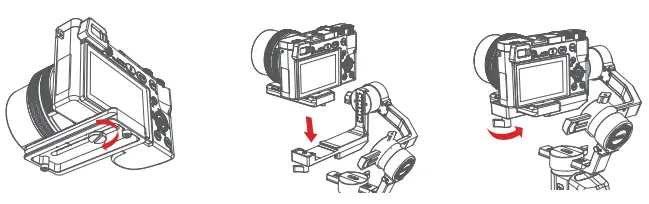

1. Place the longer side of the quick release plate under the camera, and secure the camera with a 1 /4″screw.
2. Loosen the quick release plate lock knob, slider the shorter side of the quick release plate into center of the quick-release base, then lock the knob.
3. Fine-tune the quick-release plate back and forth until the lens is horizontally forward, then lock the knob.



4. (From a left view,) Rotate the tilt arm 90° clockwise,loosen the tilt knob, adjust the tilt arm left and right until the lens is straight up (leveled), then lock the knob.


   Note: How to judge whether the tilt axis is leveled? Answer: Once the tilt axis is leveled, the lens can maintain balance and stability at any angle

   Roll Axis Leveling

5. (From a front view,) Unlock the roll storage lock, loosen roll lock, adjust the roll arm left and right until it is balanced horizontally, and then lock the knob.


   Note: How to adjust the arm smoothly
   Answer: For precise adjustment, it’s recommended to keep the arm with your hand when leveling.

   Pan Axis Leveling

6. Unlock the pan storage lock, loosen pan lock, rotate the pan arm 90° clockwise, adjust the pan arm left and right until it is balanced horizontally, and then lock the knob.



Button Features

Simplified Operation

• Down Button
  • Double press: Sports gear mode, double press again to exit sports gear mode
  • Triple press: Inception mode, Triple press again to exit inception mode
• Joystick
  • Move upwards: phone camera turns up
  • Move downwards: phone camera turns down
  • Move leftwards: phone camera turns left
  • Move rightwards: phone camera turns right The speed of camera moving increases with the larger moving range of joystick
• Follow Function
  • Left Button
    Press twice the left button: FPV mode. Press twice again to stop



• Check the Battery Level

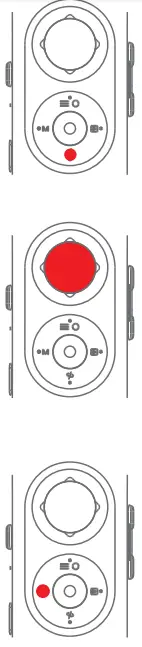

  Status Indicator
  • Blue light is always on: 60%-100% battery level
  • Blue light flashes slowly: 20%-60%battery level
  • Blue light flashes quickly: 0%-20% battery level
  • Orange light flashes slowly: Gimbal motor enters to sleep mode
  • Blue and orange lights flash quickly: FPV mode
  • Blue and orange lights flash slowly in turn: Firmware upgrade mode
  • The red light is always on: Charging
  • The red light is off: Charging Completed
• Trigger
  •  Double press: Re-center
  • Single press: Auto focus (some cameras are not supported)
  • Triple press: Switch to selfie mode
  • Hold: Switch to tilt follow mode
  • Triple press and hold: Switch to All-locked mode



• Zoom Button
  Triple press+ button: Auto tune
• Button

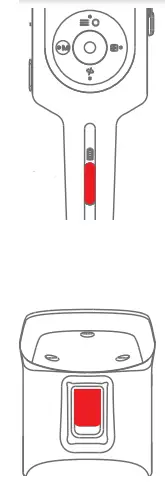

  • Press once: Sleep mode
  • Long press: Turn on/ off



Product Specification

• Payload Specs 130g~900g I 0.291bs~1.981bs
• Weight 71 0g/1.5651bs
• Dimensions (mm) Gimbal (unfolded): 305*51*166 Gimbal (folded): 198*166*102
• Supported Phone Size 58 ~ 88mm
• Battery Life 20 (h)
• Battery Specs Standard Voltage: 7.4 V Battery capacity: 2000 mAh
• Charging Time 3 (h)
• Mechanical Pan: 360° Roll: 330°
• Endpoint Range Tilt: 330°
