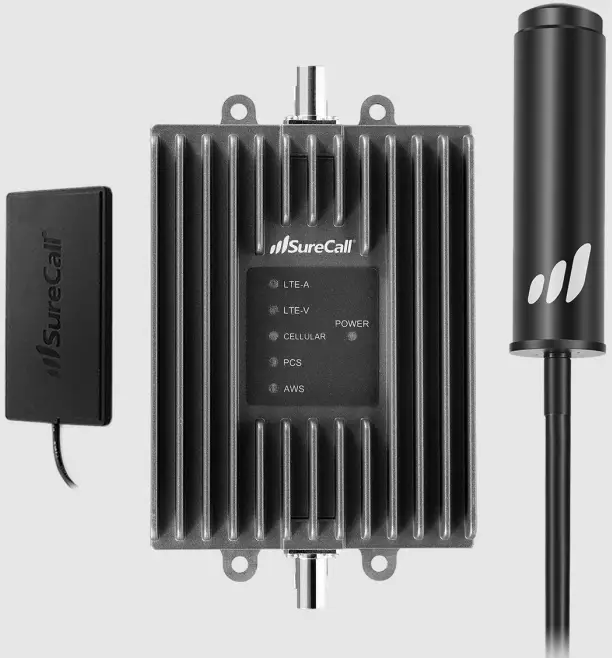

SureCall Fusion2Go 3.0 OTR Signal Booster Kit

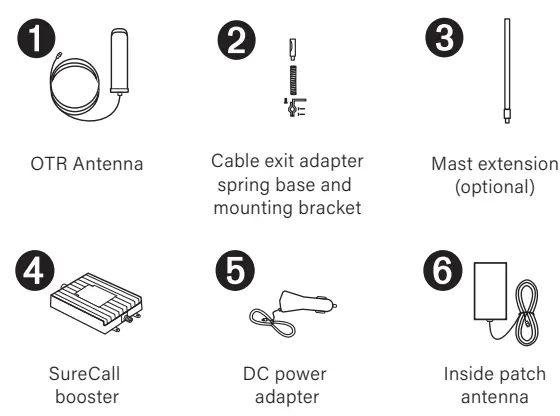

Package Contents

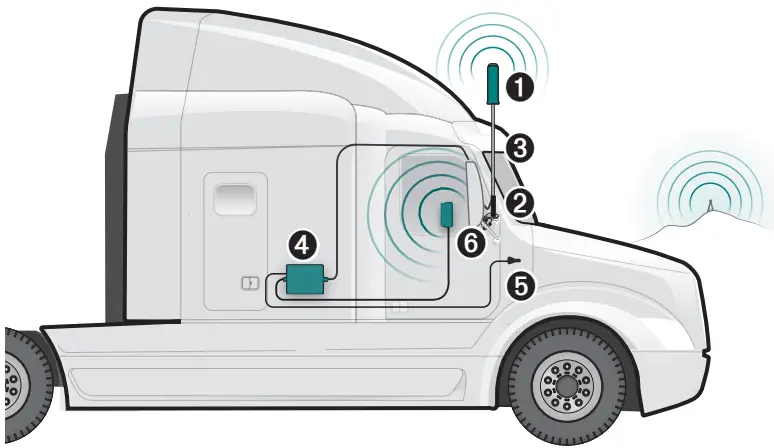

Installation Overview
BEFORE YOU BEGIN
NOTE THE FOLLOWING
The Fusion2Go OTR kit is designed to accomodate multiple installation options.
- The OTR Truck antenna fits standard CB mounts or mounting points using a 3/8 x 24 thread.
- If needed, a 2-clamp mounting bracket is provided for use on a mirror rail or other existing vehicle rail.
- Also, a mast extension is provided however, it is needed only to achieve height or clearance requirements mentioned below.
When choosing the best location for your exterior antenna, consider that the mounting location must place the antenna above the metal cab and at least 6 inches away from any windows and provide at least a 12-inch radius clear of obstructions and other radiating elements, such as a radio antenna.

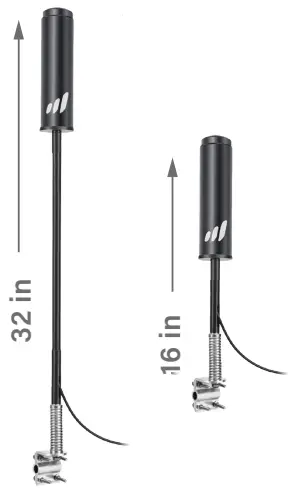

HEIGHT OPTIONS
16 and 32 In
HAVE QUESTIONS?
Call: 1-888-365-6283
Email: [email protected]
Visit: surecall.com/support
© 2022, SureCall | Fusion2Go OTR | 03.29.22
