Yamaha A-S701BL Natural Sound Integrated Stereo Amplifier (Black)

IMPORTANT SAFETY INSTRUCTIONS

• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
• When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified service personnel.
• Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

We Want You Listening For A Lifetime
Yamaha and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion – and, most importantly, without affecting your sensitive hearing. Since hearing damage from loud sounds is often undetectable until it is too late, Yamaha and the Electronic Industries Association’s Consumer Electronics Group recommend you to avoid prolonged exposure from excessive volume levels.

FCC INFORMATION (for US customers)

UNIT!
This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Yamaha may void your authority, granted by the FCC, to use the product.

IMPORTANT:
When connecting this product to accessories and/or another product use only high quality shielded cables. Cable/s supplied with this product MUST be used. Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product in the USA.

NOTE:
This product has been tested and found to comply with the requirements listed in FCC Regulations, Part 15 for Class “B” digital devices. Compliance with these requirements provides a reasonable level of assurance that your use of this product in a residential environment will not result in harmful interference with other electronic devices. This equipment generates/uses radio frequencies and, if not installed and used according to the instructions found in the users manual, may cause interference harmful to the operation of other electronic devices. Compliance with FCC regulations does not guarantee that interference will not occur in all installations. If this product is found to be the source of interference, which can be determined by turning the unit “OFF” and “ON”, please try to eliminate the problem by using one of the following measures: Relocate either this product or the device that is being affected by the interference. Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line filter/s. In the case of radio or TV interference, relocate/ reorient the antenna. If the antenna lead-in is 300 ohm ribbon lead, change the lead-in to coaxial type cable. If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you can not locate the appropriate retailer, please contact Yamaha Corporation of America A/V Division, 6600 Orangethorpe Avenue, Buena Park, CA 90620, USA. The above statements apply ONLY to those products distributed by Yamaha Corporation of America or its subsidiaries

FOR CANADIAN CUSTOMERS
To prevent electric shock, match wide blade of plug to wide slot and fully insert. CAN ICES-3 (B)/NMB-3(B)

CAUTION: READ THIS BEFORE OPERATING YOUR UNIT.

• To assure the finest performance, please read this manual carefully. Keep it in a safe place for future reference.
• Install this sound system in a well ventilated, cool, dry, clean place – away from direct sunlight, heat sources, vibration, dust, moisture, and/or cold. For proper ventilation, allow the following minimum clearances around this unit.
  • Top: 30 cm (11-3/4 in)
  • Rear: 20 cm (7-7/8 in)
  • Sides: 20 cm (7-7/8 in)
• Locate this unit away from other electrical appliances, motors, or transformers to avoid humming sounds.
• Do not expose this unit to sudden temperature changes from cold to hot, and do not locate this unit in an environment with high humidity (i.e. a room with a humidifier) to prevent condensation inside this unit, which may cause an electrical shock, fire, damage to this unit, and/or personal injury.
• Avoid installing this unit where foreign object may fall onto this unit and/or this unit may be exposed to liquid dripping or splashing. On the top of this unit, do not place:
• Other components, as they may cause damage and/or  discoloration on the surface of this unit.
• Burning objects (i.e. candles), as they may cause fire, damage to this unit, and/or personal injury.
• Containers with liquid in them, as they may fall and liquid may cause electrical shock to the user and/or damage to this unit.
• Do not cover this unit with a newspaper, tablecloth, curtain, etc. in order not to obstruct heat radiation. If the temperature inside this unit rises, it may cause fire, damage to this unit, and/or personal injury.
• Do not plug in this unit to an AC wall outlet until all connections are complete.
• Do not operate this unit upside-down. It may overheat, possibly causing damage.
• Do not use force on switches, knobs and/or cords.
• When disconnecting the power cable from the AC wall outlet, grasp the plug; do not pull the cable.
• Do not clean this unit with chemical solvents; this might damage the finish. Use a clean, dry cloth.
• Only voltage specified on this unit must be used. Using this unit with a higher voltage than specified is dangerous and may cause fire, damage to this unit, and/or personal injury. Yamaha will not be held responsible for any damage resulting from use of this unit with a voltage other than specified.
• To prevent damage by lightning, keep the power cable and outdoor antennas disconnected from an AC wall outlet or this unit during a lightning storm.
• Do not attempt to modify or fix this unit. Contact qualified Yamaha service personnel when any service is needed. The cabinet should never be opened for any reasons.
• When not planning to use this unit for long periods of time (i.e. vacation), disconnect the AC power plug from the AC wall outlet.

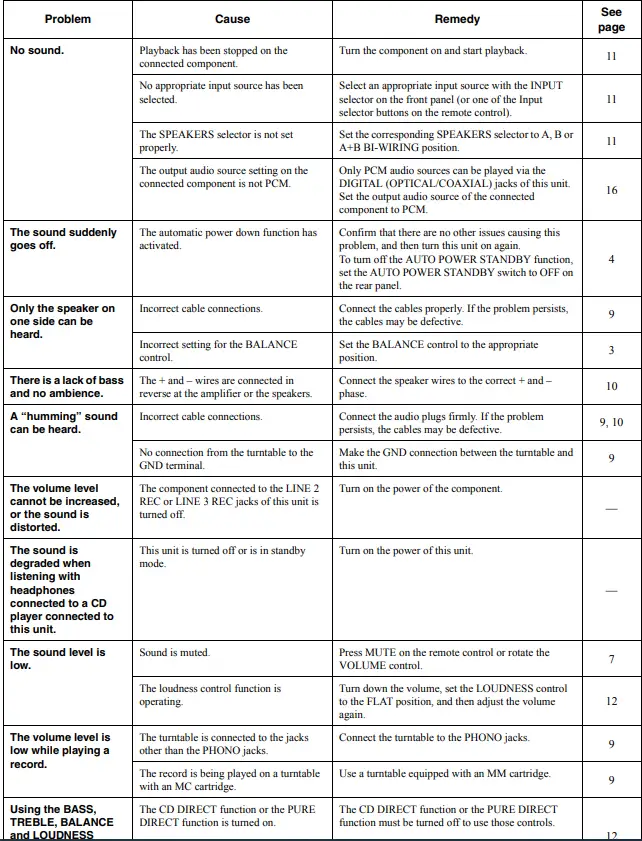

• Be sure to read the “TROUBLESHOOTING” section on common operating errors before concluding that this unit is faulty.
• Before moving this unit, press A (power) to set this unit to standby mode, and then disconnect the AC power plug from the AC wall outlet.
• Condensation will form when the surrounding temperature changes suddenly. Disconnect the power cable from the outlet, then leave this unit alone.
• When using this unit for a long time, this unit may become warm. Turn the power off, then leave this unit alone for cooling.
• Install this unit near the AC wall outlet and where the AC power plug can be reached easily.
• The batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• Excessive sound pressure from earphones and headphones can cause hearing loss.

USEFUL FEATURES

• Enjoy the highest sound quality of compact discs by using the CD direct function (A-S701 only) (see page 12)
• Enjoy pure, high fidelity sound by using the Pure
• Direct function (see page 12)
• Save power by using AUTO POWER STANDBY switch (see page 4)
• Use the remote control of this unit to operate a Yamaha tuner and/or CD player (see page 7)
• Boost bass sounds by connecting a subwoofer (see page 9)

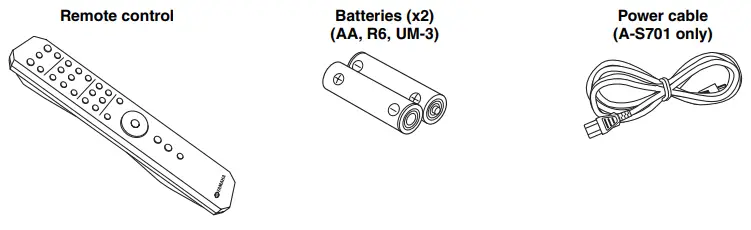

SUPPLIED ACCESSORIES

CONTROLS AND FUNCTIONS

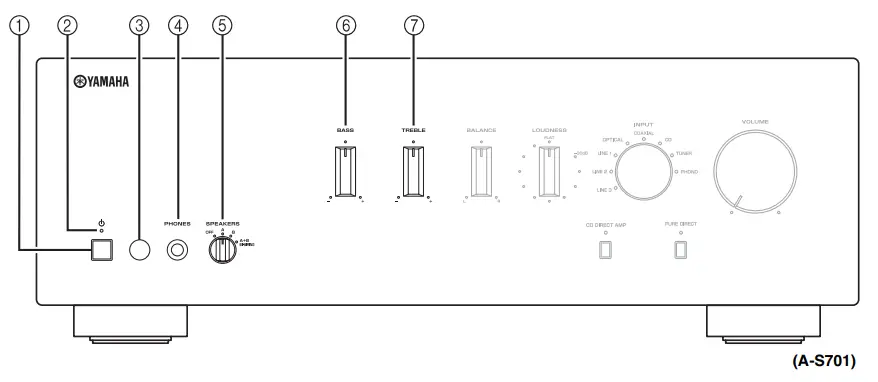

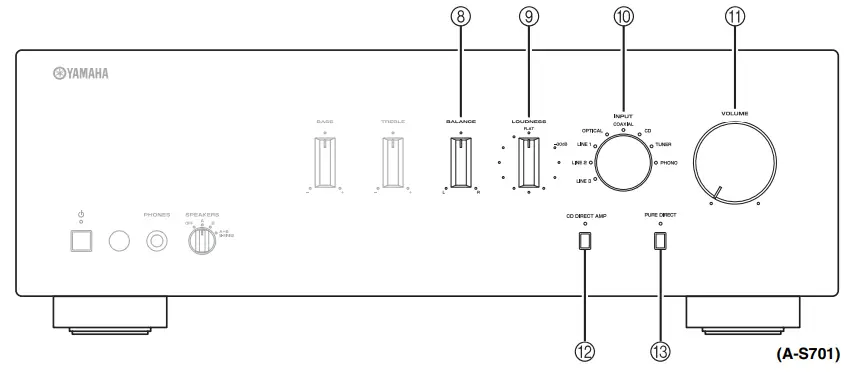

Front panel

• (power) switch
  • Turns on and off the power of this unit.

Note: Even when this unit is turned off, this unit consumes a small amount of power.

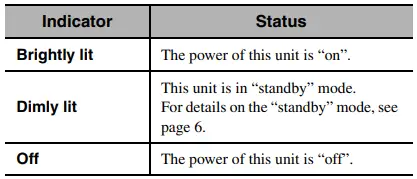

• Power indicator
• Remote control sensor
  • Receives infrared signals from the remote control.
• PHONES jack
  • Connect your headphones.
• SPEAKERS selector
• BASS control
  • Increases or decreases the low frequency response. The 0 position produces a flat response.
    • Control range: –10 dB to +10 dB
• TREBLE control
  • Increases or decreases the high frequency response. The 0 position produces a flat response.
    • Control range: –10 dB to +10 dB
• BALANCE control
  • Adjusts the sound output balance of the left and right speakers to compensate for sound imbalances.

Note: If you rotate the BALANCE control to the end of L (left) or R (right), the opposite side of channel is muted.

• LOUDNESS control
  • Retain a full tonal range at any volume level (see page 12).
• INPUT selector and indicators
  • Selects the input source you want to listen to. The input source indicators light up when the corresponding input sources are selected. The input source names correspond to the names of the connection jacks on the rear panel.
• VOLUME control
  • Increases or decreases the sound output level.
• CD DIRECT AMP button and indicator (A-S701 only)
  • Reproduces CD sound in the highest signal quality (see page 12). The indicator above it lights up when this function is turned on.
• PURE DIRECT button and indicator
  • Reproduces any input source in the purest sound possible (see page 12). The indicator above it lights up when this function is turned on.

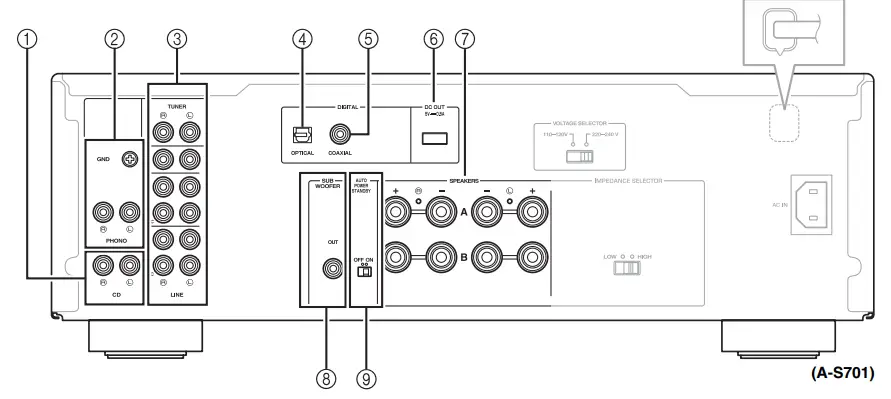

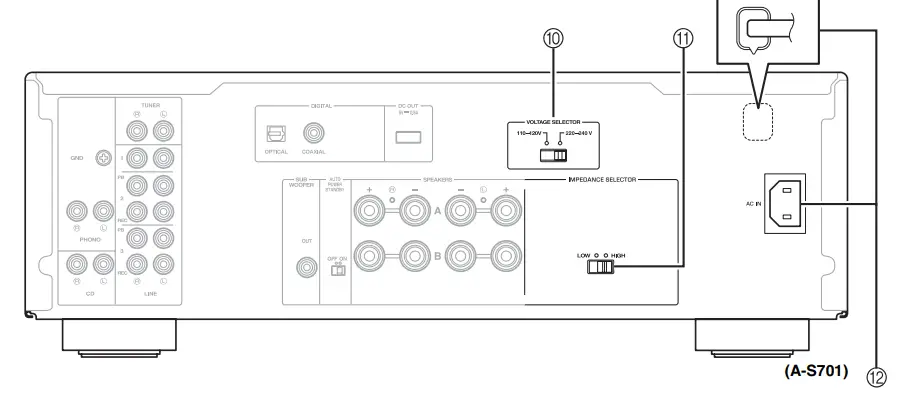

Rear panel

• CD input jacks
  • Used to connect a CD player (see page 9).
• PHONO jacks and GND terminal
  • Used to connect a turntable that uses an MM cartridge, and to ground the terminal (see page 9).
• Audio input/output jacks
  • Used to connect external components, such as a tuner, etc (see page 9).
• DIGITAL (OPTICAL) jack
  • Used to connect a component with a digital optical output (see page 9).
• DIGITAL (COAXIAL) jack
  • Used to connect a component with a digital coaxial output (see page 9).
• DC OUT jack
  • For supplying power to a Yamaha AV accessory. For details on connections, refer to the instruction manual of the AV accessory.
• SPEAKERS A/B terminals
  • Used to connect one or two speaker sets (see page 9).
• SUBWOOFER OUT jack

  • Used to connect a subwoofer with built-in amplifier (see page 9). The SUBWOOFER OUT jack attenuates signals over 90 Hz.

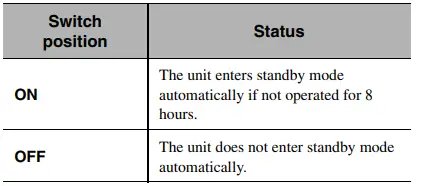

• AUTO POWER STANDBY switch
• VOLTAGE SELECTOR (General model only)
  • Used to set to your local main voltage (see page 10).
• IMPEDANCE SELECTOR switch
• AC IN (A-S701)
  • Used to connect the supplied power cable to an AC wall outlet (see page 10).
• Power cable (A-S501/S301)
  • Used to connect this unit to an AC wall outlet (see page 10).

CAUTION

Do not change the IMPEDANCE SELECTOR switch while the power is turned on, as doing so may damage the unit. If the IMPEDANCE SELECTOR switch may not be fully slid to either position, remove the power cable and slide the switch all the way to either position. Select the switch position according to the impedance of the speakers

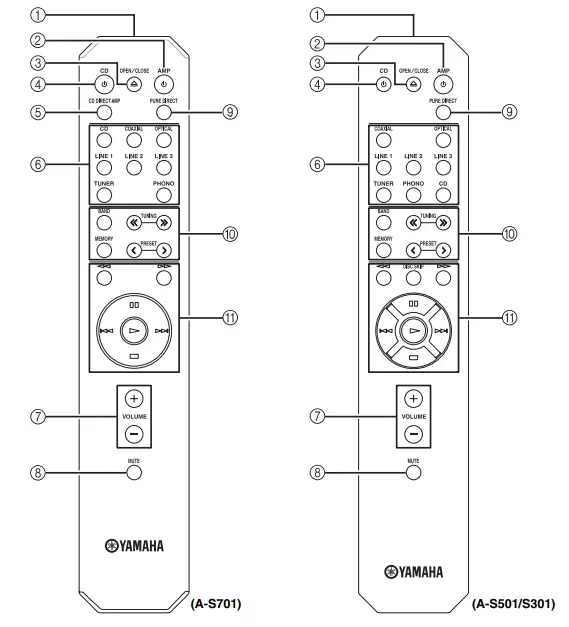

Remote control

Infrared signal transmitter
Sends infrared signals.

AMP
Turns this unit on, or sets it to standby mode.

OPEN/CLOSE
Opens/closes the disc tray of the Yamaha CD player. Refer to the owner’s manual of your CD player for details.

Note
Even when using a Yamaha CD player, certain components and features may not be available.

CD
Turns the Yamaha CD player on, or sets it to standby mode. Refer to the owner’s manual of your CD player for details.

Note
Even when using a Yamaha CD player, certain components and features may not be available.

CD DIRECT AMP (A-S701 only)
Reproduces CD sound in the highest signal quality (see page 12).

Input selector buttons
Selects the input source you want to listen to. The input source names correspond to the names of the connection jacks on the rear panel.

VOLUME +/–
Increases or decreases the sound output level.

MUTE
Reduces the current volume level by approximately 20 dB. Press again to restore the audio output to the previous volume level. Pressing the VOLUME +/– also cancels muting. The input indicator on the front panel for the current input source blinks while the output is muted.

PURE DIRECT
Reproduces any input source in the purest sound possible (see page 12).

Yamaha tuner control buttons
The following buttons can be used to control various functions of a Yamaha tuner. Refer to your component’s owner’s manual for more information.

BAND
Selects the reception band (FM/AM).

TUNING
Selects the tuning frequency.

MEMORY
Stores the current FM/AM station as a preset.

PRESET
Selects a preset FM/AM station

Note
Even when using a Yamaha tuner, certain components and features may not be available

Yamaha CD player control buttons
The following buttons can be used to control a Yamaha CD player. Refer to your component’s owner’s manual for more information.

• Rewinds playback
• Fast-forwards playback
• DISC SKIP Skips to the next disc in a CD changer
• (A-S501/S301 only)
• Pauses playback
• Skips backward
• Skips forward
• Starts playback
• Stops playback

Note
Even when using a Yamaha CD player, certain components and features may not be available.

CONTROLS AND FUNCTIONS

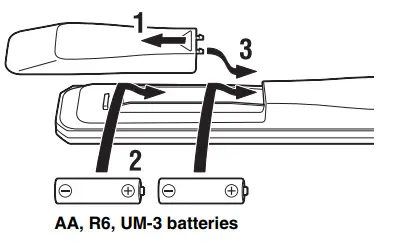

Installing batteries

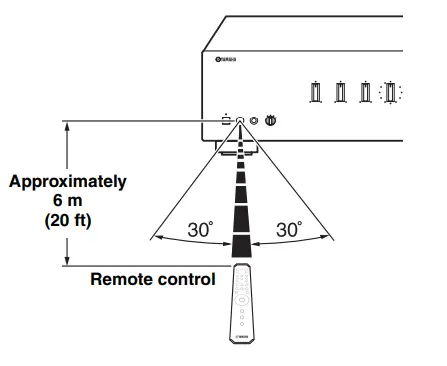

Operation range
Point the remote control at the remote control sensor on this unit and remain within the operating range shown below.

Notes on remote control and batteries

• The area between the remote control and this unit must be clear of large obstacles.
• Be careful not to spill water or other liquids on the remote control.
• Be careful not to drop the remote control.
• Do not leave or store the remote control in the following conditions:
  • places of high humidity, such as near a bathroom
  • places of high temperatures, such as near a heater or stove
  • places of extremely low temperatures
  • dusty places
• Change all batteries if you notice the operation range of the remote control narrows.
• If the batteries run out, immediately remove them from the remote control to prevent an explosion or acid leak.
• If you find leaking batteries, discard the batteries immediately, taking care not to touch the leaked material. If the leaked material comes into contact with your skin or gets into your eyes or mouth, rinse it away immediately and consult a doctor. Clean the battery compartment thoroughly before installing new batteries.
• Do not use old batteries together with new ones. This may shorten the life of the new batteries or cause old batteries to leak.
• Do not use different types of batteries (such as alkaline and manganese batteries) together. Batteries that look the same may have a different specification.
• Dispose of batteries according to your regional regulations.
• Keep the batteries in a location out of reach of children. Batteries can be dangerous if a child were to put in his or her mouth.
• If you plan not to use this unit for a long period of time, remove the batteries from this unit. Otherwise, the batteries will wear out, possibly resulting in a leakage of battery liquid that may damage this unit.

CONNECTIONS

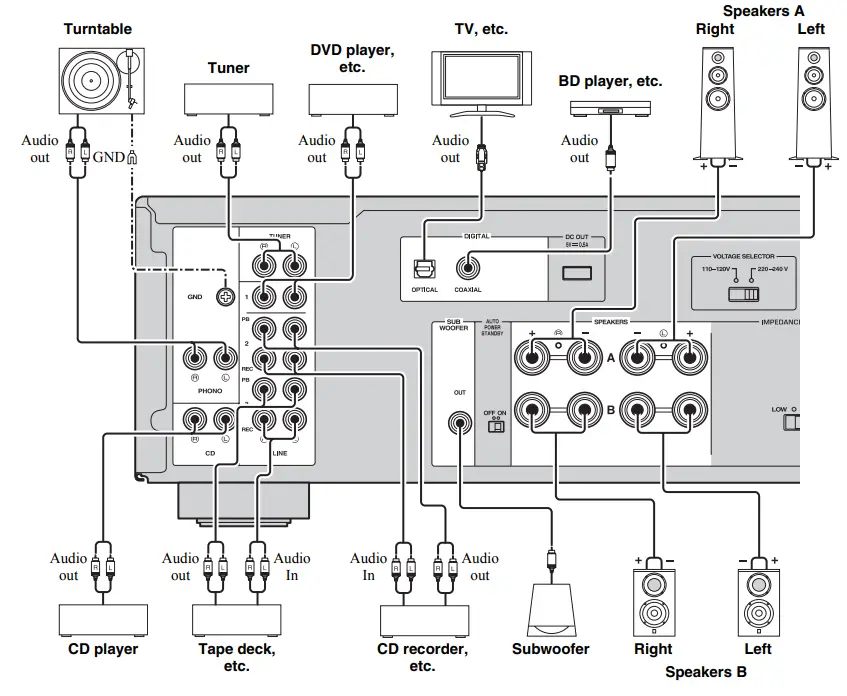

Connecting speakers and source components

Make sure to connect L (left) to L, R (right) to R, “+” to “+” and “–” to “–”. If the connections are faulty, no sound will be heard from the speakers, and if the polarity of the speaker connections is incorrect, the sound will be unnatural and lack bass. Refer to the owner’s manual for each of your components. Make sure to use RCA cables or optical cable to connect audio components

CAUTION
Do not connect this unit or other components to the main power until all connections between components are complete.

Only PCM signals can be input to the DIGITAL (OPTICAL/COAXIAL) jacks of this unit. For details on the supported PCM signals, see page 15.

The PHONO jacks are designed for connecting a turntable with an MM cartridge. Connect your turntable to the GND terminal to reduce noise in the signal. However, for some turntables, you may hear less noise without the GND connection.

REC jacks

• The audio signals are not output via the LINE 2 REC or LINE 3 REC output jacks when LINE 2 or LINE 3 is selected with the INPUT selector.
• The VOLUME, BASS, TREBLE, BALANCE and LOUDNESS controls and the CD DIRECT function (or the PURE DIRECT function) have no effect on the source being recorded.

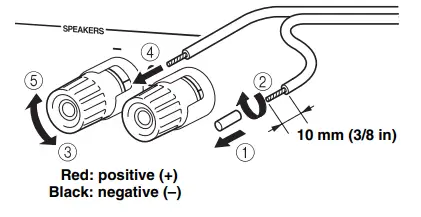

Connecting speaker cables

• Remove approximately 10 mm (3/8 in) of insulation from the end of each speaker cable.
• Twist the bare wires of the cable firmly together.
• Unscrew the knob.
• Insert one bare wire into the hole in the side of each terminal.
• Tighten the knob to secure the wire.

CAUTION

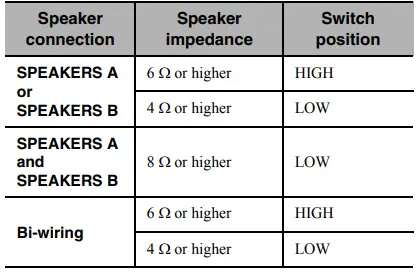

• Set the IMPEDANCE SELECTOR switch according to the impedance of the speakers to be connected (see page 5).
• Do not let bare speaker wires touch each other or any metal part of this unit. This could damage this unit and/ or the speakers.

Connecting via banana plug (North America, General, China and Australia models only)

• Tighten the knob.
• Insert the banana plug into the end of the corresponding terminal.

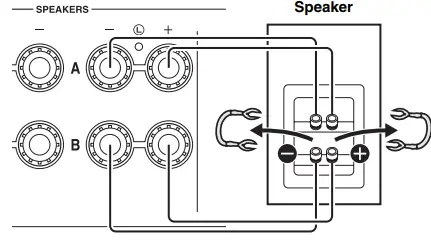

Bi-wire connection
In the case of speakers supporting the bi-wiring connection, the tweeter/midrange unit and woofer of the speakers can be driven independently through connections shown in the following figure, allowing you to enjoy clear mid- and high-range sounds

Note

When making bi-wire connections, remove the shorting bridges or cables on the speaker. Refer to the speakers’ instruction manuals for more information. To use the bi-wire connections, set the SPEAKERS selector on the front panel to the A+B BI-WIRING position

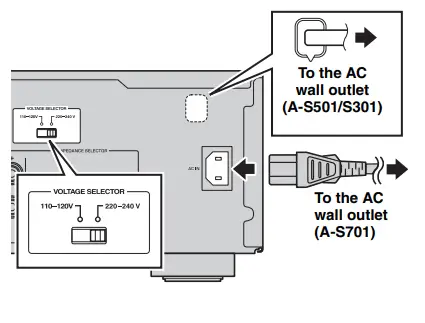

Connecting power cable

General model only)

Before connecting the power cable, make sure you set VOLTAGE SELECTOR of this unit according to your local voltage. Improper setting of VOLTAGE SELECTOR may cause fire and damage to this unit.

AC IN (A-S701)
Connect the supplied power cable to AC IN after all other connections are complete.

Power cable (A-S501/S301)
Connect the power cable to an AC wall outlet after all other connections are complete

PLAYBACK

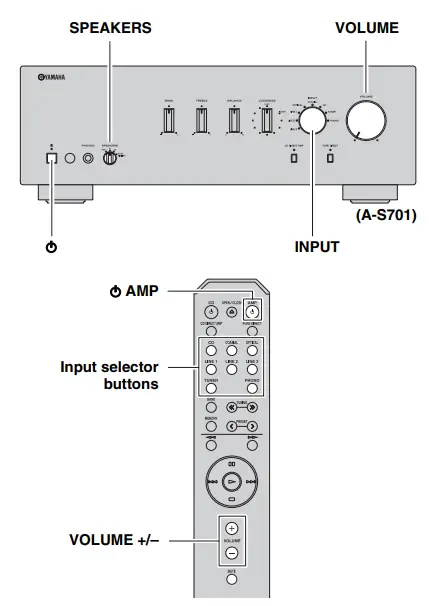

Playing a source

• Rotate the VOLUME control on the front panel fully counter-clockwise so as not to play sounds loud suddenly.
• Press A (power) switch on the front panel inward to turn on this unit.
• Rotate the INPUT selector on the front panel (or press one of the Input selector buttons on the remote control) to select the input source you want to listen to.
• The indicator for the selected input source lights up.
• Rotate the SPEAKERS selector on the front panel to select SPEAKERS A, B or A+B BIWIRING.
• Set the SPEAKERS selector to the A+B BI-WIRING position when two sets of speakers are connected using bi-wire connections, or when using two sets of speakers simultaneously (A and B).
• Play the selected input source.
• Rotate the VOLUME control on the front panel (or press VOLUME +/– on the remote control) to adjust the sound output level.
• You can adjust to the desired sound by using the BASS, TREBLE, BALANCE and LOUDNESS controls, the CD DIRECT AMP button, or the PURE DIRECT button on the front panel.
• When finished listening, press A (power) switch on the front panel outward to turn off this unit.
• If A AMP on the remote control is pressed while the A (power) switch on the front panel is in the on position, this unit enters standby mode. Press A AMP again to turn this unit on.

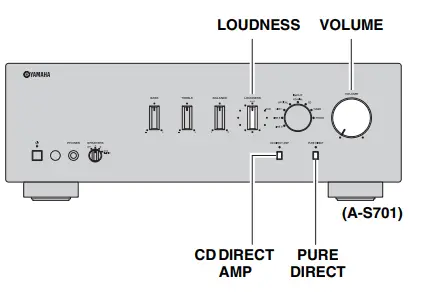

Adjusting to the desired sound

Making it easier to hear the high- and low-frequency ranges even at low volume (LOUDNESS)

Enjoy natural sound even at low volume by lowering the mid-range sound level and compensating for the human ears’ loss of sensitivity to high- and low-frequency ranges at low volume.

CAUTION
If the CD DIRECT AMP function (or the PURE DIRECT function) is turned on with the LOUDNESS control set at a certain level, the input signals bypass the loudness control, resulting in a sudden increase in the sound output level. To prevent your ears or the speakers from being damaged, be sure to press the CD DIRECT AMP button (or the PURE DIRECT button) AFTER lowering the sound output level or AFTER checking that the LOUDNESS control is properly set.

• Set the LOUDNESS control to the FLAT position.
• Rotate the VOLUME control on the front panel (or press VOLUME +/– on the remote control) to set the sound output level to the loudest listening level that you would listen to.
• Rotate the LOUDNESS control counterclockwise until the desired volume is obtained.

Reproducing pure, high fidelity sound (PURE DIRECT)
When the PURE DIRECT function is on, noise can be reduced by bypassing the circuit that the audio input signal is not using and stopping the power supply to the circuit. Therefore, in all input sources, you can enjoy music playback in straight and high quality sound. The indicator above the PURE DIRECT button lights up when this function is turned on.

Note
The BASS, TREBLE, BALANCE and LOUDNESS controls do not function while the PURE DIRECT function is turned on.

Reproducing CD sound with the highest sound quality (CD DIRECT AMP) (A-S701 only)

When selecting the input source other than CD, if you press the CD DIRECT AMP button, the input source switches to CD.

CD Direct Amp feature
Stop power supply to the unnecessary circuit for CD playback, convert the input signal to the normal phase and reverse phase, and balance transfer to the electronic volume. With the following effects, a more faithful sound to the original will be provided.

• improved signal-to-noise ratio
• external noise canceling
• reduced distortion

Notes

• The BASS, TREBLE, BALANCE and LOUDNESS controls do not function while the CD DIRECT AMP function is turned on.
• Be sure to connect the CD player to the CD input jacks if you use the CD direct function.
• The CD DIRECT AMP function is turned off if the following operation is performed.
• Select an input source other than CD for the INPUT selector.
• The PURE DIRECT function is turned on.

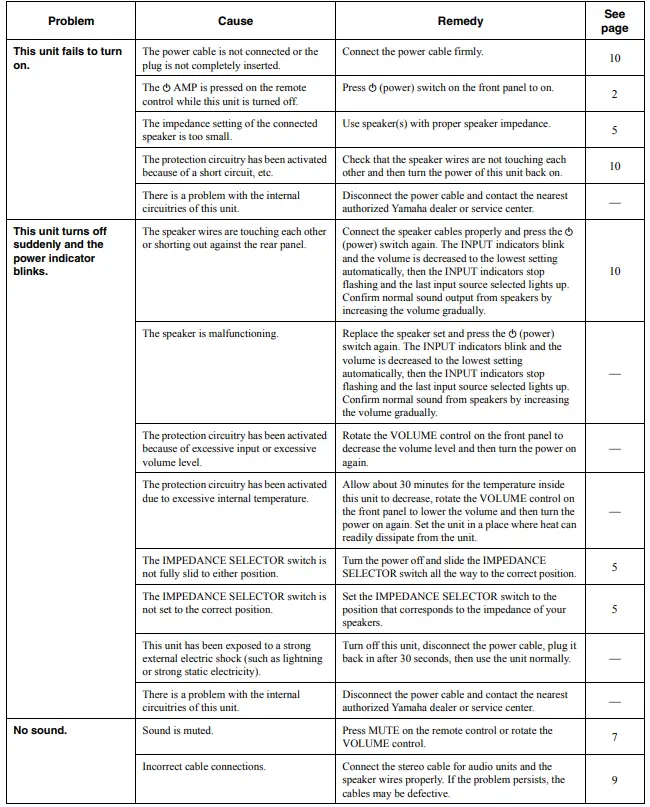

TROUBLESHOOTING

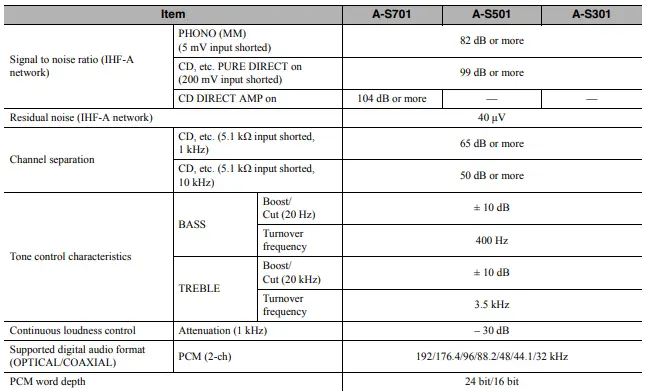

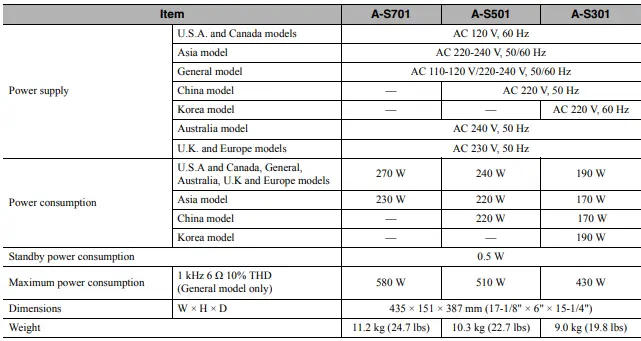

SPECIFICATIONS

AUDIO SECTIONGENERAL

FAQS
