Pyle PDICBT266 Bluetooth Flush Mount
Introduction
Thank you for purchasing this PYLE Bluetooth Ceiling / Wall Speaker system. It is a state of the art product carefully designed and manufactured for your installation needs, and has been thoroughly tested to ensure consistent and reliable performance.
If you have any question about the installation or operation of your PYLE Bluetooth Ceiling / Wall Speaker System which are not answered by this manual, contact your dealer immediately.
Specifications
- Amount of Speakers: 2
- Speaker size: 5”
- MAX Output Power: 200 watt
- Impendence: 8 Ohm
- Sensitivity: 88 dB
- Frequency Response: 70-20 kHz
- Cut-Out Diameter: 6”
- Mounting Depth: 8”
Bluetooth Connection Diagram
- Bluetooth Version:0
- Bluetooth Network Name: Pyle
- Bluetooth Network Password: ‘0000’
- Bluetooth Wireless Range: 30’+Feet

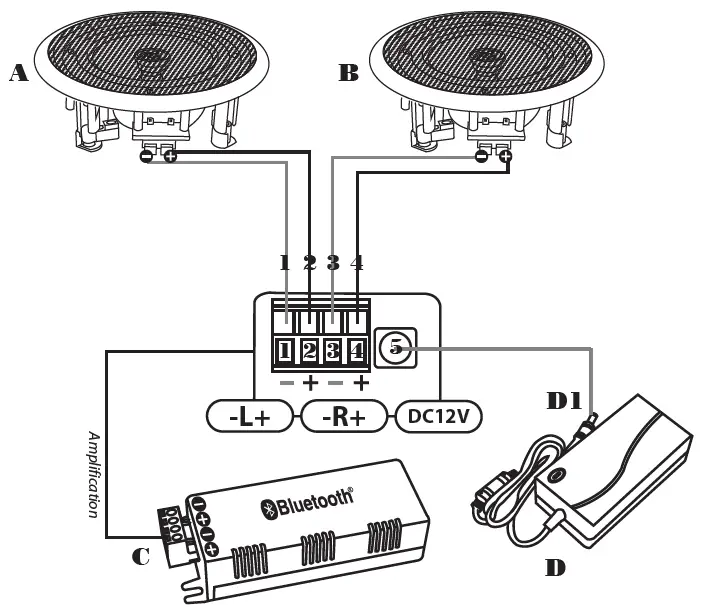

- As shown in pictures, A is speaker, B is speaker, C is Bluetooth controller, and D is power adapter.
- As shown is Picture C, port (1)(2) connect to the negative pole of speaker in Picture A, port (3)(4) connect to the positive pole of speaker in Picture Port (5) connects to power adapter in Picture D’s D1port.
EXISTING CONSTRUCTION
IN-CEILING SPEAKERS

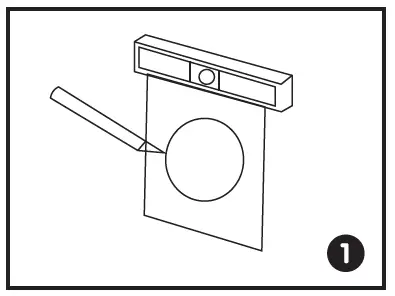

Cut the drywall
Note: Always allow at least one-half inch between a wall stud and the speaker cutout or the locking tabs will not be able to swivel into place.

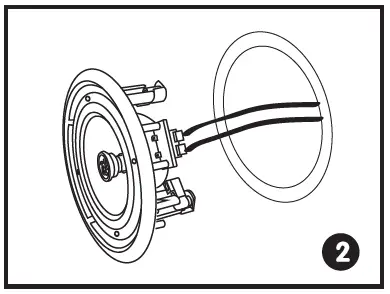

Connect the speaker wires to the speaker.

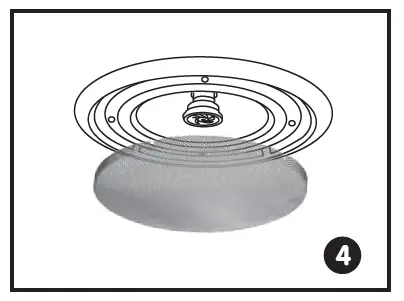

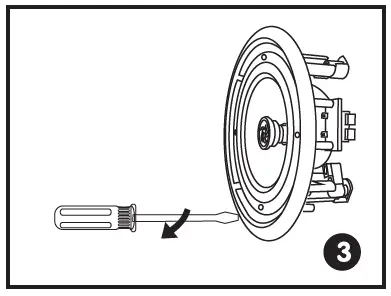

Screw down each of the four Phillips head screws. The locking tabs will swivel into place and secure the unit to the rear surface of the drywall. Put in the strips of adhesive to secure the grille.

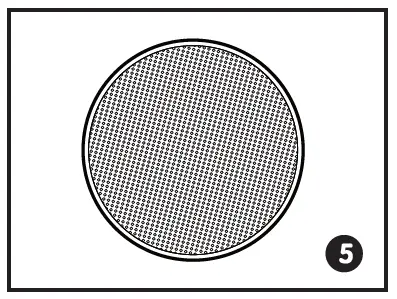

Replace the metal grille.
Complete.
Bluetooth Connection Diagram 4 CHANNEL
- Bluetooth Version:0
- Bluetooth Network Name: Pyle
- Bluetooth Network Password: ‘0000’
- Bluetooth Wireless Range: 30’+Feet

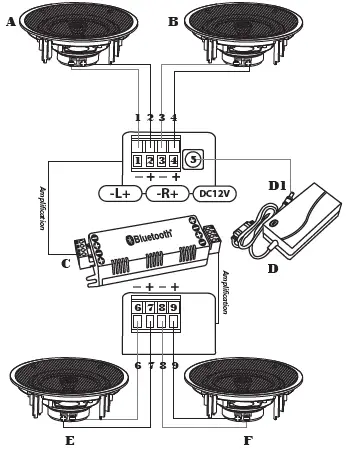

- As shown in pictures, A is speaker, B is speaker, C is Bluetooth controller, D is power adapter, E is speaker, and F is speaker.
- As shown is Picture C, port (1) (2) connect to the negative pole of speaker in Picture A, port (3)(4) connect to the positive pole of speaker in Picture B, port (6)(7) connect to the positive pole of the speaker in Picture E, port (8)(9) connect to the positive pole of speaker in Picture F, port (5) connects to power adapter in Picture D’s D1port.
- As shown in pictures, A is speaker, B is speaker, C is Bluetooth controller, D is power adapter is speaker, and F is speaker
- As shown is Picture C, port (1) (2) connect to the negative pole of speaker in Picture A, port (3) (4) connect to the positive pole of speaker in Picture B, port (6) (7) connect to the positive pole of speaker in Picture E, port (8) (9) connect to the positive pole of speaker in Picture F, port (5) connects to power adapter in Picture D’s D1port.
Frequently Asked Questions
Each device has one or two Bluetooth chips, but only when connected to an iOS-running laptop, not when using a smartphone. Strong computers are readily available. In order to pair two speakers with a MacBook, both speakers must be close enough to hear one another.
Thank you for letting us know about this. It uses Bluetooth to function. Given that the suggested wire has received both favourable and unfavourable reviews
I’m not sure what kind of wire the installers used for mine, but it wasn’t the wire that was included with the speakers.
Hello, you don’t need a bracket to install this item. To finish the project, just drill a hole for the speaker and secure it with a bolt. To view the whole list of the device’s specifications, go to our website, pyleaudio.com. After the model number in the search field, type PDICBT266 to get more information. I appreciate it.
I believe you’ll be fine if your television has a Bluetooth connection option. It creates a distinctive Bluetooth connection. We utilise four of them to connect our iPhones to. I’d absolutely buy them again because of their superb quality.
I’m not certain. I bought this one. I’ve got two. One for each daughter’s bedroom and bathroom
We sorry that this product doesn’t have any installation videos. Please contact our customer care department at 718 535 1800 if you have any more queries or worries. From Monday through Friday, 9 AM to 5 PM EST, press 2 first, then 1. I’m grateful.
I’m not sure. I purchased this one. I have two. One each for the bathroom and bedroom of each daughter
We very regret that this product does not have installation videos available. Please contact our customer service department at 718 535 1800 if you have any more questions or issues. From Monday through Friday, 9 AM to 5 PM EST, press 2 first, followed by 1. I’m grateful.
My suspicion is that the mines I have in the kitchen are not waterproof even though they are classified as maritime type mines.
I think these speakers have poor sound quality. They sound tinny, so you couldn’t pay me to use them.
The subpar Bluetooth receiver can only support two speakers at once. Most current phones can simultaneously cast to two Bluetooth receivers, offering four speakers.
Despite being possible, it is not recommended due to the possibility of the Bluetooth controller on the device being harmed.
The TV to which the speakers are connected should control the volume.
If you mean on a boat, then yes, you may and it does require 12v DC power, which is supplied by its converter.
They don’t truly rock hard, but they ought to be adequate for meeting-style activities. Everything you require to get going is included, including the Bluetooth receiver.
Yes, it should. I built mine in the porch ceiling using six to ten inches of spray insulation, and it works well.
Hello, this device does not require an amplifier or receiver. Because it’s wireless, you can use Bluetooth to connect your projector. Visit our website, pyleaudio.com, to view the unit’s further specifications. For further information, enter the model number PDICBT266 in the search box. I’m grateful.
Instead of the four speakers, you’ll need to buy two sets of the two speakers.
