U-PROX MP LTE Wireless Security Control Panel
WIRELESS SECURITY CONTROL PANEL
Is a part of the U-Prox security alarm system User manual
Manufacturer: Integrated Technical Vision Ltd. Vasyl Lypkivsky str. 1, 03035, Kyiv, Ukraine
U-Prox MP LTE – is a wireless security control panel designed to control the home security system. U-Prox MP LTE supports connection of up to 200 devices (sensors, keypads, key fobs, etc.) via the U-Prox band radio frequency at a distance of up to 4800 m. The device interacts with the user and the security company, using Wi-Fi and 3G/LTE communication for reliability.
The device is connected to the U-Prox Cloud and is configured with the U Prox Installer mobile or WEB application.
U-Prox Installer

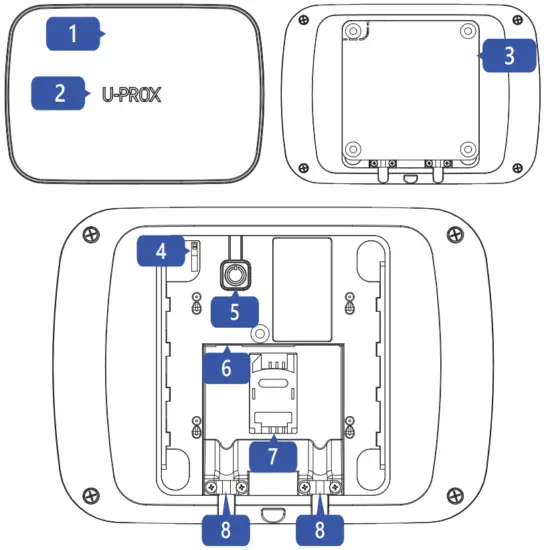

- Device case
- Light indicator
- Mounting plate
- Tamper switch
- On/Off button
- Power supply connector

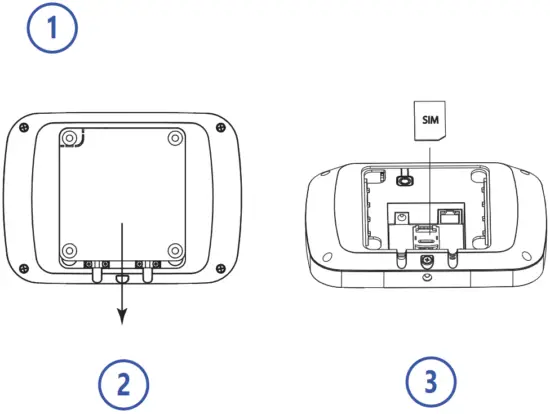

- IM card holder
- Cable clamps
TECHNICAL SPECIFICATIONS
| Partitions | 30 |
| Wireless devices | 200 |
| in the system | 99 detectors 16 keypads 60 key fobs 8 repeaters |
| Users | 60 |
| Power supply | 12 VDC @ 0.35 A |
| Battery backup | 2500 mAh battery, up to 24 hours |
| Radio frequency | Two ISM-band wireless interfaces with several channels |
| ITU region 1 (EU, UA): 868.0 to 868.6 MHz, bandwidth 100kHz, 20 mW max., up to 4800m (in line of sight); ITU region 3 (AU): 916.5 to 917 MHz, bandwidth 100kHz, 20 mW max., up to 4800m (in line of sight). Secure two way communication, sabotage detection, key – 256 bits | |
| Connection | Wi-Fi 2.4GHz and LTE modem for reliable and secure two way communication, key – 256 bits |
| Wi-Fi | 2.4 GHz, 802.11b/g/n, Open/WPA/WPA2/WEP 14 dBm for 802.11n MCS7, 20 dBm for 802.11b |
| LTE | Multi-band LTE Cat 1 modem, UMTS/HSPA+, LTE FDD – B1/B3/B7/B8/B20/B28, WCDMA – B1/B8 |
| Operating temperature range | 0°C to +45°C |
| Dimensions & weight | 167 х 120 х 25.4 mm & 245 grams |
| Case colour | white, black |
COMPLETE SET
1. U-Prox MP LTE; 2. One 18650 battery (pre-installed); 3. Power supply;
4. Quick start guide
CAUTION. RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE USED BATTERIES ACCORDING TO THE NATIONAL REGULATIONS
WARRANTY
Warranty for U-Prox devices (except batteries) is valid for two years after the purchase date.
If the device operates incorrectly, please contact [email protected] at first, maybe it can be solved remotely

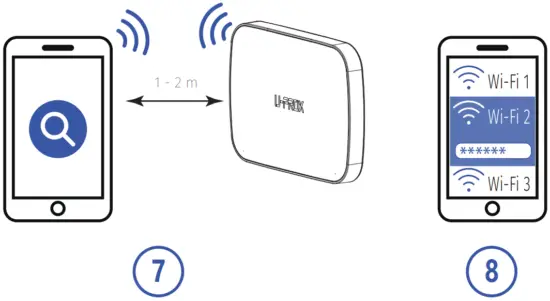

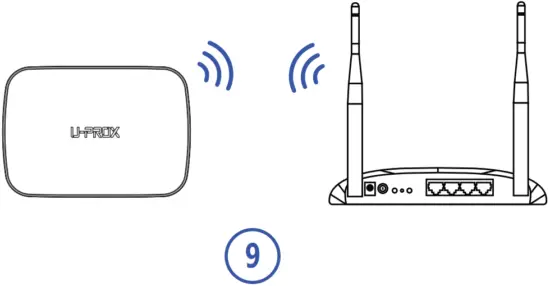

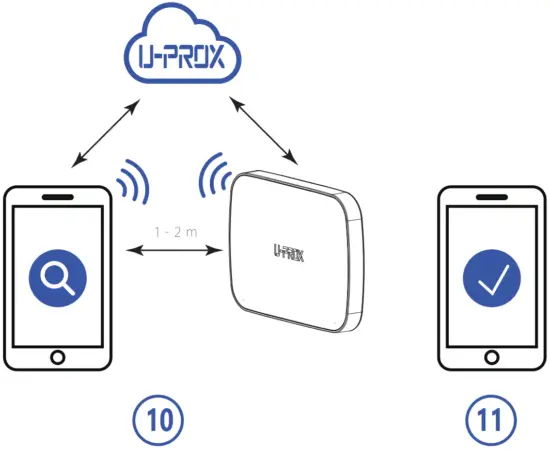

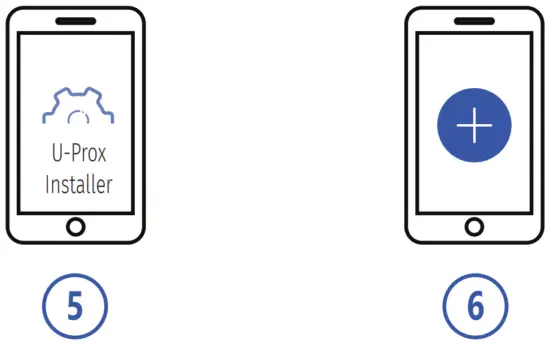

REGISTRATION
Install the app
Sign up, if you have no account yet; Sign in

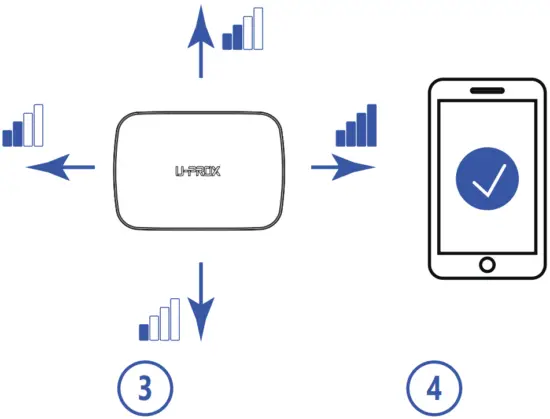

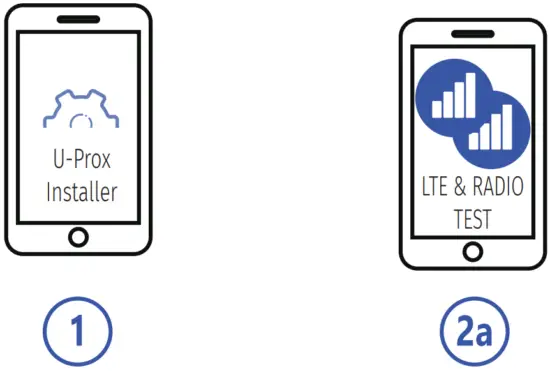

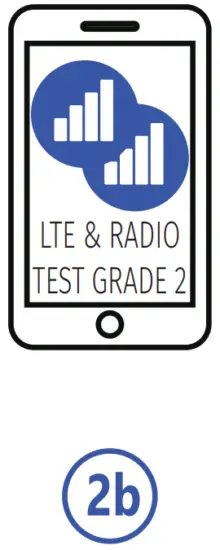

RANGE TEST FOR OPTIMAL INSTALLATION LOCATION
Due to Grade 2 requirement RF link works with reduction of power in 8 dB

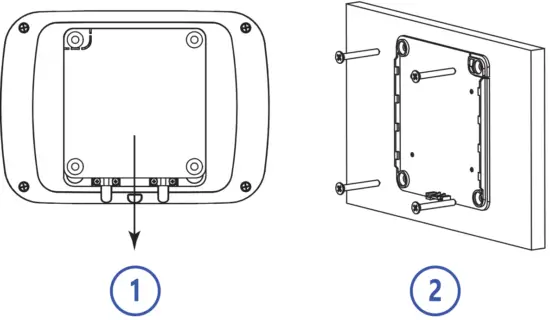

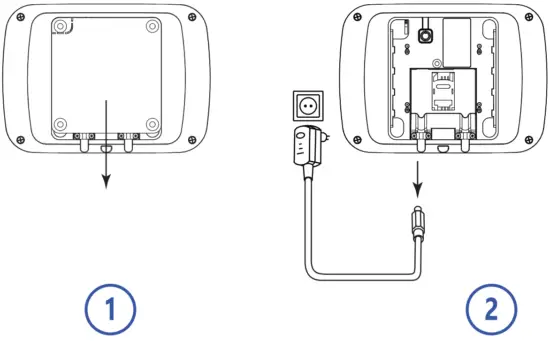

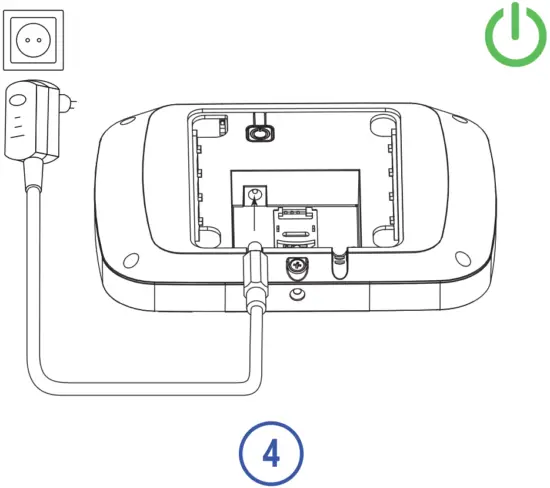

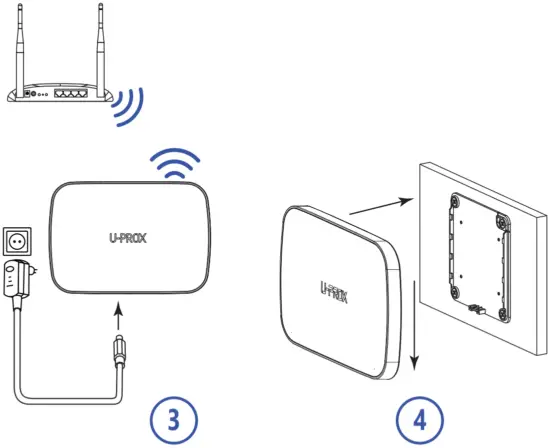

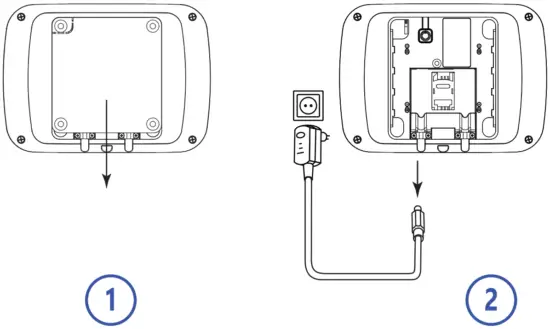

INSTALLATION

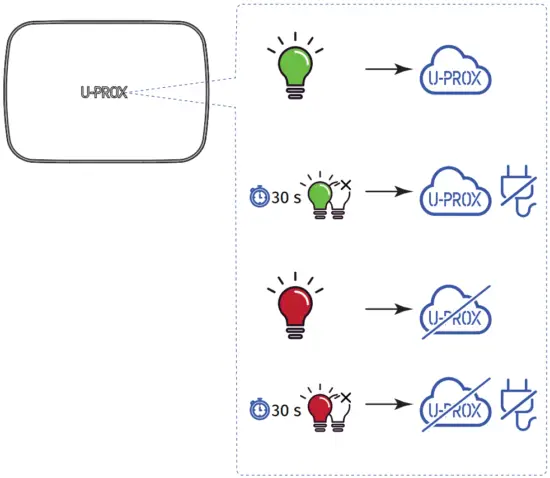

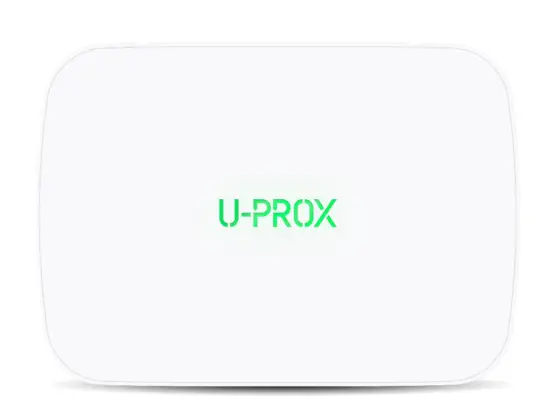

INDICATION
SWITCHING OFF
RESETTING TO DEFAULT
