LogiLink logo

LL1 USB Webcam
100° with Dual-Microphone
Art. No.: UA0378LogiLink UA0378 LL1 USB Webcam 100 Degree with Dual Microphone

LogiLink UA0378 LL1 USB Webcam 100 Degree with Dual Microphone - icon1

Business Grade Full HD Webcam

This LL1 USB webcam has a 100˚ wide-angle lens ensuring that everyone is seen in Full HD resolution. It also features dual high-quality microphones, designed to pick up everyone’s voice. Provides a business professional with a truly powerful webcam.
LogiLink UA0378 LL1 USB Webcam 100 Degree with Dual Microphone - boxLogiLink UA0378 LL1 USB Webcam 100 Degree with Dual Microphone - fig1LogiLink UA0378 LL1 USB Webcam 100 Degree with Dual Microphone - fig2

Discover the Best Webcam

for Online Class and Video ConferencingLogiLink UA0378 LL1 USB Webcam 100 Degree with Dual Microphone - fig3

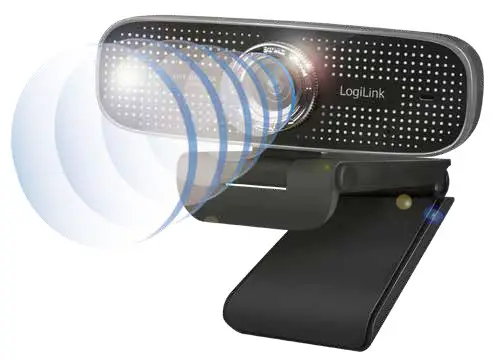

Spectacular Video Quality

1080p HD video at 30 frames per second provides true-to-life clarity on Android TVs, PCs, or laptops. Comes with a 6-layer coated lens that provides crystal clear and stable images; smooth and precise for consistent definition and fluid video.

LogiLink UA0378 LL1 USB Webcam 100 Degree with Dual Microphone - fig4LogiLink UA0378 LL1 USB Webcam 100 Degree with Dual Microphone - fig5

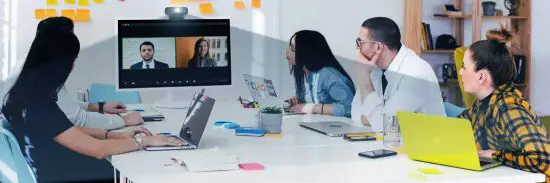

100˚ Wide Angle
The Full HD webcam with a 100˚ wide-angle field of view allows everyone in the room to be seen. Great for business video meetings in huddle rooms and other small workspaces.LogiLink UA0378 LL1 USB Webcam 100 Degree with Dual Microphone - fig6

Automatic Low Light Correction
Equipped with auto low light correction; adjusts the lighting to produce better quality and brighter images even when you are in a dim environment.LogiLink UA0378 LL1 USB Webcam 100 Degree with Dual Microphone - fig7

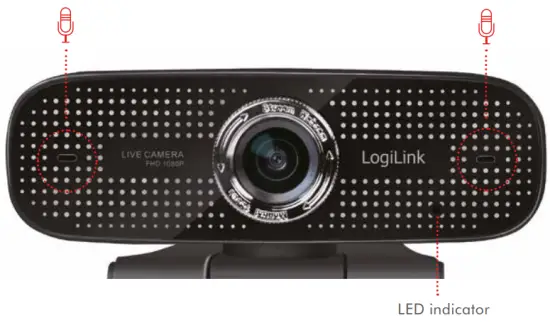

Built-in Dual Noise Reduction Mics
It is specifically optimized for ultra-clear conversations in the room; making sound purer and clearer.

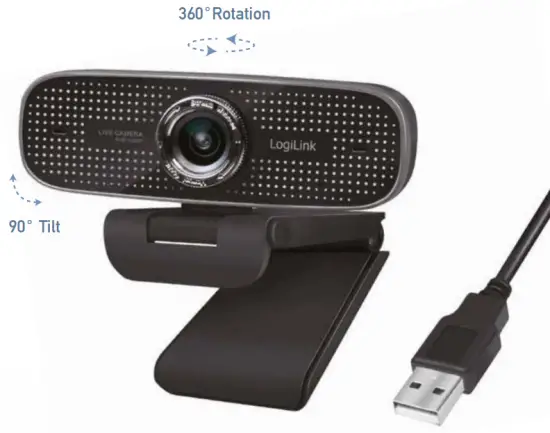

LogiLink UA0378 LL1 USB Webcam 100 Degree with Dual Microphone - fig8360˚ Adjustable Rotation
360° rotation left/right and 90° tilt forward/ backward to show your best side on every video call, wherever you are.
Plug-and-Play through USB Connection
Supports USB Video Device Class (UVC); making it easy to get it up and running.

LogiLink UA0378 LL1 USB Webcam 100 Degree with Dual Microphone - fig9

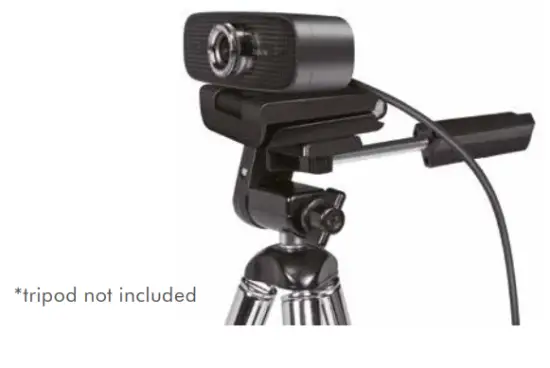

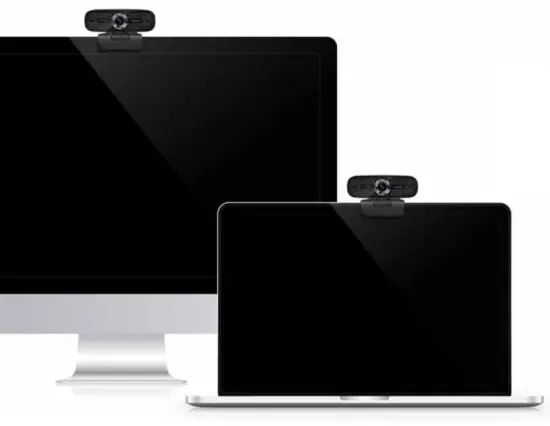

Versatile Mounting Choices
Effortlessly mount the camera wherever you like; clamp-on LCD screens, laptops, desktops or mount on your tripod.

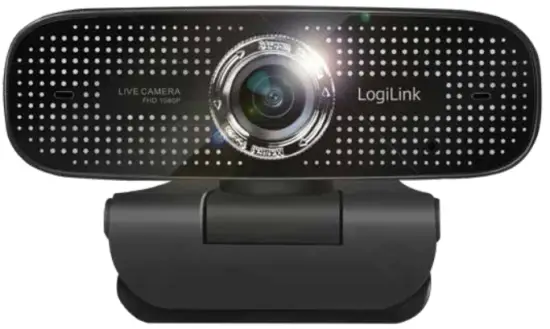

LogiLink UA0378 LL1 USB Webcam 100 Degree with Dual Microphone - fig11All-around Platform Compatibility
Compatible with Windows, Mac OS, Linux, Chrome OS, and Android. Works with Skype, Microsoft Teams, Google Meet, Zoom, FaceTime, Facebook Messenger, OBS, XSplit,
Twitch and more.LogiLink UA0378 LL1 USB Webcam 100 Degree with Dual Microphone - fig10

Specification:

Image Sensor1/2.7″ 2.0 M
View Angle100°

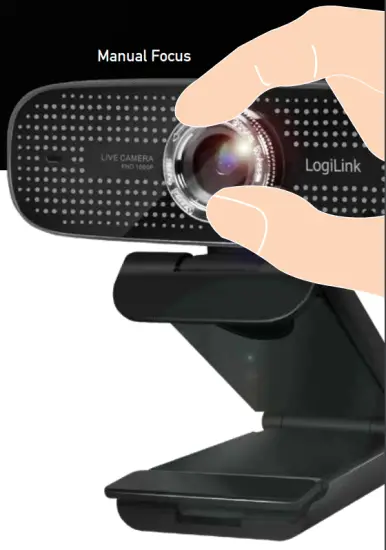

Focus ModeManual Focus
Lens6-Element (5+1IR)
 f/Nf/2.2
Focal Length7cm~∞
Microphone35 dB + high sensitivity, 2-channel stereo noise reduction double mic
Cable Length1.6 m
Power ConsumptionDC 5 V (through USB 2.0 type-A)
Encoding FormatMJPEG, YUY2
Still Picture Resolution1920×1080, 1280×720, 640×480
Video Resolution1920×1080@30fps, 1280×720@30fps, 640×480@30fps
Conference ApplicationsZoom, Teams, OBS, Facebook, Youtube, Xbox one, XSplit, Skype, Twitch, Google Meet
System Requirement2.4 GHz Intel Core2 Duo I3 processor or higher, 4 GB memory or higher for storing
recorded video
Operation SystemWindows 7/8/10, Windows XP2, Mac OS 10.6, Linux 2.6.24, Chrome OS, XBox One
Android 5.0, Ubuntu Linux 10.04 or above
FunctionsAuto Exposure (AE)
Auto White Balance (AWB)
Auto Flicker Correction
Color Correction
Gamma Correction
Dark Level Compensation
Auto Edge enhancement
Automatic frame rate adjustment when exposed in low light environments
Tripod screw hole specifications1/4 inch screw thread, 6 mm diameter
Dimensions8.7×5.3×6.4 cm (Including base)
Weight138 g

Package Contents:

» 1x USB Webcam
» 1x Cleaning Cloth
» 1x User Manual

Package Information:
» Packing Dimension: 114x115x67 mm
» Packing Weight: 0.21 kg
» Carton Dimension: 475x355x250 mm
» Carton Q‘ty: 40 pcs
» Carton Weight: 9.07 kg

LogiLink UA0378 LL1 USB Webcam 100 Degree with Dual Microphone - fig12LogiLink UA0378 LL1 USB Webcam 100 Degree with Dual Microphone - icon2

*The specifications and pictures are subject to change without prior notice.
*All trade names referenced are the registered trademarks of their respective owners.LogiLink UA0378 LL1 USB Webcam 100 Degree with Dual Microphone - qrhttp://www.2direct.de/search?sSearch=UA0378LogiLink UA0378 LL1 USB Webcam 100 Degree with Dual Microphone - bear
