How to install your Magnetic Catch
We recommend using a qualified tradesman for installation.
Instructions
LM5103 Magnetic Catch
 | Magnetic catch – x1 |
 | Screws – x4 |
Tools Required
Appropriate safety equipment i:e safety glasses
Drill dia 3.0 mm
Screwdriver
Tape Measure
Pencil
How to install your Magnetic Catch
Step 1 – Mark out the fixing holes
Position your Magnetic Catch on the inside of your cabinet door, vertically or horizontally. Mark out the fixing holes using the Magnetic Catch as a template.

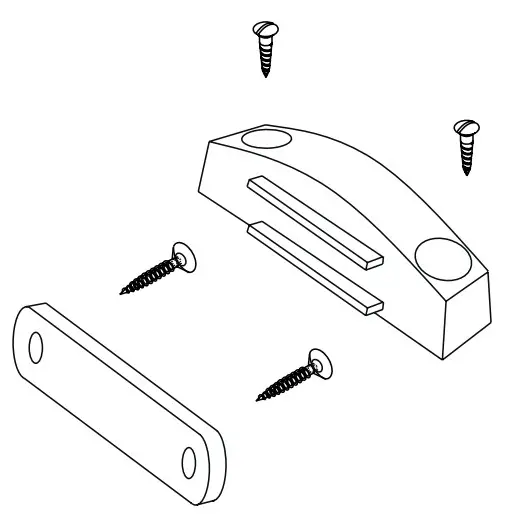

Step 2 – Drill holes
Drill holes with a 3mm drill to ensure it does not break through.
Step 3 – Attach catch
Offer the Magnetic Catch to the cabinet and securely fix it with screws.

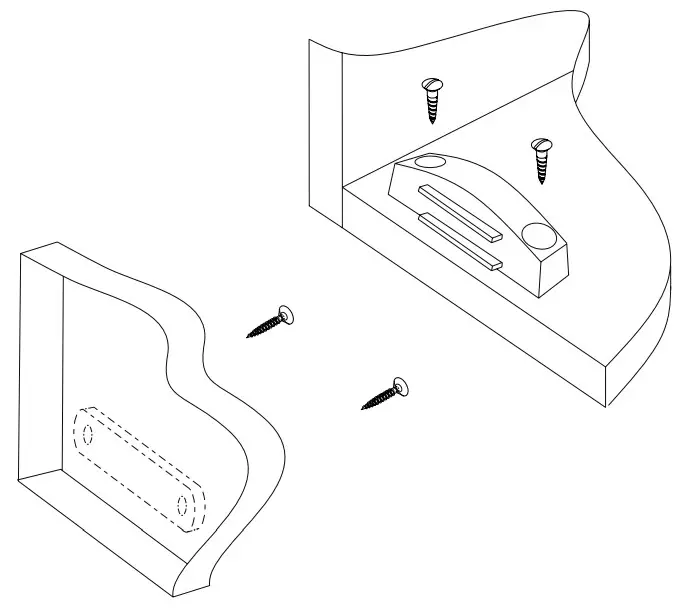

Step 4 – Attach plate to the door
Offer up the plate to the door, in alignment with the Magnetic Catch, and fix it securely with screws.
Finish Care & Cleaning
Thank you for purchasing your Magnetic Catch from Armac Martin.
Our products are of the finest quality and hand-finished. Please follow the below care guide to maintain the condition of the product you’ve purchased.
Wipe your product down with a soft dry cloth.
We do not recommend the use of any abrasive cloths or abrasive cleaners.
