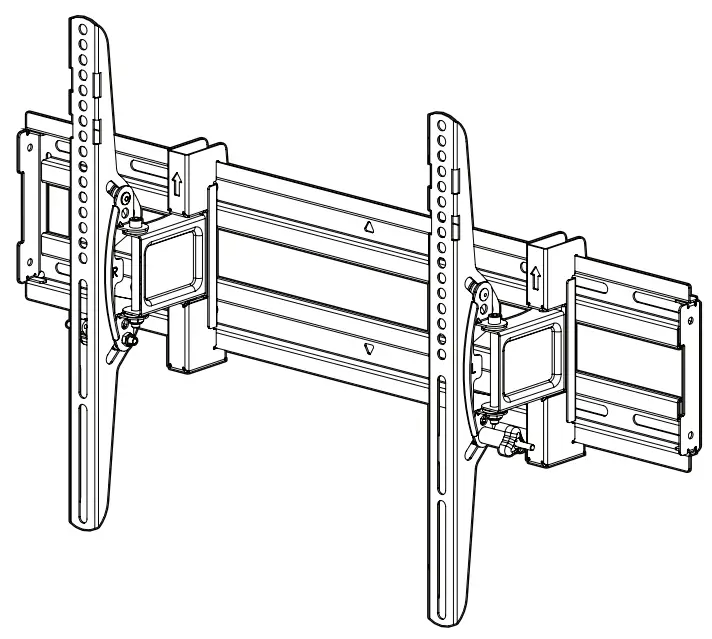

LLT2 42-90-Inch Extendable Tilt Wall TV
Installation Guide
BEFORE YOU BEGIN
 |  |  |

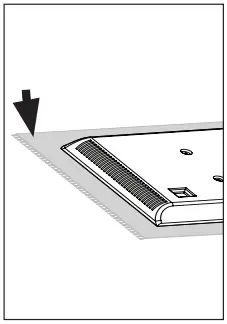

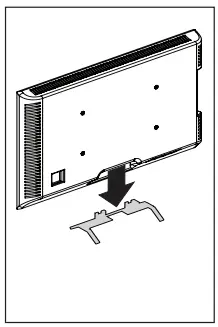

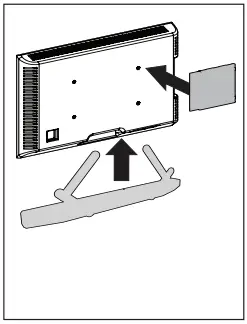

| Remove the stand from your TV —if attached. | Install any accessories you may have purchased, if they requireTV removal prior to assembly. Note that the TV is removable for future accessory purchases. | Protect the face of your TV when laying it down for installation. |
IMPORTANT SAFETY INSTRUCTIONS
– PLEASE READ MANUAL PRIOR TO USE – SAVE THESE INSTRUCTIONS
CAUTION: Avoid potential personal injuries and property damage!
- This product is designed ONLY to be installed into wood studs, solid concrete* or concrete block*, and steel studs*, — DO NOT INSTALL INTO DRYWALL ALONE — DRYWALL ALONE WILL NOT HOLD THE WEIGHT OF YOUR TV.
*For information on how to use this product with concrete or steel stud walls contact Customer Service and ask about the mounting kit. - This product is designed for INDOOR USE ONLY
- The wall must be capable of supporting five times the weight of the TV and mount combined
- Do not use this product for any purpose not explicitly specified by manufacturer
- Manufacturer is not responsible for damage or injury caused by incorrect assembly or use
Please read through these instructions completely to be sure you’re comfortable with this easy install process.
Check your TV owner’s manual to see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact Customer Service.
TV Weight Limit (including accessories)
DO NOT EXCEED
If your TV (plus accessories) weighs MORE, this mount is NOT compatible.
Visit SANUS.com or call customer service to find a compatible mount.

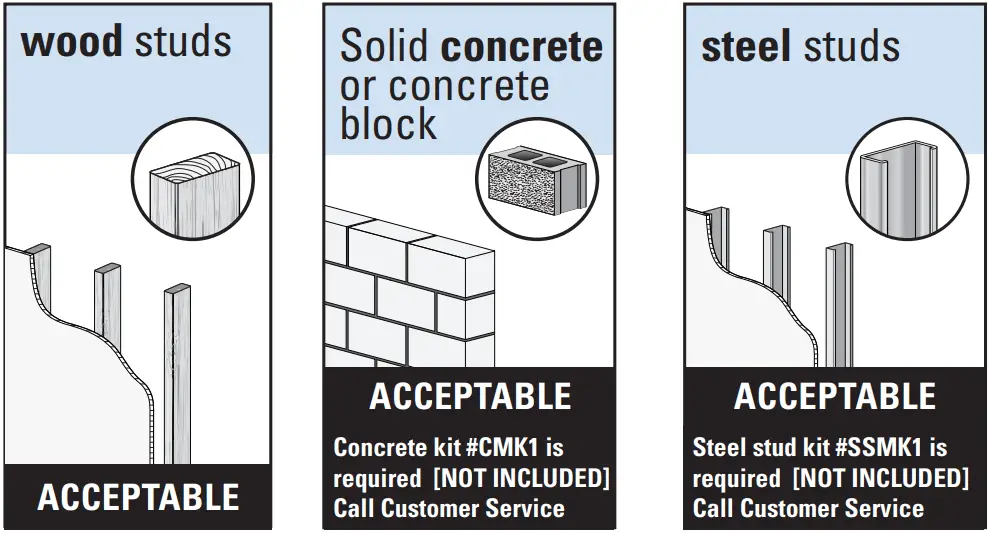

Wall Construction
ONLY install on these acceptable wall types.
CAUTION:
DO NOT install in drywall alone Drywall alone will NOT hold the weight of your TV
Unsure Call Customer Service

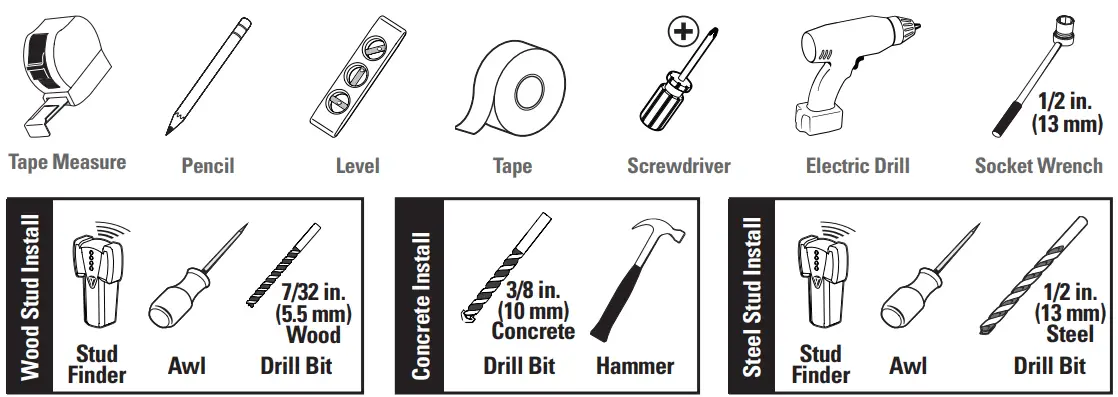

Tools Needed

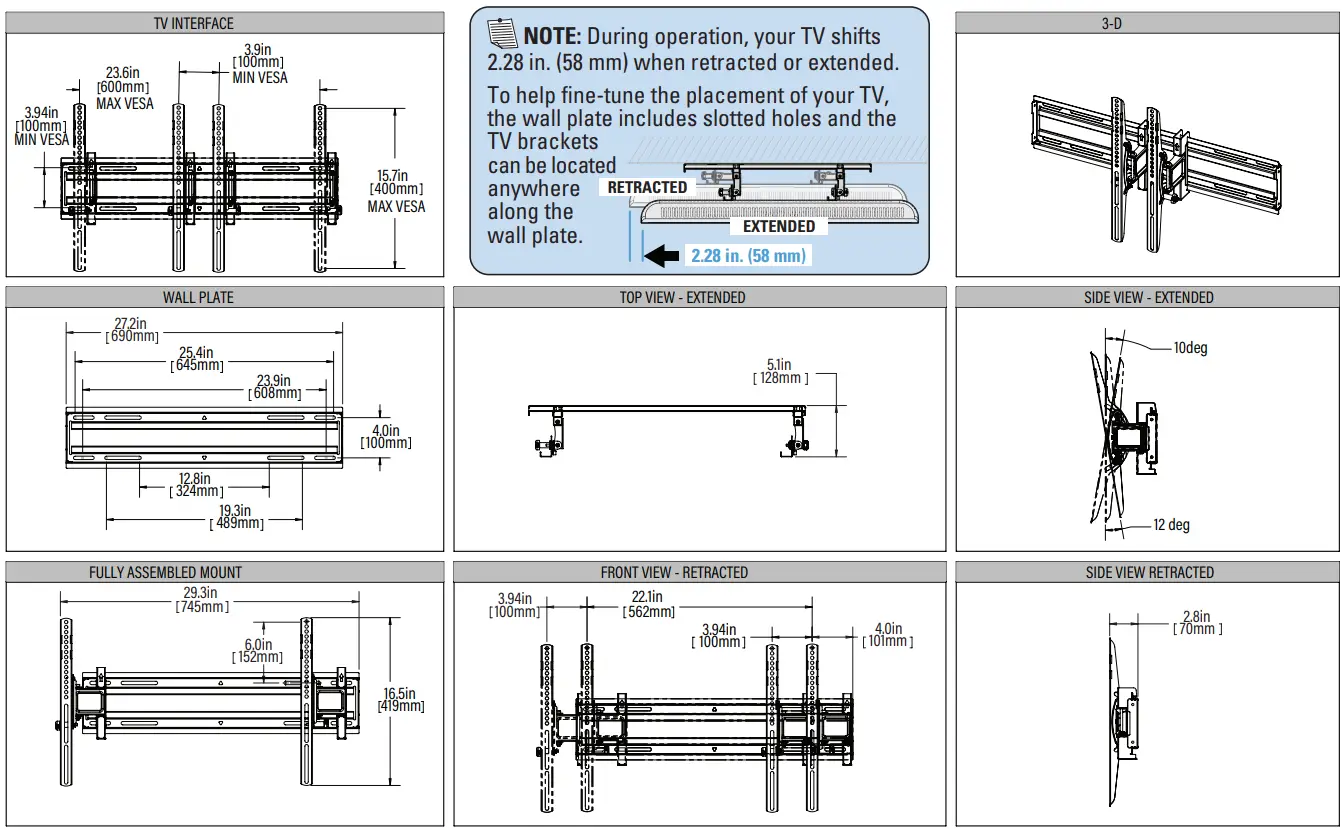

Dimensions
Supplied Parts and Hardware
WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts
are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!
NOTE: Not all hardware included will be used.
NOTE: Illustrations may vary slightly from your actual parts.

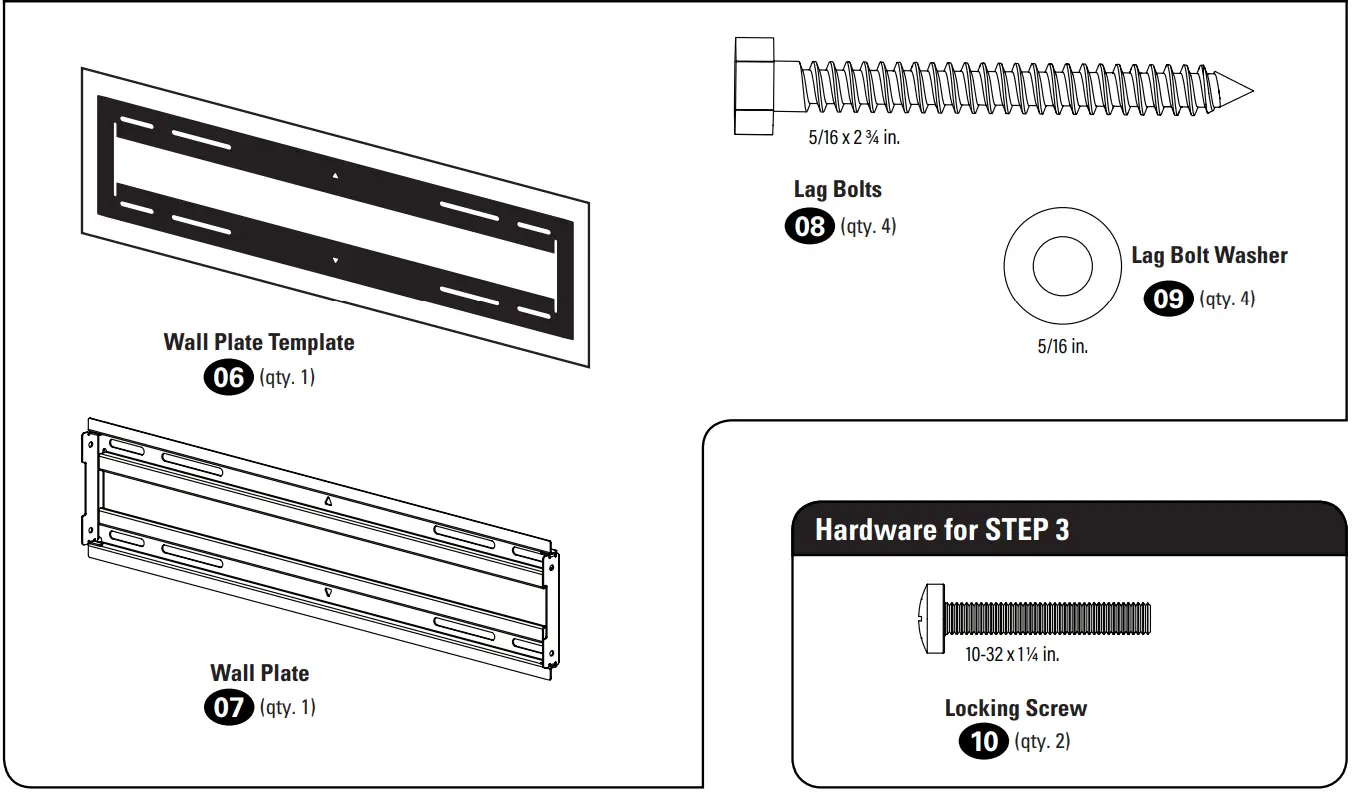

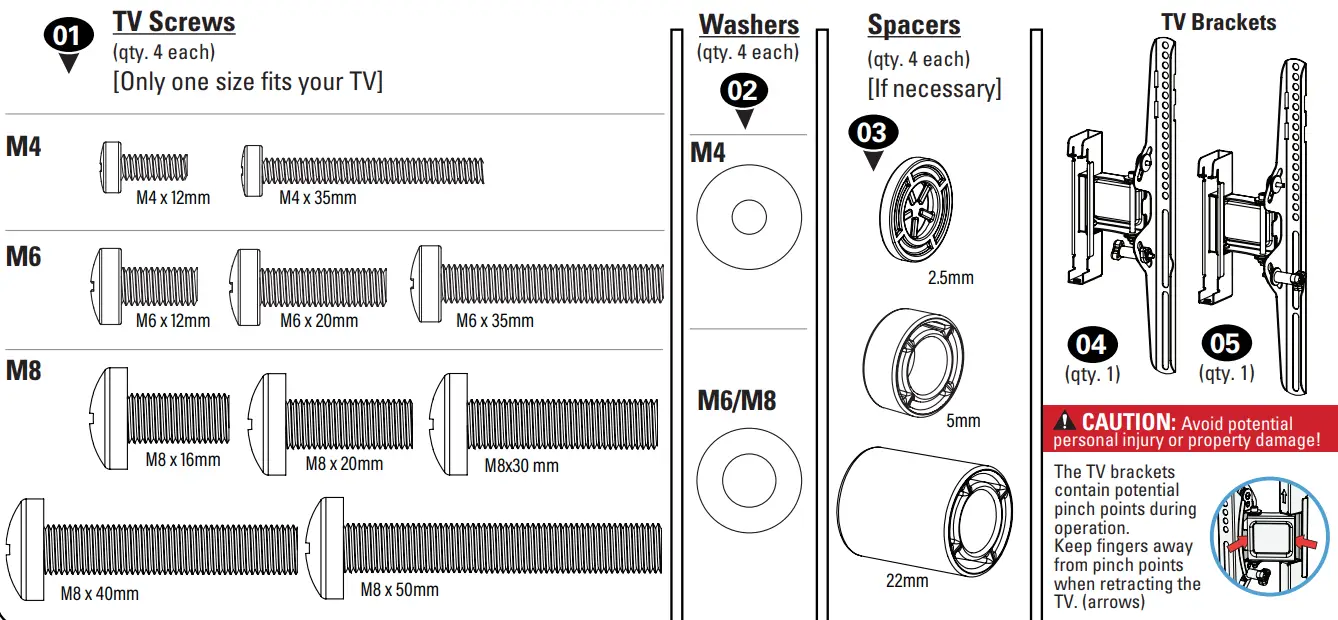

Parts and Hardware for STEP 1
Parts and Hardware for STEP 2

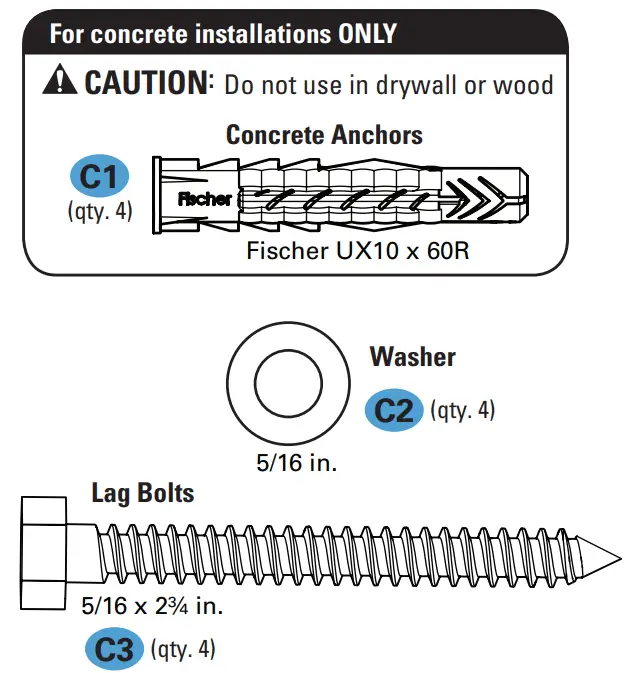

Hardware for STEP 2B Concrete Installation
[Concrete Kit #CMK1 is NOT INCLUDED]
Contact Customer Service at 1-855-734-7805 and ask about the CMK1 Concrete Anchor Kit.

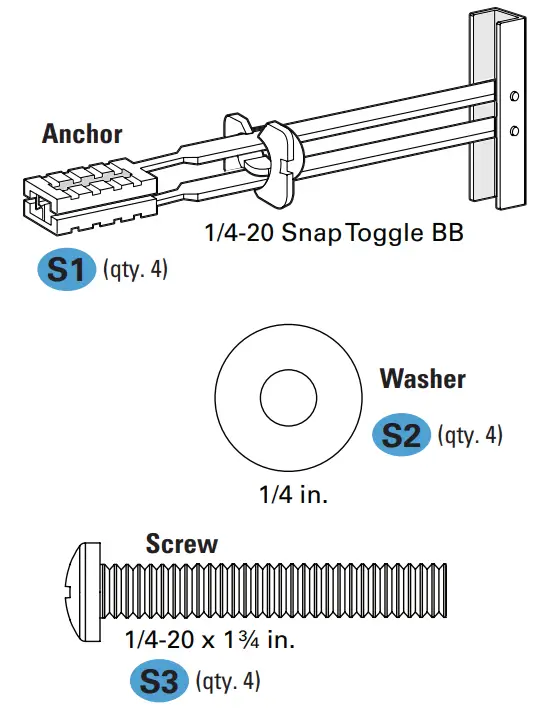

Hardware for STEP 2C Steel Stud Installation
[Steel Stud Kit #SSMK1 is NOT INCLUDED]
Contact Customer Service at 1-855-734-7805 and ask about the SSMK1 Steel Stud Anchor Kit.
STEP 1 Attach TV Bracket to TV

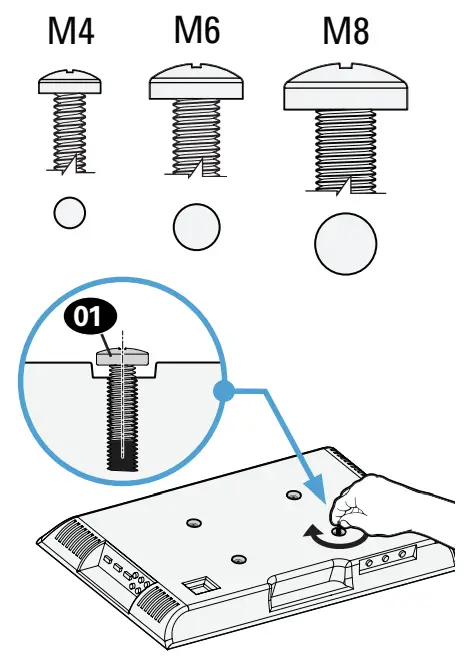

1.1 Select TV Screw Diameter
Only one screw size fits your T V.

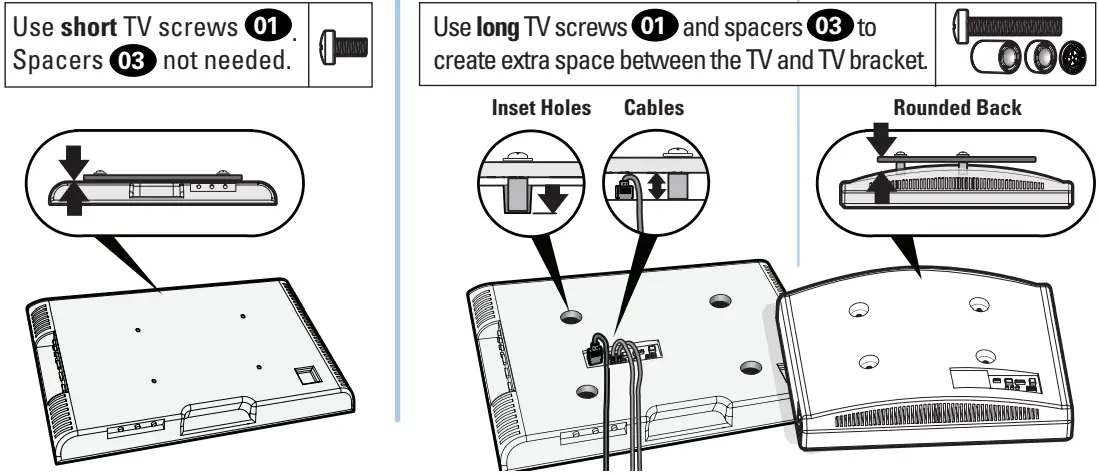

1.2 Select TV Screw Length and Spacers
A NO SPACER
• Flat Back TV
[TV brackets lay flat on your TV]
B SPACER NEEDED
- Flat Back TV with
Extra Space Needed [for deep inset holes or cable interference] - Rounded or Irregular Back TV [TV brackets NOT resting flat on your TV]
NOTE: If your TV included inset spacersor adapters, use themUNDER the mount hardware.

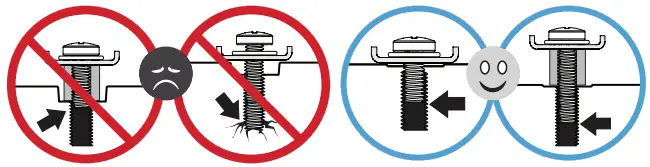

CAUTION: Verify adequate thread engagement with your screw 01 , washer 02 , spacer 03 combination AND TV bracket 04 / 05 .
Too short will not hold your TV. — Too long will damage your TV.
1. 3 Attach TV Brackets to Your TV
 | |
| Position the TV brackets 04 and 05 over your TV hole pattern as shown – making sure the brackets are level. IMPORTANT: The tilt tension knobs T should be oriented to the outside edges. | Install using the screw combination A or B you selected for your TV. CAUTION: Avoid potential personal injuries and property damage! DO NOT use power tools for this step. Tighten the screws only enough to secure the TV bracket to the TV. DO NOT overtighten the screws. |
STEP 2A Attach Wall Plate

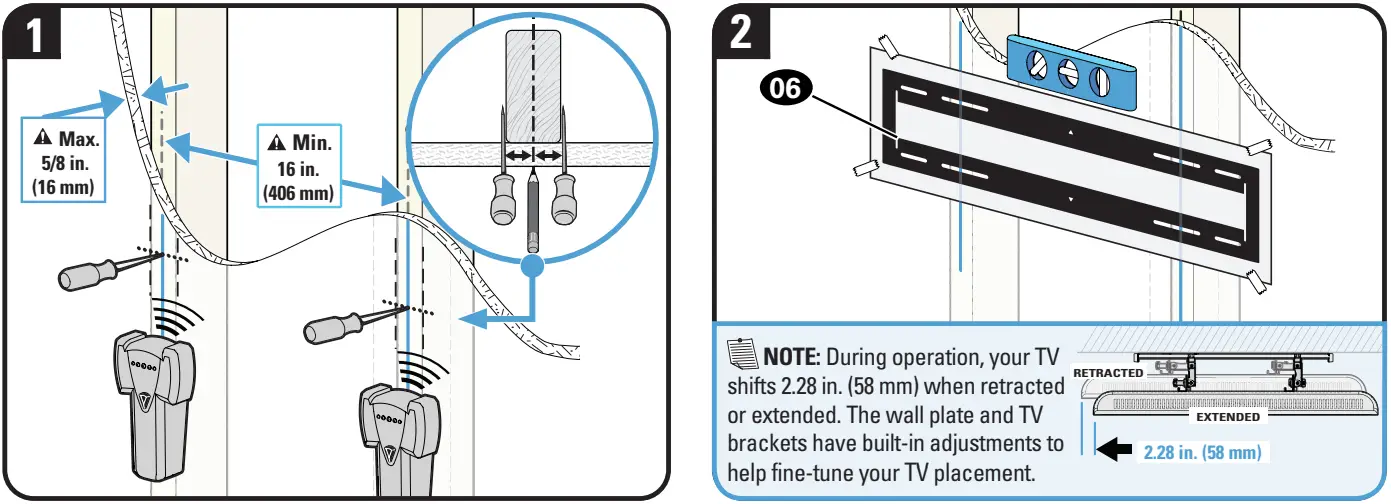

Wood Stud Installation
CAUTION: Avoid potential personal injury or property damage!
- Drywall covering the wall must not exceed 5/8 in. (16 mm)
- Minimum wood stud size: nominal 2 x 4 in. (51 x 102 mm) actual 1½ x 3½ in. (38 x 89 mm)
- Minimum horizontal space between fasteners: 16 in. ( 406 mm)
- Stud center must be verified
 | |
| IMPORTANT: Drill into the center of the stud. | Install the wall plate 07 using four lag bolts 08 and washers 09. TIP: Use the slotted holes for fine-tuning your placement. Tighten all lag bolts only until they are pulled firmly against the wall plate. CAUTION: Improper use could reduce the holding power of the lag bolt. DO NOT over-tighten the lag bolts. |
STEP 2B Attach Wall Plate

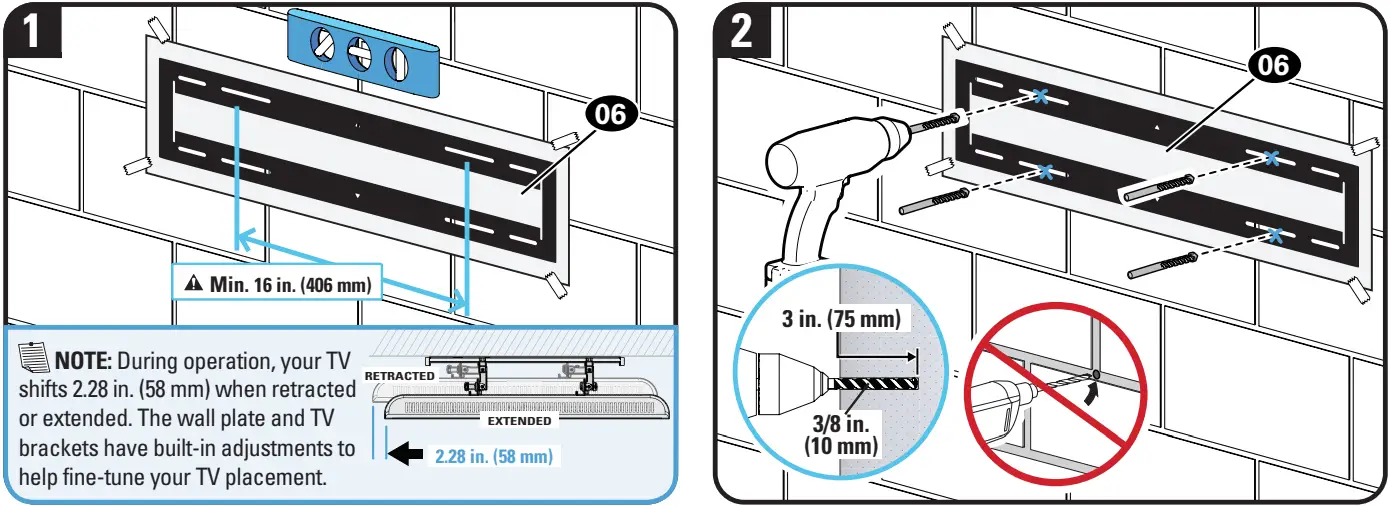

Solid Concrete or Concrete Block Installation
CAUTION: Avoid potential personal injury or property damage!
- Mount wall plate 07 directly onto concrete surface (no wall covering)
- Minimum solid concrete thickness: 8 in. (203 mm)
- Minimum concrete block size: 8 x 8 x 16 in. (203 x 203 x 406 mm)
- Minimum horizontal space between fasteners: 16 in. (406 mm)
Concrete Install Kit #CMK1 is not included
(see page 4) Contact Customer Service at 1-855-734-7805 to inquire about the additional hardware.
CAUTION: Never drill into the mortar between blocks.
CAUTION: Be sure the anchors C1 are seated flush with the concrete surface.

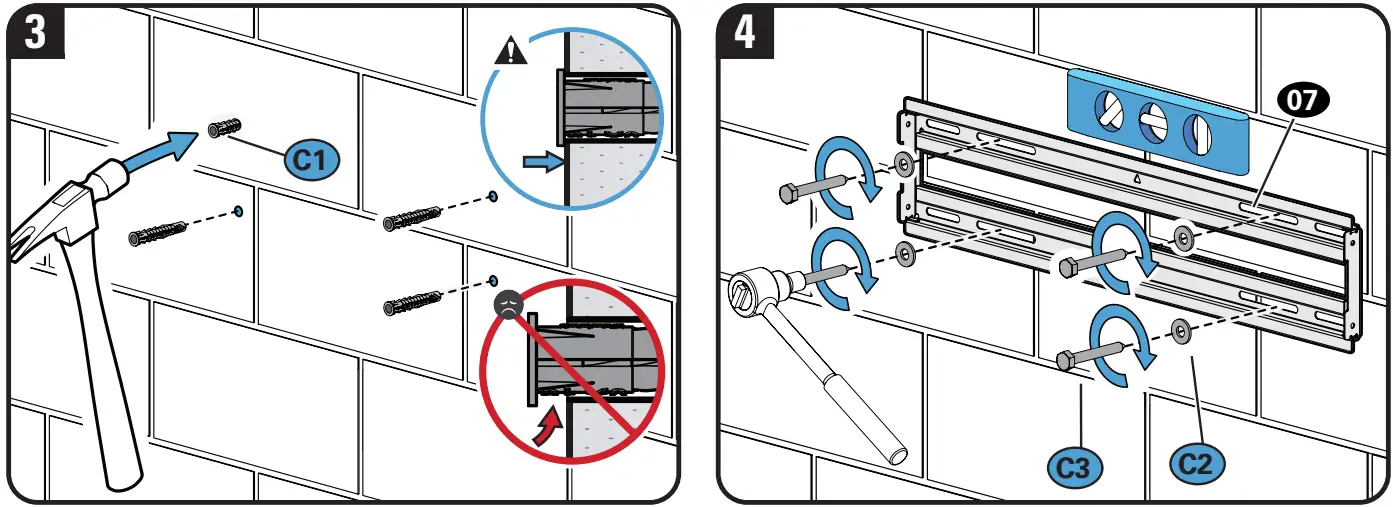

Install the wall plate 07 using four lag bolts C3 and washers C2 .
TIP: Use the slotted holes for fine-tuning your placement.
Tighten all lag bolts only until they are pulled firmly against the wall plate.
CAUTION: Improper use could reduce the holding power of the lag bolt. DO NOT over-tighten the lag bolts C3 .
STEP 2C Attach Wall Plate
Steel Stud Installation
CAUTION: Avoid potential personal injury or property damage!
- Studs must be at least 2×4 in. / 25 ga.
- If back side of wall is unfinished, drywall must be installed to a minimum of one stud left and right of the stud(s) being used to install the mount
- Drywall must be a minimum of 1/2 in. (13 mm) thick on each side of the studs, and a minimum clearance of 1 ⅞ in. (48 mm) behind the wall is required
- Pilot holes MUST be drilled to a depth of 1 in. (25 mm), using a 1/2 in. (13 mm.) diameter drill bit
- This product must be centered on the studs
- Stud type and structural strength must conform to the North American Specification for the Design of Cold-Formed Steel Structural Members [362 S 125 18, C-Shape, S – Stud Section]
- Drywall must be secured to studs with screws 12 in. (304.8 mm) on center
CAUTION: Be sure cap P is seated against the drywall surface.

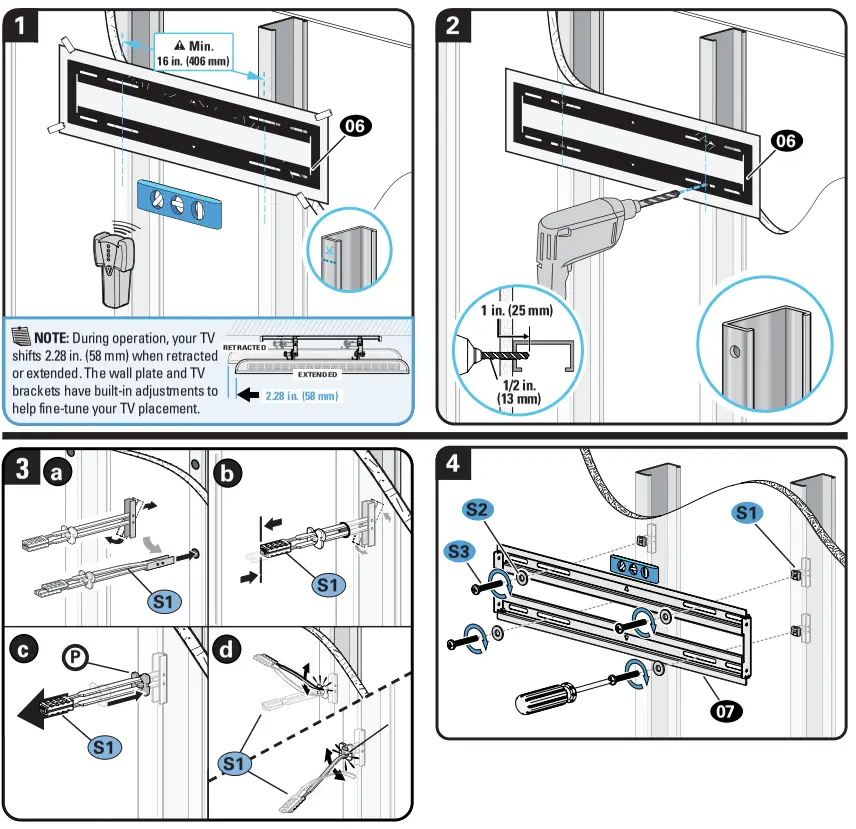

Install the wall plate 07 using four screws S3 and washers S2 .
TIP: Use the slotted holes for fine-tuning your placement.
Tighten all screws S3 only until they are pulled firmly against the wall plate 07 .
CAUTION: Improper use could reduce the holding power of the screws S3 . DO NOT over-tighten the screws S3.

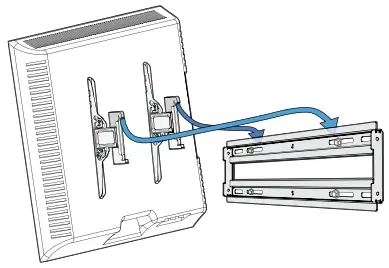

STEP 3 Hang TV onto Wall Plate
HEAVY! You may need assistance with this step.
CAUTION: Avoid potential personal injury!

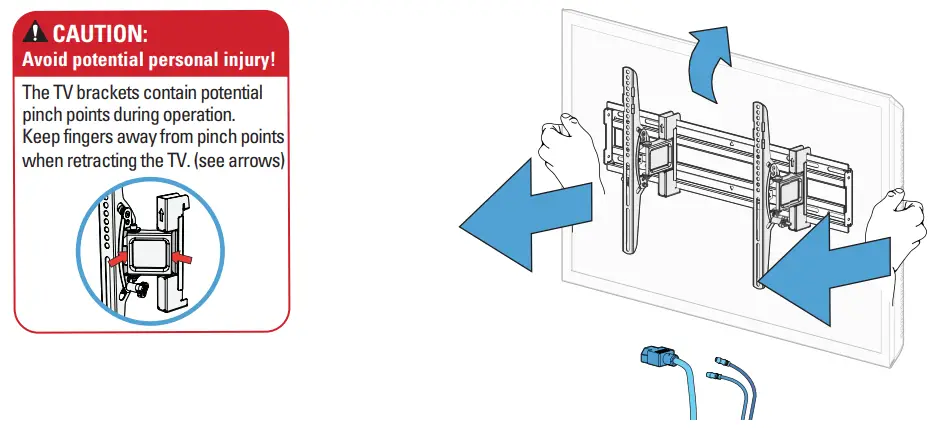

TV brackets 04 and 05 contain potential pinch points during operation. Keep fingers away from pinch points when retracting the TV. (arrows)
Extend the TV brackets 04 and 05 as shown
Align the ends of TV brackets 04 and 05 with your TV.
 | |

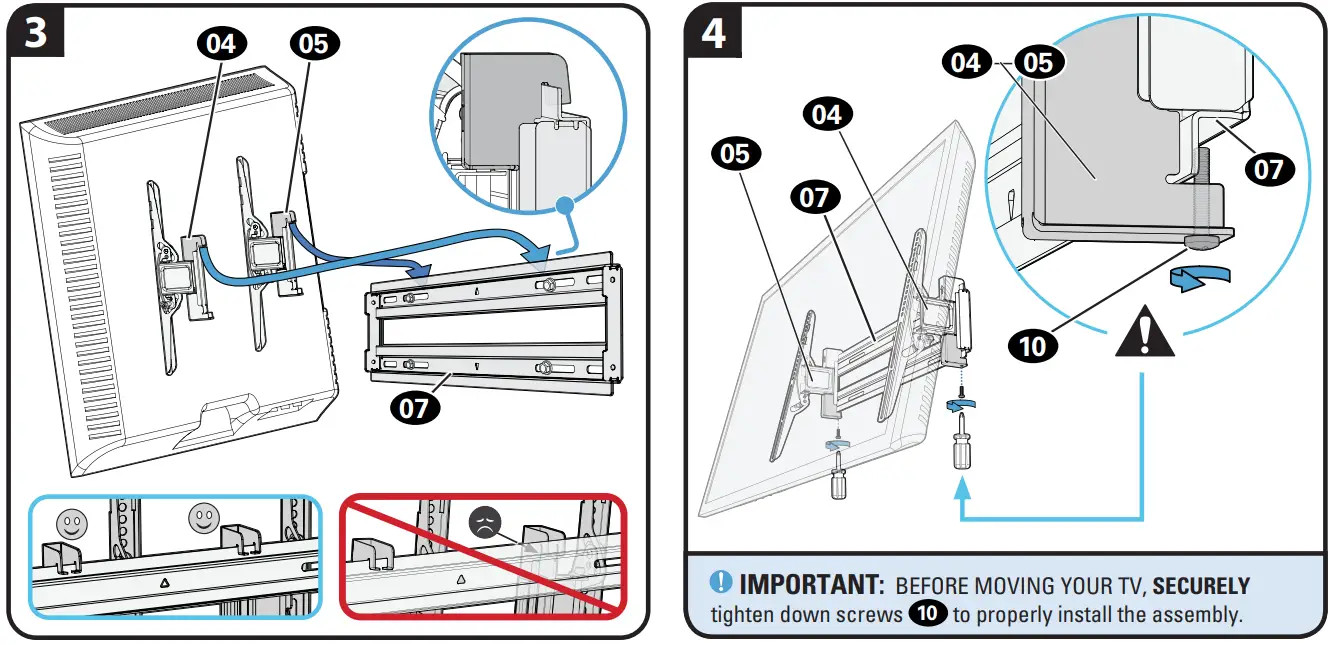

| Determine where on the wallplate you want to position your TV. Hang your TV by fitting the hooks of BOTH TV brackets 04 and 05 over the top edge of the wall plate 07. IMPORTANT: Ensure BOTH TV brackets are connected. | Rest the TV (brackets 04 and 05 ) against the wall plate 07. Install locking screws 10 to secure TV to wall plate 07. CAUTION: Avoid potential personal injuries or property damage! Screws 10 must be installed to secure arms to wall plate 07. Periodic tightening may be required. |

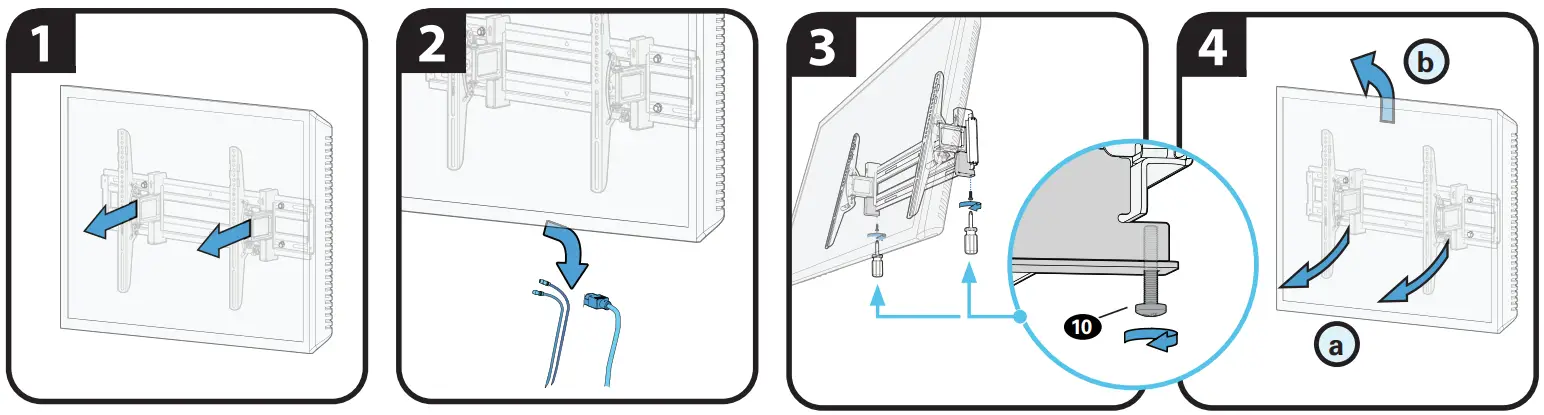

Manage Cables
Move your TV to various positions, as needed to attach your cables, then adjust the TV as desired.
TV Adjustments
EXTEND / RETRACT — ONLY IF NECESSARY
If your TV doesn’t extend or retract properly, remove your TV (See PAGE 11, then reinstall following STEP 3 on PAGE 9.
IMPORTANT: BEFORE MOVING YOUR TV, securely tighten down screws 10 shown on PAGE 9, STEP 3, to properly install the assembly.

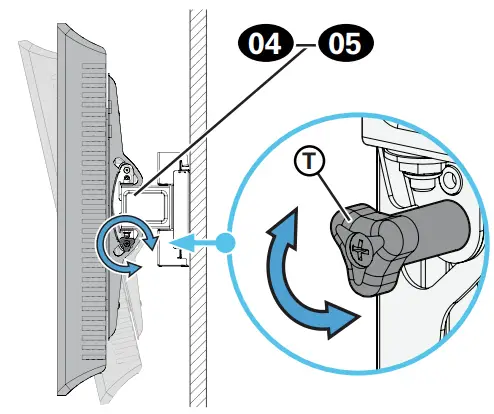

TILT ADJUSTMENT
Your TV should adjust easily when moved, then stay in place. If your TV is too loose or too tight, adjust side tension knobs T .
NOTE: Once your TV is in place, tighten the side tension knobs T to prevent unwanted movement.

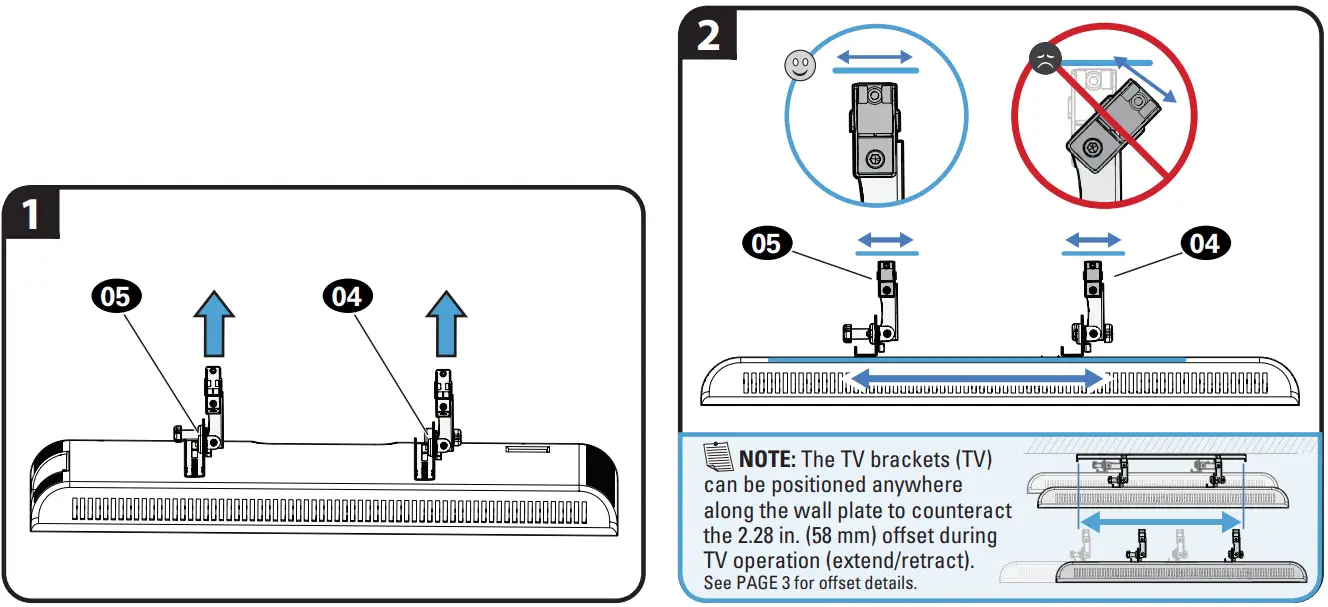

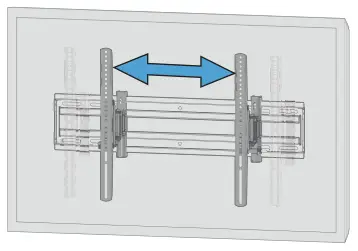

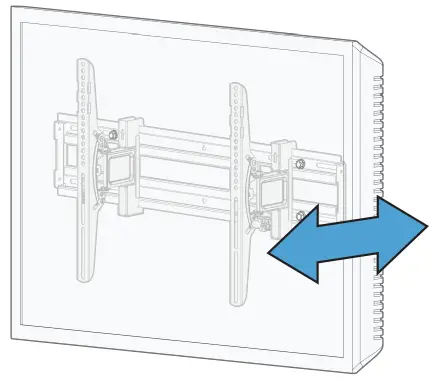

LATERAL SHIFT
- HEAVY! You may need assistance with this step.
Remove your TV BEFORE shifting side-to-side:
- Determine where on the wallplate you want to position your TV.
- Rehang your TV on the wallplate by following STEP 3 on PAGE 9.
REMOVING THE TV
HEAVY! You may need assistance with this step.
WE’RE HERE TO HELP
 |  |  |
| Want to watch a video that shows how easy this DIY project will be? | Get it right the first time. HeightFinder™ shows you where to drill. | Our US-based install experts are standing by to help. |
Watch it now at: SAN.US/3084
Check it out at: SANUS.com/2850
Call us at: 1-855-734-7805
Thank you for choosing SANUS! Please take a moment to let us know how we did:
Call us: 1-855-734-7805
Email us: [email protected]
Leave a review: SANUS.com
Legrand AV Inc. and its affiliated corporations and subsidiaries (collectively, “Legrand”), intend to make this manual accurate and complete. However, Legrand makes no claim that the information contained herein covers all details, conditions, or variations. Nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Legrand makes no representation of warranty, expressed or implied, regarding the information contained herein. Legrand assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.
©2022 Legrand AV Inc. All rights reserved. SANUS is a brand of Legrand.
All other brand names or marks are used for identification purposes and are trademarks of their respective owners.
Legrand AV Inc. • 6436 City West Parkway • Eden Prairie, MN 55344 USA
6901-602967 00
