Kyungwoo Smk-hxv-30 Chipkey Tag User Manual

Chipkey Tag
User’ Manual

Synopsis

This document is specifically-written manual for receiver and transmitter (Chipkey Tag) of wireless communication, which is to confirm user identifications under engine-start limiting function in heavy equipments.
Chip key Tag is defined as following: it receives signals with RFID 125 KHz and wakes up. After then, it transmits password-secured information to Chipkey/Flipkey Reader by using 433MHz wireless signals.

WARNNIG
Exchanging batteries in incorrect way, It may cause explosion
Discard used batteries according to manufacturer’s instructions

Product Image

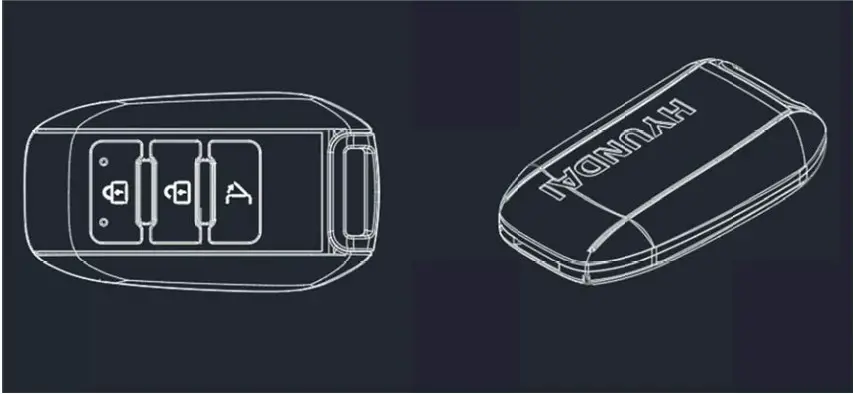

1. External Appearance

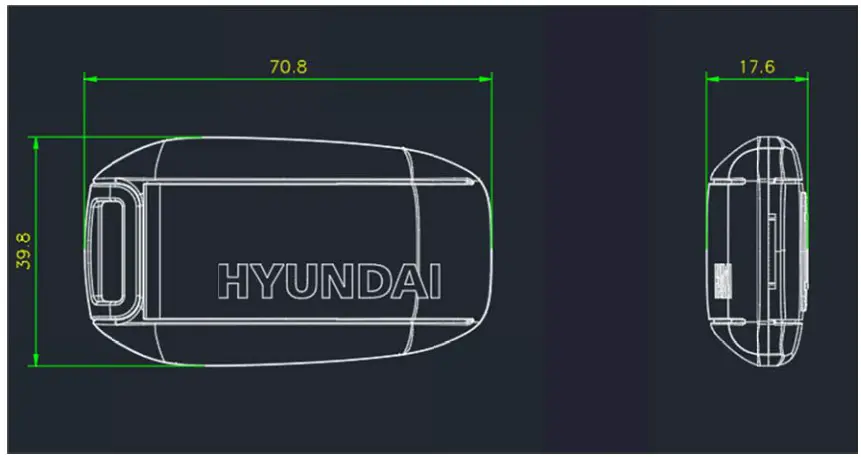

2. Dimension

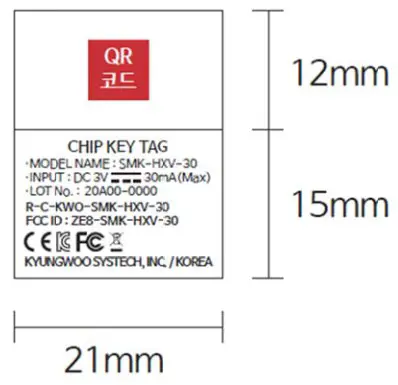

3. Certification LABEL location
   CAUTION
   Do not ingest battery, Chemical Burn Hazard

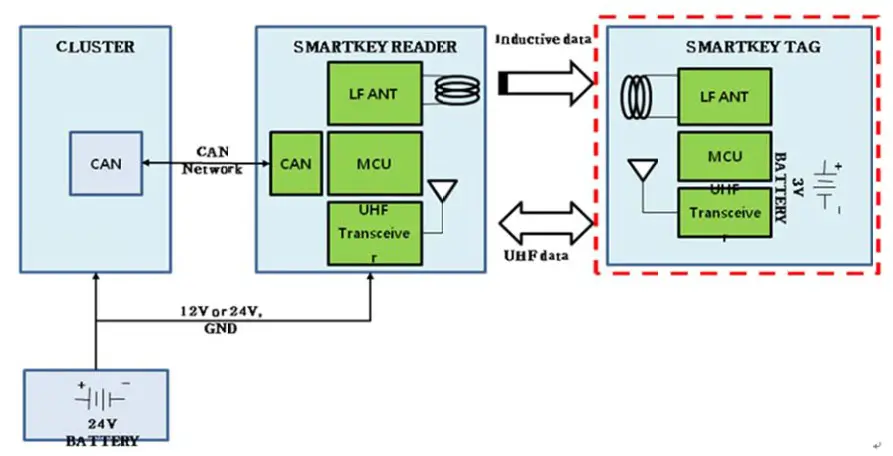

4. Block Diagram


Specification

1. Operating Specification
   • Must wake up the remote control by providing electricity with RFID 125 KHz.
   • Must be operating with CR2032 battery.
   • Must be able to transfer password-secured signals.
   • Must be able to use Single channels with band of 433MHz.
2. Power Specification
   • 3 V d.c. (CR 2032 Lithium Battery)
   • Notice: Inserting opposite polarity of battery may cause explosion or damage to product (Please match battery polarity with battery holder)
3. General Specification
   • Storage Temperature: -20 ~ 70
   • Operating Temperature: -10 ~ 60
   • Water-Proof Specification: IP54 (Living Water-Proof)
   • Material of Device : PC (Material: 3025N1, Flame Class : V0, Manufacturer : SAMYANG)
   • PCB Material :

object/part No	manufacture trademarker	Layer hickness	Flame Classs	UL No.	mark(s) of conformity 1 )
SMK TAG PCB G B/D	JM M ELECTRONIC LTD CS CO	2Layer /0.8T	V-0	E1117655

4 RF Specification

5. Product label Expla nation of graphic symbol used

Symbol	Description
	Korea Certification Marking
	Communaute Europeenne Marking
	Electrical waste and electronics equipment
	Federal Communication Commision Marking
	Direct current

Postal address:

Kyungwoo Systech, Inc. Office: +82-2-985-8085
#401, Daeryung Post Tower 5, 68, Digital-ro 9, Geumcheon-gu, Seoul, South Korea
E-mail: [email protected]
This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
Keep new and used batteries away from children.
If the battery compartment does not close securely, stop using the product and keep it away from children.
If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

FCC Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

RED Compliance Statement
This product is CE marked according to the provision of the RED (2014/53/EU). Hereby Kyungwoo Systech, Inc. declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU

www.kyungwoo.com
Copyright © 2014 Kyungwoo Systech Inc.
