User Manual
Body Fat Analyzer
0384

• Thank you very much for selecting the Greater Goods’ Body Fat Analyzer 0384.
• Please do read the user manual carefully and thoroughly so as to ensure the safe usage of this product, and keep the manual well for further reference in case you have problems

Safety Information

Safety and Usage Information
The warning signs and symbols are essential to ensure your correct and safe use of this product and protect you and others from injury. Please kindly find the meanings of the  warning signs and symbols, which you may encounter in the label and user manual, as follows

	The symbol for “THE OPERATION GUIDE MUST BE READ”		The symbol for “MANUFACTURER
	The symbol for “DIRECT CURRENT
	The symbol for “TYPE BF APPLIED PARTS		The symbol for “ENVIRONMENT PROTECTION – Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice
	The symbol for “SERIAL NUMBER
	The symbol for “MANUFACTURE DATE

CAUTION
The Body Fat Analyzer 0384 offers you a seamless way to manage your health. Please be aware that this device is designed for adults’ self-measuring and self-monitoring body fat levels.
Any information provided by this device is in no way meant to treat, cure or prevent any disease or illness from happening. This device should not be used by anyone who is acutely or chronically ill, suffering from a disease, or taking medications that affect their water levels. The accuracy of readings for these patients has not been verified. Specific medical advice should be obtained from a physician.
Before diet and exercise, you must first find professional medical guidance.
The body fat analyzer is equipped with a data transmission function. It may emit electromagnetic energy so as to perform its intended function. Nearby portable and mobile RF  communications equipment can affect the performance of the device .
Portable and mobile RF communications equipment can affect the measuring accuracy of the body fat analyzer.
Kindly note that the use of accessories, transducers, or cables other than those specified, with the exception of transducers and cables sold by the manufacturer as replacement parts for internal components, may result in increased EMISSIONS or decreased IMMUNITY of the device.
Be aware that misuse of electrical equipment can cause electric shock, burns, fire, and other hazards.
Warning that the body fat analyzer should not be used adjacent to or stacked with other equipment.
The manufacturer will make available on request circuit diagrams, component parts list, etc.
WARNING: No modifications of this equipment is allowed.
During using the analyzer, the patient will contact the surface and the electrode of the Please do not use the device in a flammable gas environment.
Analyzer. The surface and the electrode of the analyzer is type BF Applied part.
The device doesn’t need to be calibrated in five years’ lifetime.
Do not touch the output of batteries when using the analyzer.
The patient is an intended operator. The patient can perform all the operations in the manual, such as measurement, data transmitting, changing batteries

INDICATIONS FOR USE

• The Greater Goods’ Body Fat Analyzer measures weight and estimates BMI, and uses bio-electrical impedance analysis (BIA) technology to estimate body fat, body water percentage, and muscle mass is generally for healthy children 10-17 years old and healthy adults.
• It is intended for use in the domestic setting only

CONTRAINDICATIONS

1. This device is contraindicated for any female subject who may be suspected of or is pregnant. Besides providing inaccurate readings, the effects of this device on the fetus are unknown.
2. This device is contraindicated for any person who is connected to a wearable or implantable electronic device or instrument such as a pacemaker or defibrillator

Your Scale and Its Environment
To ensure your safety as well as the service life of your scale, please avoid using the scale under the following circumstances:

• Slippery floors such as tile floor
• Jumping onto the platform immediately after a bath or with wet feet
• Near a cell phone or microwave oven

Avoid storage in the following locations:

• Where there is water
• Where the device may be exposed to extreme temperatures, humidity, moisture, and direct sunlight, dust, or salt air
• Where there is a risk of shock or drop
• Where you store chemicals or full of corrosive gases
• Where in reach of the infants or children

Efficient Use of Your Scale
To ensure the accuracy of measurement, please follow the below instructions when you start measurement.

• Place the scale on a flat, hard surface. Soft surfaces such as carpets will affect the performance of the scale.
• Step onto the platform with bare feet. Stand still and keep full contact with the scale until the measurement is complete.
• Start measurement at least two hours after Getting up or Dinning.
• Avoid measurement immediately after strenuous exercise, sauna or bath, drinking, and dining.
• Always start measurement in the same time slot and on the same scale located on the same flat, hard surface

Overview

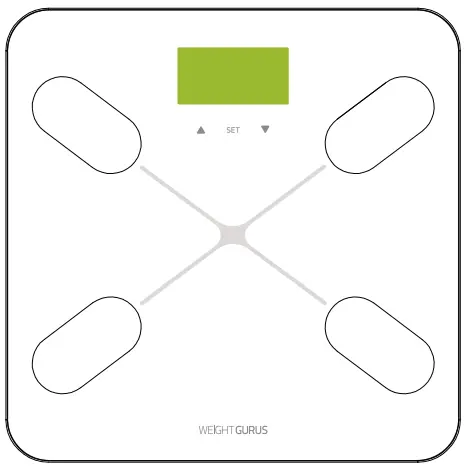

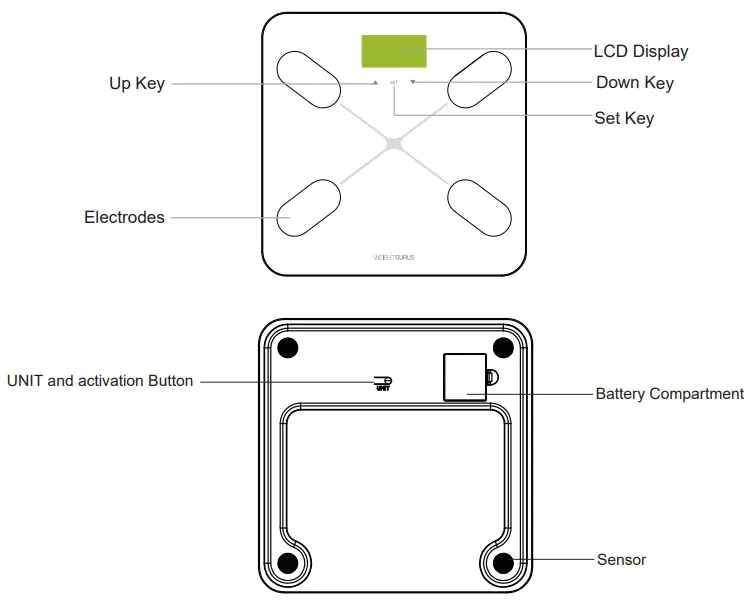

Device Component

List

1. Body Fat Analyzer 0384
2. Four AAA-size Batteries (1.5V per each)
3. User Manual

LCD Display

	Kilogram		Pound
	Successful Wi-Fi Connection		Data transmitting/pending to transmit to wireless wellness
	Setting Mod		Low Batter

Initial Start-Up

General Instructions
Greater Goods’ Body Fat Analyzer 0384 applies BIA (Bio-impedance Analysis) technology. A small amount of weak current flows through the human body so as to detect the bio-impedance and estimate BMI, body fat, body water, and muscle mass. The electrical current is small and may not be felt.
This BIA technology is cheap, safe, non-invasive, toxic-free, and harmless. It also possesses the characteristics of simple operation and abundant information.
The current mentioned above is less than 0.5mA. However, please be aware that anyone with a wearable or implantable medical electronic instrument, such as a pacemaker,  must avoid using this device.
The intended use of this device is for healthy children 10-17 years old and healthy adults

Insert the Batteries
Open the battery door at the back of the scale.

• Insert the batteries (4 x 1.5V AAA) into the battery compartment according to the polarity indications marked inside the compartment.
  * The digits “ 8888 ” will be shown on the LCD.
• Close the battery door and wait until the digits are shown on the LCD.

CAUTION

• When the symbol and “ Lo” appear, the device will power off. Then you shall replace it with a new set of batteries. Please replace all four batteries at the same time. Do NOT mix the old batteries with the new ones.
• Worn batteries are hazardous waste. Do NOT dispose of them together with the household garbage.
• Please refer to the local ordinances and recycling instructions regarding the disposal of worn batteries and scrapped devices.
• If you do not intend to use this unit for a prolonged period of time, it is advisable to remove the batteries before storing them.

Configure the Wi-Fi Password

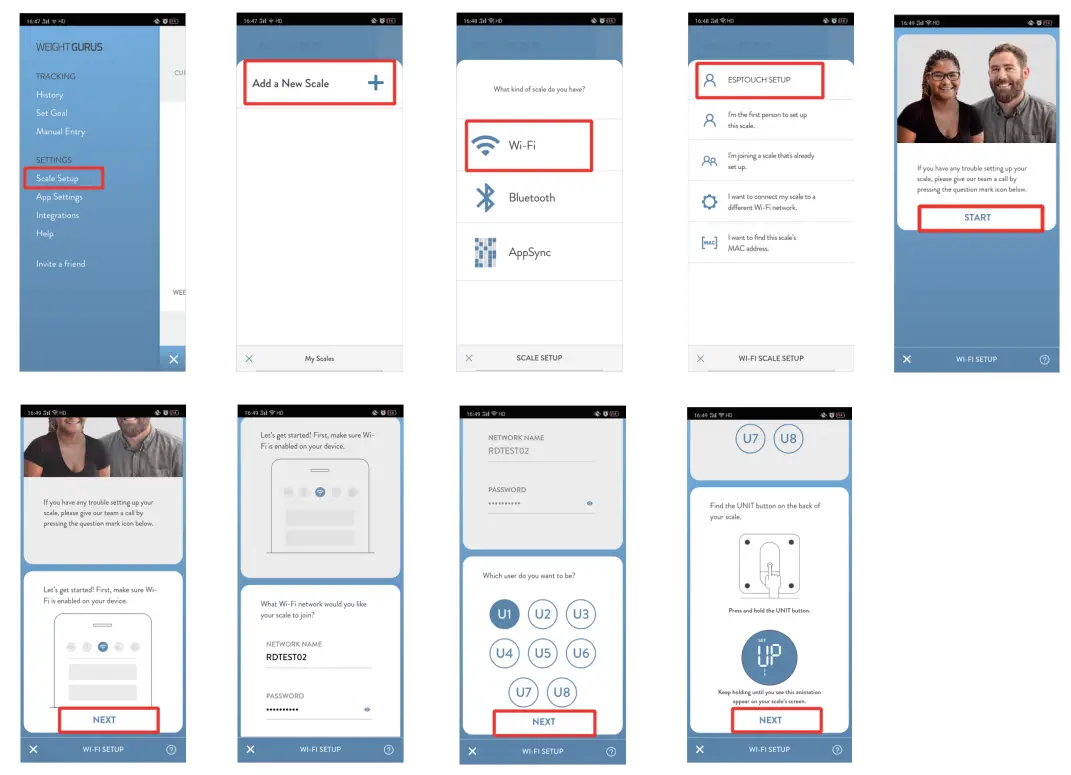

1. Install the APP “Weight Gurus”. This APP could be freely downloaded at the APP Store, you may search and install it on your smartphone.
2. Turn on Wi-Fi and the APP. Make sure both are ON when the pair-up is proceeding.

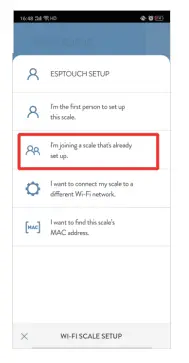

3. Then register an account, and follow these steps:
   Note: Take the latest version of the APP as the criterion

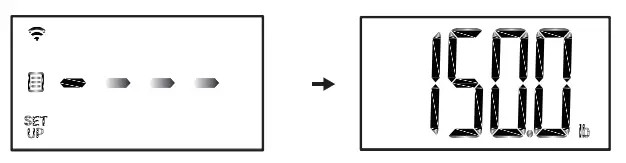

4. Press and hold the “UNIT” button on the back of the scale to start pair-up. Symbol “SETUP 1” will be blinked on the LCD, indicating pair-up is proceeding.

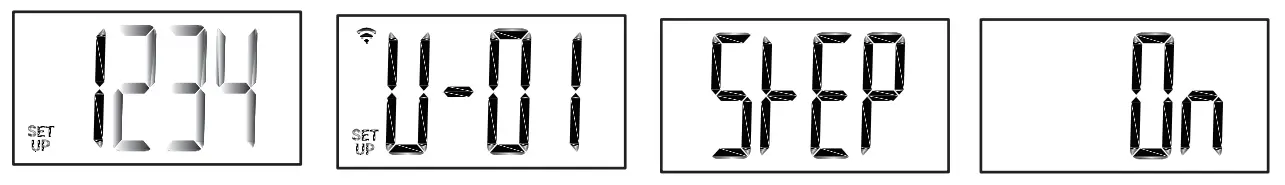

5. Wait for the scale counts “SETUP 1” to “SETUP 1234”, then display the user ID, and finally display “STEP ON”. At this time, it indicates that the scale has been successfully distributed. Then you can start measuring.

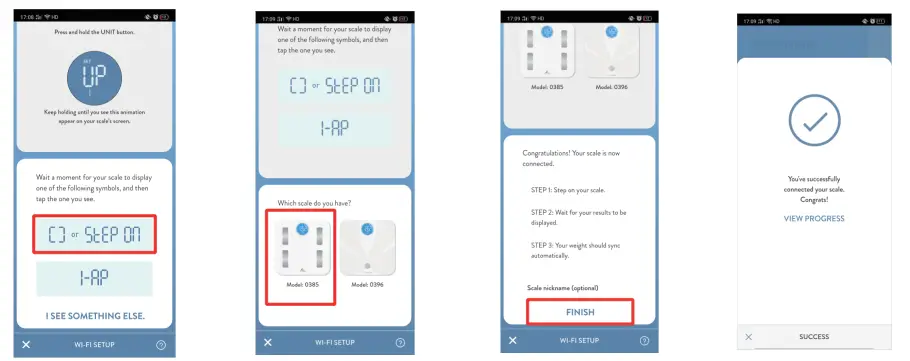

6. And follow these steps on APP to complete the matching.


Select Measurement Unit

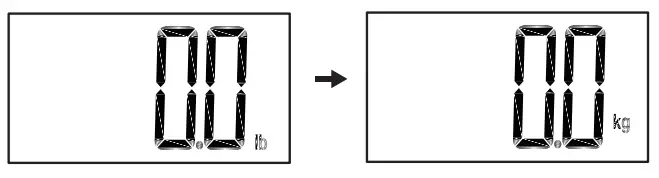

With batteries correctly installed, press the “UNIT” button on the back of the scale to select the measurement unit. The default measurement unit is “lb”. You may press the  “UNIT” button to choose between pound and kilogram.
Initializing Your Scale

1. Press the platform center and remove your foot.

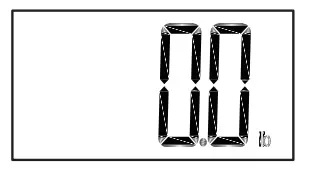

2.  “0.0” will be displayed.
3. The scale will switch off and is now ready for use.
   This initialisation process must be repeated if the scale is moved.
   At all other times step straight on the scale.

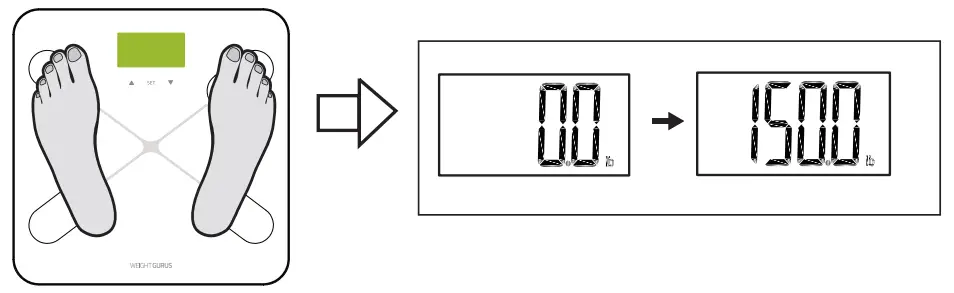

Weight Only Operation
Greater Goods’ Body Fat Analyzer will operate as a conventional weight-reading scale. No special programming steps are required.
Once the scale is initialized, as previously described, you may simply step on the scale to measure your current weight. For only weight reading.

1. Position the scale on a flat, hard surface. Carpeted or uneven floors may affect accuracy.
2. Step onto the scale platform and remain still while the scale computes your weight.
3. The scale will display your weight value.
4. The scale will automatically turn off after a few seconds.
   Note: The weight value won’t be saved on the scale, and won’t be transmitted to the APP.

Start Measuring

First Measurement
Please process the user setting before your first measurement. (Refer to Configure the Wi-Fi Password for more details)

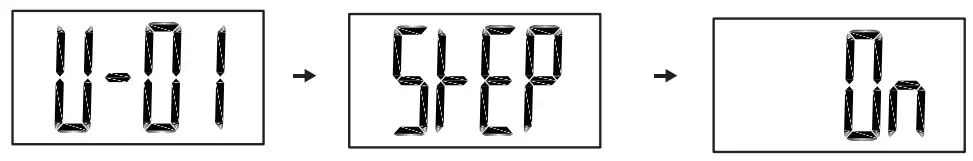

STEP 1: Turn on the scale and press the function key▲ or▼ select the User ID configured with Wi-Fi, and press the SET key to confirm. Then the scale displays “step on”,  indicating that weighing can be started.

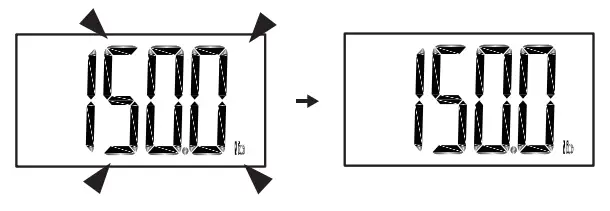

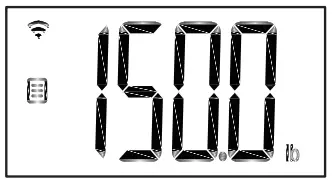

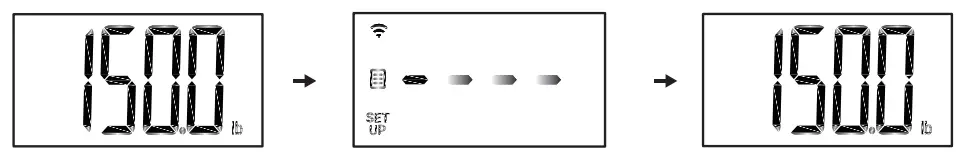

STEP 2: The weight data stops blinking when the weight is locked. The symbol appears means your weight is being transferred to the APP. And the symbol disappears when data transmission is completed.

* When there is no other operation, the scale will show weight data again and turn down.

Daily Measurement
With original SENSE ON patent technology, 0384 will switch on as you step on the platform barefooted.
Stand still and keep full contact with the scale until the digits stop blinking.

A symbol that appears means your weight is being transferred to the APP. And the symbol disappears when data transmission is completed.

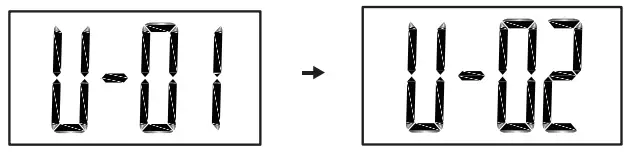

If it identifies two or more users, for example, U01 and U02, the LCD will display these users, you may press the function key▲ or▼ to choose the User ID. The measuring results will then be sorted into the User ID you selected. If you don’t choose the user, it will display the weight again and turn off.

If it fails to identify the possible User ID, the LCD will only display the weight data and then shut down.
(To find out the solutions, please refer to Troubleshooting for more details.)

Manage Your Health

Data Transmission

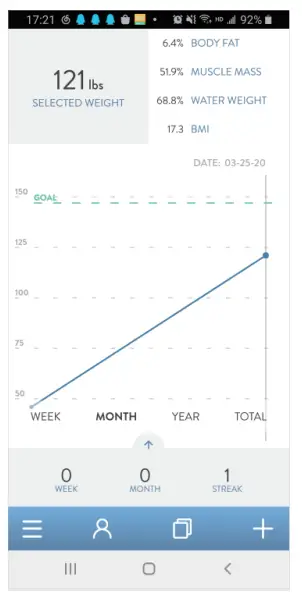

• With 0384 successfully pair up with your smartphone, the measurement data will be transmitted to your mobile via Wi-Fi.
• ONLY when the measuring results are attached to a   specific User ID will it be transmitted to your mobile after measurement.
• The symbol will disappear after successful data transmission, and you may check your personal health data stored on your smartphone.
• If the data transmission fails, the symbol will remain. The pending measurement data will be temporarily kept in the scale and transmitted to your smartphone when the next measurement is complete.

	Successful Wi-Fi Connection
	Data transmitting to wireless wellness system: -If SUCCEED, the symbol disappears; -If FAIL, the symbol remains.

Troubleshooting

Error Prompt

Error	Description	Solution
	Overload. The device will power off.	Stop using this scale for measurement.
	Low Battery. The device will power off.	Replace all four batteries at the same time. Please purchase the authorized batteries for replacement.
	There have data that doesn’t upload. (In the notebook the icon will be displayed.)	Check the Wi-Fi connection.

When Measuring …

When Data Transmitting …

Specifications

About the Accuracy of This Product
This product passes strict inspection before delivery and therefore its accuracy is guaranteed by the manufacturer.
Please refer to the above table for the descriptions of accuracy.
This product is specially designed for body fat analysis as well as weight measurement. It should NOT be used by anyone during the process of transaction for verification of goods’ weight.

Maintenance

Maintenance
When carrying out usual maintenance, please ensure the practice of the following Dos and Don’ts:

• DO use a dry soft cloth to wipe the dust.
• DO use a wet soft cloth, dipped into water and wrung out, to wipe the dirt. Then use a dry soft cloth to dry up the device.
• DON’T wash the device with water or immerse it in water.
• DON’T use a propellant, abrasive, or other chemicals to wipe the dirt in avoidance of discolor or malfunction.
• DON’T disassemble this device. If you have any problems, please contact Greater Goods. (Please refer to Warranty for contact information)

Warranty

• Greater Goods warrants its products free of defects in materials and workmanship in normal use for a period of FIVE years from the date of retail purchase.
• This warranty does NOT cover damages caused by misuse or abuse, including but not limited to:
  Failure caused by unauthorized repairs or modifications;
  Damage caused by shock or drop during transportation;
  Failure caused by improper operation inconsistent with the instructions stated in this user manual;
  Malfunction or damage from failure to provide the recommended maintenance;
  Damage caused by improper use of power supply.
• Should this device require maintenance (or replacement at our option) under warranty, please deliver the original package to Greater Goods, LLC prepaid. Please return the store receipt (with the retail purchase date) and a note with reasons to return it as well.

Distributed by: Greater Goods, LLC
4427 Chouteau Ave.St.Louis, Missouri,63110, United States
TEL:866-991-8494
Website: http://greatergoods.com

Appendix

FCC Regulations
FCC User Guide Information
Radio Frequency Interface Requirements – FCC
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur n a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna;
• Increase the separation between the equipment and receiver;
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected;
• Consult the dealer or an experienced radio / TV technician for help.

Radio Transmitters (Part 15)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

FCC RF Exposure Guidelines
Safety Information
Reducing RF Exposure – Use Properly
Only operate the device in accordance with the instructions supplied.
This device complies with FCC radiation exposure limits set forth for an uncontrolled environment.

Health Tips – About Body Fat
The human body is made up of, amongst other things, a percentage of fat. Body fat is vital for a healthy, functioning body, protects vital organs, helps regulate body temperature,  stores vitamins, and helps the body sustain itself when food is scarce. However, too much body fat or indeed too little body fat will damage your health. It is difficult to gauge how much body fat we have in our bodies simply by looking at ourselves in the mirror. This is why it is important to measure and monitor your body fat percentage. Body fat the percentage gives you a better measure of fitness than weight alone–the composition of your weight loss could mean you are losing muscle mass rather than fat-you could still have a high percentage of fat even when a scale indicates‘normal weight’.
The table as follows may be used as a guide:
Table of Body Fat Level (Unit: %)
a) The body fat percentage (%): 5%-60%/0.1%

Standard for Men  Standard for Wome

Source: University of Illinois Department of Food Science and Human Nutrition.
Body Fat Percentage Calculator.

Health Tips – About Body Water
Body water is the single most important component of body weight. It represents over half of your total weight and almost two-thirds of your lean body mass (predominantly muscle). Water performs a number of important roles in the body:
All the cells in the body, whether in the skin, glands, muscles, brain, or anywhere else, can only function properly if they have enough water. Water also plays a vital part in regulating the body’s temperature balance, particularly through perspiration.
The combination of your weight and fat measurement could appear to be ‘normal’ but your body hydration level could be insufficient for healthy living.
The table as follows may be used as a guide:
Table of Body Water Level (Unit: %)
b) The body water percentage (%): 43%-73%/0.1%
Source: Derived from Wang & Deurenberg: “Hydration of fat-free body mass”. American Journal Clin Nutr 1999,69833-841.

Health Tips – About BMI
Maintaining proper weight is essential to healthy living. Obesity has been linked to a higher risk of heart disease, diabetes, and some forms of cancer. The Body Mass Index (BMI) is the most widely accepted measurement of weight according to health professionals. The Analyzer will calculate your BMI on your height and weight. The table as follows may be used as a guide:

Body Mass Index

Health Tips – About Muscle Mass
According to the American College of Sports Medicine (ACSM), lean muscle mass may decrease by nearly 50 percent between the age of 20 and 90. If you do nothing with it you’re losing muscle and increasing fat. It is also important to know your muscle mass % during weight reduction. At rest, the body burns approximately 110 additional calories for each kilo of muscle gained. Benefits of gaining muscle mass include:

• Reversing the decline in strength, bone density, and muscle mass with aging
• Maintenance of flexible joints
• Guide weight reduction when combined with a healthy diet.
  The table as follows may be used as a guide:
  Muscle Mass Percentage (Source: International Commission on Radiological Protection,1975)

Warning
The ME EQUIPMENT or ME SYSTEM is suitable for home healthcare environments.
Warning： Don’t near active HF surgical equipment and the RF shielded room of an ME
system for magnetic resonance imaging, where the intensity of EM disturbances is high.
Warning： Use of this equipment adjacent to or stacked with other equipment should be avoided because it could result in improper operation. If such use is necessary, this equipment and the other equipment should be observed to verify that they are operating normally.
Warning: Use of accessories, transducers, and cables other than those specified or provided by the manufacturer of this equipment could result in increased electromagnetic  emissions or decreased electromagnetic immunity of this equipment and result in improper operation.”
Warning： Portable RF communications equipment (including peripherals such as antenna cables and external antennas) should be used no closer than 30 cm (12 inches) to  NY  part of the equipment 0384, including cables specified by the manufacturer. Otherwise, degradation of the performance of this equipment could result.

EMC Guidance
Guidance and manufacturer’s declaration -electromagnetic emissions and Immunity
Table 1

Table 2

Table 3
