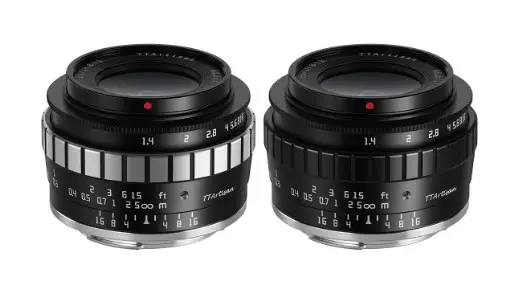

TTArtisan 23mm F1.4 Lens User Manual
lens specification
Focal length: 23mm
Maximum aperture: F1.4
Minimum aperture: F16
Frame: APS-C
Focus method: manual
Lens mount: E\EOS-M\X\Z\M43\L
Filter size: 43mm
Closest focusing distance: 0.2m
Angle of view: 62°
Diaphragm Blades: ,opes

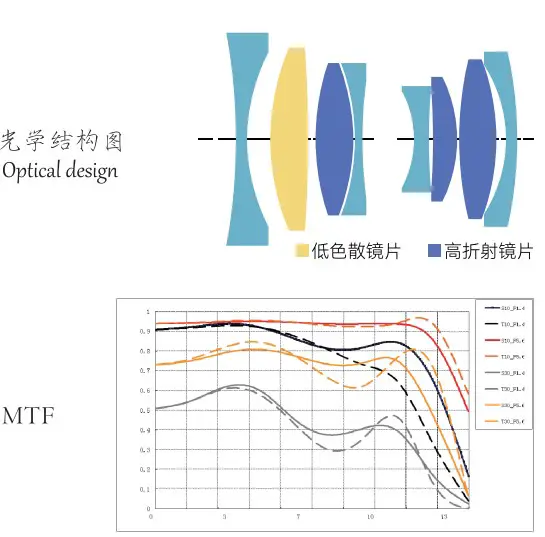

Optical Design: 8Elements in 6 Groups
Weight: around 222-224g

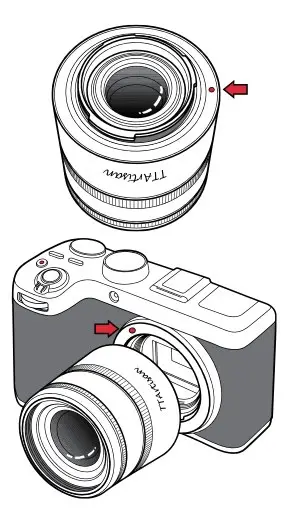

Install the lens
Align the dots on the lens mount with the dots on the camera, and then tum the lens clockw~e. When you hear a “click’ sound, it
means that the lens ~ ln place (do not press the lens release button on the camera when lnstaUlng the lens).
Uninstall the lens
Press the release button, and then tum the lens countercloc~ to remove ll

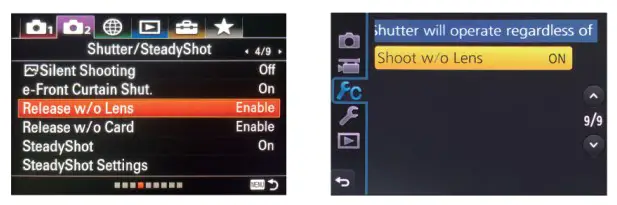

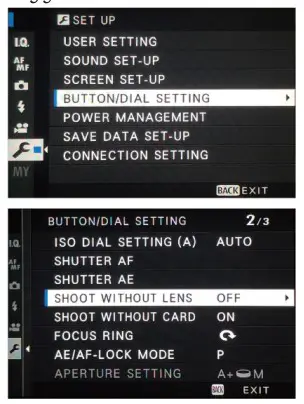

Camera settings
Camera settings

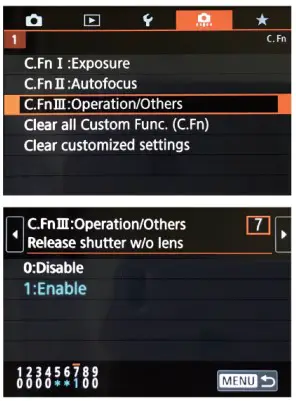

Canon
