Dogtra Iq Series Rechargeable Waterproof 400-yard Remote Dog Training E-collar User Guide

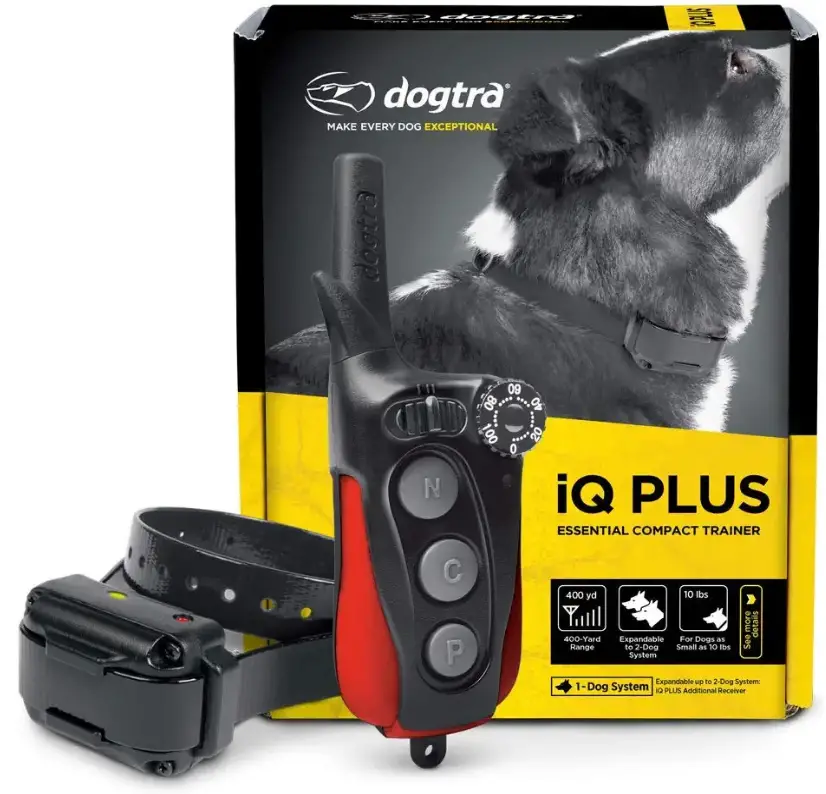

Dogtra IQ Series Rechargeable Waterproof 400-Yard Remote Dog Training E-Collar

INTRODUCTION

With its modest size, this receiver is ideal for small dogs. It is ideal for obedience or outdoor training and is made for dogs weighing 10 pounds or more. Your tiny friend will be snugly and comfortably enclosed. Finding the ideal correction level for your pet won’t be difficult with 100 correction levels available. The front-facing Rheostat Dial can be used to change the levels with one hand. The “no look” control design makes it simpler than ever to find the settings while operating a vehicle. You won’t have any trouble selecting the ideal level for your pet among the 100 levels of Nick corrections (fast 1.2 seconds) and Constant corrections (up to 12 seconds). The front-facing Rheostat Dial can be used to change the levels with one hand.

A selector switch included with the transmitter makes it extendable to two dogs. This enables you to get the most out of a training session by maximizing obedience instruction with up to two dogs. The iQ PLUS was developed in South Korea with high-quality standards that set the benchmark for the sector. Your training adventure is enhanced with durable products thanks to our industry-leading tools and committed customer service team situated in the United States, ensuring the greatest possible client experience.

SPECIFICATION

• BRAND: Dogtra
• CORRECTION LEVELS: 100
• RANGE: 400-Yard
• INTENDED FOR: Basic obedience and behavior management training
• EXPANDABLE SYSTEM: Expandable up to 2 dogs
• OUTPUT LEVEL: Medium
• WATERPROOF RESISTANCE LEVEL: Waterproof receiver and water-resistant transmitter
• DOG SIZE: For dogs 10 pounds and up
• PRODUCT DIMENSIONS: 2.4 x 1.5 x 1.2 inches; 2.2 Ounces
• ITEM MODEL NUMBER: iQ PLUS
• BATTERIES: 2 Lithium Polymer batteries

AT A GLANCE

INCLUDED IN PACKAGE

OPTIONAL ACCESSORIES

Field Auto Charger: designed for use with a 5-volt cigarette lighter in your car. European Charger: designed for use with 230V AC electrical outlets in Europe. To purchase optional accessories, please visit www.iqpet.com or call our customer service at 1-888-811-9111.

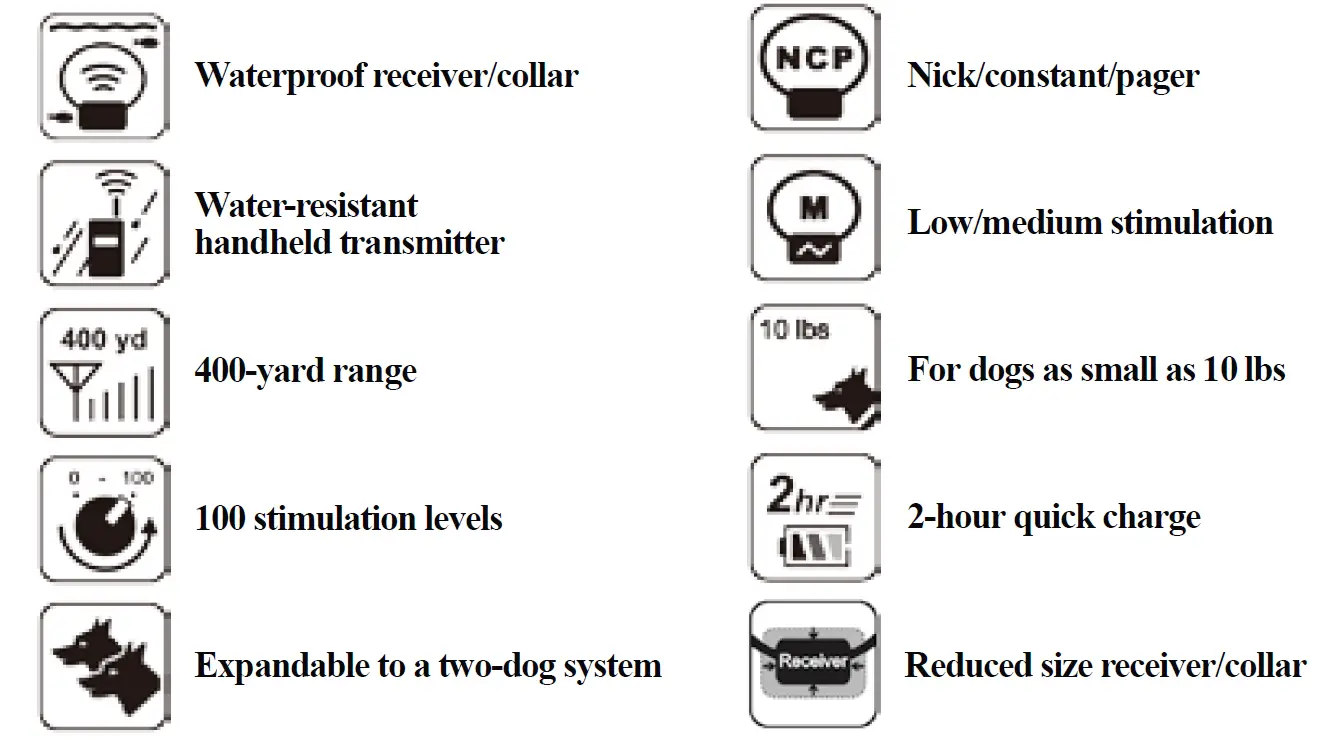

MAIN FEATURES OF THE IQ PLUS

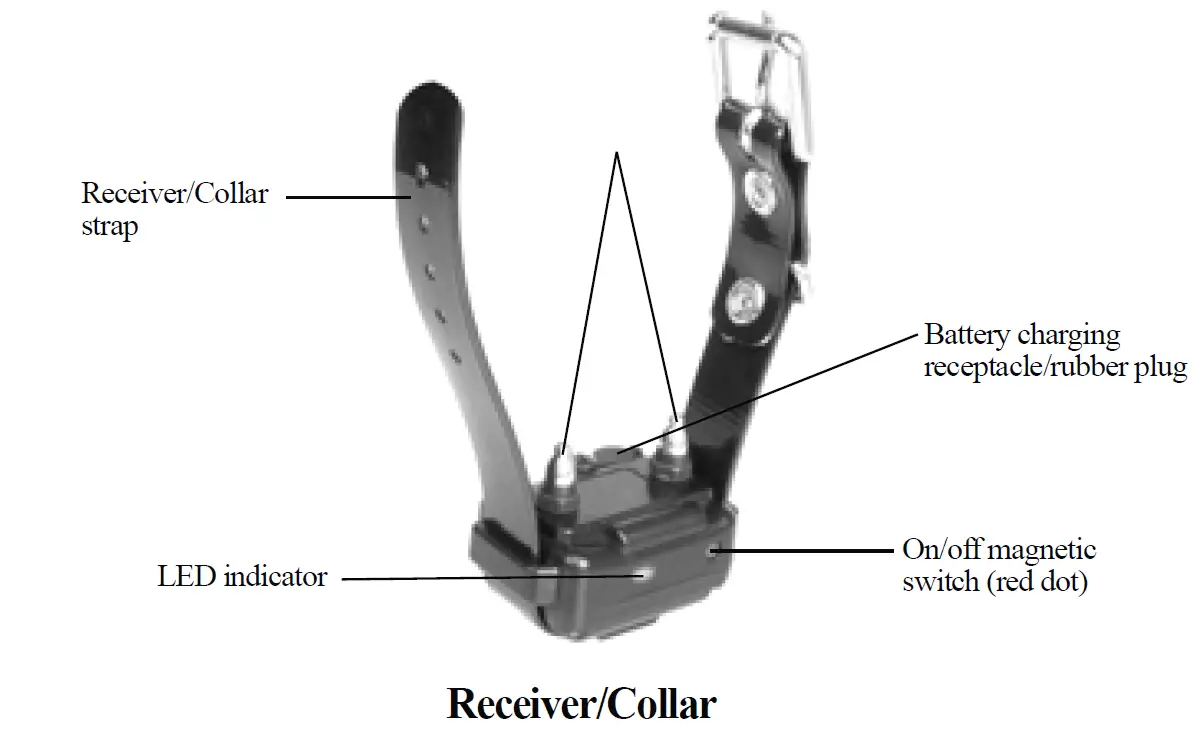

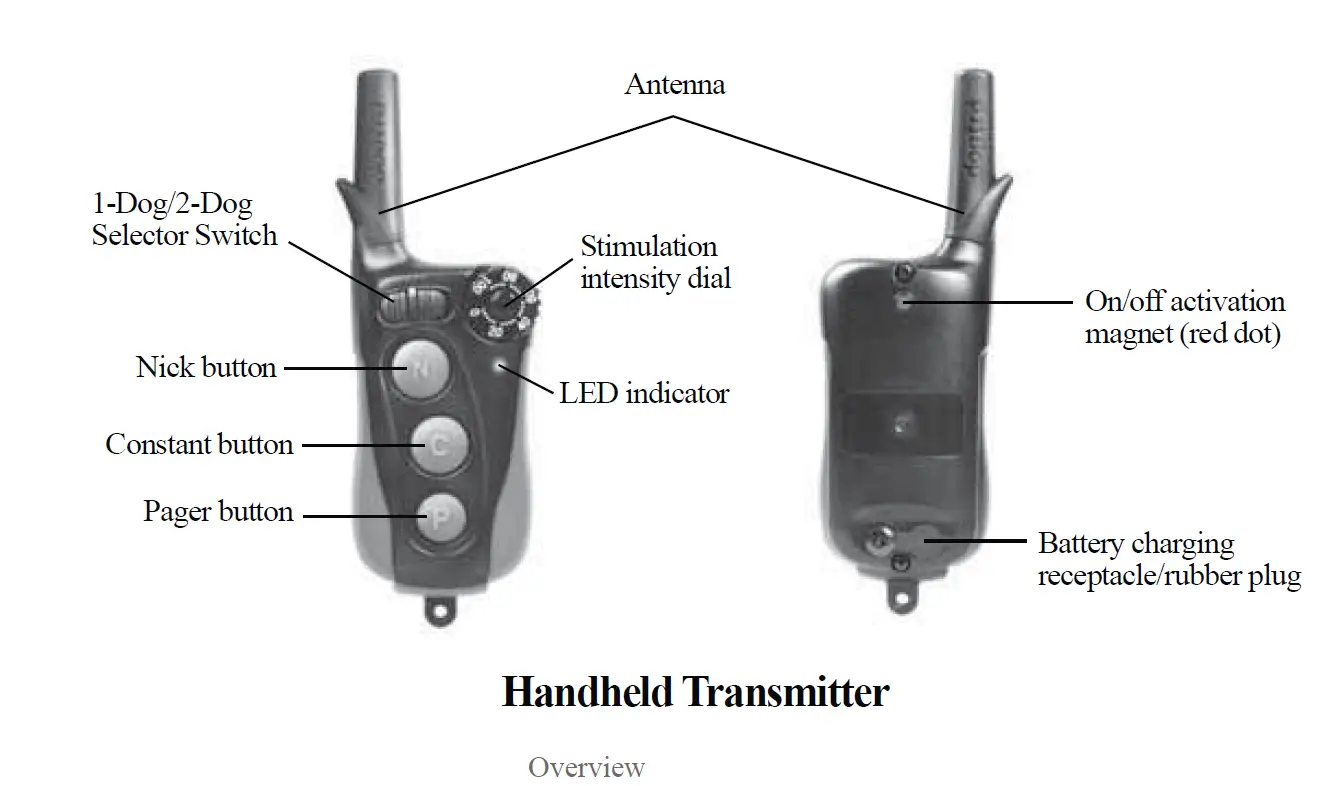

OVERVIEW

UNDERSTANDING YOUR TRAINING SYSTEM

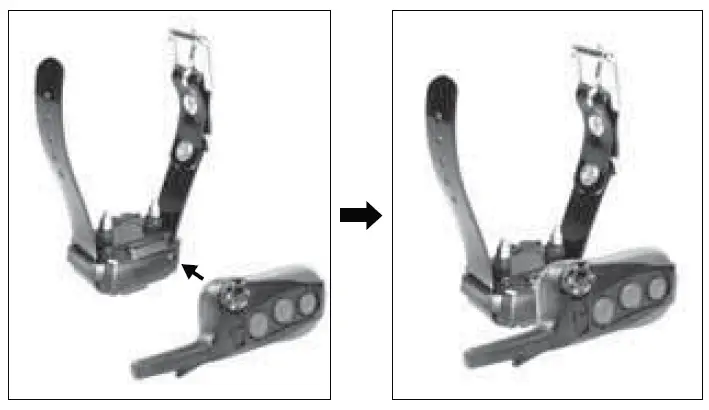

HOW TO TURN ON/OFF THE UNIT

To activate the receiver/collar, place the red dot on the back of the handheld transmitter to the red dot on the receiver/ collar. Hold the two red dots together for a moment until the LED light on the receiver/collar comes on. To deactivate the unit, repeat the same procedure holding the two red dots together momentarily. The LED light will turn red for a brief moment indicating that the receiver/collar is now shut off. The handheld transmitter does not have an on/off switch, and it will only activate when buttons are pressed.

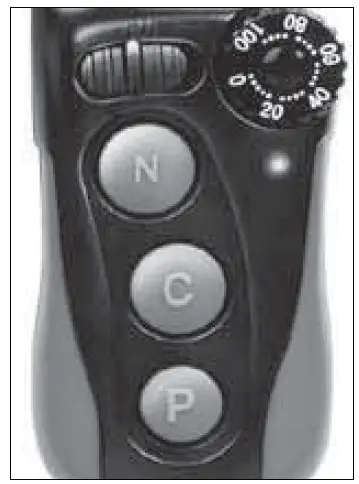

HOW THE BUTTONS WORK

There are three buttons in front of the handheld transmitter.

N – NICK BUTTON
Nick is a single rapid pulse of electrical stimulation.

C – CONSTANT BUTTON
Constant gives constant stimulation as long as the button is pushed, for up to 12 seconds. The unit has an automatic shut off should the button be depressed for more than 12 seconds.

P – PAGER BUTTON
Pager is a non-stimulating vibration.

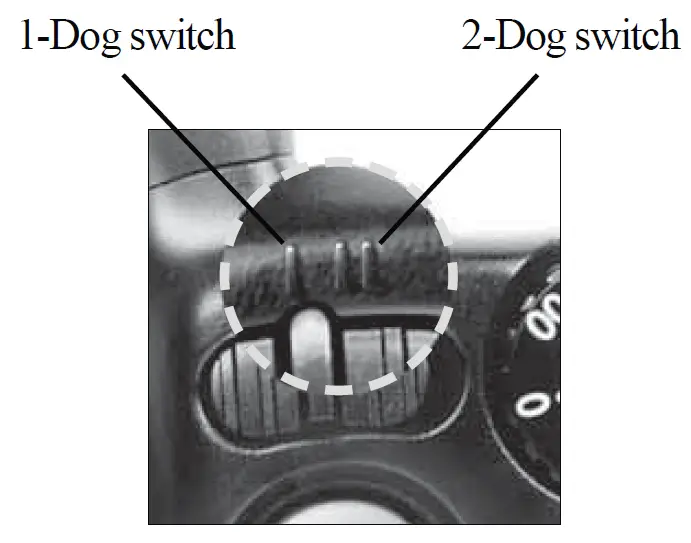

1-DOG/2-DOG SELECTOR SWITCH

1. The 1-Dog/2-Dog switch is to the left of the Rheostat Intensity Dial.
   1-Dog
2. Slide the switch to the left underneath “I”, and press any of the buttons to operate the 1st Receiver/Collar.
   2-Dog

Slide the switch to the right underneath “II”, and press any of the buttons to operate the 2nd Receiver/Collar.

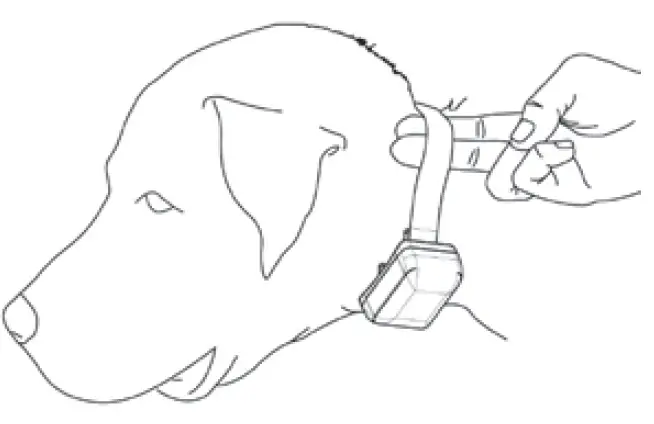

HOW TO FIT THE RECEIVER/COLLAR ON THE DOG

The receiver/collar should be fitted so that the surgical stainless steel contact points press firmly against the dog’s skin. When properly fitted, you should be able to fit a finger or two snugly in between the contact points and your dog’s skin. When properly fitted, the receiver/collar should not move on the dog. The best location for the receiver/collar box is either side of the dog’s windpipe.

A loose fit can allow the receiver/collar to move around on the dog’s neck. When this happens, the contact points may rub the skin and cause irritation. If the receiver/collar is too tight, the dogs may have difficulty breathing.

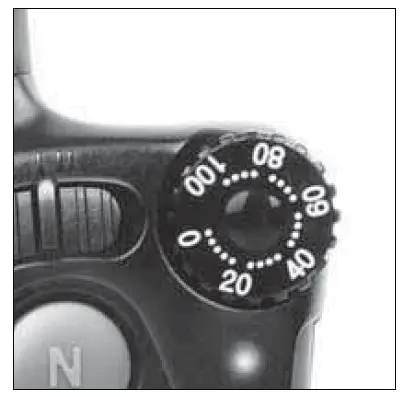

FINDING THE RIGHT STIMULATION LEVEL FOR MY DOG

Stimulation level is controlled by the stimulation intensity dial: (0) being the lowest level and (100) being the highest level. Setting adjustment depends on your dog’s temperament and threshold for stimulation. Always start at the lowest level and work your way up. An appropriate level is when the dog responds to the stimulation with a mild negative reaction such as jerking/ tensing of the neck muscles. When the dog’s attitude changes, especially during times of increased excitement or distraction, you may need to adjust the intensity level upwards.

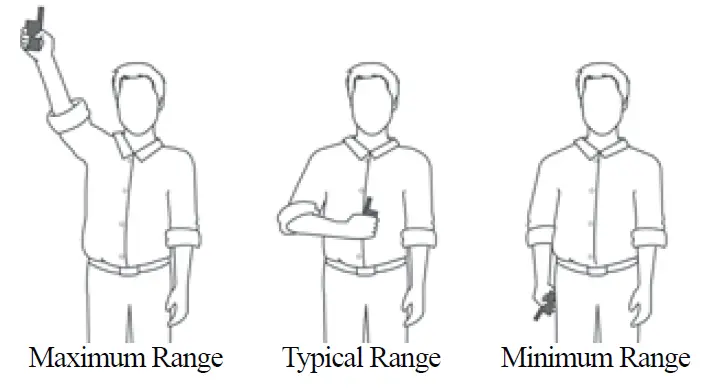

TO MAXIMIZE THE DISTANCE

The iQ Plus has a 400-yard range. Depending on the way you hold your handheld transmitter, the range may vary. Hold the handheld transmitter away from your body to get the greatest range.For maximum signal strength, keep your unit properly charged.

* Avoid touching the antenna as the range may substantially decrease.

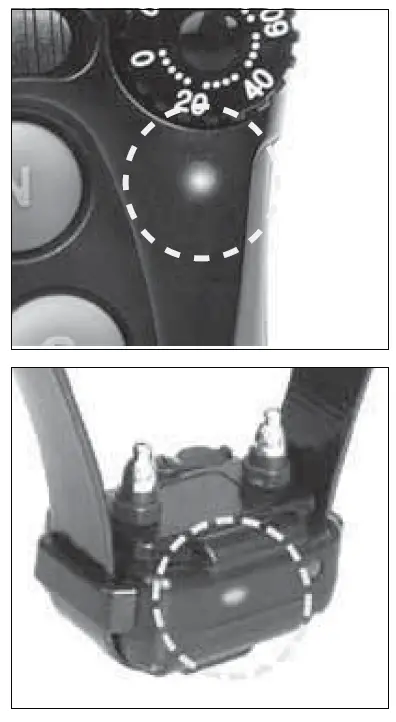

CHECKING THE STATUS USING THE LED INDICATOR

When the receiver/collar is on and ready to operate, the LED flashes every 4 seconds. The LED will glow steadily on both handheld transmitter and receiver/collar while any buttons are pressed.
The LED color indicates battery life level. Green = full charge, Amber = medium, Red = needs charge If you continue to operate the unit when the LED is red (needs charge), it will shut down.

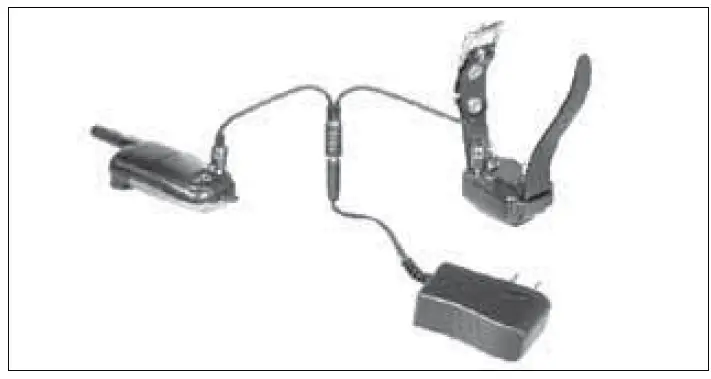

CHARGING THE BATTERY

• Remove the rubber plug temporarily and plug in the charger.
• Plug the adapter’s power plug into a standard AC wall outlet. The LED will glow red.
• When charging is finished the LED will glow green. Unplug the adapter’s power plug from the AC wall outlet and disconnect the charger from the unit.
• Place the rubber plug back in the battery charging receptacle.
• The receiver/collar is still fully waterproof even if the rubber plug is not closed, but place the rubber plug in the battery charging receptacle to make sure dirt does not get inside.

WARNING

• Fully charge the unit before using it for the first time.
• Do not charge the batteries near any flammable substances.
• Fully charge the batteries if the unit is to be stored without use for a period of one month or more.
• Always use iQ Pet-approved chargers. If improper chargers are used, the LED will flash in amber or may not light up at all.

CODE SETTING

DOG CODE SETTING

• Start with the receiver/collar turned off and the Rheostat intensity dial level on the handheld transmitter set to “0”. On the handheld transmitter, slide the dog selector switch left to align with “I”.
• Place the red dot on the back of the handheld transmitter to the red dot on the receiver/collar. Hold the two red dots together for 5 seconds. Release them when the green LED blinks rapidly on the receiver/collar.
• With the handheld transmitter, press the Nick and Constant buttons simultaneously. The code setting has been successfully done if the receiver/collar vibrates when the pager button is pressed on the handheld transmitter.

DOG CODE SETTING

1. Start with the receiver/collar turned off and the Rheostat intensity dial level on the handheld transmitter set to “0”. On the handheld transmitter, slide the dog selector switch right to align with “II”.
2. Place the red dot on the back of the handheld transmitter to the red dot on the receiver/collar. Hold the two red dots together for 5 seconds. Release them when the green LED blinks rapidly on the receiver/collar.
3. With the handheld transmitter, press the Nick and Constant buttons simultaneously. The code setting has been successfully done if the receiver/collar vibrates when the pager button is pressed on the handheld transmitter.

GENERAL TRAININGTIPS

Getting started with your iQ Plus Your dog must know some very basic obedience commands before beginning training with the iQ Plus. A dog learns by first being shown a command, followed by lots of repetition over an extended period. As the dog becomes proficient at these commands, the trainer can introduce distractions and different locations to strengthen them. Throw in the correct amount of positive and negative reinforcement and you should end up with a well-mannered dog.

OBEDIENCE TRAINING ON THE LEASH

Your dog must fully understand the obedience commands (sit, stay, here, heel and kennel) before using the e-collar for reinforcement of these commands. A leash attached to standard collar is used to “teach” the dog the basic obedience commands (here, heel, sit, and stay). A tug on the leash/collar is used to reinforce the command. When the dog complies with the command, use positive reinforcement/ praise. Once the dog understands these commands, the e-collar can be used to reinforce them.

BEGINNING ELECTRIC COLLAR TRAINING

When you feel your dog understands the obedience commands on the leash we can now start with the electric collar training. With the dog on the leash wearing the electric collar continue with your obedience drills. Light stimulation (nick or constant) is going to be applied as a command is given; the stimulation is removed as the dog complies. Through repetition, a dog learns to turn off the light stimulation by performing the command. E-collar training is another form of negative reinforcement, similar to the leash and standard collar training. When the dog complies with the command, we use praise/positive reinforcement. The final step is the avoidance phase in which the dog learns that he can avoid the stimulation altogether by performing your commands. When these training procedures are complete, the electric collar is used as a reminder when the dog does not comply with your commands at home or in the field. Keep your initial training sessions short and positive. Dogs have a short attention span, especially young dogs.

HOW MUCH STIMULATION TO USE

Always start with low levels of stimulation and work your way up depending on the disposition of your dog and any given situation. By using only enough stimulation to get your point across, you will have a more controllable environment and a dog that is under less stress. Animals (and humans) perform better in a less stressful environment.

For more training information, please visit our website at www.iqpet.com

MAINTENANCE

BASIC MAINTENANCE

Be sure the rubber plugs are always secured when the receiver/collar is in use. After each session, carefully inspect your unit for any missing parts or casing damage. Broken casing on the receiver/collar may affect the waterproof guarantee of the unit. Rinse the receiver/collar after each session and clean off any dirt or debris.

STORAGE MAINTENANCE

Your unit should be fully charged before extended storage. During storage, the unit should be charged every one month, and once before the first use. When traveling, try to store your units in room or slightly warmer temperatures. Do not transport the unit exposed to extreme climates.

TROUBLESHOOTING

If you suspect your unit is malfunctioning please refer to the “Troubleshooting Guide” before sending your unit in for service. If you have any questions or concerns, you may direct your inquiries to [email protected] or call 1-888-811- 9111.

TROUBLESHOOTING GUIDE

• My dog is not reacting to the receiver/ collar.
• Make sure the receiver/collar is turned on. Place the two red dots together to activate the receiver/collar.
• Be sure the collar strap is tight enough so both contact points are touching the dog’s skin.
• The contact points may be too short for your dog’s thick or long coat.

To place an order for longer contact points, please call 1-888-811-9111.
If you are already using longer contact points, you might need to trim down the hair on the dog’s neck, so both contact points are touching the skin.

• The intensity level may be too low for your dog. Keep increasing the stimulation until the dog responds usually by neck movement, head shaking, looking over his shoulder, etc. (response may be very subtle so pay attention.)
• The LED indicator light comes on, but I do not feel any stimulation.
• Your tolerance may be higher than your dog’s. You may need to try the unit on your fingertips where sensitivity is higher and/or increase the stimulation level. Be sure both contact points are touching both of your fingertips.
• The battery may be low, check the LED light for battery life.
• If you have a full charge, and you have done all of the above, your unit may need to be serviced. Please contact Customer Service at [email protected] or 1-888-811-9111.
• The handheld transmitter has no range, or stimulation is less when the dog is farther away.
• Check to see if your fingers are touching the antenna as the range may substantially decrease.
• The range indicated on the unit’s box is for flat terrain (line of sight). Heavy brush, trees, hills or moisture will affect the range of your unit. For best range, hold the handheld transmitter vertically above your head, and/or try moving to higher ground.
• Any electrical conductors will affect the range, such as cars, chain-link dog runs, metal buildings, and radio towers. For best results, operate away from these structures.
• My units are not holding a charge.
• The charging pin may be damaged. A metal pin inside the charging port should stand straight up and firm in the center. If the pin is wobbling, broken or missing, you will need to send the unit in to the Repair Dept. The charging port must be clean prior to charging, clean the dirt out with a cotton swab and some rubbing alcohol. If the dog is in salt-water, be sure to rinse the receiver/ collar and charging port with clean water.
• For iQ Pet units over two years old from the purchase date, the batteries may need to be replaced. You can replace them yourself by contacting iQ Pet. Damages incurred to the unit due to improper battery installation are not covered under any warranty. iQ Pet strongly recommends sending the unit in for inspection.
• My dog has skin irritation.
• This may be due to the contact points. If your dog exhibits signs of skin irritation, consult with a veterinarian. Once the dog’s skin returns to a normal condition, continue to use the receiver/ collar and check your dog’s neck each time you use the unit.

FAQs

Does this collar have a sound/tone-only option?

It makes no sound that I have noticed. My trainer has only used it twice on my 23# Scottish Terrier (Service Dog) to improve her recall. You have to set it to at least 30 for your k-9 pal to feel it. It’s meant for small dogs. I did not want anything large or heavy. I’ve found that just putting the E collar on her work just as well without using the electricity! Dogs are VERY smart. Put it on every day in am, take it off in pm for 2 weeks and that seems to do the trick.

Does waterproof mean submersible? I have a lab that spontaneously swims daily and would like a training collar that can stand that much water.

It is able to be submersed into water. The dog should be good to go as a swimmer. The manufacturer warranty covers the collar; however, the hand held receiver is not submersible.

I am looking for a collar that does not fall asleep. I have a collar now that does work with my dogs but after no movement, for a period of time it will only wake up if the dog moves, but it has to be a rough move and not just standing up.

The Dogtra 1900 and the Dogtra Element do not ‘fall asleep’. ECollar Technologies’ 300 and 400 do not fall asleep either. From a training perspective, an eCollar that falls asleep would be a bad thing, not allowing you to communicate with your dog in moments that are critical to learning. The collars mentioned can be purchased on my profile.

how big does the collar go?

The collar provided is very long. Recommended to cut collar when have decided on size. An alternative is to get what is called an E-Bungee replacement collar. Much easier to put on correctly time after time.

How does this charge? With a socket plug or mini usb?

This item charges with a plug in adapter not a USB port.

Bought two of these and they stopped working, couldn’t recharge battery….are they returnable?

My charger is not staying clipped in I put an elastic around it when charging

Could I use this collar on an 8-pound Pomeranian that is a barker?

I use mine on a 23# puggle. She wears it without trouble. The collar and reliever weigh about 4oz. The collar can be trimmed to fit. I cut it down some to fit better. I call this thing my dogs ‘hearing aid.’ If she has it on I rarely have to actually use it. The vibrate function is more than enough 9/10 times. I have never shocked her over 35-40 on the scale to 100. They learn fast.

My remote is lighting up but the collar does not seem to be lighting up anymore. I presume it needs to be charged. Where can I buy a charger?

Getting a charger was a challenge but you can order one from the dogtra website they are a bit pricey. What I ended up doing for my last one was going to best buy and got one of those chargers that has all the different sized plug ins. Like the one for computers. Take the collar with you though so you can try it there also make sure to get the right voltage. I ended up spending only $13.

I lost my charger for this collar; can someone please tell me what charger it is?

The charger you will need is a BC5V1000/5.5 and can be found at our store BroadVend in this listing http://www.amazon.com/gp/aw/ol/B006RUZJZI/ref=olp_page_next?ie=UTF8&condition=new&startIndex=10

I have a 100lb ridgeback/Staffordshire mix. on cheaper collars, he breaks the part receiver that holds the collar in place. how durable is this?

I have a full Staffordshire he weighs 65 lbs. and I have had no issues with this trainer breaking but he doesn’t bite it or tear and it at all either I’m not sure if that is why they are breaking for you or not.

What is the low-temperature range for use in the winter and snow?

The iQ PLUS performance will be impacted with temperatures 20 degrees Fahrenheit and below. It is not recommended to use this unit in extreme climates. Please be aware that factors such as line of sight interference, terrain, weather conditions, and battery age, and battery life will affect range. For more information, please contact Dogtra’s customer service team.

Will this fit a 54lbs German shorthair?

I have a 55lb golden retriever and it fits him fine.

What does fully waterproof mean? Can she go in the lake with it on?

It says on the box that the receiver is waterproof. I haven’t tried it but that’s how I would interpret it. It makes the distinction with the transmitter, which it says is water resistant.

The transmitter in the picture is not the Dogtra IQ Plus expandable two-dog unit. Is sale item the IQ Plus?

Dogtra IQ Plus has a switch that allows you to control two collars with the same remote.

What is this clear plastic piece for that comes in the box? It’s not mentioned in the instruction book.

The clear plastic test light is used to test the stimulation from your receiver. Place the plastic piece over the stainless steel contact points and adjust the levels up and down while pressing the Constant button. The higher the level, the brighter the light will be.
