Resideo R7284u Multisystem Electronic Oil Primary User Guide

Resideo R7284U Multisystem Electronic Oil Primary User Guide

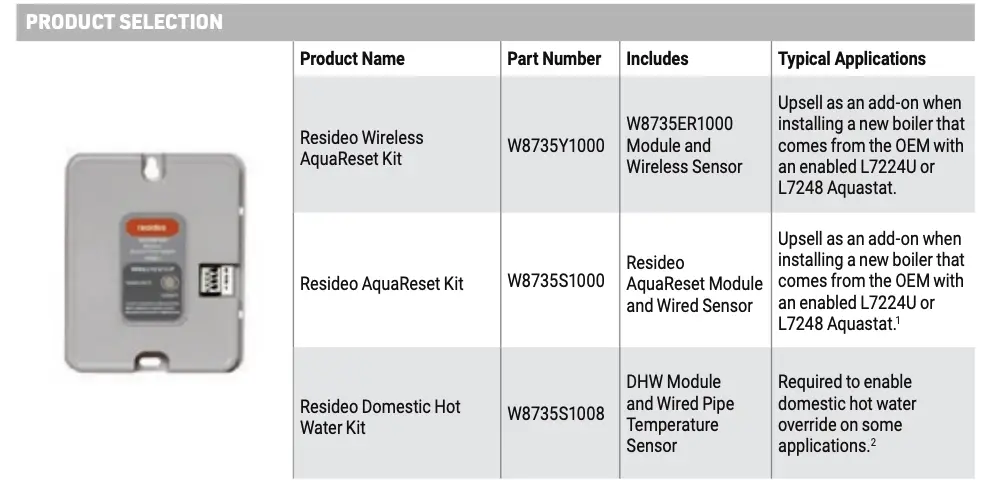

Resideo AquaReset™

¹ Indirect domestic hot water tank applications may require additional kit W8735S1008.

² Required for use when domestic hot water override is needed and a Z terminal is not present on the Aquastat. See technical literature 67-7286 for complete application details.

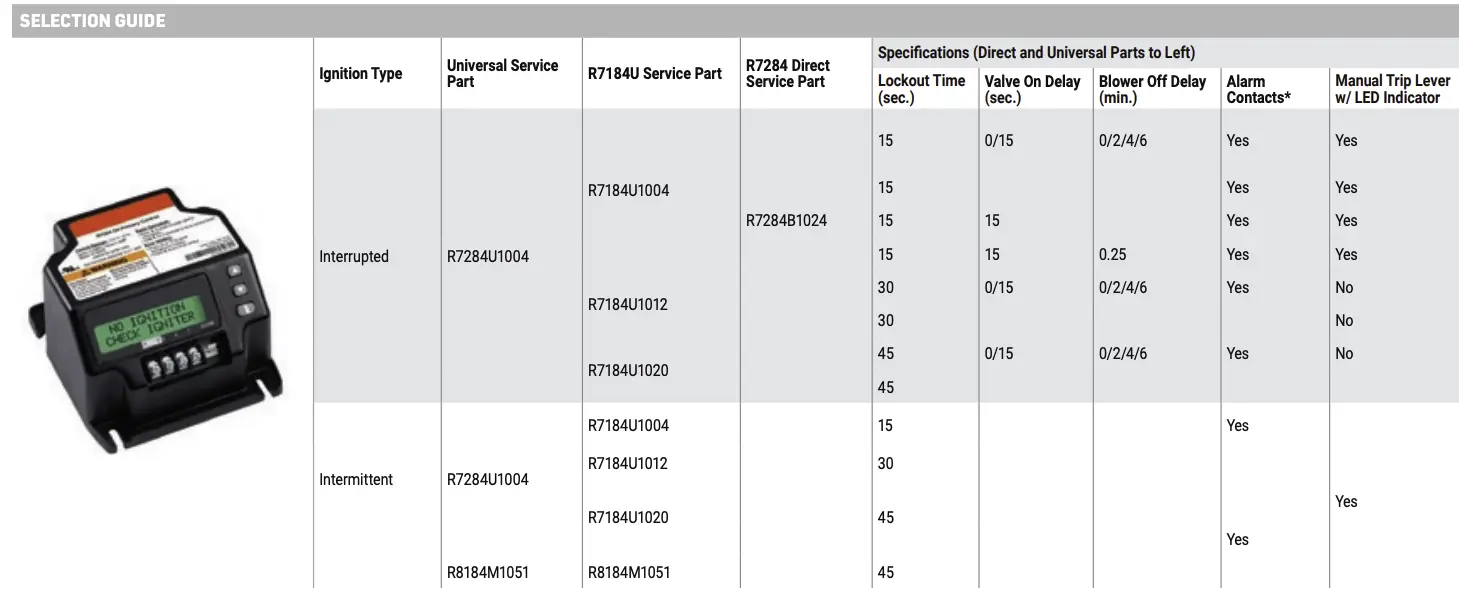

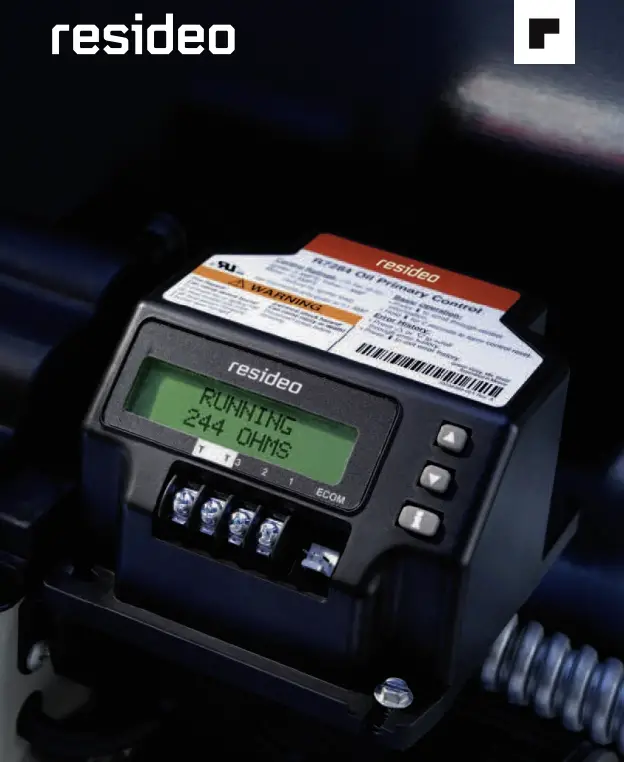

R7284U Universal Electronic Oil Primary

* R7284 models require an alarm contact accessory module

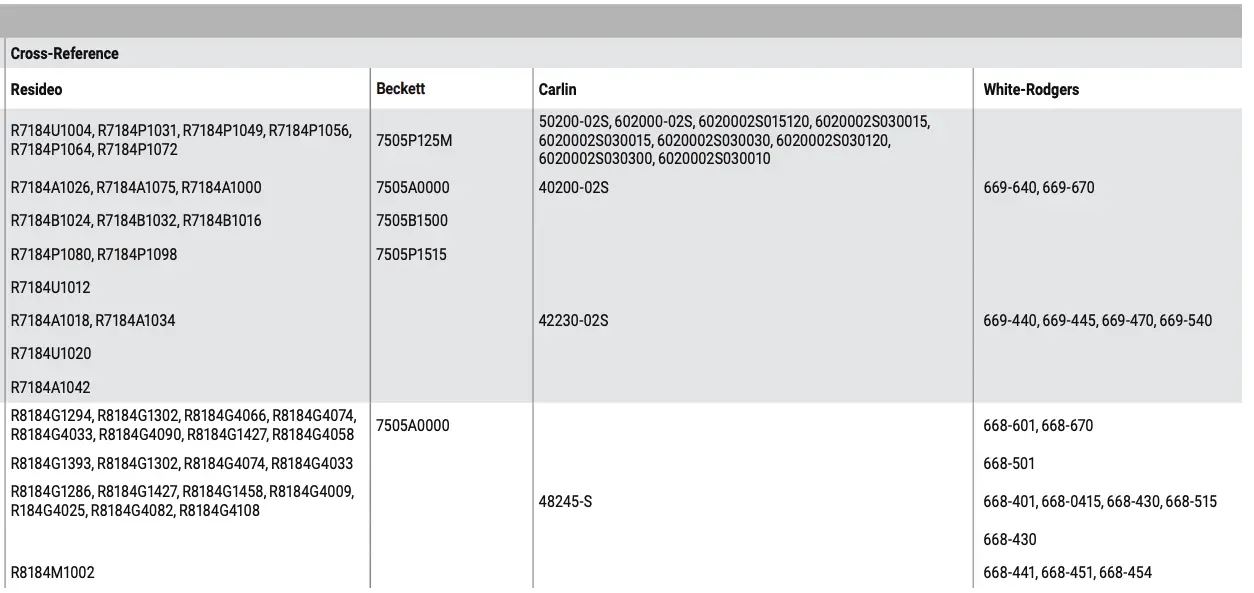

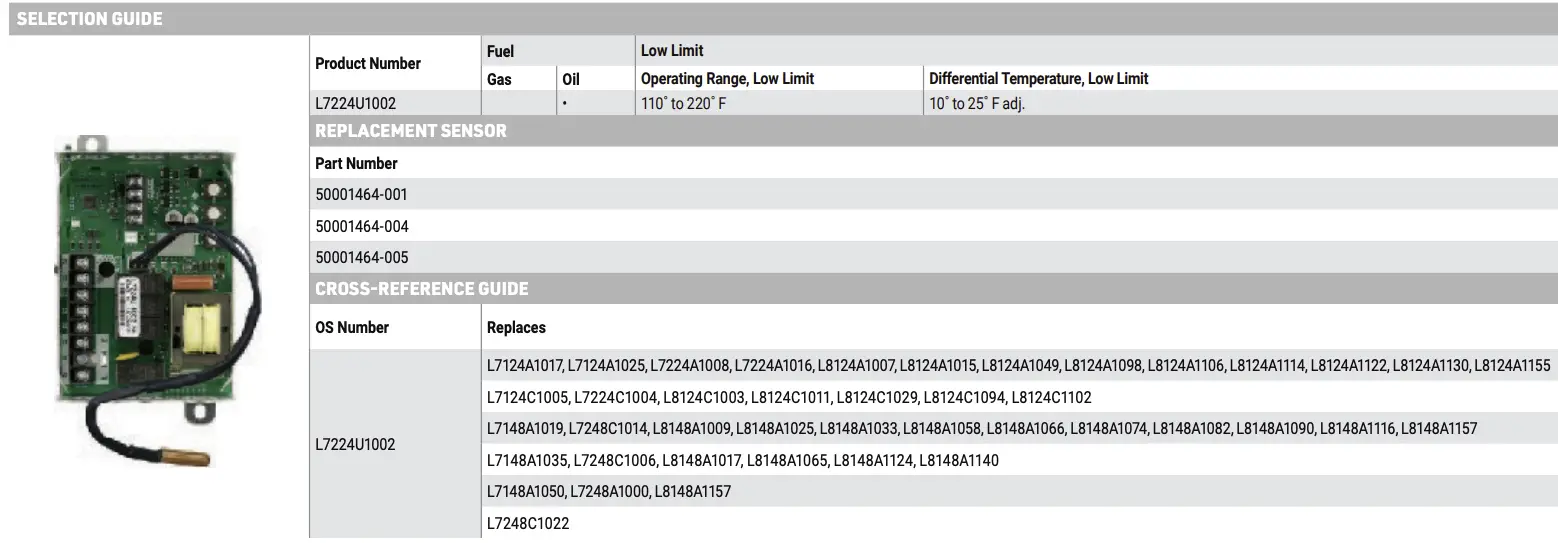

L7224U Universal Electronic Aquastat®

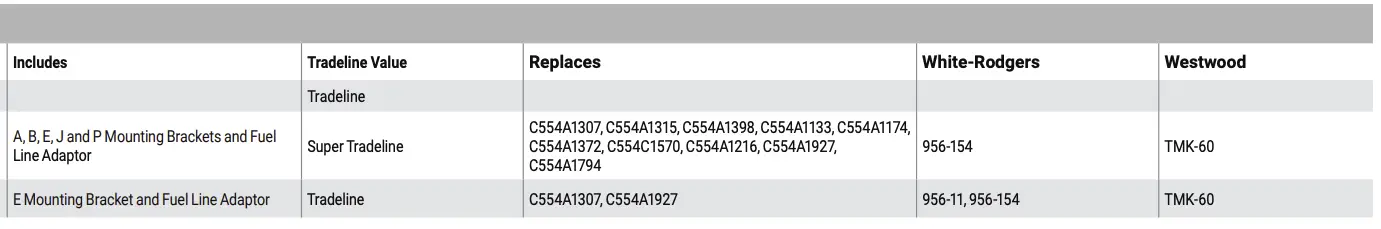

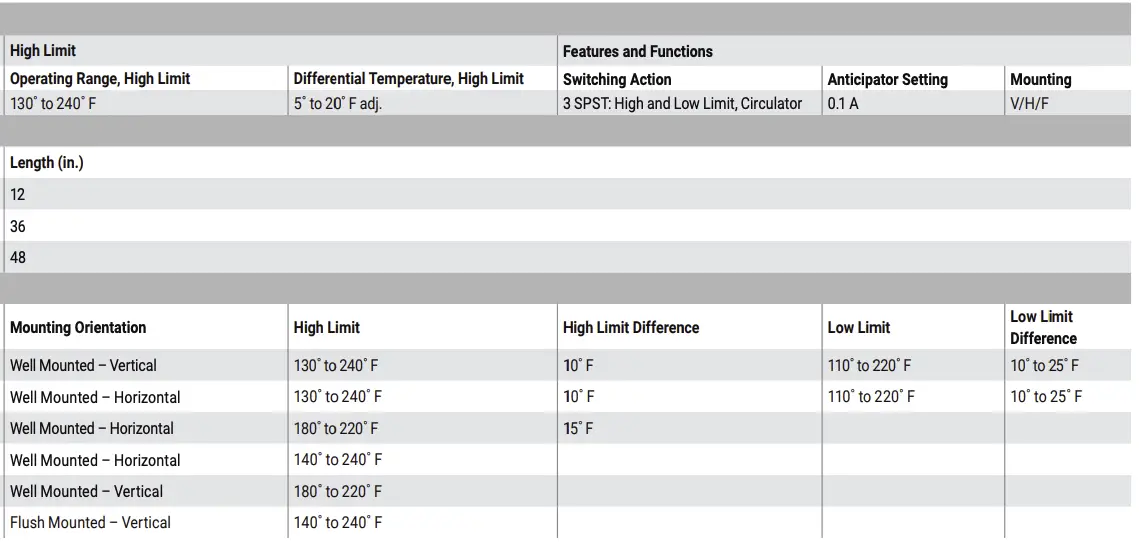

L7224U Universal Electronic Aquastat®

Notes:

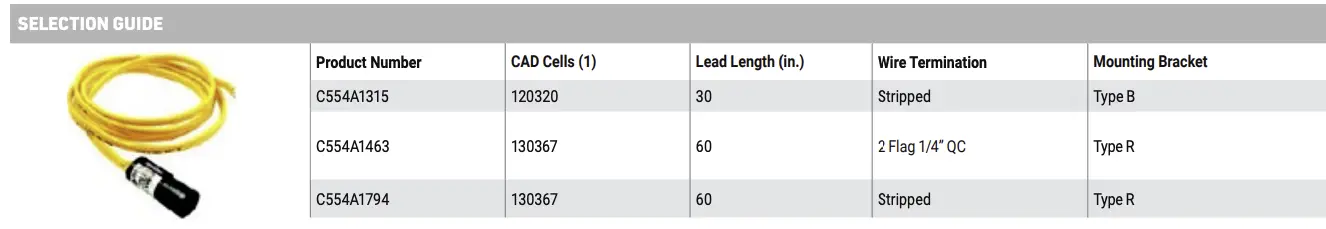

*120320 replacement CAD cell 7.5 MA minimum sensitivity at 2’ candles.
*130367 high-sensitivity CAD cell 12 MA minimum sensitivity at 2’ candles.
1 48 inch lead wire
