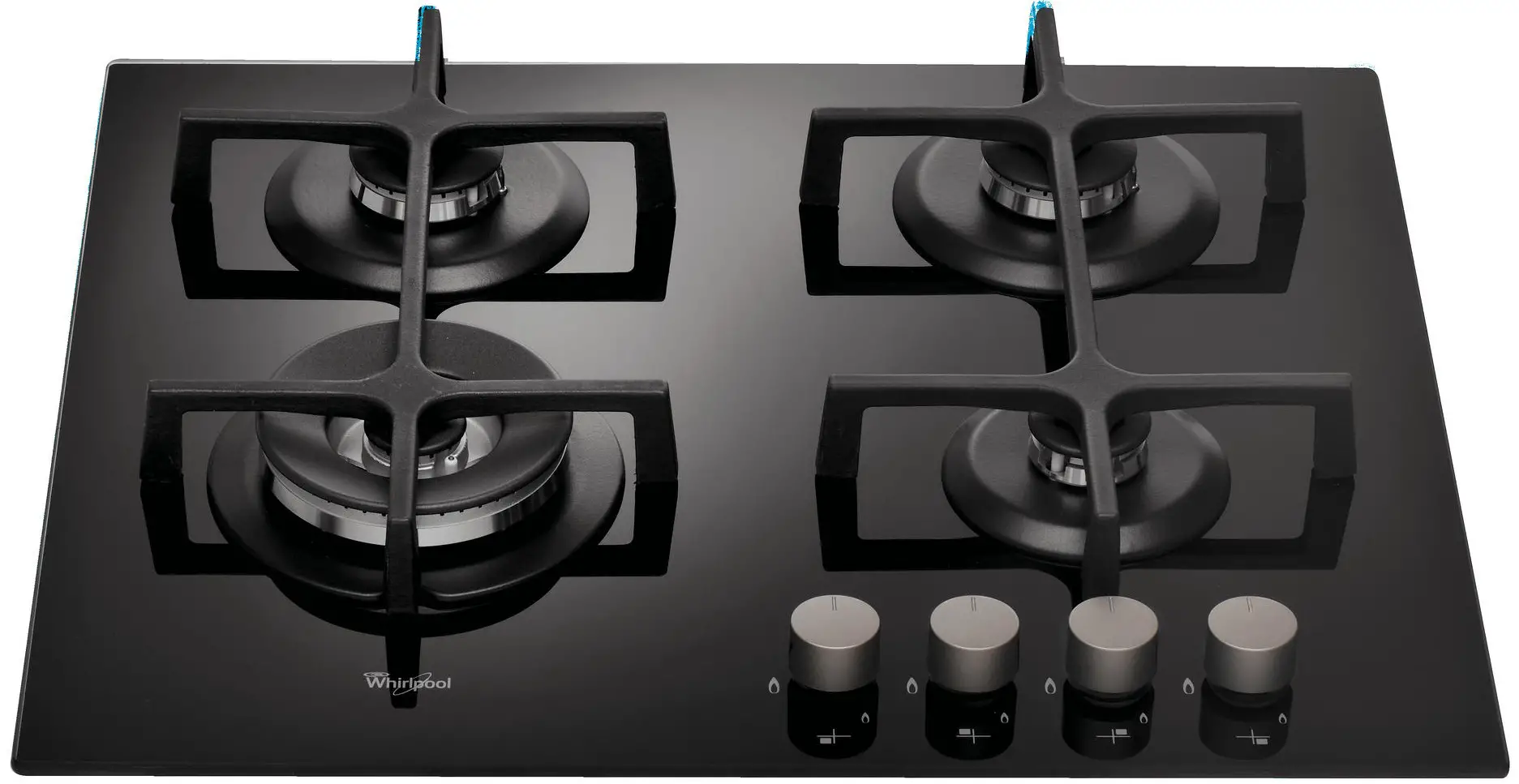

Whirlpool GOA 6423/NB Built-in Gas Hob
Features
MAIN FEATURES
| Product Group | Hob |
| Construction type | Built-in |
| Type of control | Mechanical |
| Type of control settings | – |
| Number of gas burners | 4 |
| Number of electric cooking zones | 0 |
| Number of electric plates | 0 |
| Number of radiant plates | 0 |
| Number of halogen plates | 0 |
| Number of induction plates | 0 |
| Number of electric warming zones | 0 |
| Location of the control panel | Front |
| Basic surface material | Glass |
| The main color of the product | Black |
| Electrical connection rating (W) | 0 |
| Gas connection rating (W) | 8000 |
| Current (A) | 0,2 |
| Voltage (V) | 230 |
| Frequency (Hz) | 50 |
| Length of Electrical Supply Cord (cm) | 85 |
| Plug type | No |
| Gas connection | N/A |
| Width of the product | 590 |
| Height of the product | 49 |
| Depth of the product | 510 |
| Minimum niche height | 41 |
| Minimum niche width | 560 |
| Niche depth | 490 |
| Net weight (kg) | 12.5 |
| Automatic programs | No |
TECHNICAL FEATURES
| Power on indicator | No |
| Number of indicators | 0 |
| Type of regulation | Semi rapid |
| Type of lid | Without |
| Residual heat indicator | Without |
| Main on/off switch | No |
| Safety device | – |
| Timer | No |
PERFORMANCES
| Energy input | Gas |

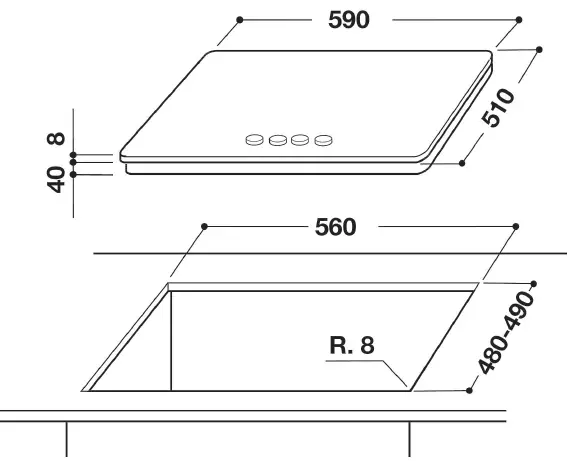

Dimension Overview
Description
High-efficiency burners and power up to 4 kW provide a unified design and monochromatic without sacrificing performance. The ideal full style is provided by grips and colors that are coordinated with the ambient oven colors. Code for tempered glass in black: Goa 6423/NB Hob four gas burners 1 Double Crown with a 3500 W capacity Two semi-rapid cast iron pans and one auxiliary pan hold the twin front control knobs. Electronic Ignition Safety Termoval in Silver
Specifications
- Brand: Whirlpool
- Model Number: GOA 6423/NB
- Color: Black
- Product Dimensions: 59 x 51 x 4.9 cm; 12.5 Kilograms
- Power / Wattage: 8000 watts
- Material: Glass
- Item Weight: 12.5 kg
- Heating elements: 4
- Power source: Gas Powered
- Fuel type: Gas
- Heater surface material: Tempered Glass
- Ignition system type: Electronic
- Control type: Knob
- Installation type: Built-In
FAQ’s
Dimensions of the Whirlpool GOA 6423/NB Built-in Gas Hob are roughly 590mm (width), 510mm (depth), and 41mm (height).
You may cook a variety of items at once on the Whirlpool GOA 6423/NB Built-in Gas Hob’s four burners, which include one rapid burner, two semi-rapid burners, and one auxiliary burner.
Natural gas (NG) is the preferred gas type for usage with the Whirlpool GOA 6423/NB Built-in Gas Hob. However, a skilled technician may also adapt it so that it can be used with liquefied petroleum gas (LPG).
Yes, each burner on the Whirlpool GOA 6423/NB Built-in Gas Hob has a flame failure device (FFD) that, in the event that the flame is unintentionally extinguished, automatically cuts off the gas supply.
Regular cleaning is necessary to keep the Whirlpool GOA 6423/NB Built-in Gas Hob operating at peak efficiency. For cleaning, it is possible to detach the pan supports, burners, and burner caps. They can be cleaned with a non-abrasive cloth and warm, soapy water. The gas hob may get damaged if you use corrosive chemicals, abrasive materials or a lot of water. Before cleaning, always make sure the gas hob is off and has had time to cool down.
Yes, the Whirlpool GOA 6423/NB Built-in Gas Hob is normally covered by a manufacturer’s guarantee that lasts for a specific amount of time and includes both parts and labor. It is advised to review the warranty information provided by Whirlpool or your authorized dealer as the particular warranty terms may vary based on your area and the store.
It is possible to create a built-in cooking unit by installing the Whirlpool GOA 6423/NB Built-in Gas Hob above a compatible Whirlpool oven. To ensure correct installation and safety, it’s crucial to adhere to the manufacturer’s installation instructions and recommendations.
The hob must be 150mm away from the side wall to be considered in place.
Second, ensure sure there is enough space between the bottom of your cooker hood and the top of your hob. For electric models and gas ranges, the hot zone should be 65 cm and 75 cm, respectively.
When a flame failure caused by spillage is detected, a flame failure safety device that instantly shuts off the gas valve to prevent unintentional gas leaking should be present in a good gas hob. Thermocouples for sophisticated flame surveillance.
A Gas Hob should have a gas tap and is typically linked to the gas line by a stiff copper connection. The gas tap is required so that you don’t have to switch off the main gas while reconnecting your gas cooktop. However, many older installations lack a gas tap to shut off the gas range.
Any stove that burns combustible gas, such as syngas, natural gas, propane, butane, liquefied petroleum gas, or other flammable gas, is referred to as a gas stove. Stoves were used to burn solid fuels like coal or wood until gas became popular.
Download this PDF Link: Whirlpool GOA 6423/NB Built-in Gas Hob Specifications and Datasheet
