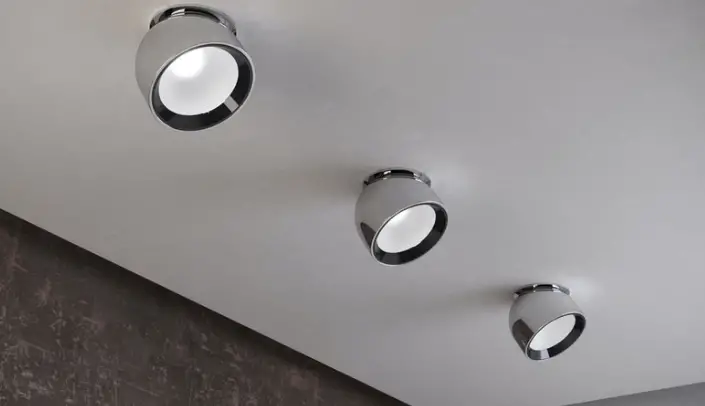

FLOS ARCHITECTURAL C1 Ceiling and Wall Spotlight
ATTENTION
The safety of the device can only be guaranteed on condition that to be respected the following instructions, both stages of installation and use therefore it is highly recommended to keep them.
WARNING:
To carry out the installation, and whenever an operation in the device is carried out make sure of having disconnected the electric power.
The device cannot be in any case modified or forced, any modification might jeopardize the safety system making it dangerous. FLOS declines any responsibility on modified products. The device has been designed for inside. IP20 Ordinary.

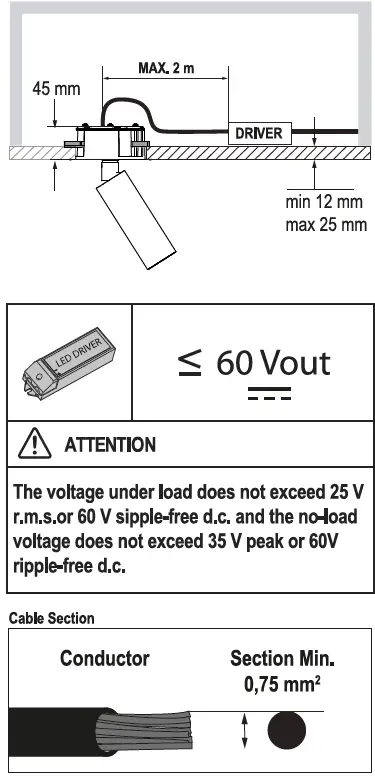

Luminaire class Ill: Device with a very low tension of safety. The conformity with the standard is only guaranteed if the device is powered by a safety transfer according to the standard Cenelec EN 60472 or by equal safety sources. Devices with a very low voltage of safety (BTS) marked, do not have to be connected to drivers with earth socket.
Luminaires are intended for direct assembly on surfaces that are normally flammable.
Under no circumstances should the luminaire be covered with insulating or similar material. exclusively replaced by the manufacturer or his technical service or a qualified 0 person in order to avoid any risk.
Use an appropriate equipment and in agreement with the standard. & The luminaire should only be used with Fies accessories or components.
The symbol shown on the device indicates that the product must be eliminated differently from the rest of the urban waste.
CLEANING INSTRUCTIONS
Use only a soft cloth to clean the appliance. For stubborn dirt, dampen the cloth with water and clean only the reflectcr and the outer part of the appliance. Do not clean or touch the LED/light source in any way. Warning: do not use alcohol or other solvents.
The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person. Please refer to the product label to check the electrical specifications
TECHNICAL DATA
MODEL
- C1 Ceiling Small I 500
- C1 Ceiling Large 1200
- C1 Wall Mono Small 500
- C1 Wall Mono Large 1200
- C1 Wall Double Small 500
- C1 Wall Double Large 12

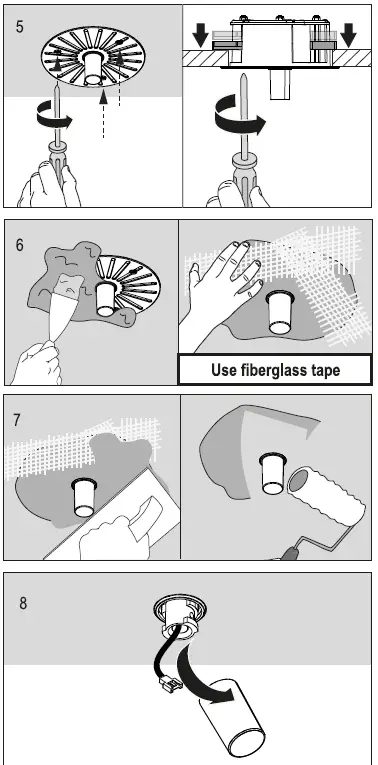

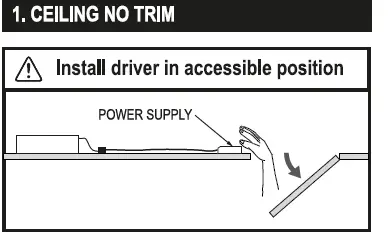

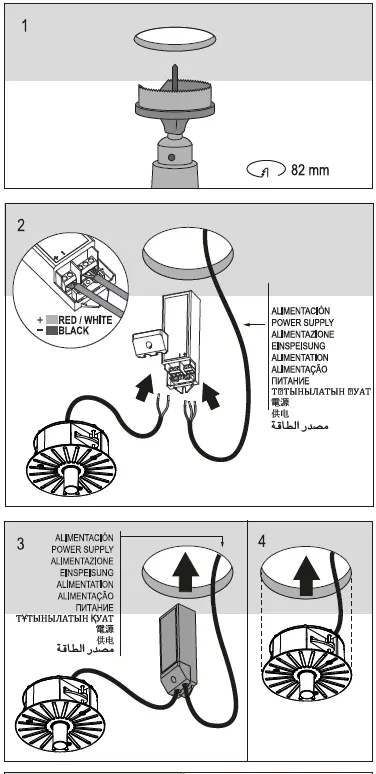

CEILING NO TRIM

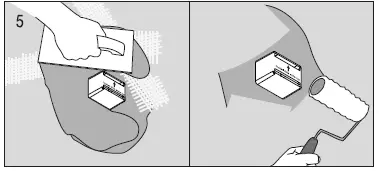

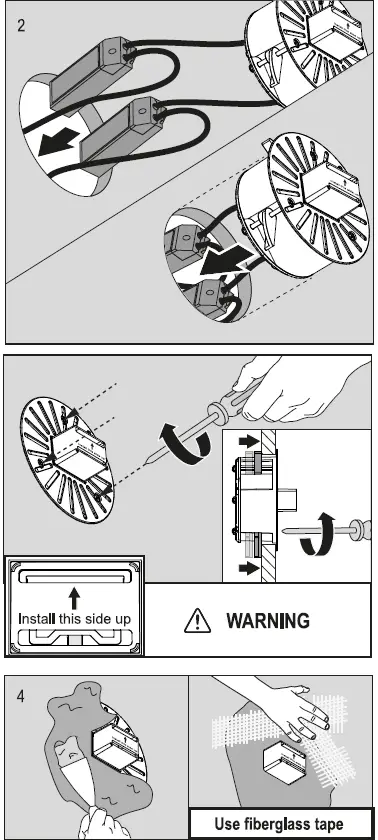

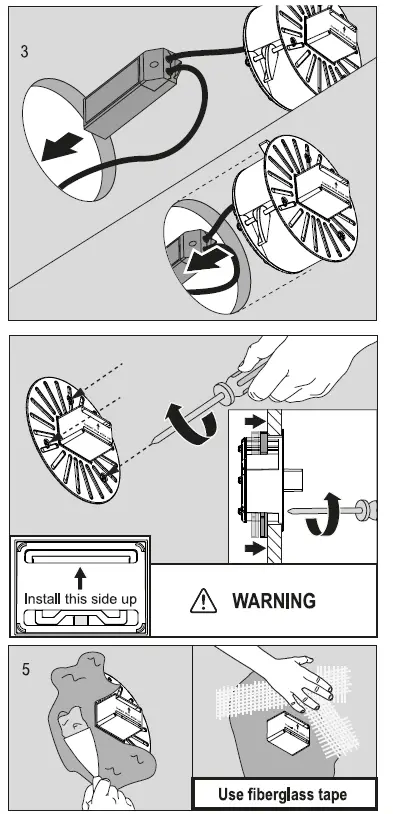

WALL NO TRIM

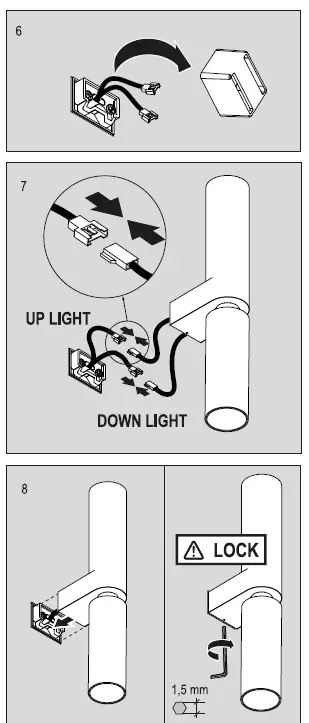

ED DOUBLE SPOT

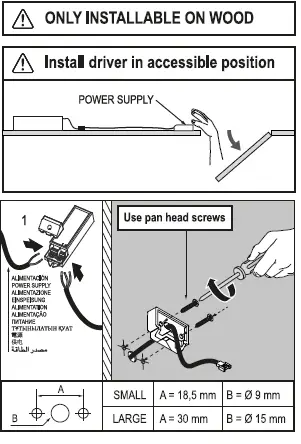

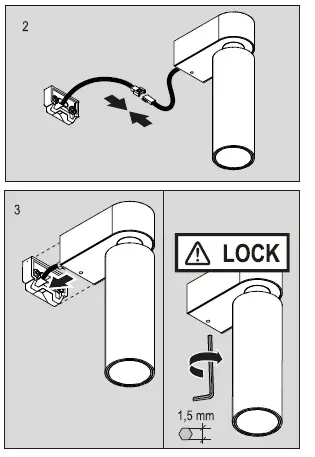

WALL SURFACE
DOUBLE SPOT

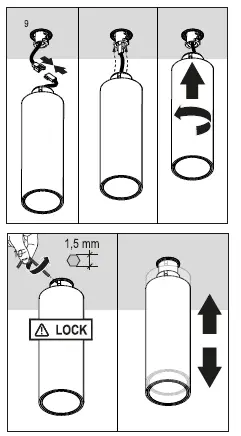

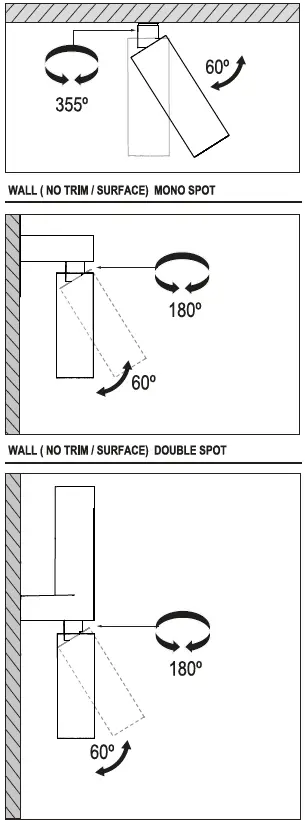

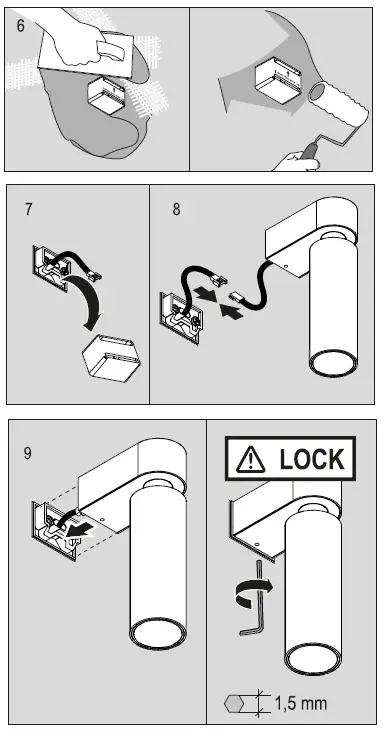

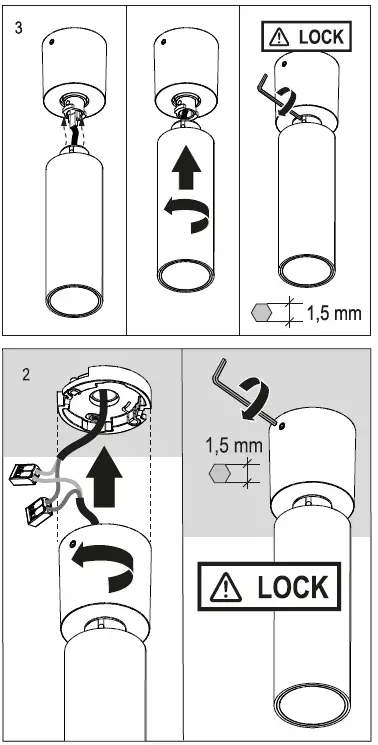

TILT AND LOCKING ADJUSTMENT
WALL NO TRIM
ED DOUBLE SPOT

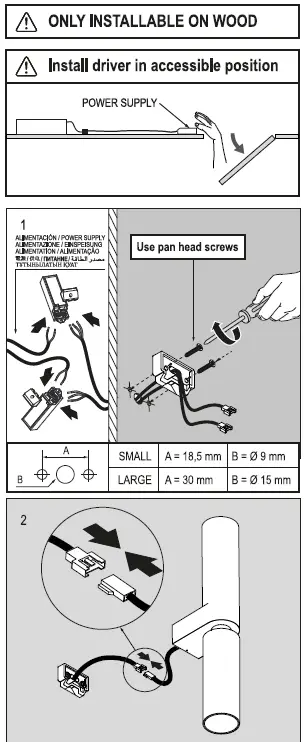

WALL SURFACE
DOUBLE SPOT
TILT AND LOCKING ADJUSTMENTREGULATION

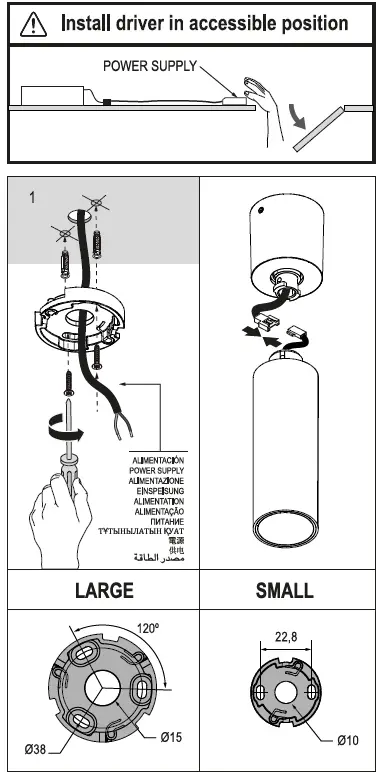

CEILING NO TRIM/ CEILING SURFACE

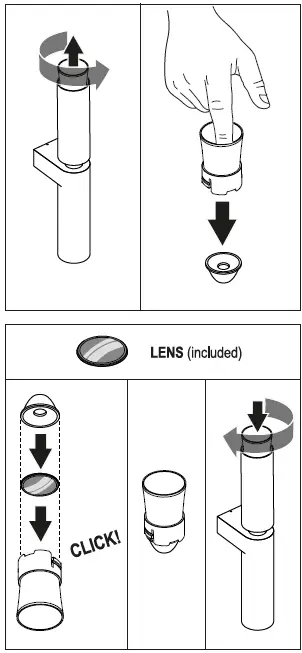

LENS SHIFT
