OMCAN FR-CN-0500 Commercial Ice Shaver User Manual
Instruction

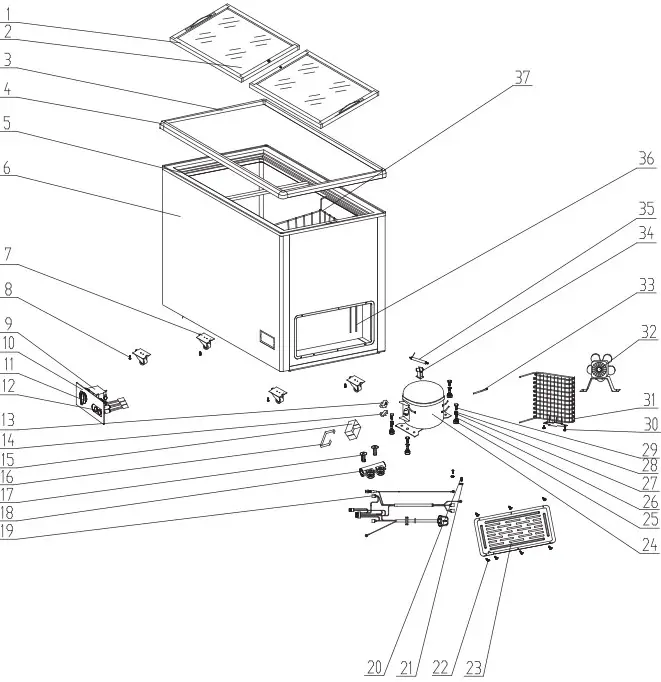

| Item No. | Description | Position |
| AL216 | Glass Door Frame for 49295 | 1 |
| AL217 | Glass Door for 49295 | 2 |
| AL218 | Aluminum Alloy Frame for 49295 | 3 |
| AL219 | Corner for 49295 | 4 |
| AL220 | Cabinet Plastic Frame for 49295 | 5 |
| AL221 | Cabinet for 49295 | 6 |
| AL185 | Castor for 49295 | 7 |
| AL186 | Screw for 49295 | 8 |
| AL187 | Thermostat for 49295 | 9 |
| AL188 | Thermostat Control Panel for 49295 | 10 |
| AL189 | Thermostat Knob for 49295 | 11 |
| AL190 | Indicator Lamp for 49295 | 12 |
| AL191 | PTC Starter for 49295 | 13 |
| AL192 | Protector for 49295 | 14 |
| AL193 | Cover for 49295 | 15 |
| AL194 | Clamp for 49295 | 16 |
| AL195 | Screw for 49295 | 17 |
| AL196 | Orientable Double-Hollow Wire Clamp for 49295 | 18 |
| AL197 | Power Plug for 49295 | 19 |
| AL198 | Copper Screw for 49295 | 20 |
| AL199 | Washer for 49295 | 21 |
| AL200 | Tapping Screw for 49295 | 22 |
| AL201 | Shutter for 49295 | 23 |
| AL202 | Compressor for 49295 | 24 |
| AL203 | Rubber Boot for 49295 | 25 |
| AL204 | Connecting Sleeve for 49295 | 26 |
| AL205 | Washer for 49295 | 27 |
| AL206 | Spring Hooks for 49295 | 28 |
| AL207 | Bolt for 49295 | 29 |
| AL208 | Bolt for 49295 | 30 |
| AL209 | Condenser for 49295 | 31 |
| AL210 | Fan Motor for 49295 | 32 |
| AL211 | Charge Pipe for 49295 | 33 |
| AL212 | Filter Support for 49295 | 34 |
| AL213 | Filter for 49295 | 35 |
| AL214 | Back Condenser for 49295 | 36 |
| AL215 | Basket for 49295 | 37 |
