Turning Earbuds On/Off
 |  |
| Power On Removing earbuds from the case automatically turns on the earbuds and starts the syncing process to one another. | Power Off Placing the earbuds back into the charging case will automatically power them down |
 |  |

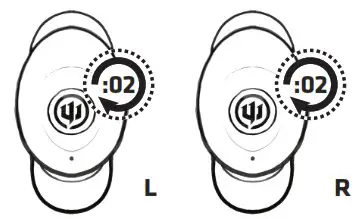

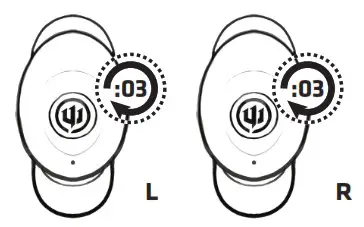

| Power On (outside of case) When outside the charging case and powered off, long press both earbuds for 2 seconds (LEDs Red/Blue Flash) to turn them on. | Power Off (outside of case) Long press left and right earbud for 3 seconds to turn off earbuds without putting them in the case. |

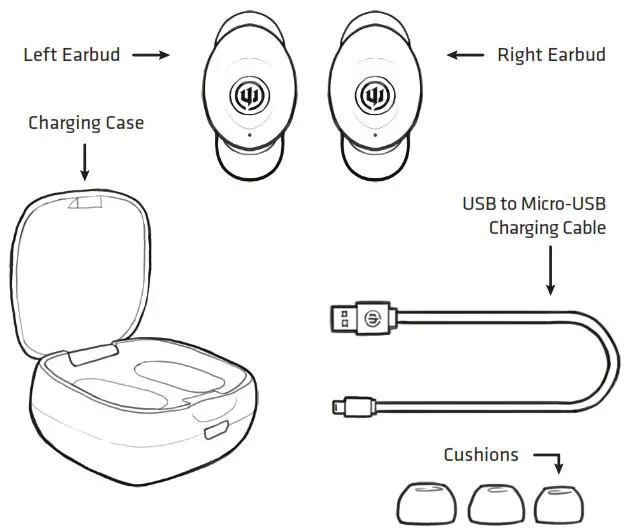

In the Box
In the Box
Axoma TWS Earbuds
Charging Case
USB to Micro-USB Charging Cable
3 Sizes of Cushions
Instruction Booklet
Charging
Charging the Charging Case
Using the Micro-USB charging cable, plug into a power source. While charging the charging case LEDs will flash BLUE.
Once fully charged, LED will be solid blue.
Charging the Earbuds
Place earbuds in charging case to charge earbuds.
They will turn off and automatically begin charging.
While charging the earbuds, the charging case LEDs will be solid BLUE. When the earbuds are full charged, the charging case LEDs will shut off.
Tip: Earbuds will announce “low charge” when they are at 10% battery life.
LEDs
 |  |
| Charging Case Lights when Charging Case: Flashing Blue LEDs Solid BLUE Case is Charging Full Charge Reached | Charging Case Lights when Charging Earbuds: Solid Blue LEDs LEDs shut off Earbuds are Charging Earbuds fully charged |
Functions
 |  |  |  |
| Pause / Play Single Press (Left or Right Earbud) | Next Track Double Press (Right Earbud) | Previous Track Double Press (Left Earbud) | Enter / Exit Voice Assistant Long Press 1 Second (Left or Right Earbud) |
 |  |  | |
| Answer Call/Hang up Call Single Press (Left or Right Earbud) | Reject Incoming Call Long Press 1 Second (Left or Right Earbud) | Change EQ Modes Triple Press (Left of Right Earbud) Note: Default is “Balanced Mode” EQ Modes rotate in the following order: Balance, Rock, Enhanced Bass |
Troubleshooting
Reset
Only one earbud connecting to device at a time?
Reset
Only one earbud connecting to device at a time?
- From your devices Bluetooth menu, delete “Wicked Axoma” pairing name.
- Place earbuds in charging case.
- Remove one earbud from the charging case, quadruple press, and return the earbud to the charging case.
- Remove second earbud from the charging case, quadruple press, and return the earbud to the charging case.
PRECAUTIONS
LISTENING TO AUDIO AT EXCESSIVE VOLUMES CAN CAUSE PERMANENT HEARING DAMAGE. USE AS LOW A VOLUME AS POSSIBLE. Over exposure to excessive sound levels can damage your ears resulting in permanent noise-induced hearing loss (NIHL). Please use the following guidelines established by the Occupational Safety Health Administration (OSHA) on maximum time exposure to sound pressure levels before hearing damage occurs.
SAFE USE & HAZARD WARNINGS
90 dB SPL at 8 hours, 95 dB SPL at 4 hours, 100 dB SPL at 2 hours, 105 dB SPL at 1 hours, 110 dB SPL at 30 min, 115 dB SPL at 15 min, 120 dB SPL: Avoid as damage may occur
IMPORTANT SAFETY INSTRUCTION
- Read these instructions.
- Keep these instructions.
- Heed all warnings
- Follow all instructions.
Attention should be drawn to the environmental aspects of battery disposal; The use of apparatus in moderate climates
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device.
Limitation of Liability Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.
In no event, under any cause of action of theory of liability, shall Wicked Audio Inc., its distributors or suppliers be liable to you or any third party for indirect, incidental, consequential, special, exemplary, or punitive damages, of any and all nature whatsoever, arising out of use of or inability to use a product. This includes without limitation, property damage, loss of value of the product, or any third party products that are used in or with the Wicked Audio products, even if the Wicked Audio product has been advised of the possibility of such damages that one may encounter. Without limiting the foregoing, you understand and agree that Wicked Audio has no liability for any damages or destruction to the consumer electronics devices or other personal property that are contained in inside or outside the Wicked Audio products. This includes without limitation, laptops, cellular phones, or other hand-held devices, or any loss of data contained on the foreign device. Notwithstanding any damages that you might incur for general damages in contract, tort (including negligence), or otherwise), the entire aggregate liability of Wicked Audio and any of its distributors and/or suppliers shall be limited to the amount actually paid by you for the Wicked Audio product giving rise to liability. Some states and/or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. The limitations of liability set forth above shall apply to the maximum extent permitted under applicable law.
MODEL #: WI-TW515X
IC: 20526-WITW515X
LIMITED ONE-YEAR WARRANTY
Keep your receipt to obtain warranty service. Go to
www.wickedaudio.com for more details.
Developed in Utah, U.S.A.
Made in China
