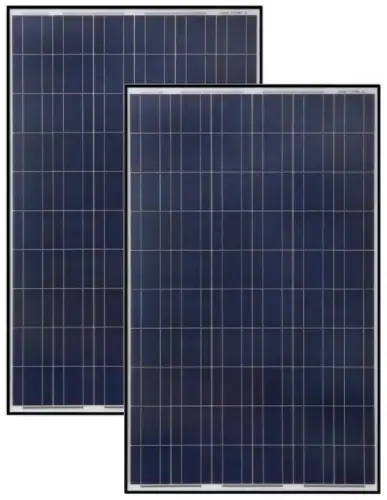

Grape Solar Polycrystalline Photovoltaic Module
Overview
- High efficiency solar cells with quality silicon material for high module conversion efficiency and long term output stability and reliability.
- Rigorous quality control to meet the highest international standards.
- High transmittance, low iron tempered glass with enhanced stiffness and impact resistance.
- Unique frame design with strong mechanical strength for up to 50 lbs/ft2 wind load and snow load withstanding and easy installation.
- Advanced encapsulation material with multilayer sheet lamination to provide long-life and enhanced cell performance.
- Outstanding electrical performance under high temperature and weak light environments.
- Built in blocking diodes prevent reverse current flow.
Applications
Emergency Backup, RVs, Pumps, Gates, Electric Fences, Lighting, 12 Volt Battery Charging and much more.
Warranty
- 5 year limited product warranty on materials and workmanship.
- 25 year warranty on >80% power output and 10 year warranty on >90% power output.
- Refer to warranty document for detailed warranty information.
Mechanical Specifications
note: module dimensions may have +/- 1% variance
| Characteristic Details |
| Cell Size 156mm x 104mm (6.14” x 4.40”) |
| Module Dimension (L x W x T) 1020mm x 670mm x 35mm (40.16” x 26.37” x 1.38”) |
| No. of Cells 36 |
| Weight 8.2 kg (18.11 lbs) |
| Cable Length 900mm for positive (+) and negative (-) |
| Type of Connector MC-IV comparable |
| Junction Box IP65 Rated |
| No. of Holes in Frame 4 installation holes |
Electrical Specifications
(STC* = 25 ºC, 1000W/m2 Irradiance and AM=1.5)
| Model GS-STAR-100W |
| Max system voltage (IEC/UL) 1000V/600V |
| Maximum Powe Pmax 100 W* (0%, +6%) |
| Cell type Poly silicon |
| Voltage at Maximum Power Point Vmpp 18.0 V |
| Current at Maximum Power Point Impp 5.56 A |
| Open Circuit Voltage Voc 21.9 V |
| Short Circuit Current Isc 6.13 A |
| Module Efficiency (%) 14.63% |
| Temperature Coefficient of Voc -0.32% /ºC |
| Temperature Coefficient of Isc +0.04% /ºC |
| Temperature Coefficient of Pmax -0.45% /ºC |

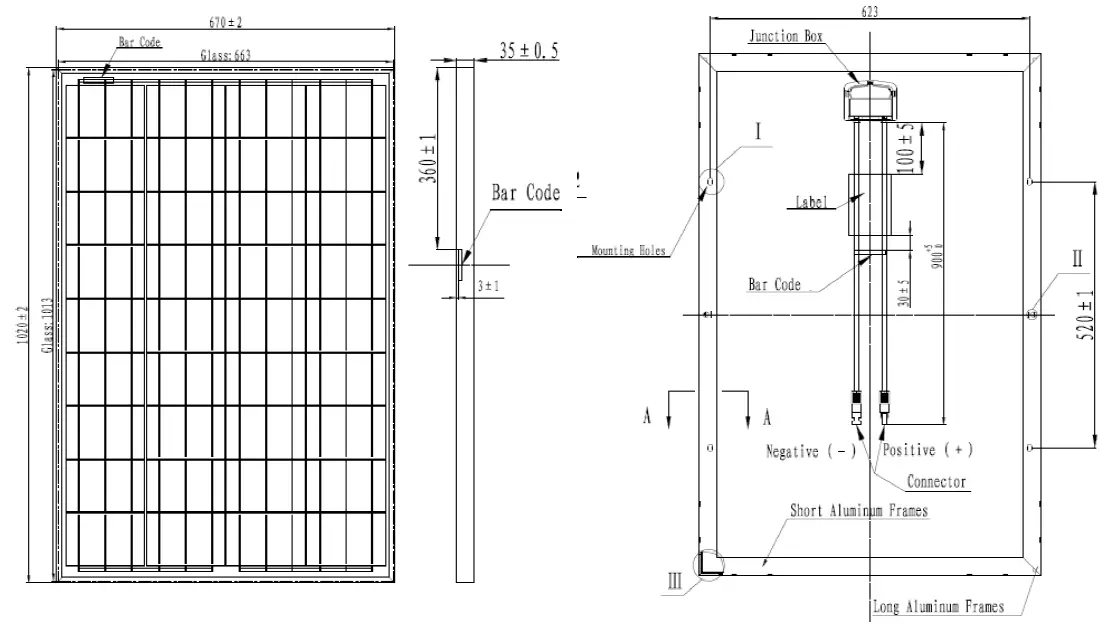

Physical Specifications mm
| Other Performance Data |
| Power Tolerance Operating Temperature Max Series Fuse Rating NOCT* |
| 0%, +6% -40 ºC to +85 ºC 10A 45 +/-2ºC |
