M115
WATERPROOF WIRELESS SPEAKER
USER MANUAL

Dear BUGANI Customer

Thank you for choosing an BUGANI product. Please read through the instruction manual carefully before starting to use the device. It’s imperative you observe all of the information. Please keep the manual in a safe location.

WHAT’S INCLUDED

• M115 Wireless Speaker ————————- 1PC
• Micro USB Charging Cable ——————– 1PC
• User Manual —————————————1PC

PRODUCT FEATURES

• Soft Silicone Material, Comfortable Wearing & Easy to Carry
• High Quality Crystal Clear Sound
• Immersive listening, Hands-Free
• IPX5 Waterproof, Sweat-Proof
• Latest Wireless Technology
• Built-in Polymer Battery, Long Battery Life

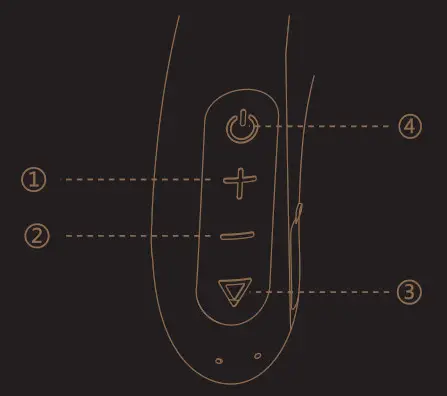

DIAGRAM OF CONTROLS

• Short press: Volume up ,Long Press:next song.
• Short press: Volume down,Long Press:previous song
• Pause/play/Answer,Long press to disconnect Bluetooth connection
• Long press: Power on and off
  Short press: mode switch (Bluetooth/TF Card).


TECHNOLOGY SPECIFICATION

• Model No: M115
• Battery Capacity: 3.7V/800 mAh
• Speaker Impedance: 40
• Sensitivity: 82*3dB
• Output Power: 3Wx2
• Speaker Unit Size: 1.2”x2
• Product Size: 235x210x60mm

CHARGING SPEAKER

NOTE:

Before you start using the speaker for the first time, it’s a good idea to charge it completely.

1. Open the flap, plug the included USB charging cable into the DC input jack behind this flap. Plug the other end of the USB charging cable into a
   power source (like a computer or a USB charging adapter).
2. The charging indicator is on while the speaker is charging. It turns off when the speaker is fully charged.

WIRELESS MODE

1. Press and hold “ ” to turn speaker on, when you hear an audio signal; make sure the LED indicator is blinking. (If it isn’t, switch the speaker off and on again.)
2. M115 is ready to pairing, usually set the steps to enter the “Setting” -> “Bugani M115”, (If it’s not in the list, choose “Scan” from your phone’s menu.)
3. Once paired successfully, the LED indicator turns white and the speaker gives an audio signal.

Note:

1. If the speaker is in low power, it may not be connected to your phone or other devices, please charging immediately before using.
2. The process of enabling wireless and connecting varies from device to device. See your device’s user manual for more information and specific instructions.
3. he wireless connection works up to a range of roughly 33 feet (10m). This range may vary, however, based on other factors, such as room layout, wall material, obstacles, your device’s wireless performance, etc. If you’re having problems connecting to this speaker, move closer to it.
4. Press and hold “ ” for about 3 seconds todisconnect wireless pairing.

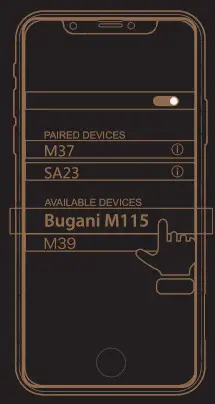

WIRELESS PAIRING DIAGRAM

PLAYING MUSIC

1. Set your device’s volume for music under 50%.
   Note: This is to make sure the sound from the speaker isn’t too loud when you start streaming.
2. Connect this wireless speaker to your device or insert a TF card, within seconds, the speaker starts streaming audio.
3. Short press the “+”/”-” buttons to increase/decrease the volume.
4. Press and hold the “+”/”-” buttons for about 2-3 seconds to select the next/previous track.

HANDS-FREE SPEAKING

1. Short press “ ” to take a call, music playback will be automatically interrupted.
2. Short press “ ” again to end the call, playback will be continued.
3. Press and hold “’ ” to reject a call.
   Important: Not all support playback control and phone answer/end control. Please check your phone’s user manual for more information if you’re having trouble with these functions.

TF/MICRO SD CARD MODE

Note: When the TF card is inserted, it will automatically turn on TF card mode, Short press “” to switch to wireless mode.

CARE AND MAINTENANCE

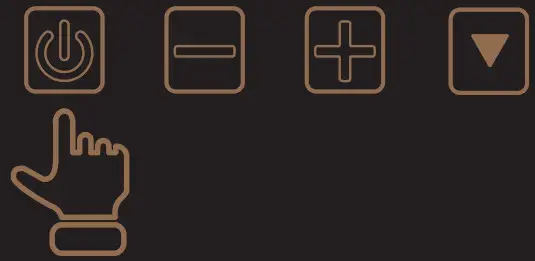

1. When you are not using it, press and hold “” to turn off the device, to make sure that it is properly protected.

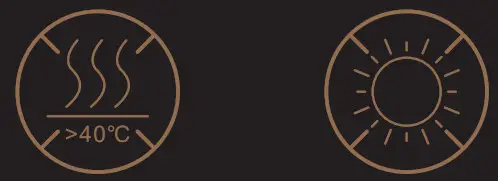

2. Do not operate or store the system in extreme temperatures (below 32ºF/0ºC and above 112ºC).

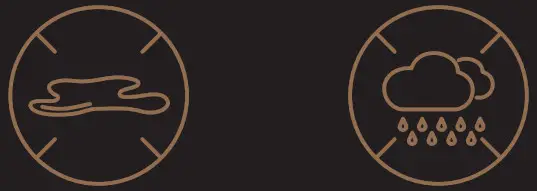

3. If the speaker are used outside on a deck or patio, make sure you take them indoors in the event of a rainstorm to prevent possible damage.


LIMITED WARRANTY

The Warranty of BUGANI products that it will furnish a replacement or repair any part which proves(upon inspection by BUGANI) to be defective under normal use within 18 months of the original purchase date.

This warranty does not apply to appearance items, accessories in the human damage caused by leaking batteries. It also does not apply to the product, or to any part thereof, that has been damaged through misuse or negligence.

Furthermore, this warranty will become invalid, in the judgment of BUGANI products or any parts has been installed incorrectly, repaired, or altered by other than BUGANI Service department.

This warranty gives you specific legal rights and you may also have other rights which very from state to state. Some states do not allow the exclusion or limitation of incidental or consequential damages or limitation incidental or consequential damages or limitations on how long an implied warranty lasts, so the above exclusions and limitations may not apply to you.

For Service, Warranty, or Product Information,
Please contact : [email protected]

PLEASE SAVE THIS CARD TOGETHER WITH ORIGINAL DATED PROOF OF PURCHASE FOR YOUR RECORDS AND FOR CUSTOMER SERVICE.
