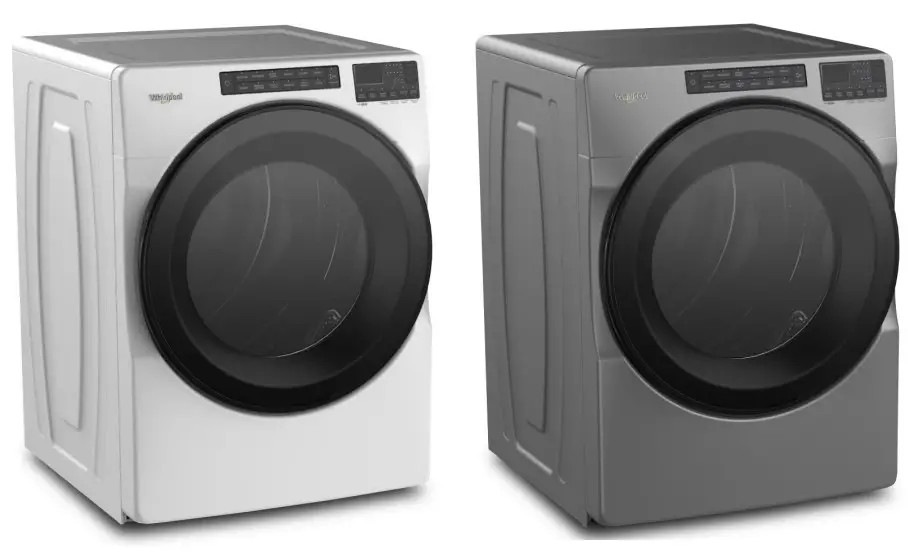

Whirlpool WED5605MW Electric Gas Wrinkle Shield Dryer with Steam User Manual
DETAILED PLANNING DIMENSIONS
WARNING: To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS and INSTALLATION INSTRUCTIONS, located in your appliance’s Owner’s Manual, before installing and operating this appliance.
| Electrical Requirements | ||
| Fuel Type | Electric | Gas |
| Minimum Circuit Amperage Rating | 30 A | 15 A |
| Maximum AMP Draw | 24 A | 6 A |
| Operating Voltage | 240 V AC only230 V AC only (Canada) | 120 V AC only |
| Operating Frequency | 60 Hz | |

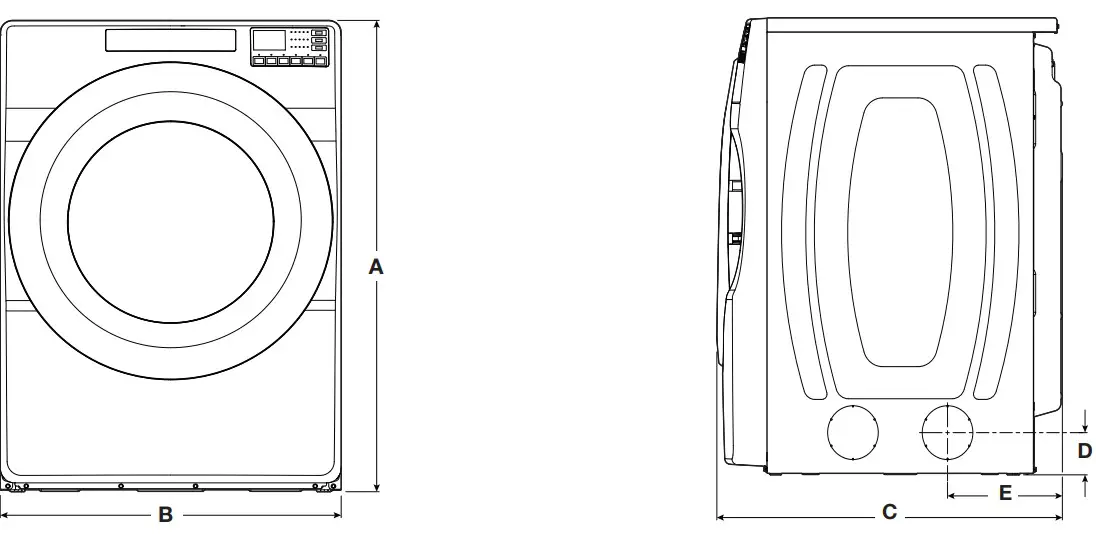

| Product Dimensions | |||||
| in (min) | in (max) | mm (min) | mm (max) | ||
| A | Height (with feet) | 381∕8 | 39 | 968 | 989 |
| B | Width | 27 | – | 686 | – |
| C | Depth | 305∕8 | – | 778 | – |
| D | Side Vent Height (feet min) | 31∕2 | 43∕8 | 89 | 111 |
| E | Side Vent (from back) | 103∕16 | – | 258 | – |

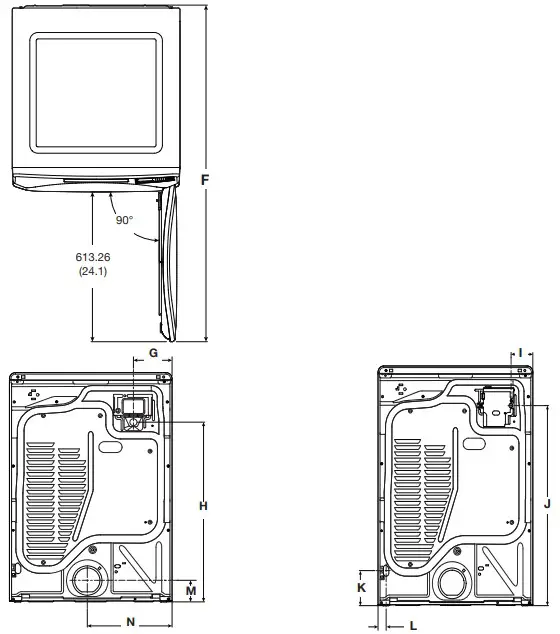

| Product Dimensions | |||||
| in (min) | in (max) | mm (min) | mm (max) | ||
| F | Depth with Door Open | 545∕16 | – | 1,378 | – |
| G | Strain Relief from Side (elec) | 63∕8 | – | 163 | – |
| H | Strain Relief Height (elec) | 297∕8 | 3011∕16 | 759 | 780 |
| G | Power Cord from Side (Canadian) | 63∕8 | – | 163 | – |
| H | Power Cord Height (Canadian) | 297∕8 | 3011∕16 | 759 | 780 |
| Power Cord Length (Canadian) | 533∕8 | – | 1,356 | – | |
| I | Power Cord from Side (gas) | 313∕16 | – | 96 | – |
| J | Power Cord Height (gas) | 3113∕16 | 3211∕16 | 808 | 829 |
| Power Cord Length (gas) | 72 | – | 1,828 | – | |
| K | Gas Valve Height | 55∕8 | 63∕8 | 142 | 163 |
| L | Gas Valve from Side | 13∕8 | – | 36 | – |
| M | Exhaust Duct Height | 31∕2 | 43∕8 | 90 | 111 |
| N | Exhaust Duct from Side | 141∕8 | – | 358 | – |

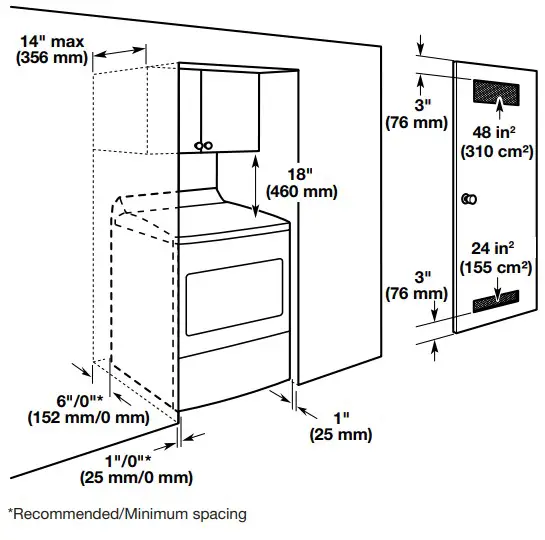

Spacing for recessed area or closet installation
The dimensions shown are for the recommended spacing allowed
- Additional spacing should be considered for ease of installation and servicing.
- Additional clearances might be required for wall, door, and floor moldings.
- Additional spacing of 1″ (25 mm) on all sides of the dryer is recommended to reduce noise transfer.
- For closet installation, with a door, minimum ventilation openings in the top and bottom of the door are required. Louvered doors with equivalent ventilations openings are acceptable.
- Companion appliance spacing should also be considered.
®/TM ©2022 Whirlpool. All rights reserved. Used under license in Canada.
