Shell Recharge Dynamic Power Management
Extended manual
For more information see the extended manual online: shellrecharge.com/installer.
Quick Installation
Disclaimer
This document is the Quick Installation Guide of the DPM for Business product. Use the QR code or URL to see the comprehensive online installation manual. Installation must only be carried out by a trained and certified technician who has fully read and understood the contents of this document and the comprehensive manual and is familiar with this type of electrical installation.
DANGER!
Always make sure that the power supply is shut off before installing the product or performing maintenance. Installation with a live power supply can result in severe injury or even death.

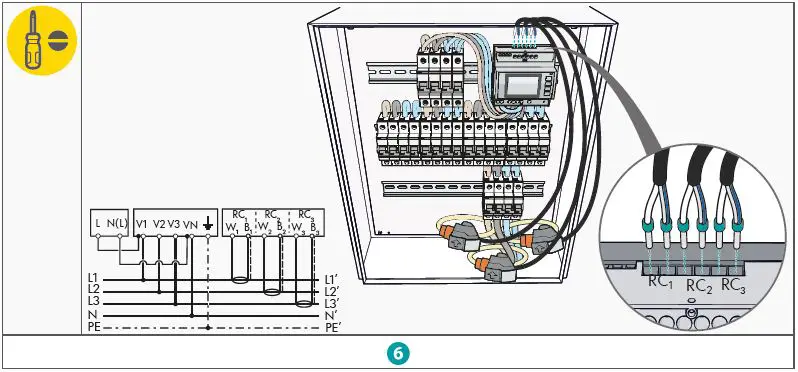

Wiring
DPMBSR21QIG01 | 02/2022
Manufactured by:
Shell EV Charging Solutions B.V. Rigakade 20, 1013 BC | Amsterdam, The Netherlands +31880109500 | www.shellrecharge.com.
