Whirlpool W11567358B Top Loading Washing Machine User Guide
OPERATING INSTRUCTIONS

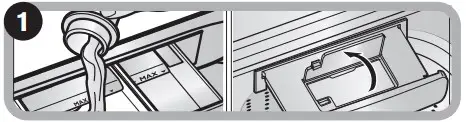

Add HE Detergent & Laundry Products to Dispenser then close the dispenser drawer.
Sort & Load Laundry then close the door
Touch Power to Turn On the Washer.
Select the Desired Cycle for your Load.
Adjust Cycle Setting.
Select Additional Options.
Touch and Hold Start/ Pause to Begin Cycle.
CHOOSING THE RIGHT CYCLE
NOTE : Normal cycle with Warm water is recommended for cottons, linens and mixed-garment loads.

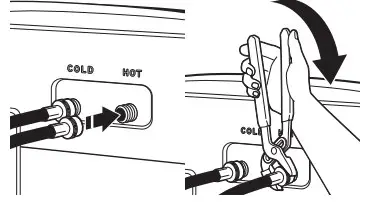

CONNECT INLET HOSES
Attach hot water hoses to hot water inlet valve and cold water hoses to cold water inlet valve. Do not overtighten hose or use tape or sealants on valve. Damage to the valves or property can result.

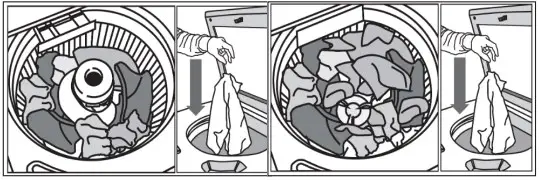

LOADING RECOMMENDATIONS
For best performance, load items by dropping them in loose heaps evenly around the wash plate and agitator. Do not lay items lengthwise.
WARNING
Fire Hazard
Never place items in the washer that are dampened with gasoline or other flammable fluids. No washer can completely remove oil. Do not dry anything that has ever had any type of oil on it (including cooking oils). Doing so can result in death, explosion, or fire.
WARNING: To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS, located in your appliance, before operating this appliance.
WARNING: To reduce the risk of fire, electric shock, or injury to persons, read the INSTALLATION & CARE INSTRUCTIONS GUIDE online, before installing this appliance.
WARNING: Do not wash water-resistant or water repellant-type clothing. Failure to closely follow these instructions may result in an abnormalvibrating and out-of-balance condition that could result in physical injury, property damage and/or appliance damage

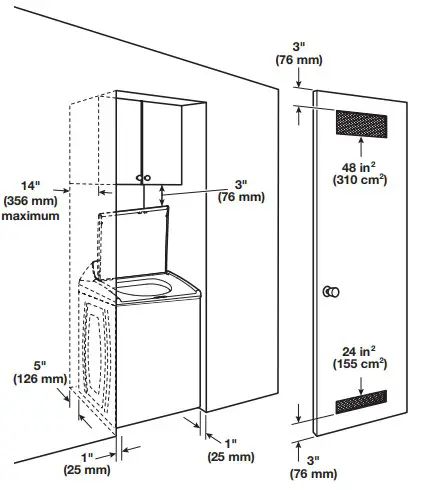

PREFERRED CLOSET CLEARANCES
ONLINE INFORMATION
To access the full cycle guide, detailed product dimensions, warranty details, visit https://www.whirlpool.com/owners (USA), or https://www.whirlpool.ca/owners (Canada). This may save you the cost of a service call. To receive a free printed copy of the information online, call us TEL 1-866-696-2538 (USA) /
TEL 1-800-807-6777 (Canada) or write to us at:
