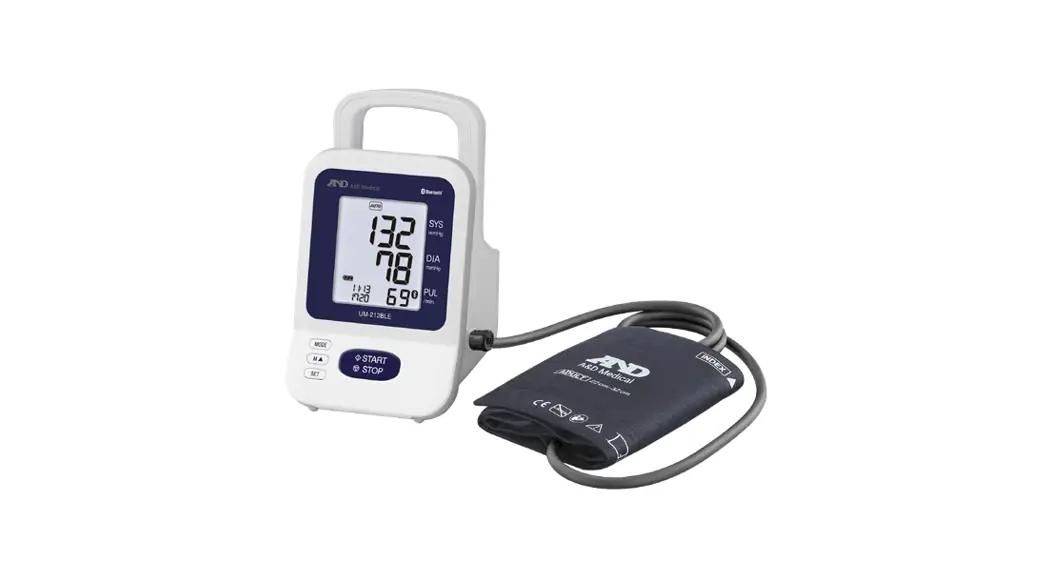

And Um-212ble Um-series Professional Blood Pressure Monitors Owner's Manual (+ PDF)

Home » Blog » And Um-212ble Um-series Professional Blood Pressure Monitors Owner's Manual

UM-212BLE UM-Series Professional Blood Pressure Monitors
Owner’s Manual

Contents hide

1 UM-212BLE UM-Series Professional Blood Pressure Monitors

2 Multiple Measurement Function (AOBP Modes)

3 Auscultatory mode

4 Specifications

5 Documents / Resources

5.1 References

6 Related Posts

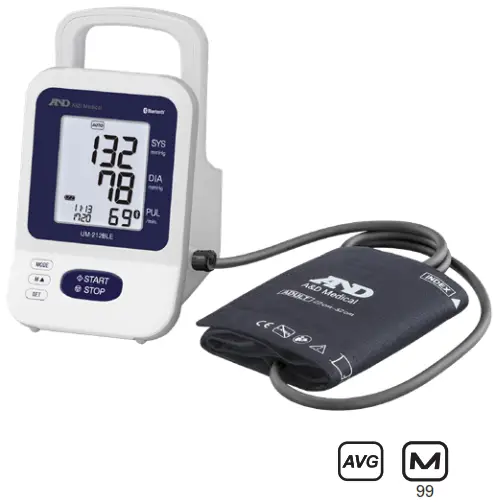

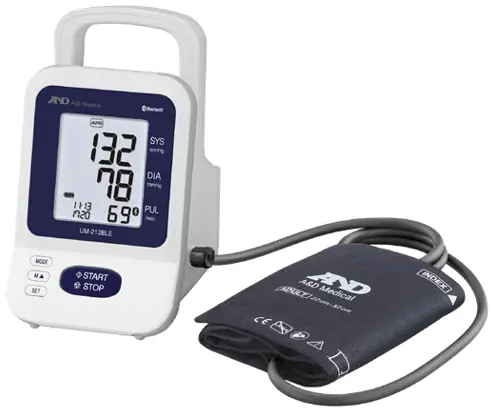

UM-212BLE UM-Series Professional Blood Pressure Monitors

The electronic medical blood pressure monitor UM-212BLE is ideal for use at medical sites such as hospitals, clinics, and nursing care facilities. Upper-arm electronic medical blood pressure monitors are recommended as an alternative to mercury-column blood pressure monitors.

Includes functions for auscultation, automatic, and multiple measurement functions
Bluetooth Low Energy (Ver.4.1)
Up to 15 units can be registered with multi-pairing
Cuff holder and grip for carrying
Durable and chemical resistant body

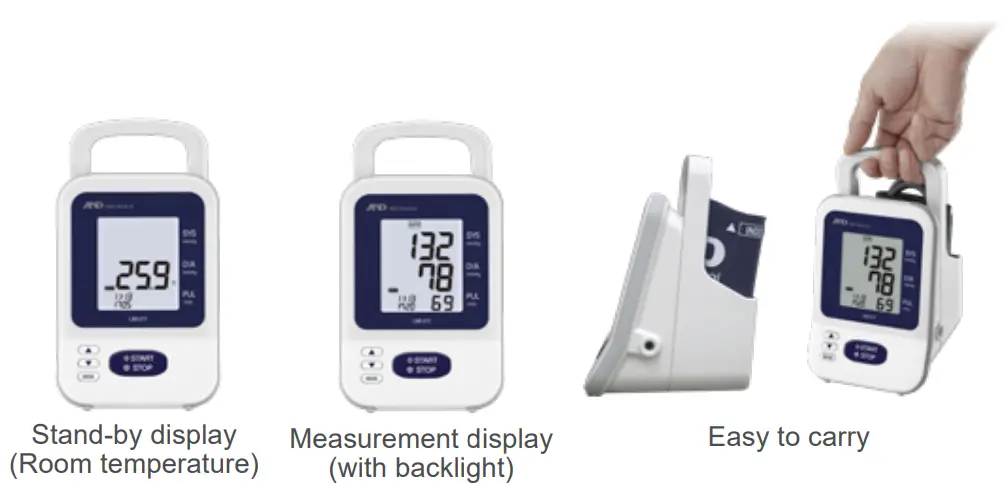

Professional cuff and 5 cuff sizes are available for use Large LCD display with backlight
Rechargeable battery (300 measurements at full charged)
Adjustable inflation pressure (AUTO/220/250/280)
Irregular heartbeat indicator (IHB)
Room temperature display

Note: Product specifications are subject to change without notice for improvement purposes.
A multiple average measurement mode recommended by the guidelines.
ESC/ESH Guideline 2018 > 4 Blood pressure measurement
Three BP measurements should be recorded, 1–2 min apart, and additional measurements only if the first two readings differ by >10 mmHg. BP is recorded as the average of the last two BP readings.
ACC/AHA Guideline 2017 > 4 Measurement of BP
Because individual BP measurements tend to vary in an unpredictable or random fashion, a single reading is inadequate for clinical decision-making. An average of 2 to 3 BP measurements obtained on 2 to 3 separate occasions will minimize random error and provide a more accurate basis for estimation of BP.

Multiple Measurement Function (AOBP Modes)

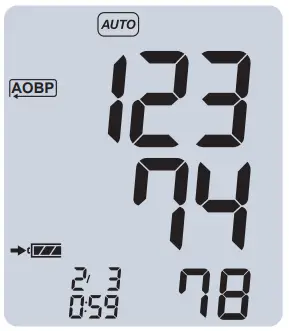

After the resting time has elapsed, multiple measurements are made at specified time intervals.

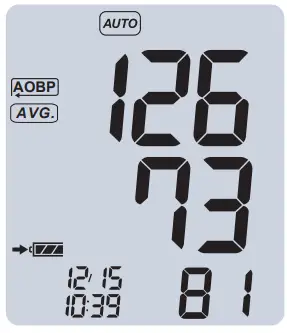

After the measurement is completed, the average value is displayed.

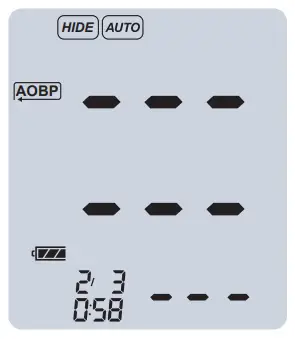

HIDE Function

Measured values are not displayed when HIDE is set.

UM-211 Mercury-Free
Professional Blood Pressure Monitors

The UM-211 automated office blood pressure monitor provides your office with a consistent, highly accurate and reliable blood pressure measurement tool. Its features and durability are designed to meet the needs of in-clinic or office settings.

Dual measurement mode (Auscultatory and Oscillometer)
Cuff holder and grip for carrying
Durable and chemical resistant body
Professional cuff and 5 cuff sizes are available for use
Large LCD display with backlight
Rechargeable battery (300 measurements at full charged)
Adjustable inflation pressure (AUTO/220/250/280)
Irregular heartbeat (IHB) indicator
Room temperature display

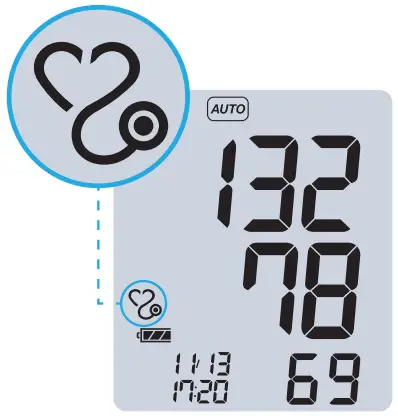

Auscultatory mode

UM-Series’ auscultatory mode is designed for daily and frequent use. Selectable deflation speed (2.5 mmHg/sec. or 5.0 mmHg/sec.) and quick start for auscultatory mode are features `Only from A&D’.

Quick Start
Just pressing START + MODE button.
Selectable Deflation Speed
2.5 mmHg/Sec. or
5.0 mmHg/Sec.

Specifications

Model Name UM-211/UM-212BLE

Measurement method	Oscillometer measurement and Auscultatory measurement with stethoscope
Measurement range	Pressure:0 mmHg – 299 mmHg
Measurement accuracy	Pulse:40-200 beats/minute Pressure:±3 mmHg, Pulse:±5 %
Power supply	AC 100 V – 240 V (Rechargeable Battery)
Battery life	Approx. 300 measurements
Memory storage	Last 99 measurements
Operating conditions	+5 ˚C to 40 ˚C 10 %RH to 85 %RH 800 hPa to 1060 hPa
Transport/Storage conditions	-20 ˚C to +60 ˚C / 10 %RH to 95 %RH
Dimensions	Approx. 120<W> x 200<H> x 140<D> mm
Weight	Approx. 550 g (Unit without Bat tery)

Option

REF:	Option Name
UM-LLRS4K1KEC	LL Cuff (41 cm – 50 cm)
UM-LARS4K1KEC	Large Cuff (31 cm – 45 cm)
UM-AURS4K1KEC	Adult Cuff (22 cm – 32 cm)
UM-SARS4K1KEC	Small Adult Cuff (16 cm – 24 cm)
UM-SSRS4K1KEC	SS Cuff (12 cm – 17 cm)
UM-211-20	Battery Pack
TB-268	AC Adapter
KO1886/7/8/9	AC Cable (A/C/BF/O Plug)
UM-ST002	Mobile Stand for UM-211

Standard accessories

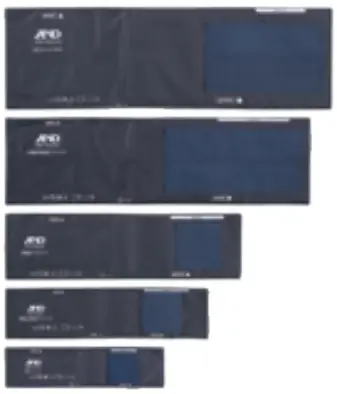

Option cuff (5 sizes)

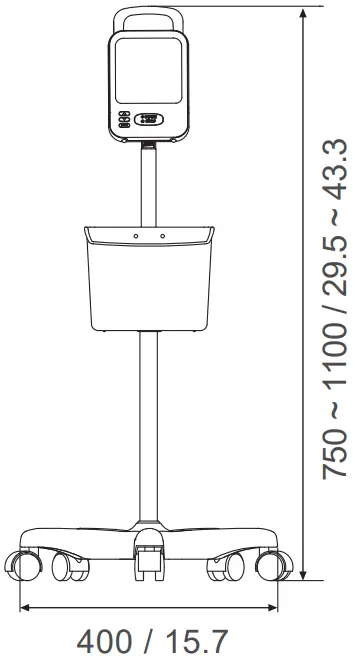

External dimensions(mm/inches) with optional stand UM-ST002

A&D Company Limited.(JAPAN)
URL: aandd.jp
A&D ENGINEERING, INC.(USA)
URL: andonline.com
A&D Instruments Canada Inc.(CANADA)
URL: autocontrol.com
A&D INSTRUMENTS LIMITED(United Kingdom)
URL: andprecision.com
A&D AUSTRALASIA PTY LTD(Australia)
URL: andaustralasia.com.au
A&D RUS CO., LTD.(Russia)
URL: and-rus.ru
A&D Technology Trading(Shanghai)Co., Ltd(China)
URL: aanddtech.cn
A&D INSTRUMENTS INDIA PRIVATE LIMITED(India)
URL: aanddindia.in
*UM211+UM212-ADCC-01-AD01-23700
