Easy@home Digital Blood Pressure Monitor User Manual

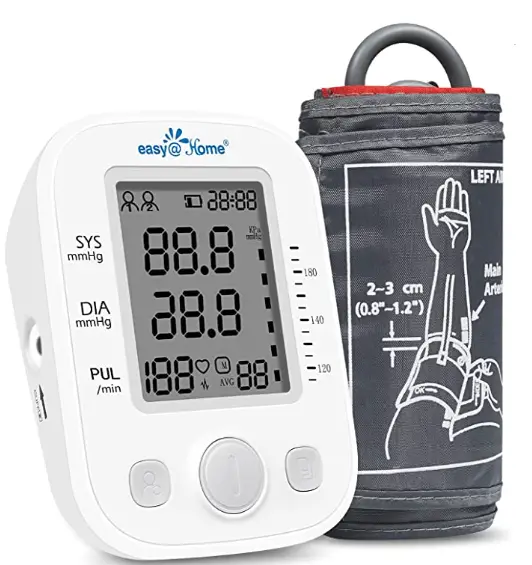

Easy@Home Digital Blood Pressure Monitor

INTRODUCTION

General Description

Thank you for selecting arm type blood pressure Monitor (EBP-095). The monitor features blood pressure measurement, pulse rate measurement and the result storage. The design provides you with two years of reliable service.
Readings taken by the EBP-095 are equivalent to those obtained by a trained observer using the cuff and stethoscope auscultation method.
This manual contains important safety and care information, and provides step by step instructions for using the product. Read the manual thoroughly before using the product.

Features:

• 60mm*80mm Digital LCD display
• Maximum 60 records
• Measuring during inflation technology

Safety Information

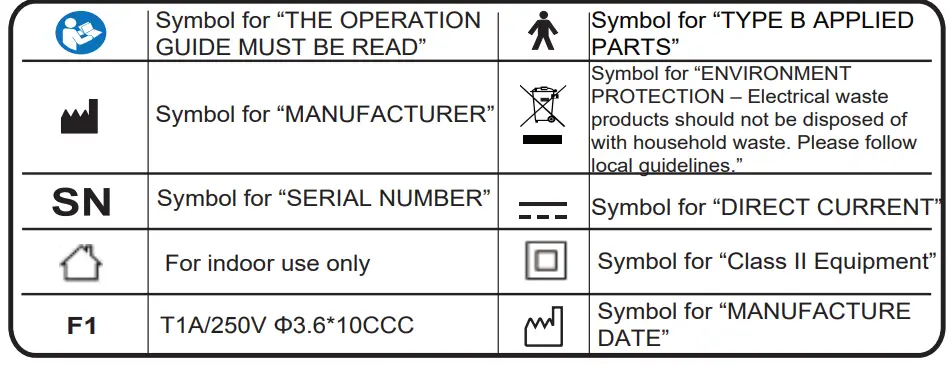

The signs below might be in the user manual, labeling or other component. They are the requirement of standard and using.

CAUTION

• This device is intended for adult use only.
• This device is intended for non-invasive measuring and monitoring of arterial blood pressure. It is not intended for use on extremities other than the wrist or for functions other than obtaining a blood pressure measurement.
• Do not confuse self-monitoring with self-diagnosis. This unit allows you to monitor your blood pressure.Do not begin or end medical treatment without asking a physician for treatment advice.
• If you are taking medication,consult your physician to determine the most appropriate time to measure your blood pressure. Never change a prescribed medication without consulting your physician.
• If the cuff pressure exceeds 40 kPa (300 mmHg),the unit will automatically deflate. Should the cuff not deflate when pressures exceeds 40 kPa (300 mmHg),detach the cuff from the arm and press the START/STOP button to stop inflation.
• To avoid measurement errors, carefully read this manual before using the product.
• The equipment is not AP/APG equipment and not suitable for use in the presence of a flammable anesthetic mixture with air of with oxygen or nitrous oxide.
• The operator shall not touch output of batteries/AC adapter and the patient simultaneously.
• Do not wind air tube in the neck.
• Please use ACCESSORIES and detachable partes specified/ authorised by MANUFACTURE.
• Otherwise, it may cause damage to the unit or danger to the user/patients.
• Please note that Luer lock connectors are not used on the product and please DO NOT change any provided connectors.
• The manufacturer will make available on request circuit diagrams, component parts list etc.

WARNING

• No modifications of this equipment is allowed.
• This unit is not suitable for continuous monitoring during medical emergencies or operations.
• Otherwise, the patient’s arm and fingers will become anesthetic, swollen, and even purple due to a lack of blood.
• Please use the device under the environment which was provided in the user manual. Otherwise, the performance and lifetime of the device will be impacted and reduced.
• During use, the patient will be in contact with the cuff. The materials of the cuff have been tested and found to comply with the requirements of ISO 10993-5:2009 and ISO 10993-10:2010. It will not cause any potential alergic reaction or contact injury.
• The device doesn’t need to be calibrated within the two years of reliable service.
• Please dispose of ACCESSORIES, detachable parts, and the ME EQUIPMENT according to the local guidelines.
• When the device was used to measure patients who have common arrhythmias such as atrial or ventricular premature beats or atrial fibrillation, the best result may occur with deviation.
• This device may provide contradictory results for any female subject who may be suspected of, or is pregnant. Besides providing inaccurate readings, the effects of this device on the fetus are unknown.
• The device has been evaluated clinically using manual cuff/stethoscope auscultation as the reference. Blood pressure measurements determined with this device are equivalent to those obtained by a trained observer using the cuff/stethoscope auscultatory method, within the limits prescribed by the American National Standard, Manual, electronic, or automated sphygmomanometers.”
• If you have any problems with this device, such as setting up, maintaining or using, please contact the SERVICE PERSONNEL of . Don’t open or repair the device by yourself.
• Please report to if any unexpected operation or events occur.

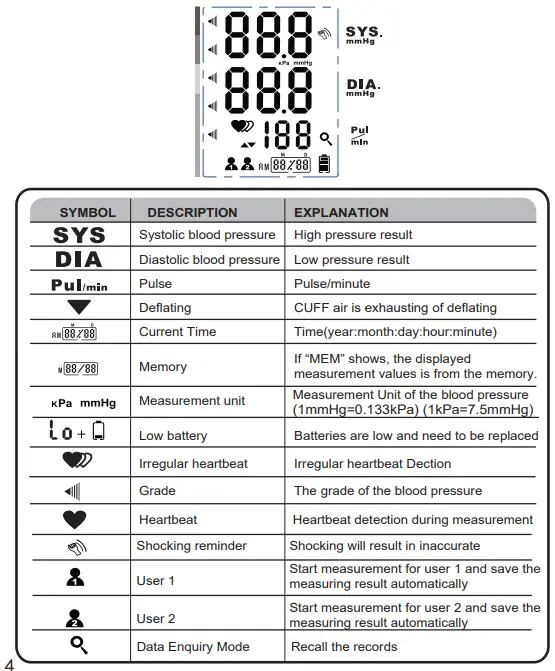

LCD Display Signal

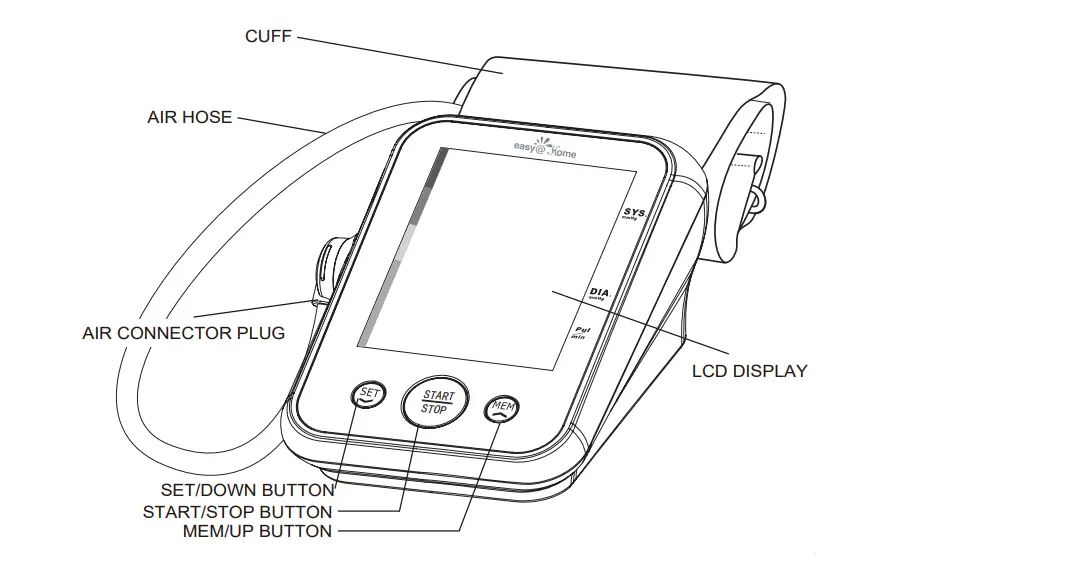

Monitor Components

Component list of the pressure measuring system

1. Cuff
2. Air pipe
3. PCBA
4. Pump
5. Valve

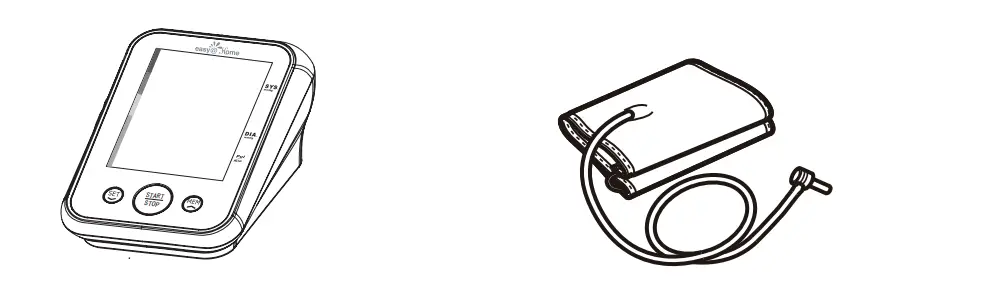

List

1. Blood Pressure Monitor (EBP-095)
2. Cuff (22cm~32cm) (Type B applied part)
3. 4*AA Batteries
4. User manual

BEFORE YOU START

The Choice of Power Supply
In order to get the best effect and protect your monitor, please use the right battery and special power adaptor.

1. Battery-powered mode: 6VDC 4*AA batteries
2. This unit has an optional AC Power adaptor which is available as an accessory. Only use the AC adaptor with the below specification (not included).Input：100-240VAC 50/60Hz 0.3A Max

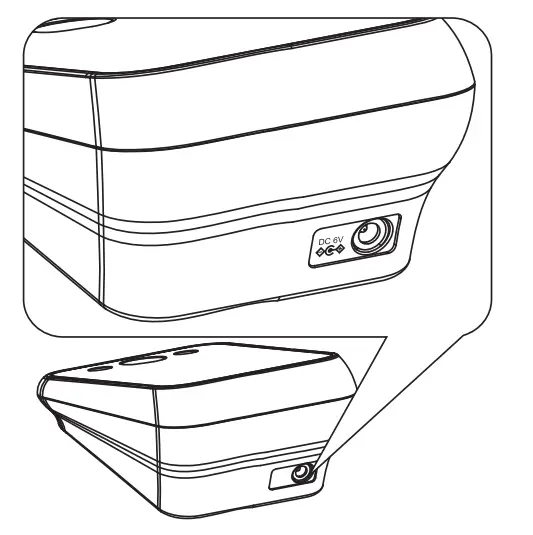

   Output：6V 1000mA ( Conforms to UL certificate )Right picture is the hole in for power adaptor.
   CAUTION
   In order to get the best effect and protect your monitor,please use the right battery and special power adaptor.

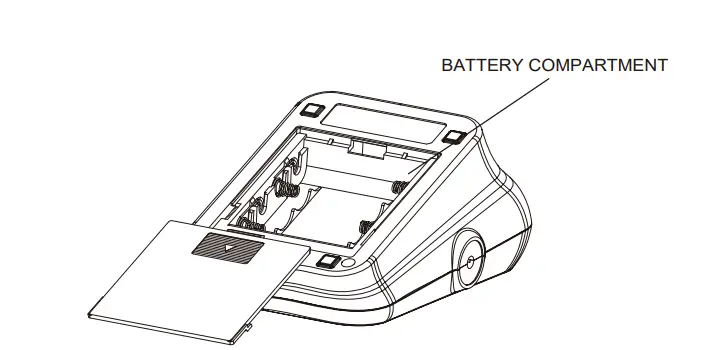

Installing and Replacing the Batteries

1. Slide off the battery cover.
2. Install the batteries by matching the correct polarity, as shown.
3. Replace the cover.

Replace the batteries whenever the below happen

• The shows
• The display dims
• The display does not light up

CAUTION

Remove batteries if the device is not likely to be used for some time.
The old batteries are harmful to the environment, so please do not dispose with other daily trash.
Remove the old batteries from the device and follow your local recycling guidelines.
Do not dispose of batteries in fire. Batteries may explode or leak.

Setting Date, Time and Measurement Unit

It is important to set the clock before using your blood pressure monitor so that a time stamp can be assigned to each record that is stored in the memory. (year :2011—2050 time format:12 H)

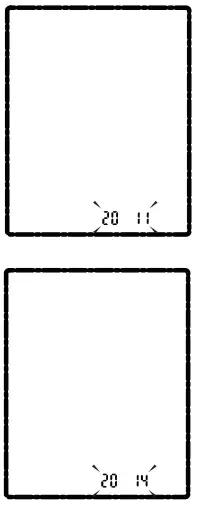

1. when the unit is off, hold “SET” for 3 seconds to enter the mode for the year setting.
2. Press the “MEM” to change the [YEAR]. Each press will increase the numeral by one in a cycling manner.
3. When you get the right year, press “SET” to confirm, and it will divert to the [MONTH] setting.

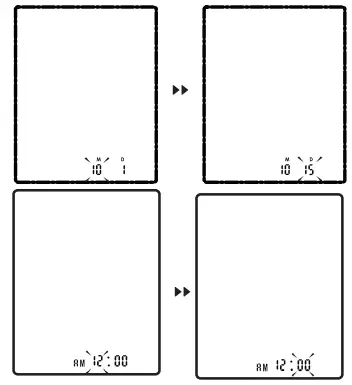

4. Repeat steps 2 and 3 to set the [MONTH] and [DAY].
5. Repeat steps 2 and 3 toset the [HOUR] and [MINUTE].

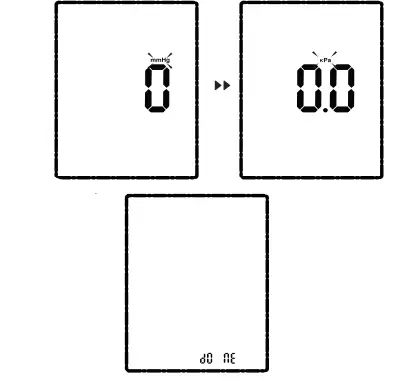

6. After the [MEASUREMENT UNIT] is set,the LCD will display “dOnE”, and then turn off.
7. Repeat steps 2 and 3 to set the [MEASUREMENT UNIT].

MEASUREMENT

Tie the Cuff

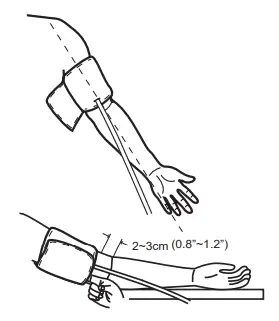

1. Tie the cuff on your upper arm, then position the tube off-center toward the inner side of arm in line with the little finger.
2. The cuff should be snug but not too tight. You should be able to insert one finger between the cuff and your arm.

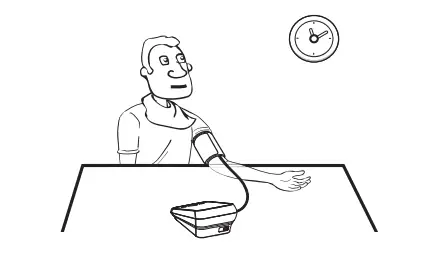

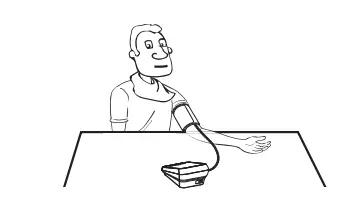

3. Sit comfortably with your arm resting on a flat surface.
4. Patients with Hypertension should sit with the correct posture.
   • Bare your arm or wear tights only when starting measurement.
   • Sit comfortably with legs uncrossed, feet flat on the floor, back and arm supported.
     The center of the cuff should be at the same level as the right atrium of the heart.

• Rest For 5 minutes before measuring.
• Wait at least 3 minutes between measurements. This allows your blood circulation to recover.
• For a meaningful comparison, try to measure under similar conditions. For example, take daily measurements at approximately the same time, on the same wrist, or as directed by a physician.

Start the Measurement

Before you start the measurement, please press the SET button to choose either User 1 or User 2 as the User ID. When the desired User ID is shown, press START/STOP button to confirm the User ID.

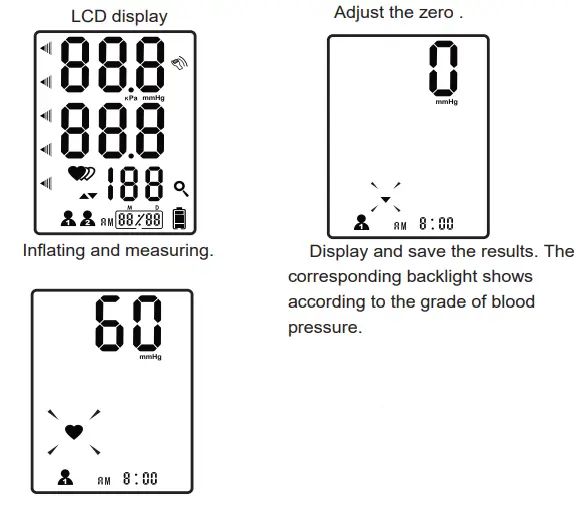

1. After selecting the user, press the “START/STOP” to start measurement, and it will finish the whole measurement for the selected user.
   Take User 1 for example
2. Press “SET”, “MEM” or “START/STOP” button to power off, otherwise it will turn off within 1 minute

DATA MANAGEMENT

Recall the Records

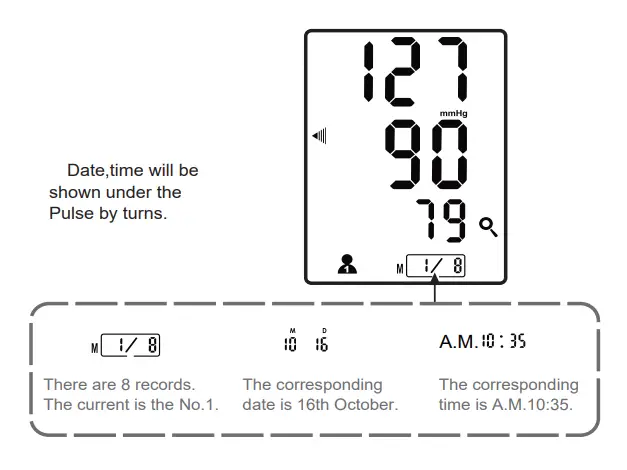

1. When the monitor is off, please press the “MEM” to show the average value of the latest three records.
2. Press MEM button or SET button to rotate the records. Up to 60 records will be stored under each user ID.
3. If you want to check another user’s records, press the START/STOP button to turn off the monitor when it is in the memory recall mode. Then press SET button, the user icon will be shown, press “SET” button to select the desired user ID, and press the “MEM” button to review the selected user’s records.
4. Press the START/STOP button to turn off the monitor. Otherwise, the monitor will shut off within 1 minute after last operation.
   CAUTION
   The most recent record (1) is shown first. Each new measurement is assigned to the first (1) record. All other records are pushed back one digit (e.g., 2 becomes 3, and so on), and the last record (60) is dropped from the list.

Delete the Records

If you did not get the correct measurement, you can delete all
results for the selected user by the following steps below.

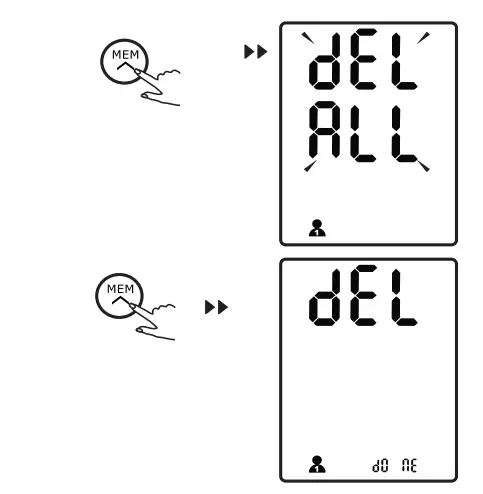

1. Hold “MEM” for 3 seconds when the monitor is in th  memory mode ,then “dEL ALL” will show.
2. Press “MEM” to confirm deleting and the monitor will turn off.
3. If you don’t want to delete the records, press “START/STOP” button or “SET” button to escape.
4. If there is no record. the right display will show when recalling the record.

INFORMATION FOR USER

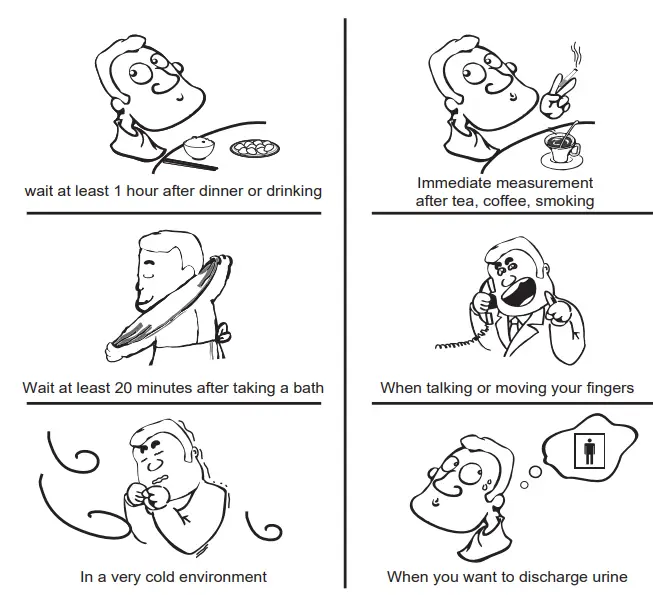

Tips for Measurement

Measurements may be inaccurate if taken in the following circumstances.

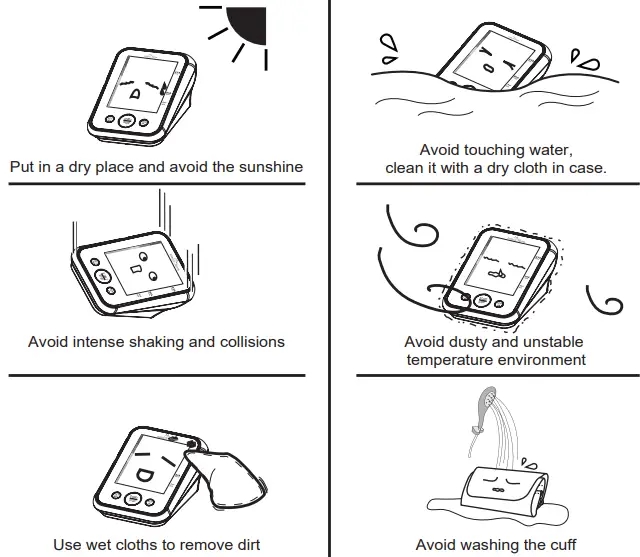

Maintenance

In order to get the best performance, please follow the instructions below.

ABOUT BLOOD PRESSURE

TROUBLESHOOTING

This section includes a list of error messages and frequently asked questions for problems you may encounter with your blood pressure monitor. If the products not operating as you think it should check here before arranging for servicing.

SPECIFICATIONS

AUTHORIZED COMPONENTS

1. please use the authorized adapter. (Not Included)
2. Storage bag.
   Adapter
   Input：100-240VAC 50/60Hz 0.3A Max
   Output：6V 1000mA ( Conforms to UL certificate )

Contact Information

For more information about our products, please visit  or call Customer 1-866-822-6999 M-F 9 a.m.-5 p.m.CST.usual problems and customer download will serve you anytime.

COMPLIED STANDARDS LIST

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. this device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

EMC GUIDANCE

Table 1 Guidance and MANUFACTURER’s declaration – ELECTROMAGNETIC EMISSIONS- for all ME EQUIPMENT and ME SYSTEMS

Table 2 Guidance and MANUFACTURER’s declaration – electromagnetic
IMMUNITY – for all ME EQUIPMENT and ME SYSTEMS

Table 4 Guidance and MANUFACTURER’s declaration – electromagnetic IMMUNITY –for ME EQUIPMENT and ME SYSTEMS that are not LIFE-SUPPORTING

Table 6 Recommended separation distances between portable and mobile RF communications equipment and the ME EQUIPMENT or ME SYSTEM –for ME EQUIPMENT and ME SYSTEMS that are not LIFE-SUPPORTING

FAQS

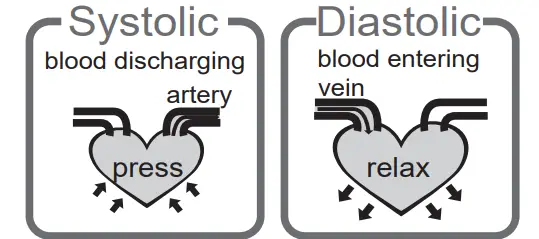

What are systolic pressure and diastolic pressure?

When ventricles contract and pump blood out of the heart, the blood pressure reaches its maximum value in the cycle, which is called systolic pressure. When the ventricles relax, the blood pressure reaches its minimum value in the cycle, which is called diastolic pressure.

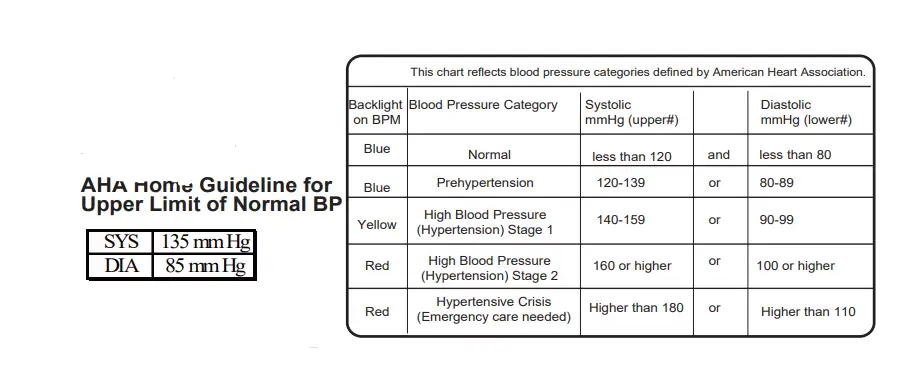

What is the standard blood pressure classification?

The chart on the right is the standard blood pressure classification published by American Heart Association (AHA).

CAUTION
Only a physician can tell your normal BP range. Please contact a physician if your measuring result falls out of the range. Please note that only a physician can tell whether your blood pressure value has reached a dangerous point.

Irregular Heartbeat Detector?

An irregular heartbeat is detected when a heartbeat rhythm varies while the unit is measuring the systolic and diastolic blood pressure.During each measurement, this equipment records the heartbeat intervals and works out the standard deviation.
If the calculated value is larger than or equal to 15,the irregular heartbeat symbol appears on the symbol when the measurement results are displayed.

CAUTION
The appearance of the IHB icon indicates that a pulse irregularity consistent with an irregular heartbeat was detected during measurement. Usually this is NOT a cause for concern. However, if the symbol appears often, we recommend you seek medical advice. Please note that the device does not replace a cardiac examination, but serves to detect pulse irregularities at an early stage.

Why does my blood pressure fluctuate throughout the day?

1. Individual blood pressure varies multiple times everyday. It is also affected by the way you tie your cuff and your measurement position, so please take the measurement under the
   same conditions.
2. If the person takes medicine, the pressure will vary more.
3. Wait at least 3 minutes for another measurement.

Why do I get a different blood pressure at home compared to the hospital?

The blood pressure is different even throughout the day due to weather, emotion, exercise etc, Also, there is the “white coat” effect, which means blood pressure usually increases in clinical settings.

Is the result the same if measuring on the right arm?

It is ok for both arms, but there will be some different results for different people. We suggest you measure the same arm every time.

What you need to pay attention to when you measure your blood pressure at home?

If the cuff is tied properly. If the cuff is too tight or too loose. If the cuff is tied on the upper arm. If you feel anxious.
Taking 2-3 deep breaths before beginning will be better for measuring. Advice: Relax for 4-5 minutes until you calm down.

Can I measure by myself or do I need help to complete the measurement?
